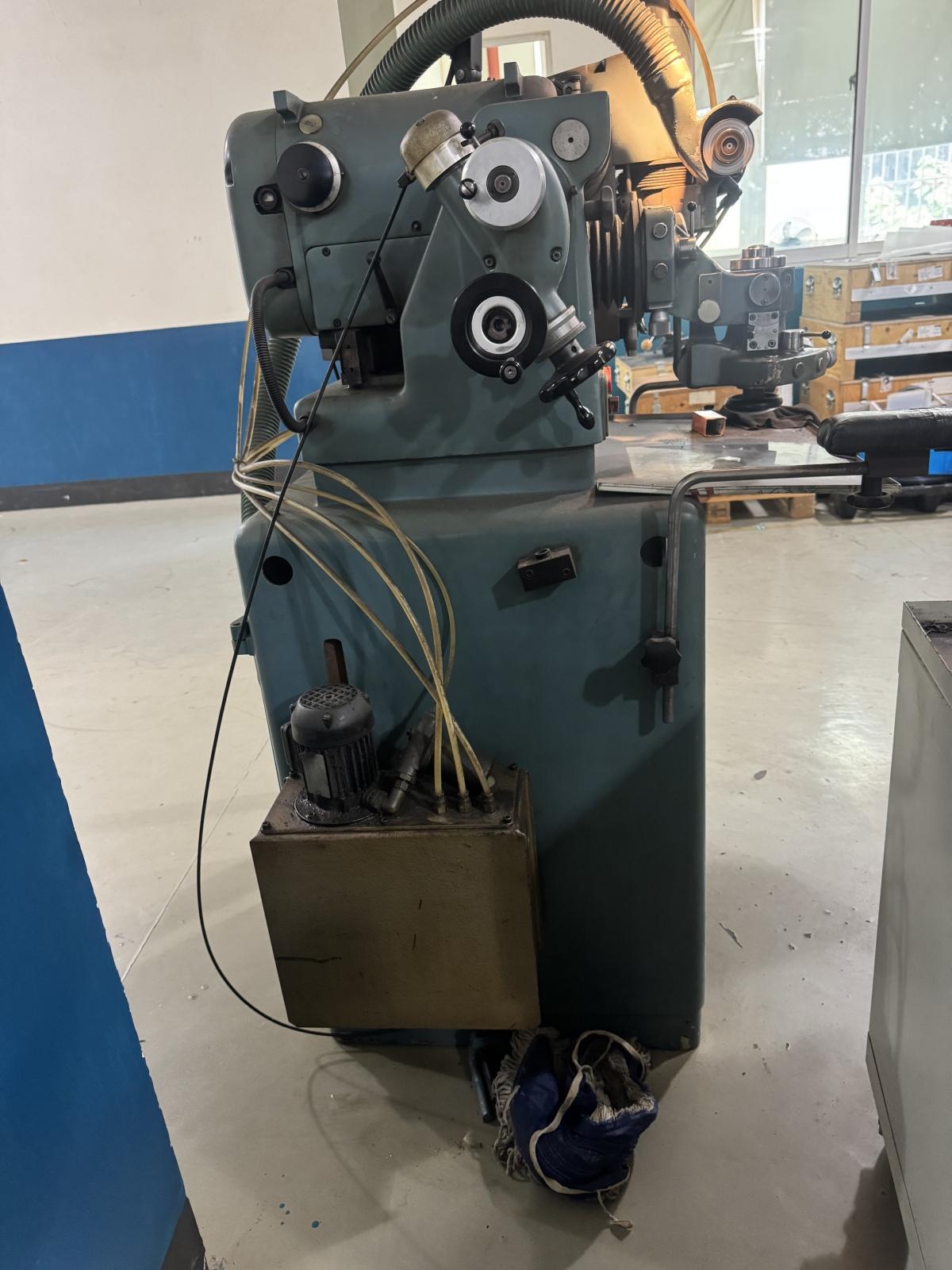

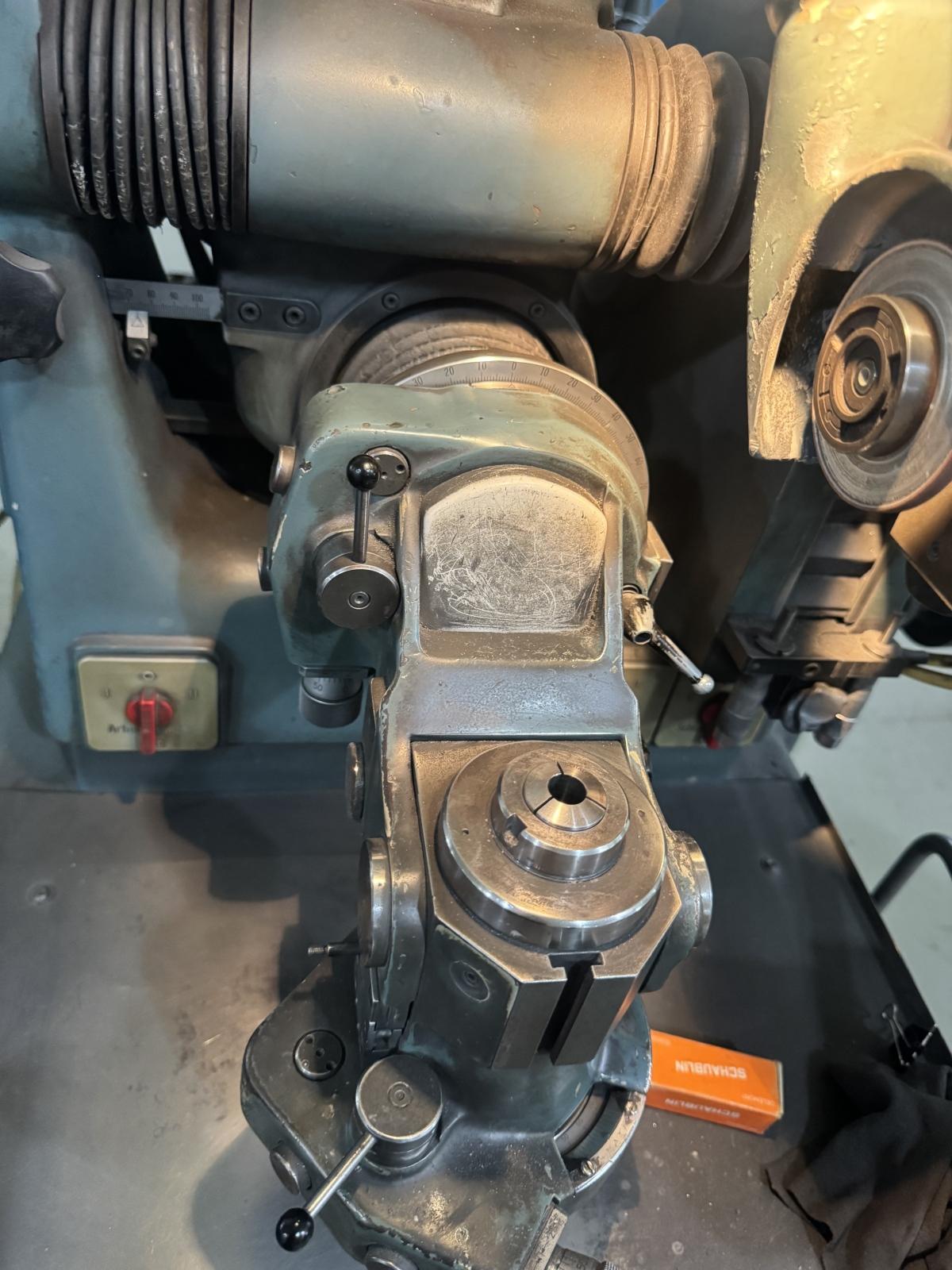

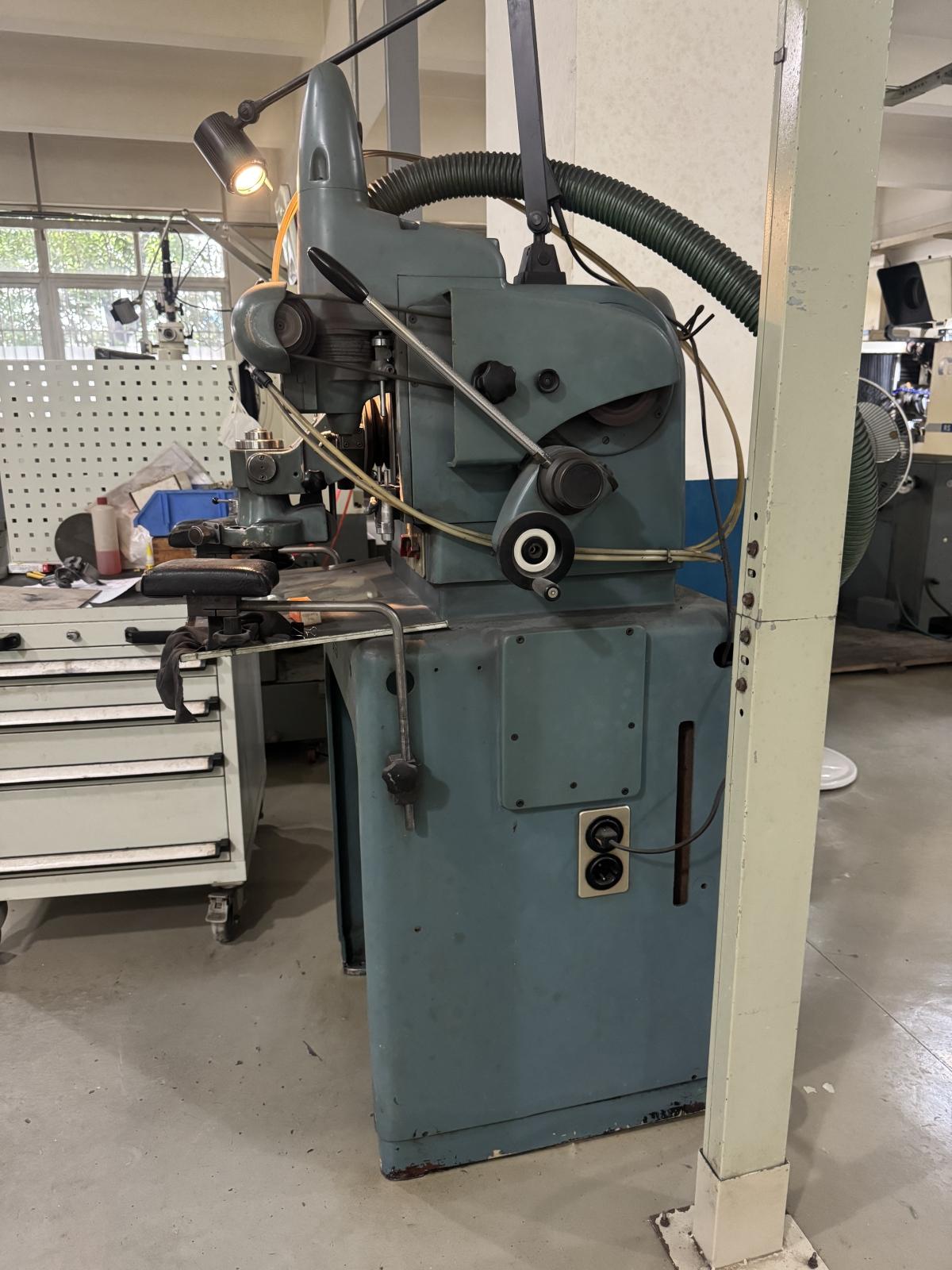

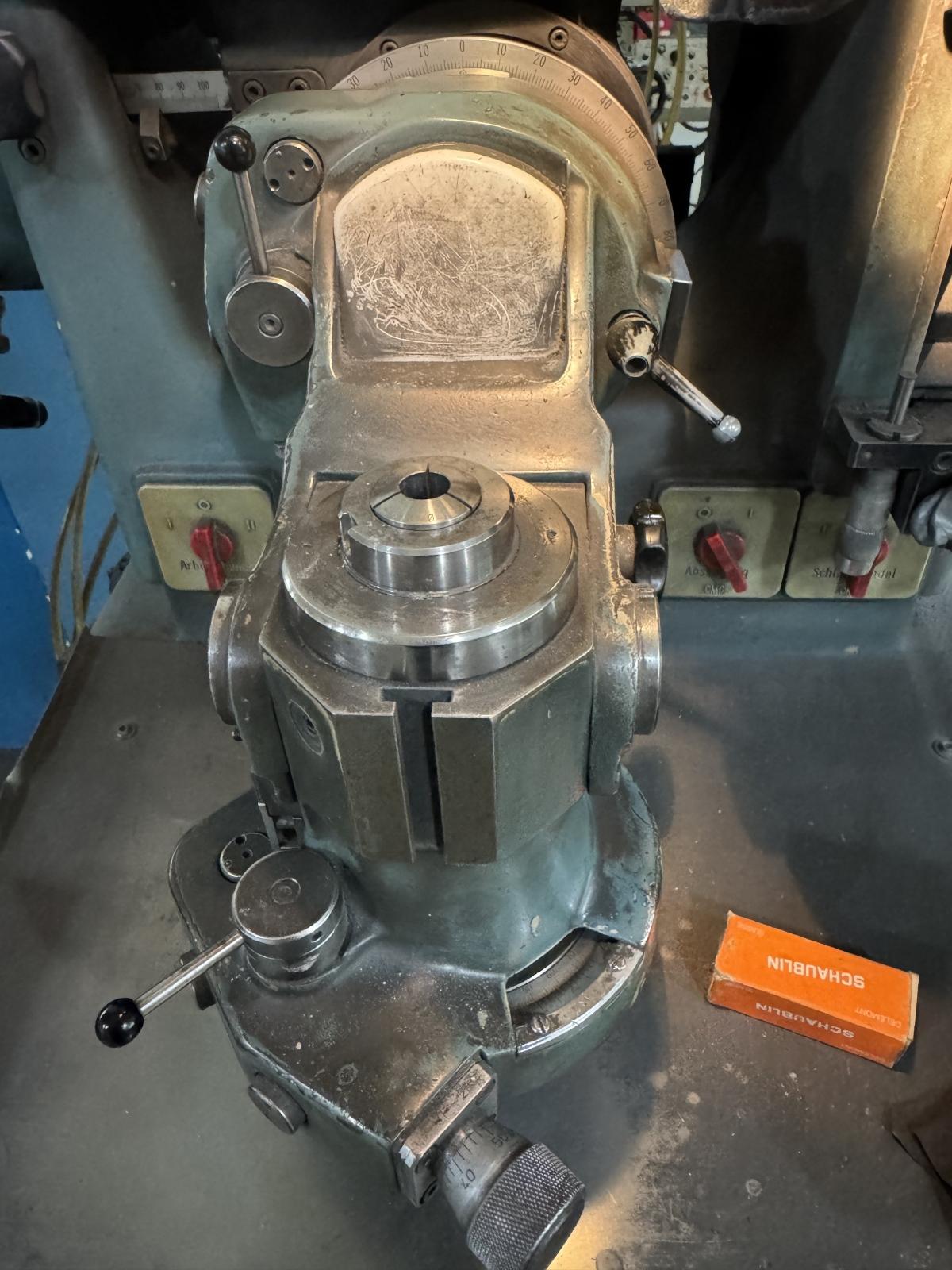

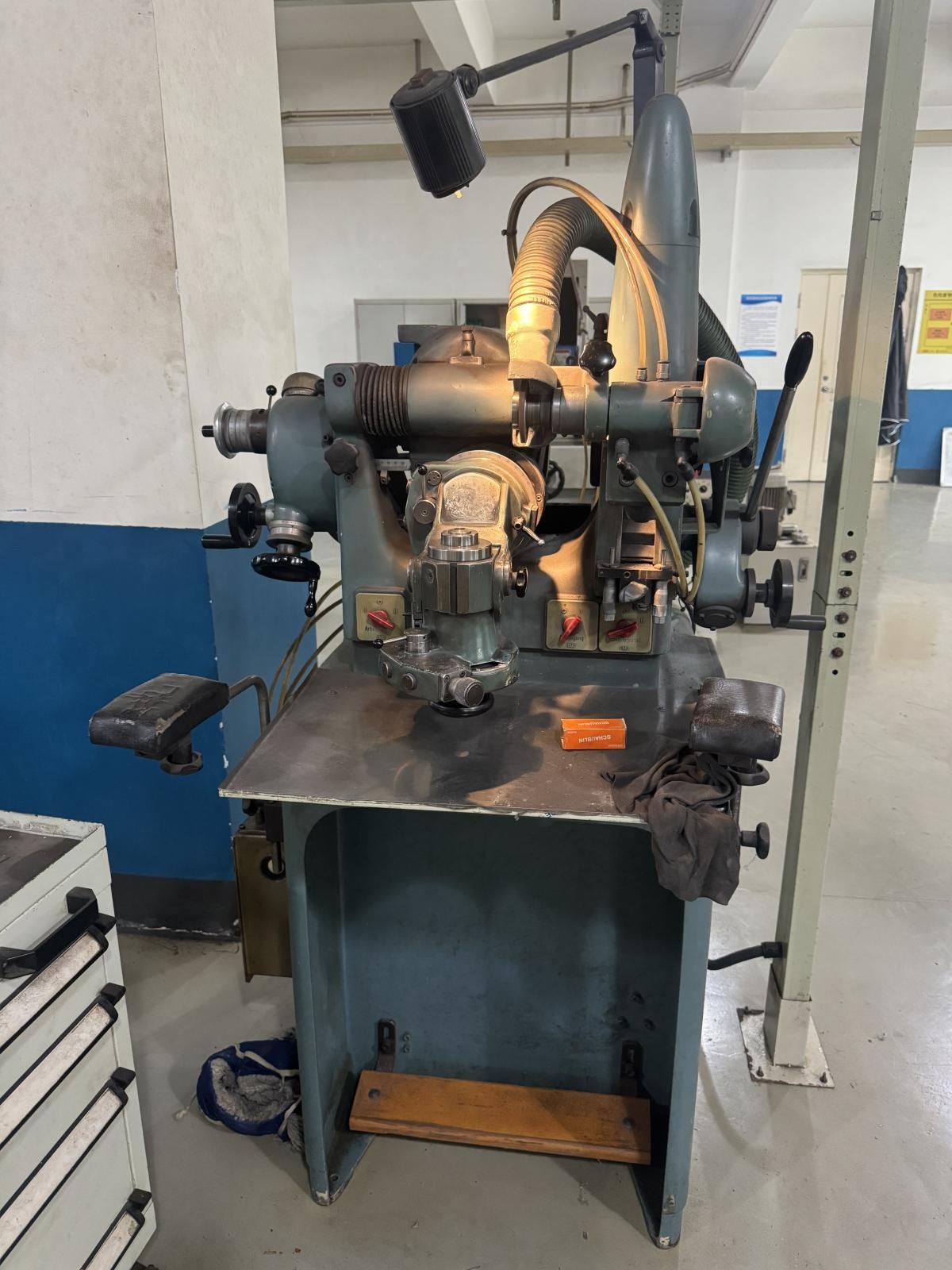

EWAG WS11 Tool grinder

Motor Power: 0.3 kW
Max. Tool Diameter: 25 mm
X-Axis Travel: 100 mm
Y-Axis Travel: 100 mm
Z-Axis Travel: 100 mm
Speed Range: 100 – 1000 rpm
Feed Operation: 4E (Z-axis)
Cross Feed Drive: 4Q-M (X-axis)
Grinding Stroke Drive: 3H (Y-axis)
Workpiece Spindle A-Axis Adjustment: -135° / +30°
Workpiece Spindle Tilt Angle: ±15°
Workpiece Spindle Speed: 100 – 1300 rpm
Workpiece Spindle Power: 0.25 kW
Indexing Accuracy: 2 min
Overall dimensions: 850 × 900 × 1550 mm
Machine weight: 750 kg
