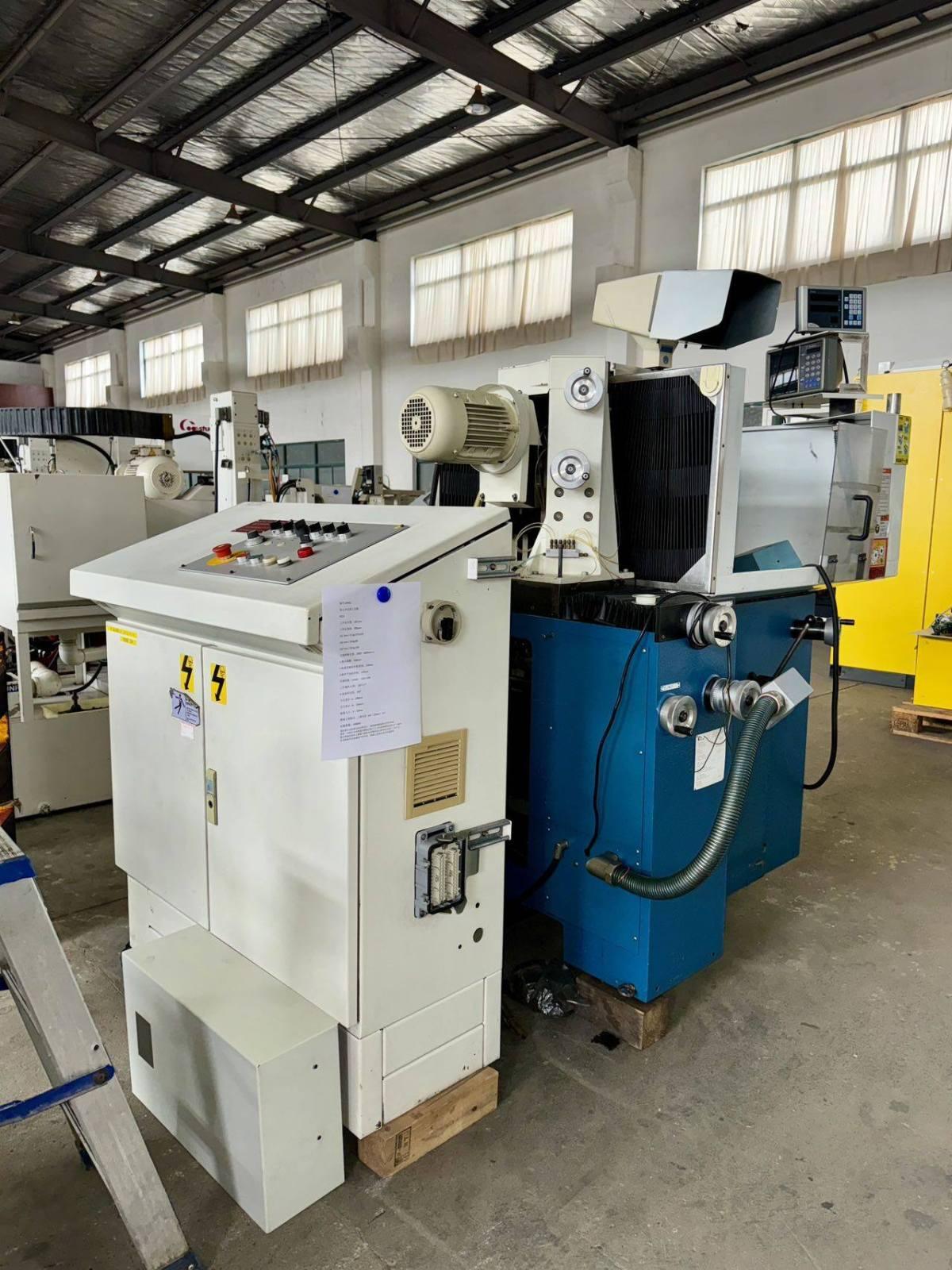

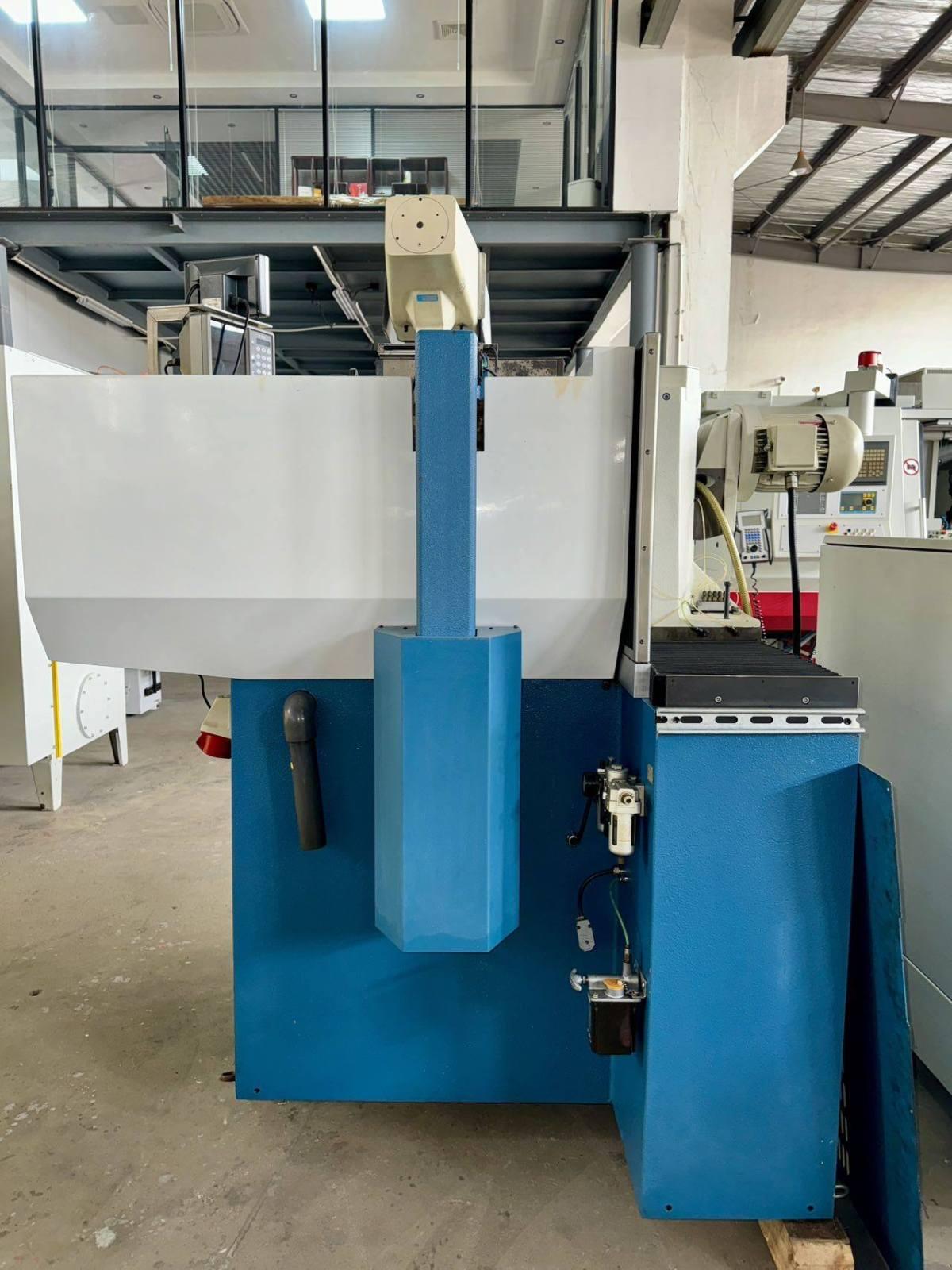

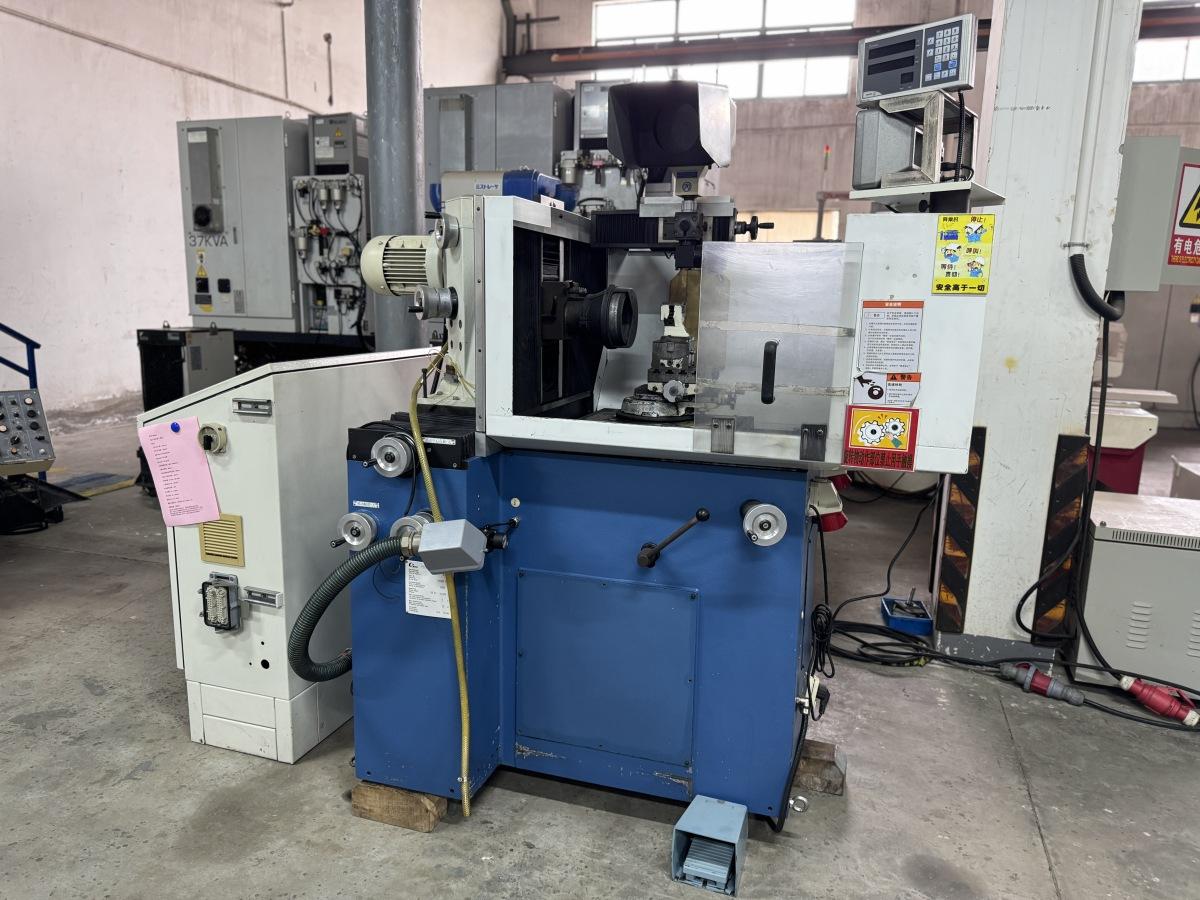

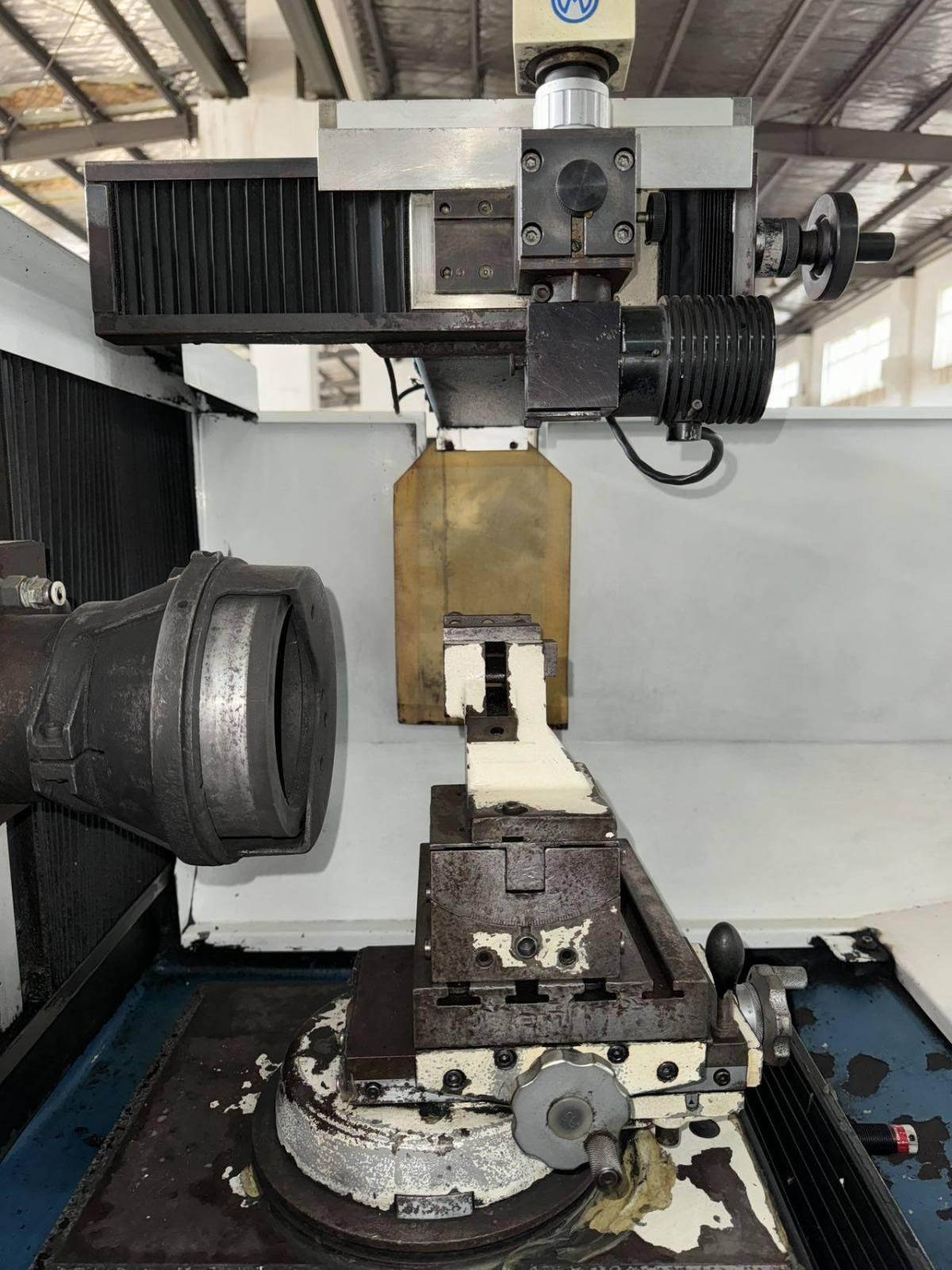

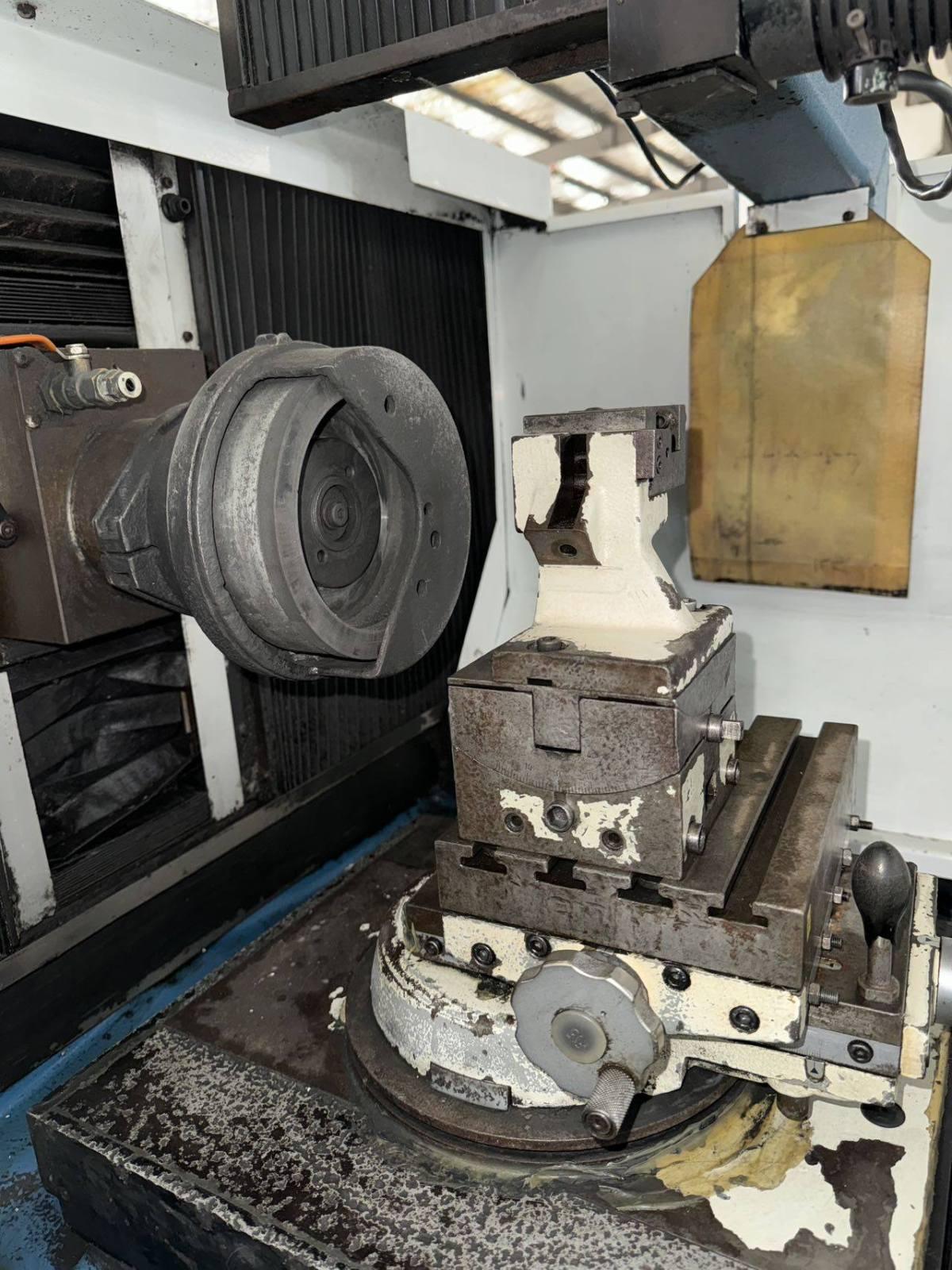

EWAG RS15 Tool grinder

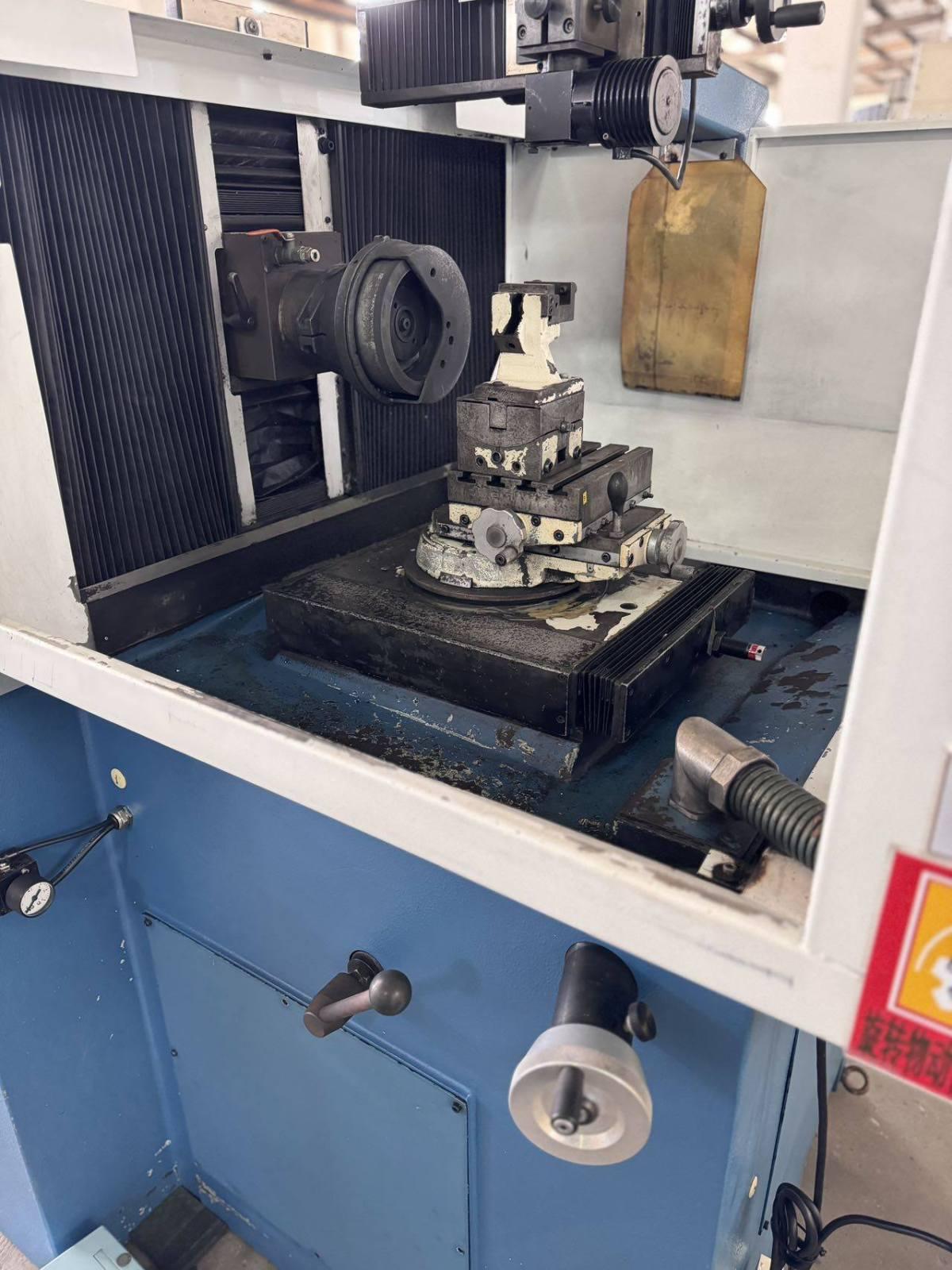

WorkTable size: 155 × 205 mm
Load capacity:
102 mm / 25 kg: 60
102 mm / 25 kg: 130
Spindle speed: 1,000–6,000 rpm
X-axis lateral adjustment: 490 mm
Y-axis vertical grinding stroke (linear): 130 mm
Z-axis horizontal feed stroke: 120 mm
Variable speed range: 100–1,300 rpm
A-axis workpiece tilt angle: -10° to +27°
B-axis rotation range: 240°
Cross slide:
U-axis travel: 100 mm
W-axis travel: 100 mm
Oscillation stroke: 0–70 mm
Grinding spindle motor power: 2.2 kW (three-phase)
Machine weight: 1,800 kg
Machine dimensions: 1630 × 1250 × 1900 mm
Power supply: Three-phase 200V
