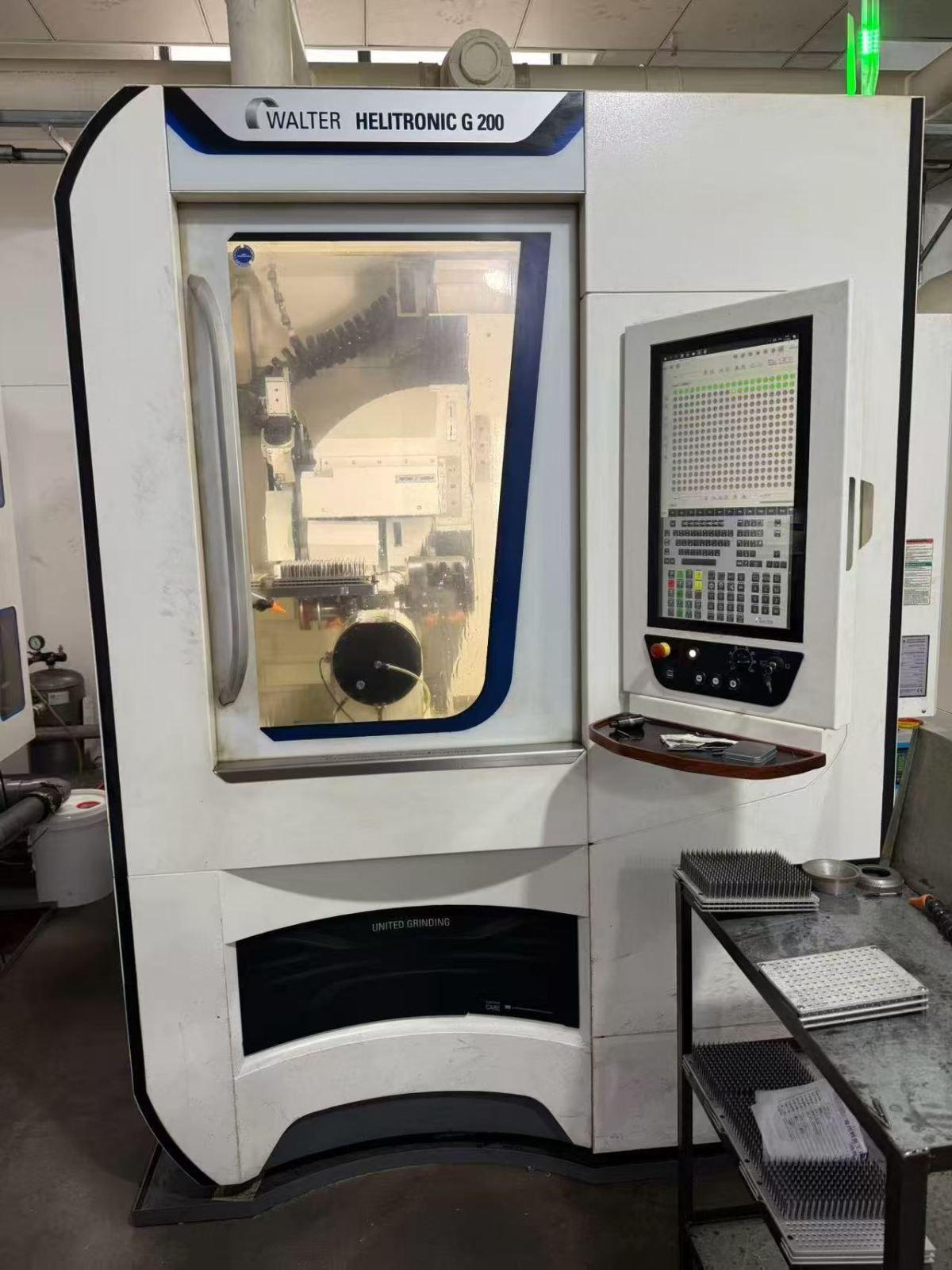

Walter HELITRONIC G 200 Tool grinder

Three-axis travel (X/Y/Z): 305 × 218 × 475 mm
Three-axis rapid traverse speed: 15,000 × 15,000 × 15,000 mm/min
C-axis rotation range: ±200° / -110°
A-axis: Continuous rotation at any angle
Linear resolution: 0.0001 mm
Radial resolution: 0.0001°
Machining Capacity
Minimum tool diameter (production/regrinding): 1 mm / 3 mm
Maximum tool diameter (production/regrinding): 16 mm / 125 mm
Maximum workpiece length for cylindrical grinding: 235 mm
Maximum workpiece length for face grinding: 195 mm
Maximum workpiece weight: 12 kg
Spindle System
Spindle diameter: 80 mm
Tool fixture: HSK 50
Drive mode: Belt-driven, double-ended spindle
Speed range: 0–10,500 rpm
Maximum power: 9 kW
Grinding wheel configuration: Up to 3 grinding wheels can be installed on each spindle end
Maximum grinding wheel diameter: 150 mm
Machine Structure
Bed design: C-shaped mineral casting bed
Features: High vibration damping performance and excellent thermal stability
Overall weight: Approx. 3,900 kg
Floor space: ≤2.3 m²
