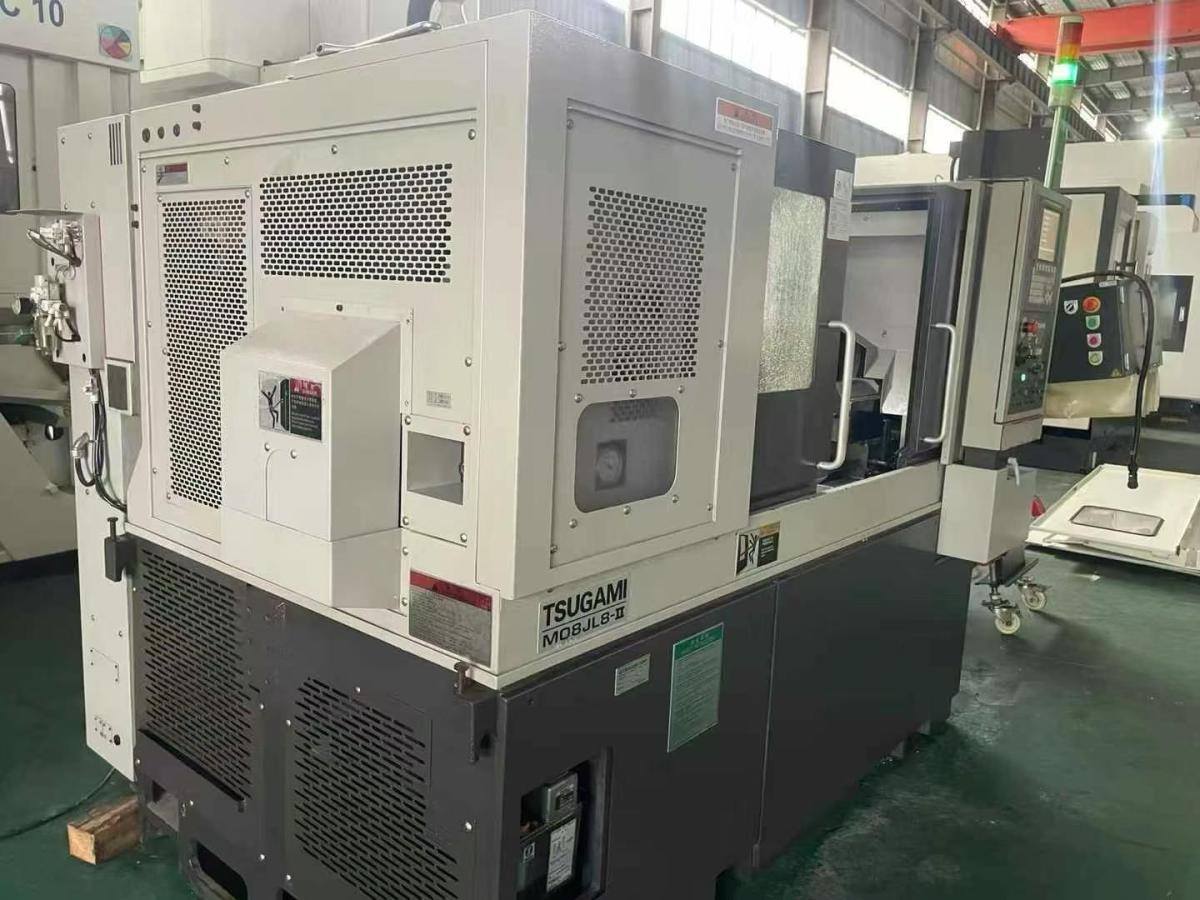

Tsugami MO8JL8-II CNC turning lathe

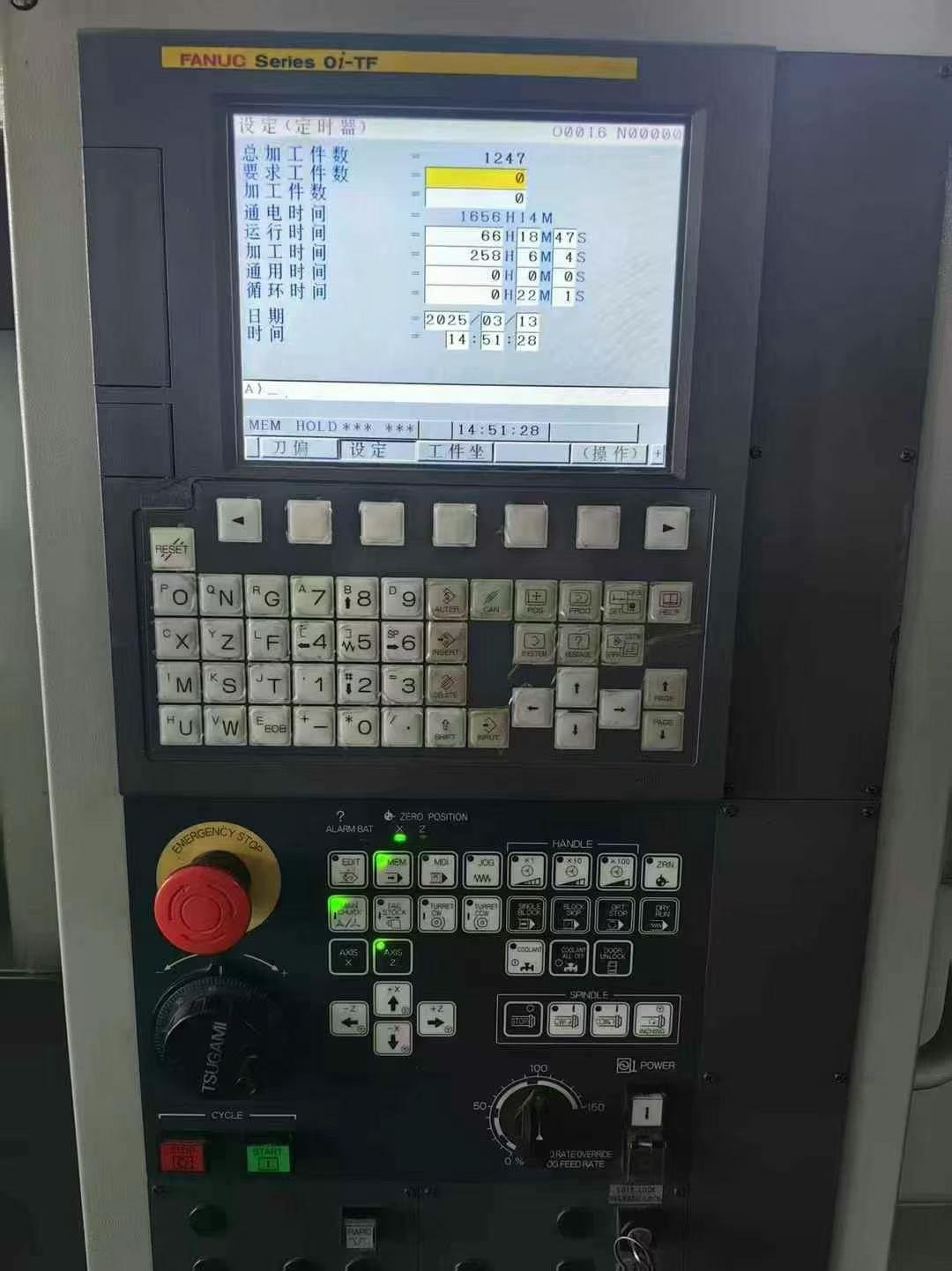

CNC System: FANUC
Maximum machining diameter: φ280 mm
Maximum machining length: 800 mm
Chuck size: 8 inches
Maximum spindle speed: 5000 rpm
Spindle through hole diameter: φ73 mm
External diameter tool holder: 25 mm
Hole diameter of the drilling seat: φ40 mm
Spindle motor power: 11/18.5 kW
X/Z-axis travel: 160/860 mm
X/Z-axis fast moving rate: 24/27 m/min
Machine dimensions: 2510×1640×1690 mm
Weight: 4,200 kg
Machining time: several hundred hours
