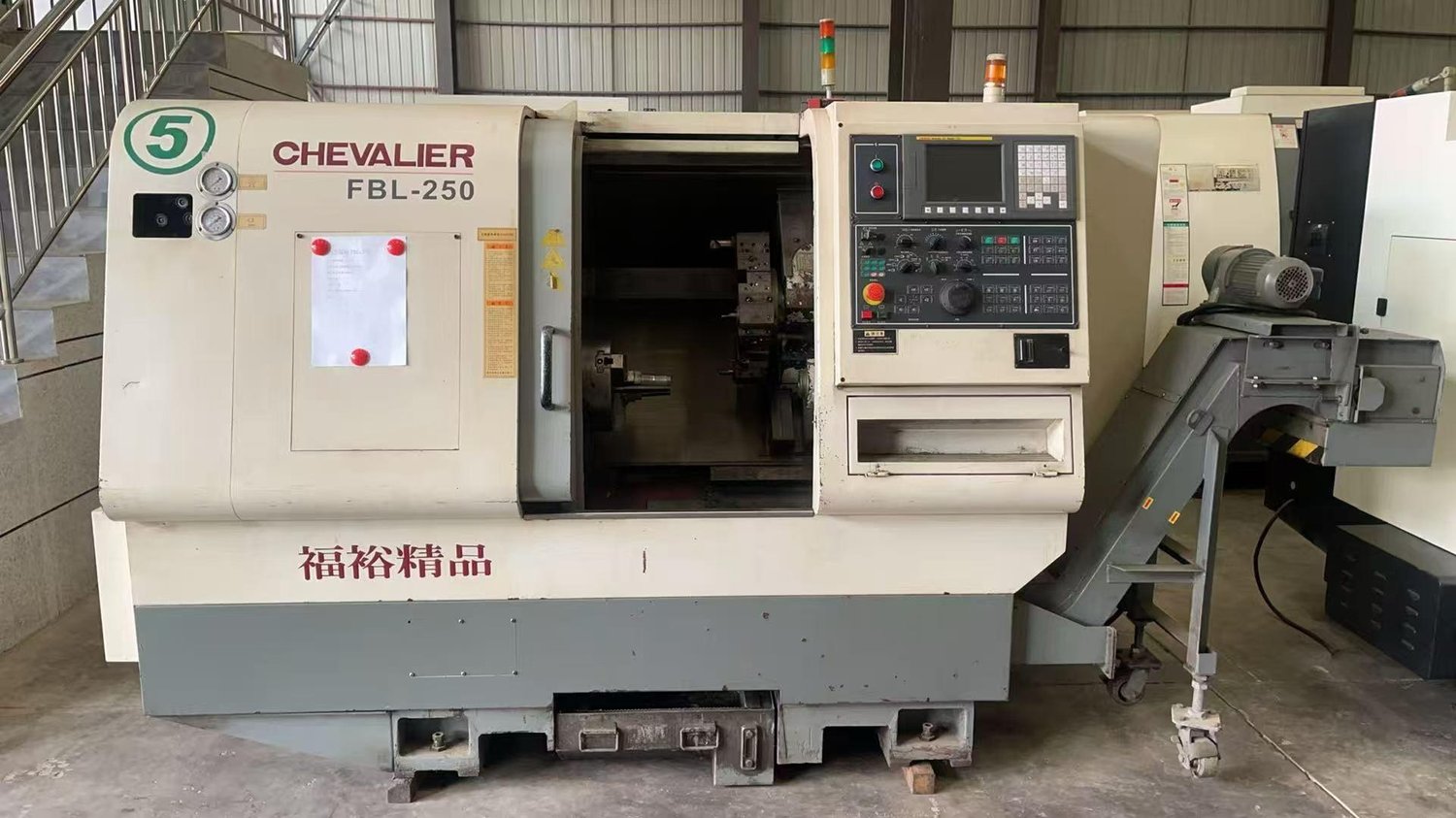

Chevalier FBL-250 CNC turning lathe
[Product Information]:
- Inventory number：67518
- Brand：Chevalier
- Model：FBL-250
- Origin：Taiwan, China
- Location：China
- Year：2012
- Create Time：2026-04-17
Specifications:

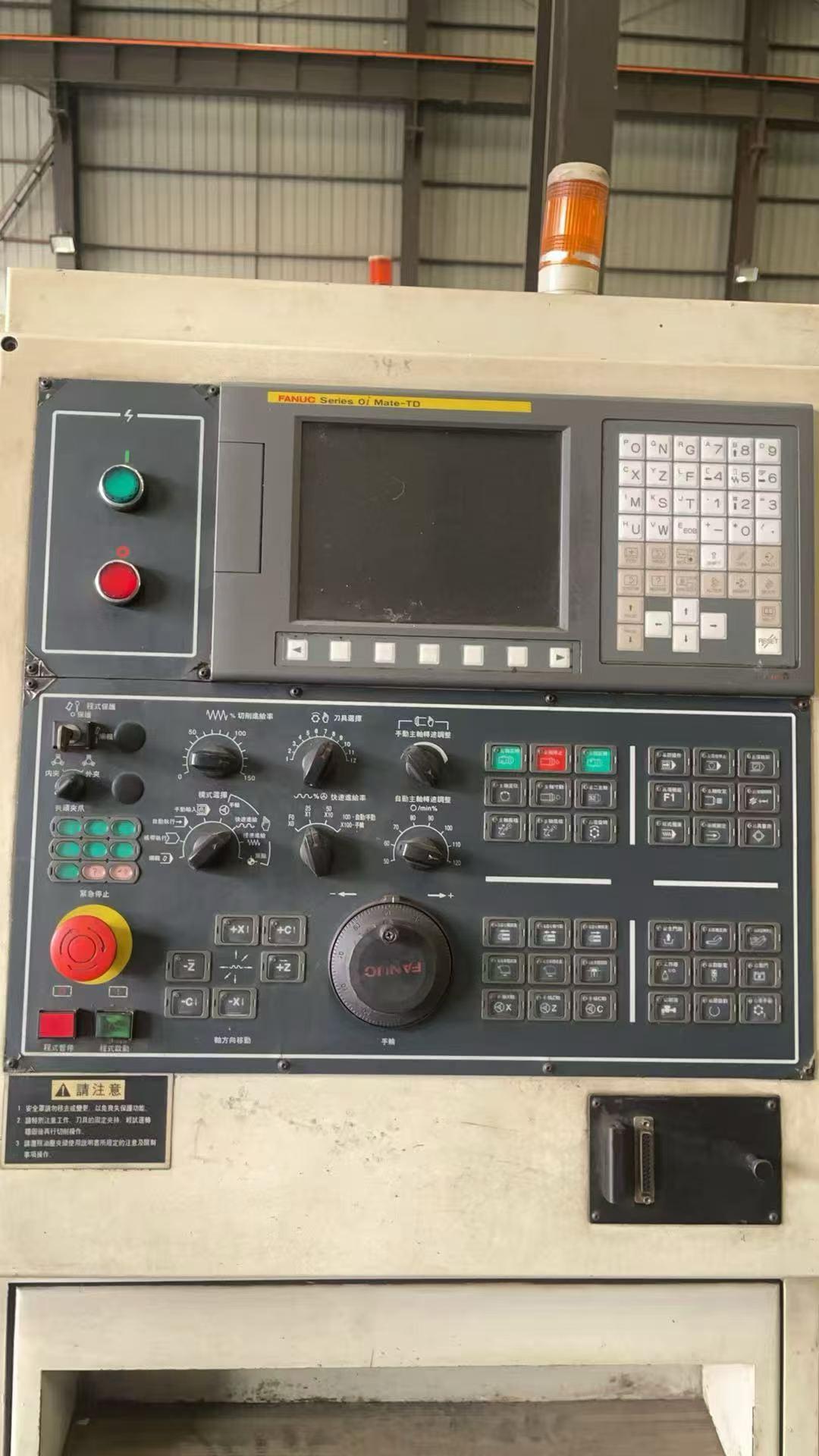

CNC System: FANUC Oi Mate-TD
The maximum rotation diameter of the bed: φ500mm
Maximum turning diameter: φ350mm
Maximum Machining length: 500mm
spindle through hole diameter: φ65mm

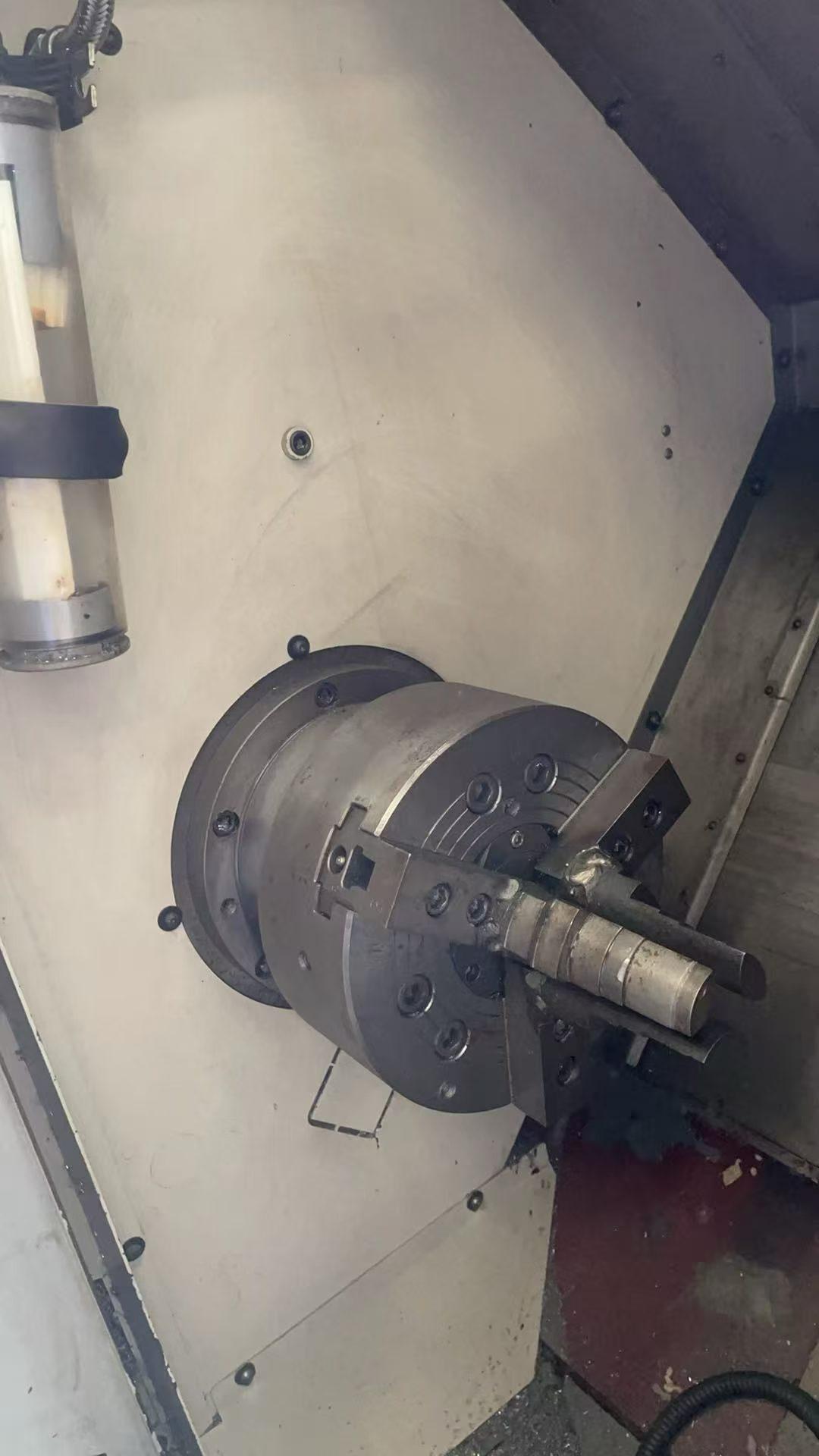

chuck : 8 inches
The maximum machining diameter of bar stock: φ52mm
The maximum distance between spindle and the tailstock is: 650mm
spindle motor power: 11/15 KW
Spindle speed: 3500rpm
X-axis travel: 250mm
Z-axis travel: 500mm

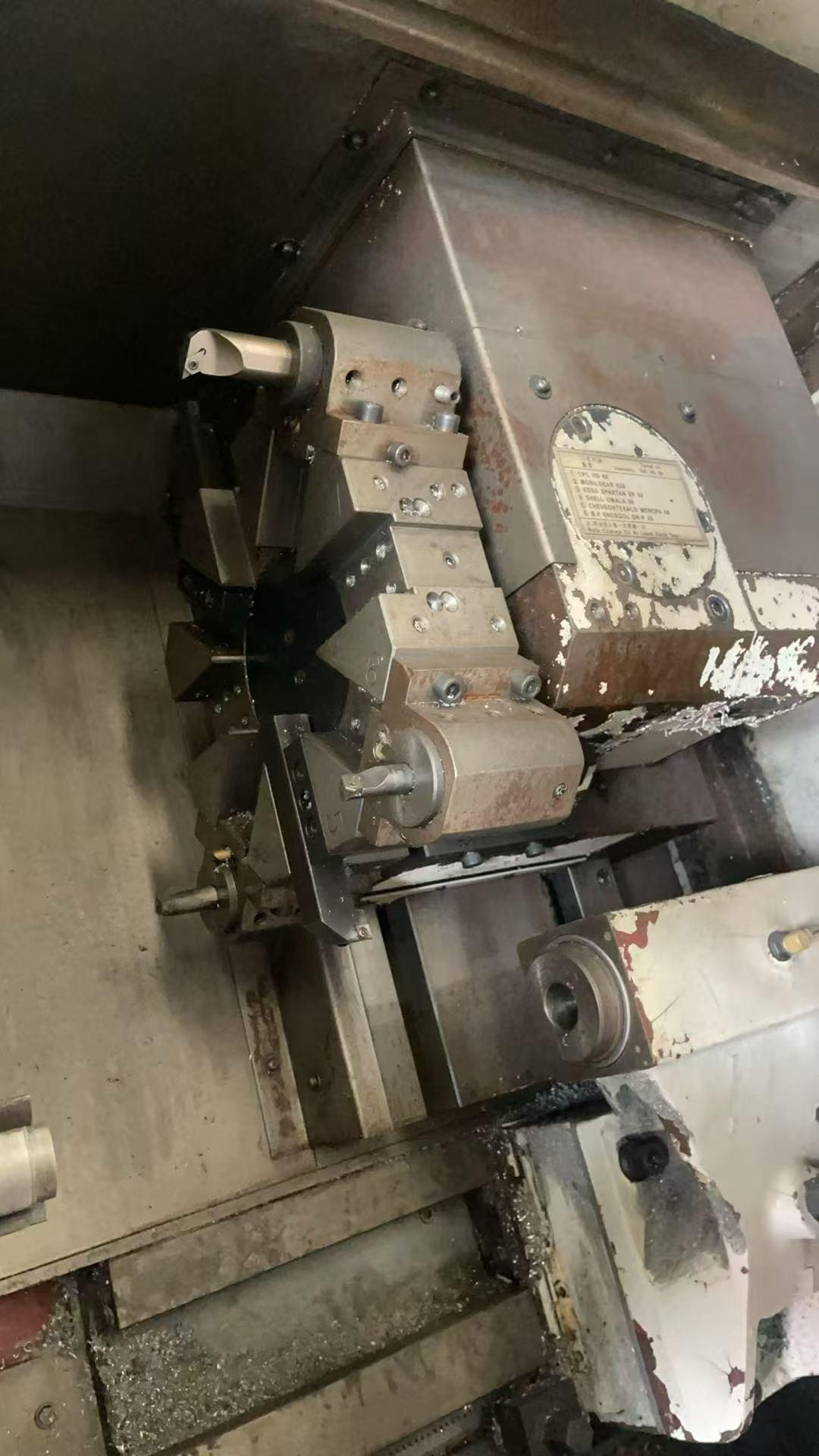

Tool turret form: 8-station hydraulic servo tool turret
