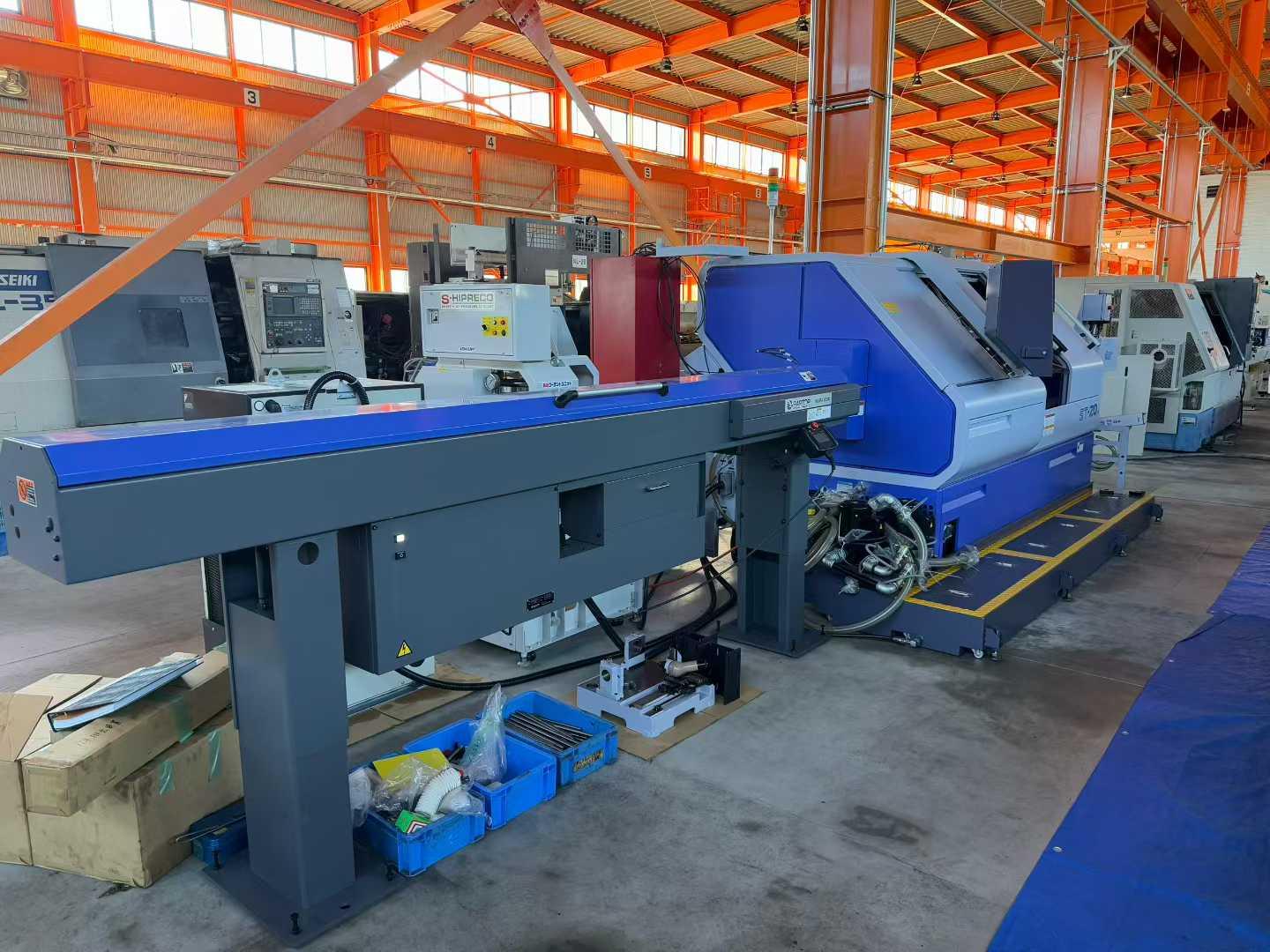

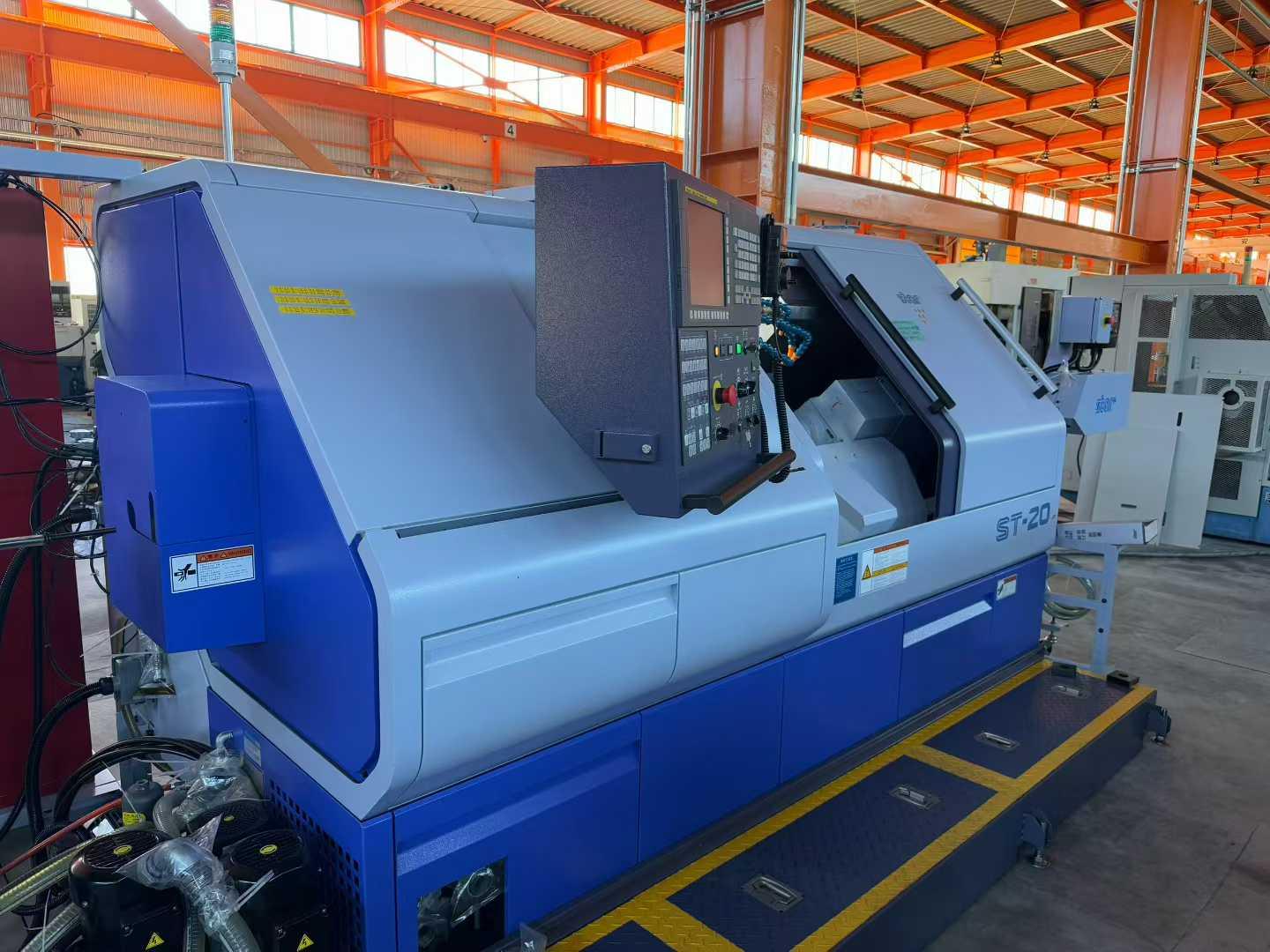

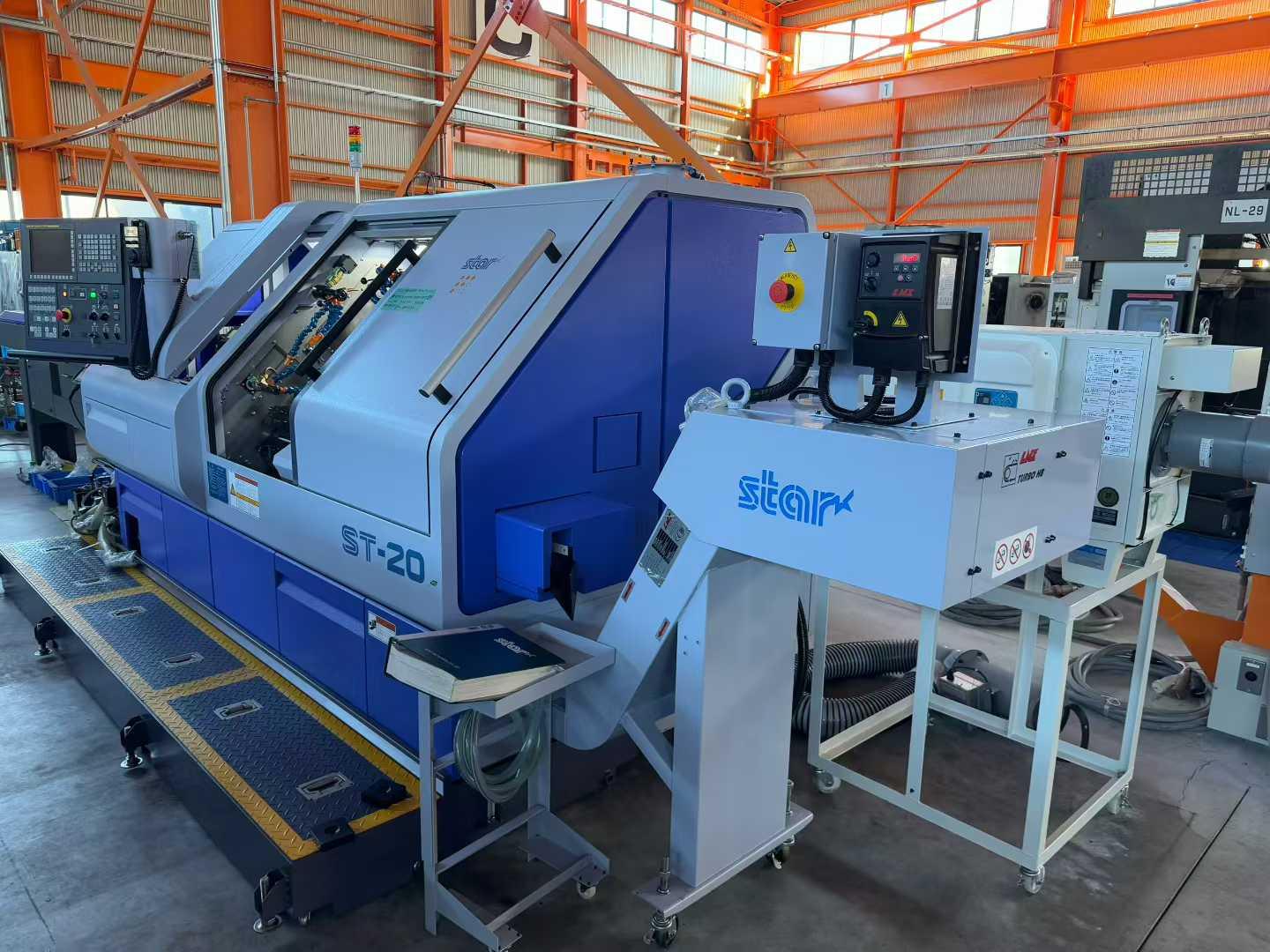

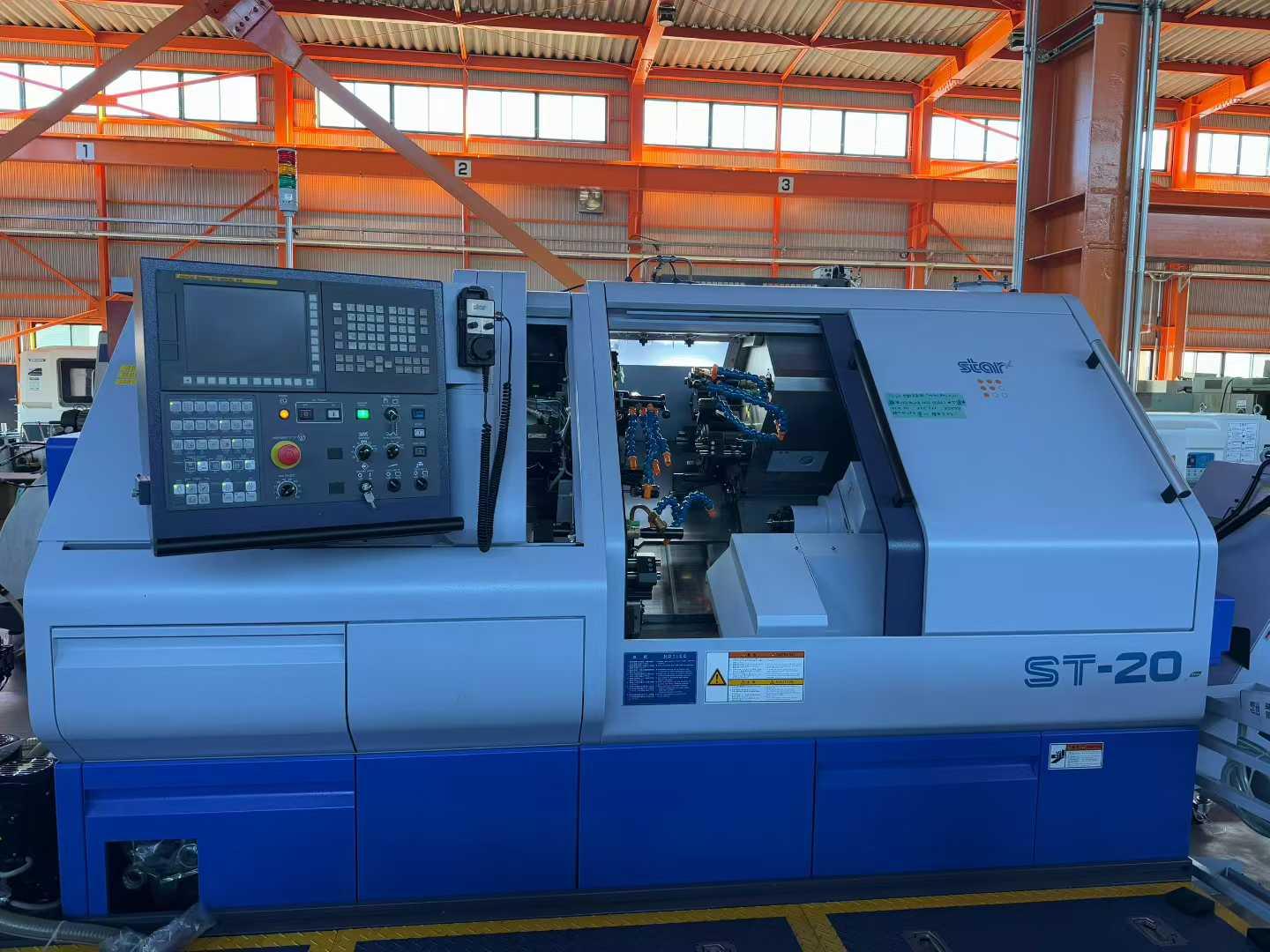

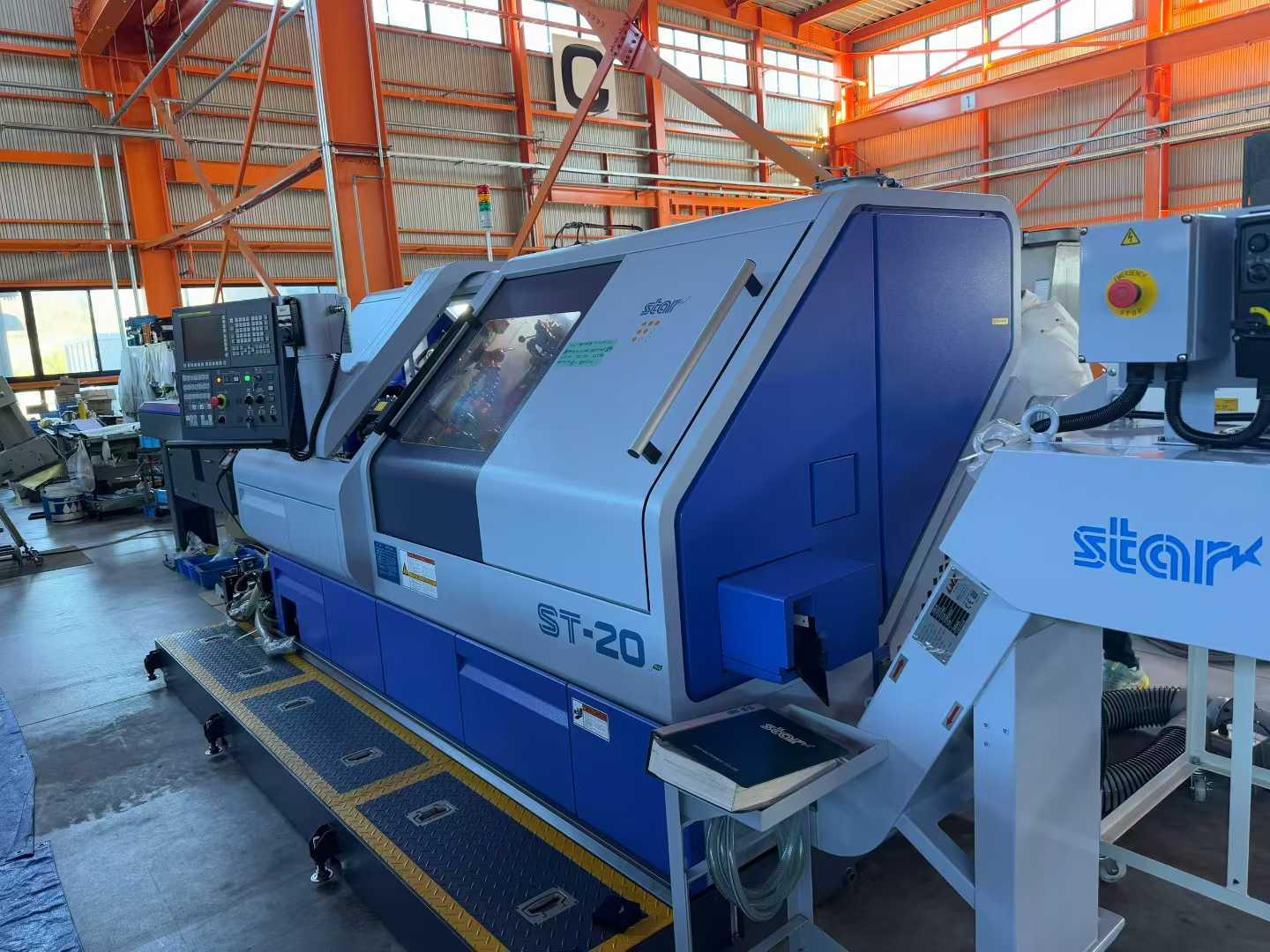

STAR ST-20 CNC turning lathe

Maximum clamping external diameter: φ 20mm
Maximum length of workpiece to be clamped: 150mm
Maximum workpiece protrusion: 75mm
Maximum machining diameter: φ 20mm
Maximum spindle worktable travel:
Standard: 350mm
Specification of the rotary reducer guide sleeve: 317mm
Maximum drilling capacity:
Fixed Tool: φ 14mm
Power Tool: φ 10mm
Maximum cutting and tapping capacity:
Fixed Tool: M12xP1.75
Power Tool: M8xP1.25
Maximum milling capacity: φ 10mm (Fixed Tool)
Maximum slotting capacity (width x depth): 2 x 6mm (Power Tool)
Spindle speed: 10,000 rpm
Spindle indexing: C-axis control
