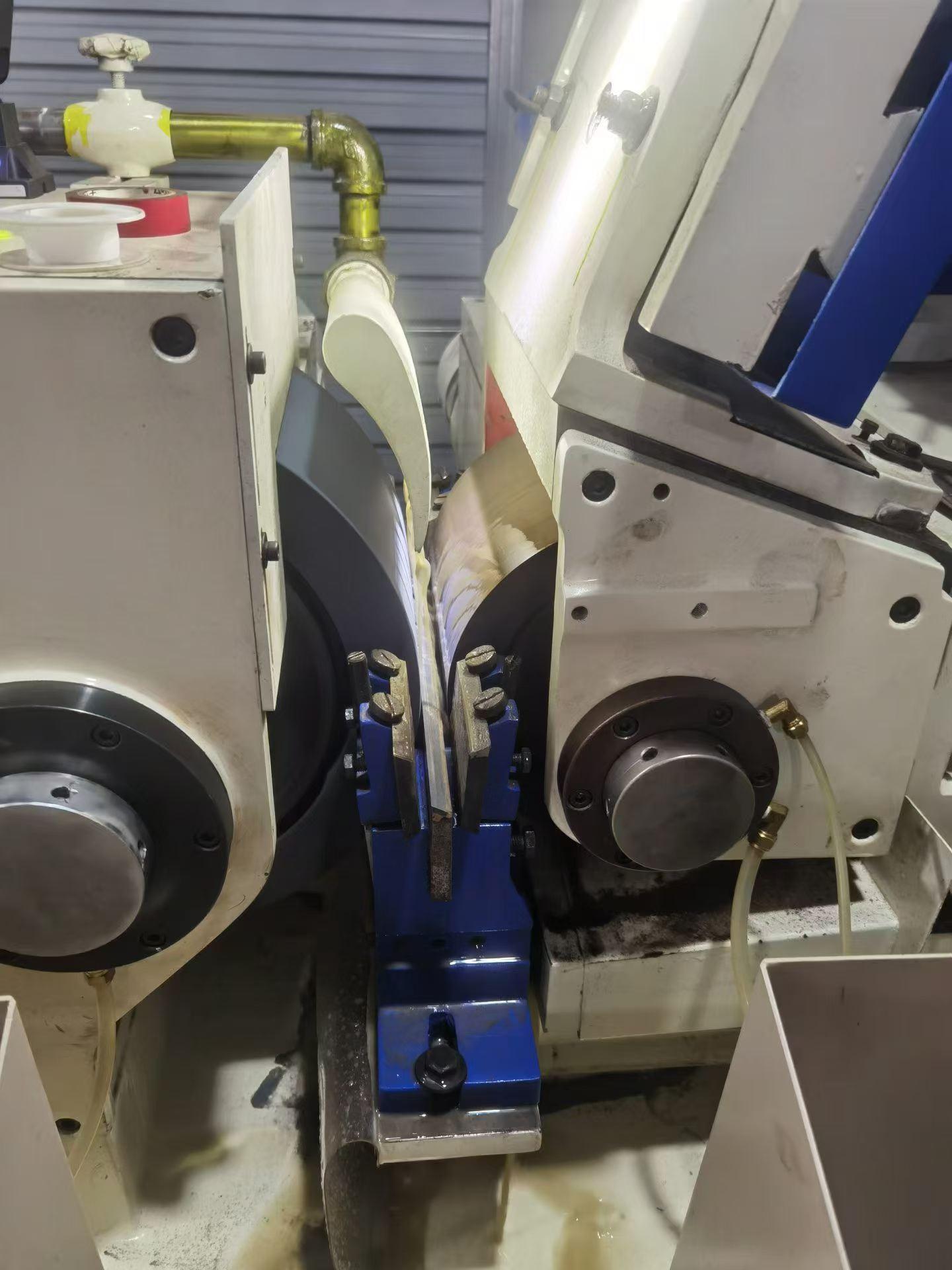

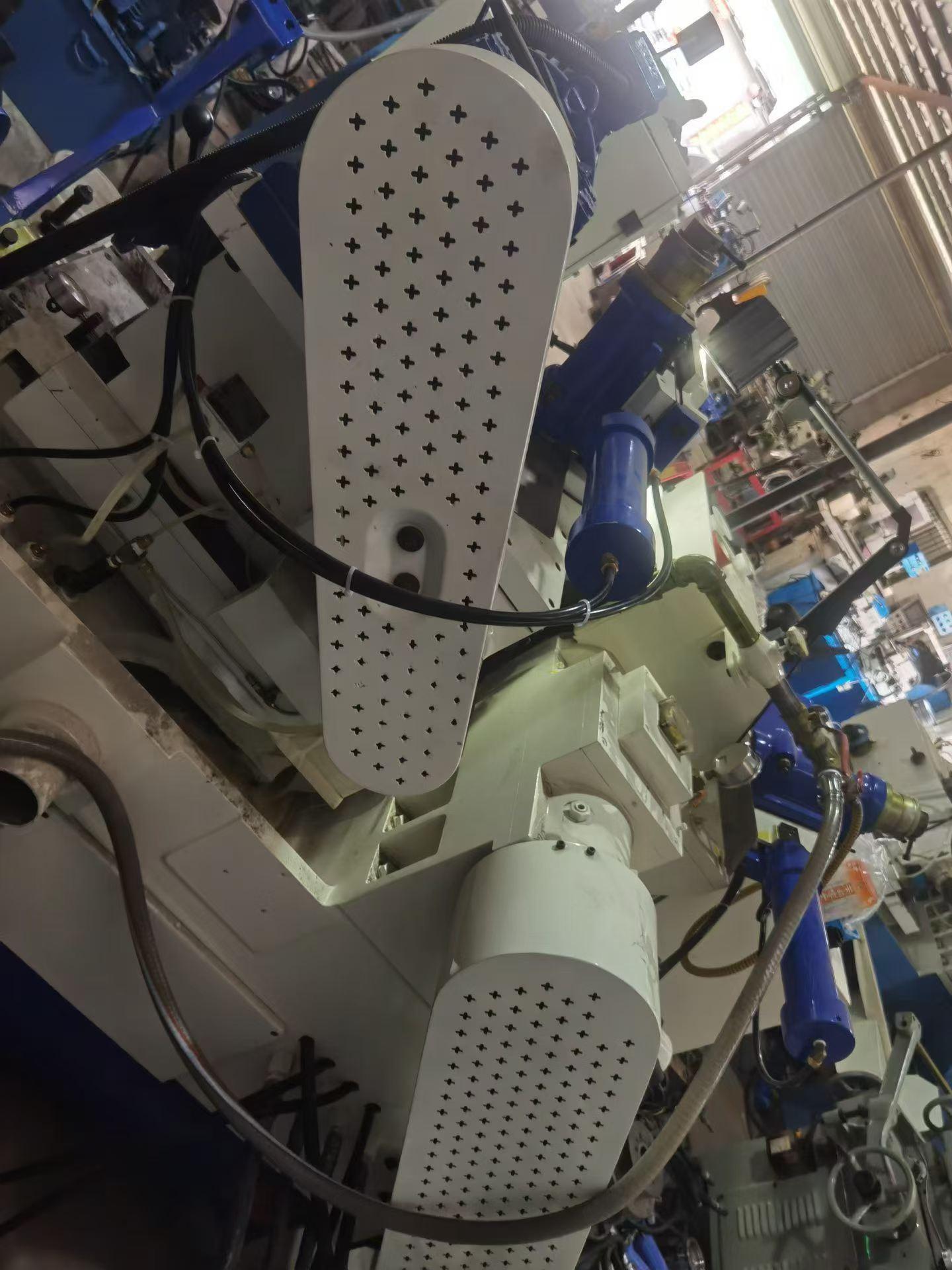

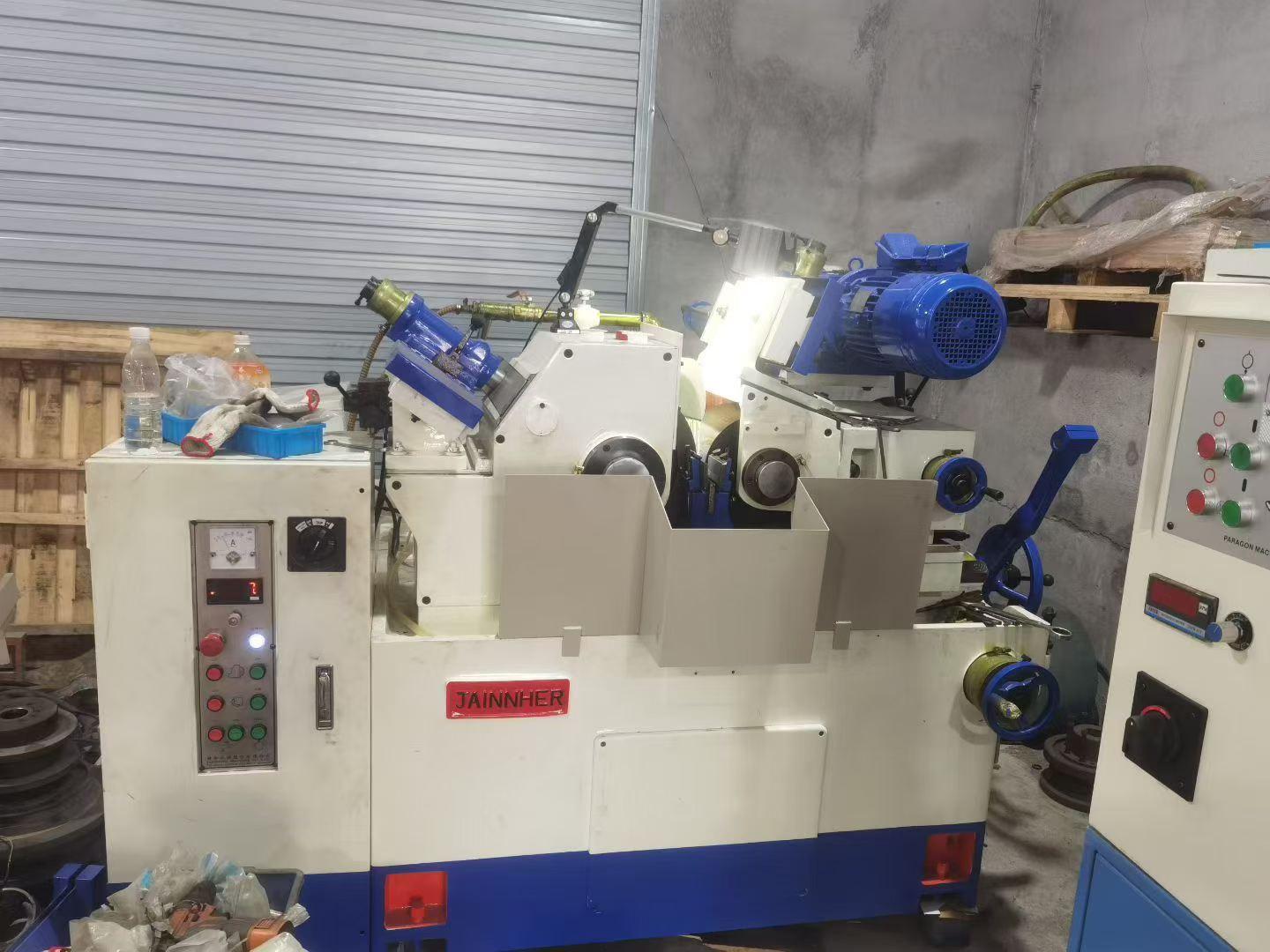

JAINNHER JHC-18S Centreless grinding machine

Standard workpiece diameter: Ø1 to Ø50 mm
grinding wheel speed: 1500 rpm
grinding wheel motor: 15 HP (approximately 11kW)
Guide wheel Footage: Ø255 × 205 × Ø 111.2mm
Guide wheel speed: 10 to 250 rpm
Guide wheel inclination Angle: +5° to -3°
Guide wheel rotation Angle: ±5°
Gross weight of machine tool: 3100 kg
Overall Footage: 2300x1940x1530mm
