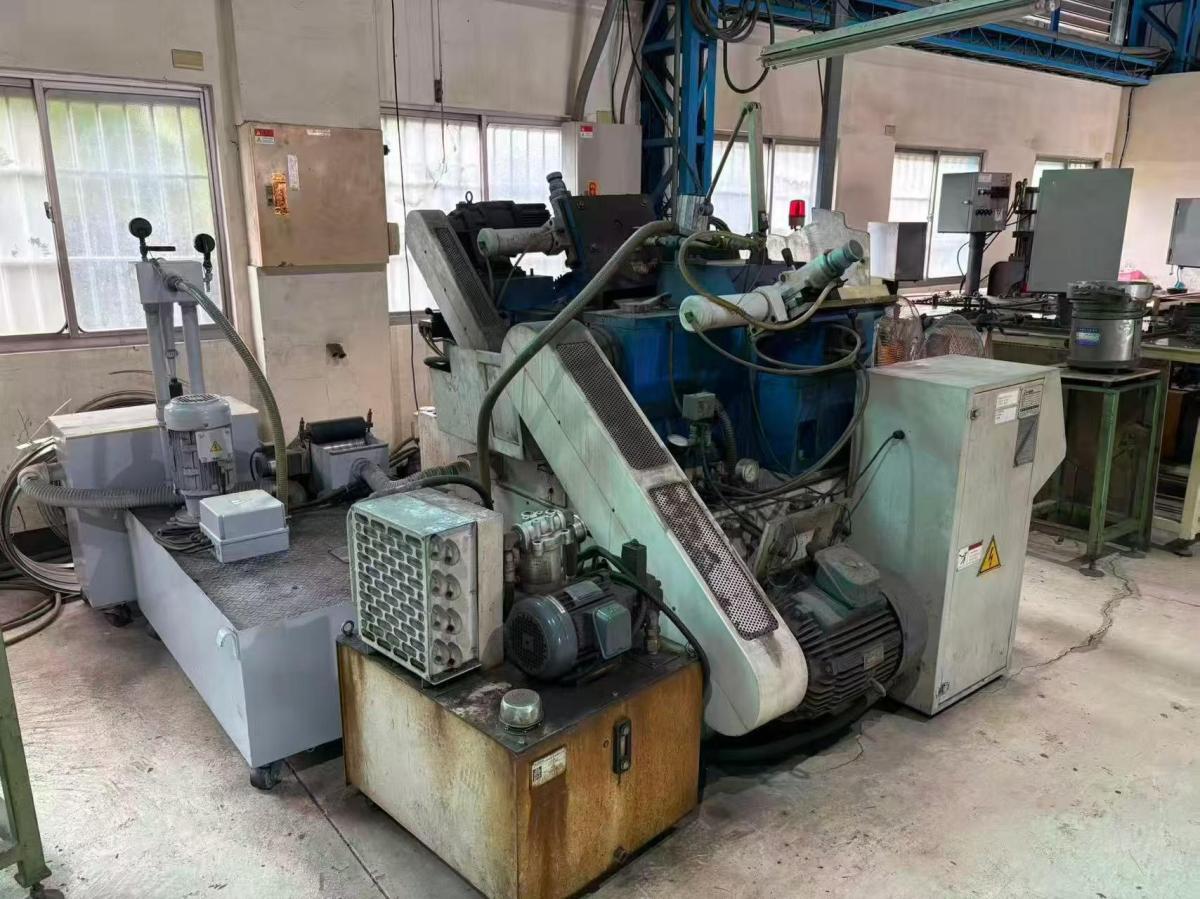

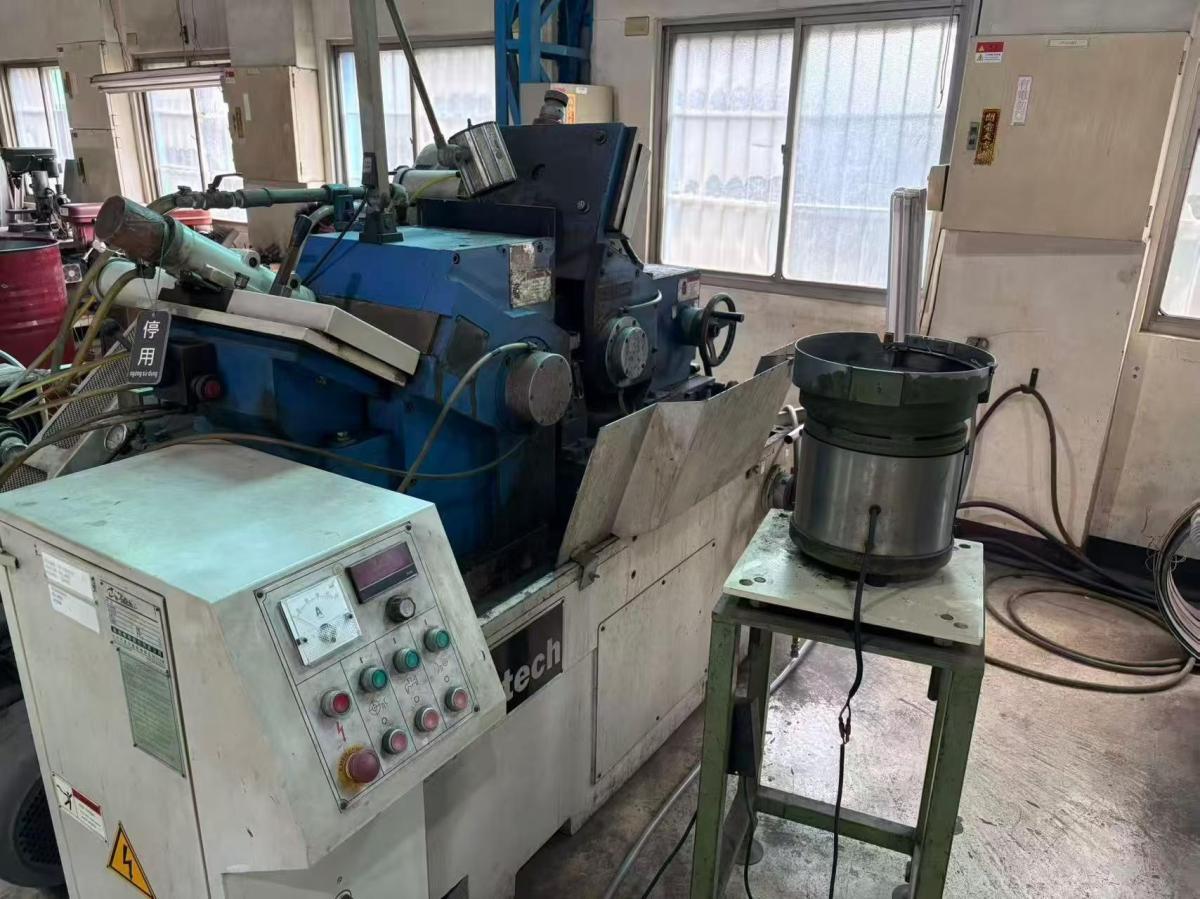

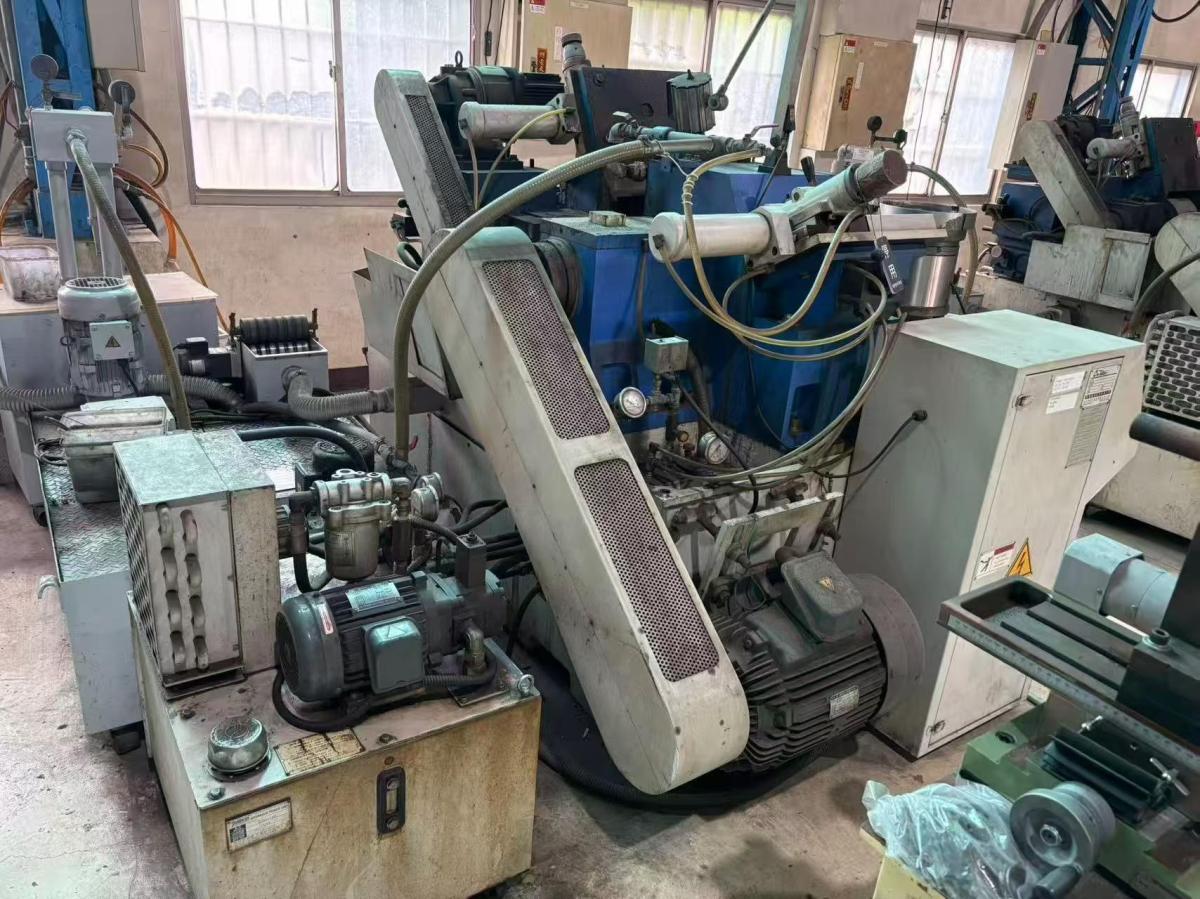

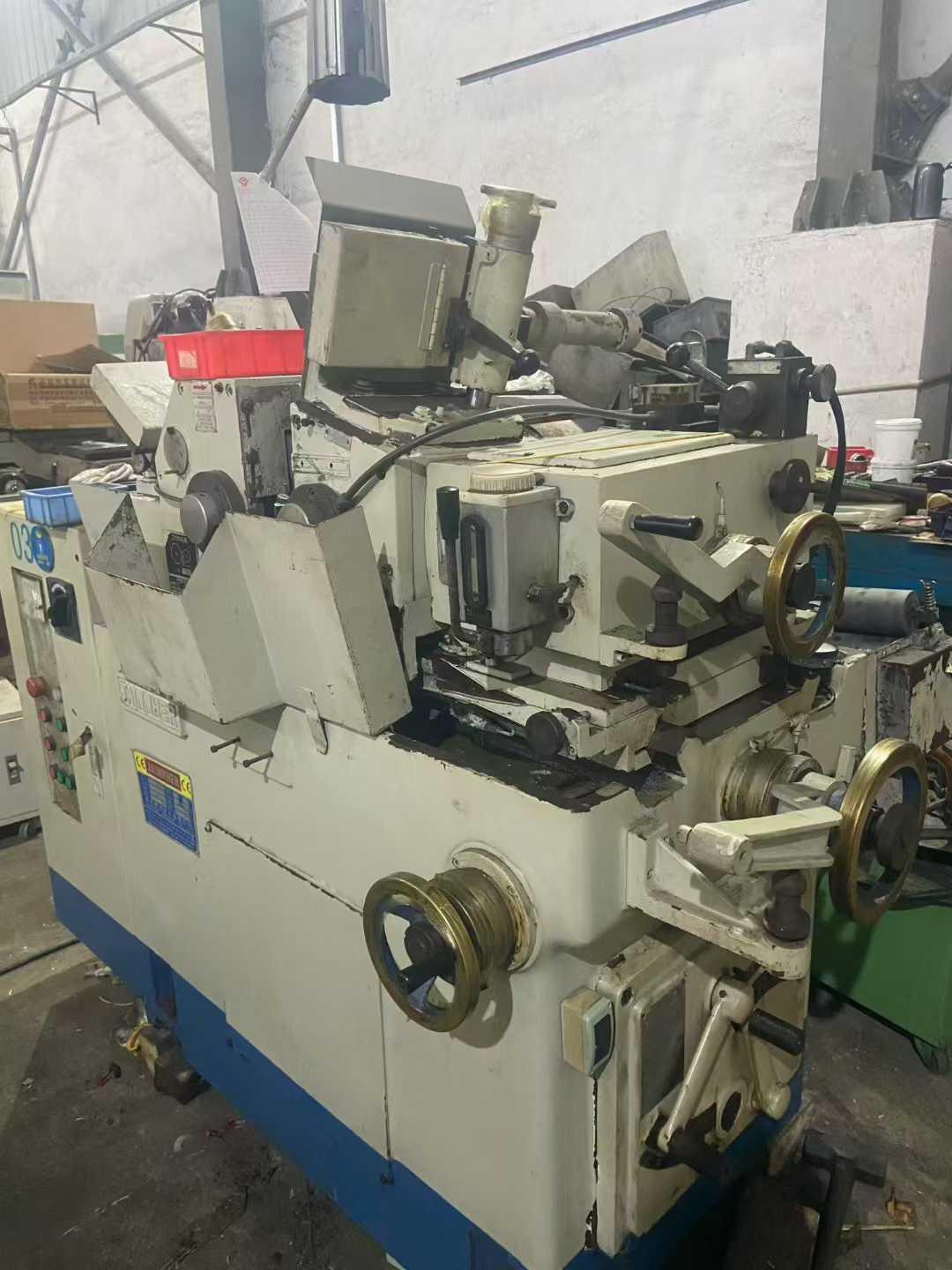

e-tech ECG-1808S Centreless grinding machine

Workpiece diameter (standard bracket): Φ1–80mm
Workpiece diameter (special bracket): Φ80–100mm
Automatic feed increment (NC): 0.001–99.999 mm
Grinding wheel dimensions (external diameter × width × through hole): 405 × 205 × 228.6mm
Grinding wheel spindle speed: 1520 rpm
Trimming feed (per scale): 0.02mm
Dressing feed (per resolution): 2 mm
Guide wheel dimensions (external diameter × width × through hole): 255 × 205 × 228.6mm
Guide wheel speed (10 gears): 13–308 rpm
Handwheel feed (per scale): 0.05mm
Handwheel feed (per resolution): 3.5mm
Micro-feed (per scale): 0.001mm
Micro-feed (per resolution): 3.5mm
Swing Angle: ±5°
Tilt Angle: +5° to -3°
Worktable rapid feed (per scale): 0.05mm
Worktable rapid feed (per resolution): 9mm
Grinding Wheel Motor Power: 15/20 HP
Hydraulic Motor: 1 HP
Feed Actuating Motor: 1.5 kW
Machine Weight: 3600 kg
Machine Dimensions: 2700 × 2240 × 1860 mm
