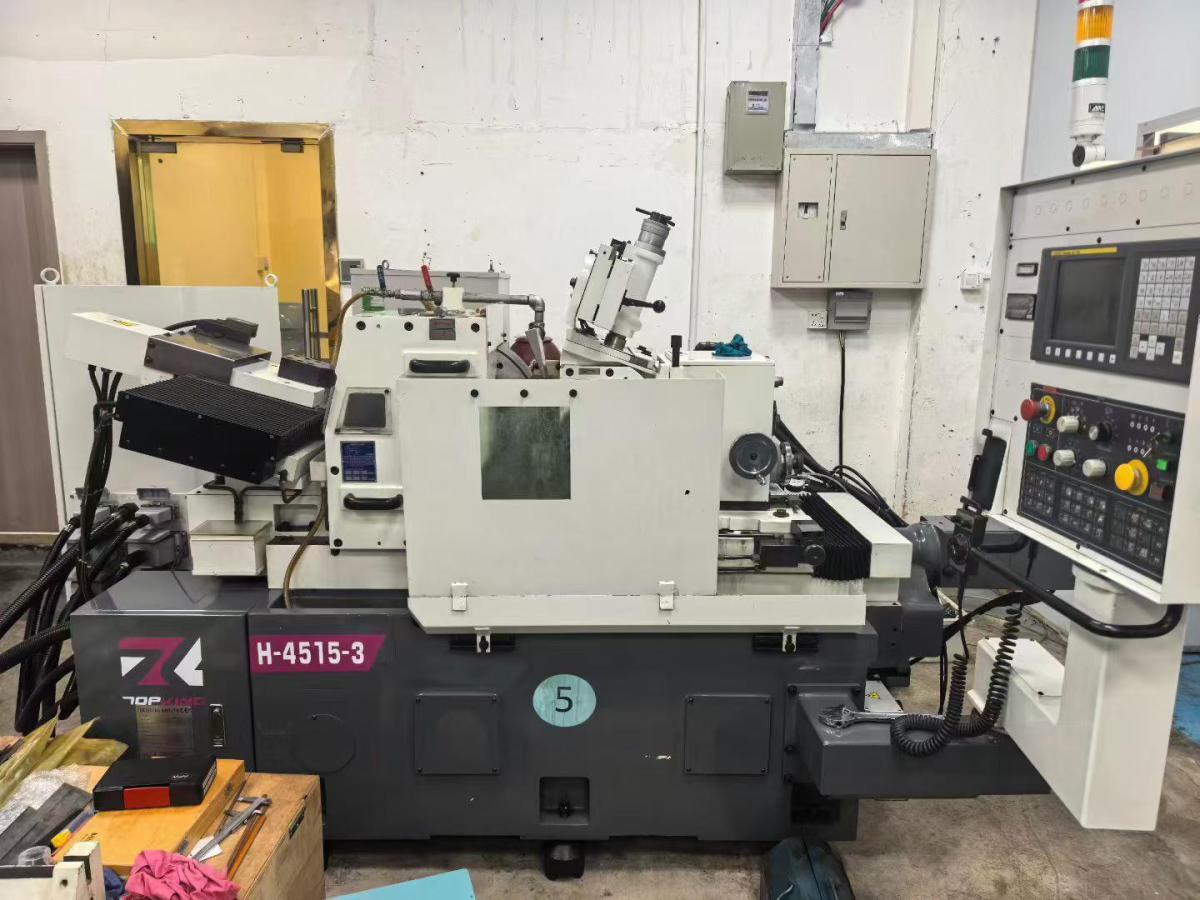

TOPKING H-4515-3 Centreless grinding machine
[Product Information]:
- Inventory number：68411
- Brand：TOPKING
- Model：H-4515-3
- Origin：Taiwan, China
- Location：China
- Year：2016
- Create Time：2026-07-01
Specifications:
The diameter range of grindable workpieces: φ1 to φ 75mm
The maximum workpiece length for stop-feed grinding is 150mm
The minimum feed setting unit for the CNC axis is 0.0005mm
Overall dimensions: φ455 × 150 × φ 228.6mm
Maximum linear speed: 45 m/s
Rated speed: 1900 RPM
Tilt Angle: +5° to -3°
Rotation Angle: ±5°
