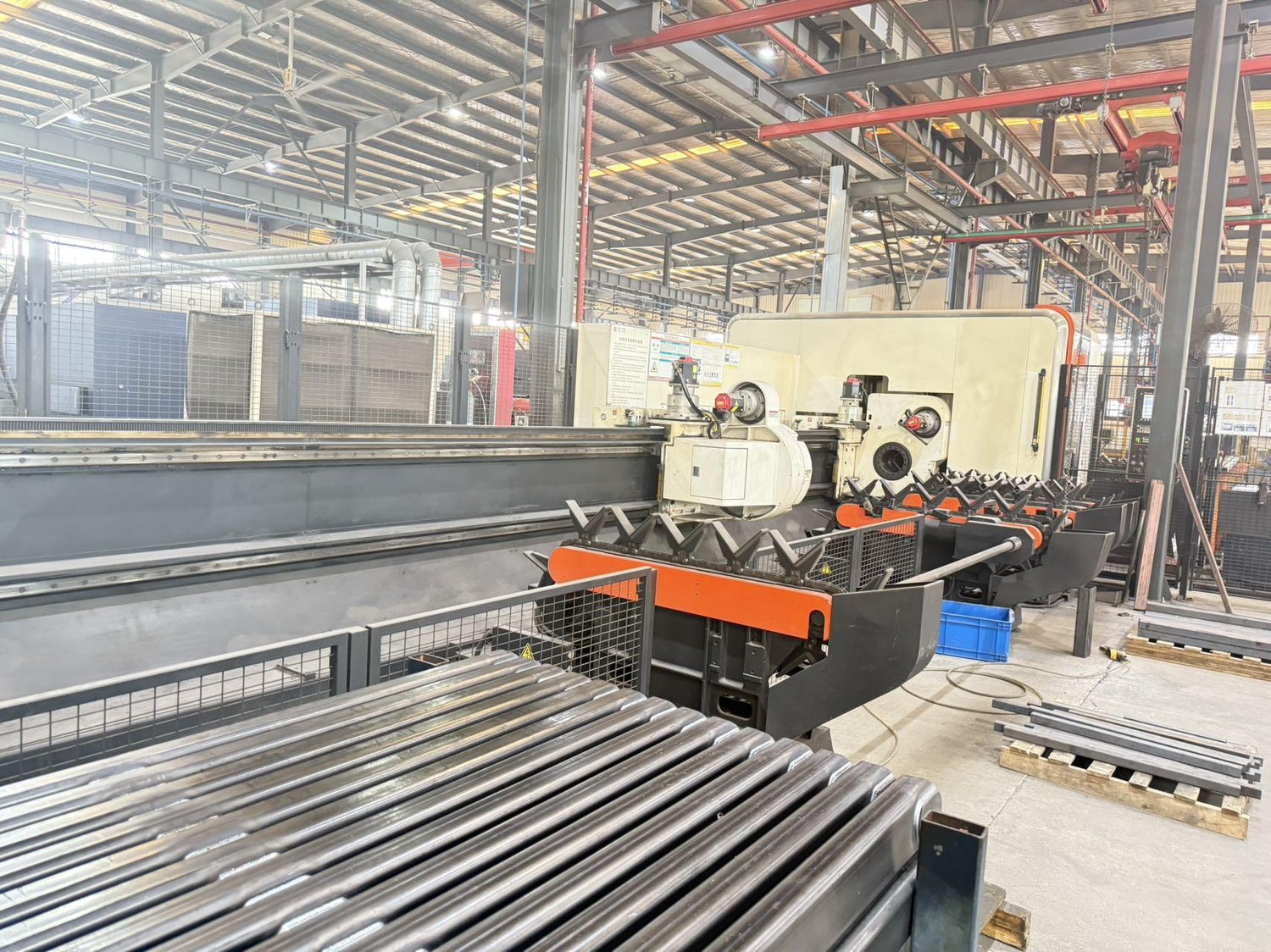

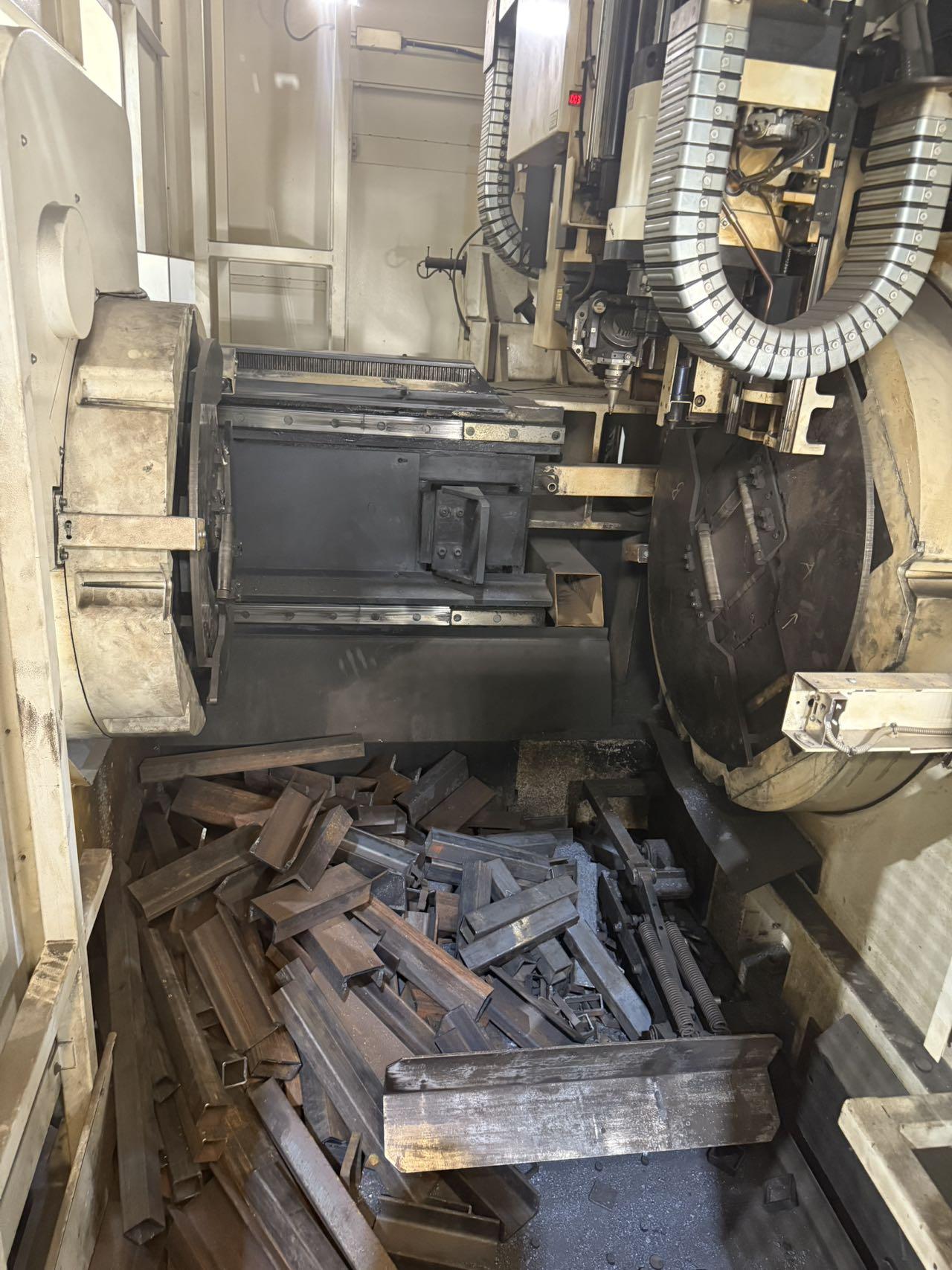

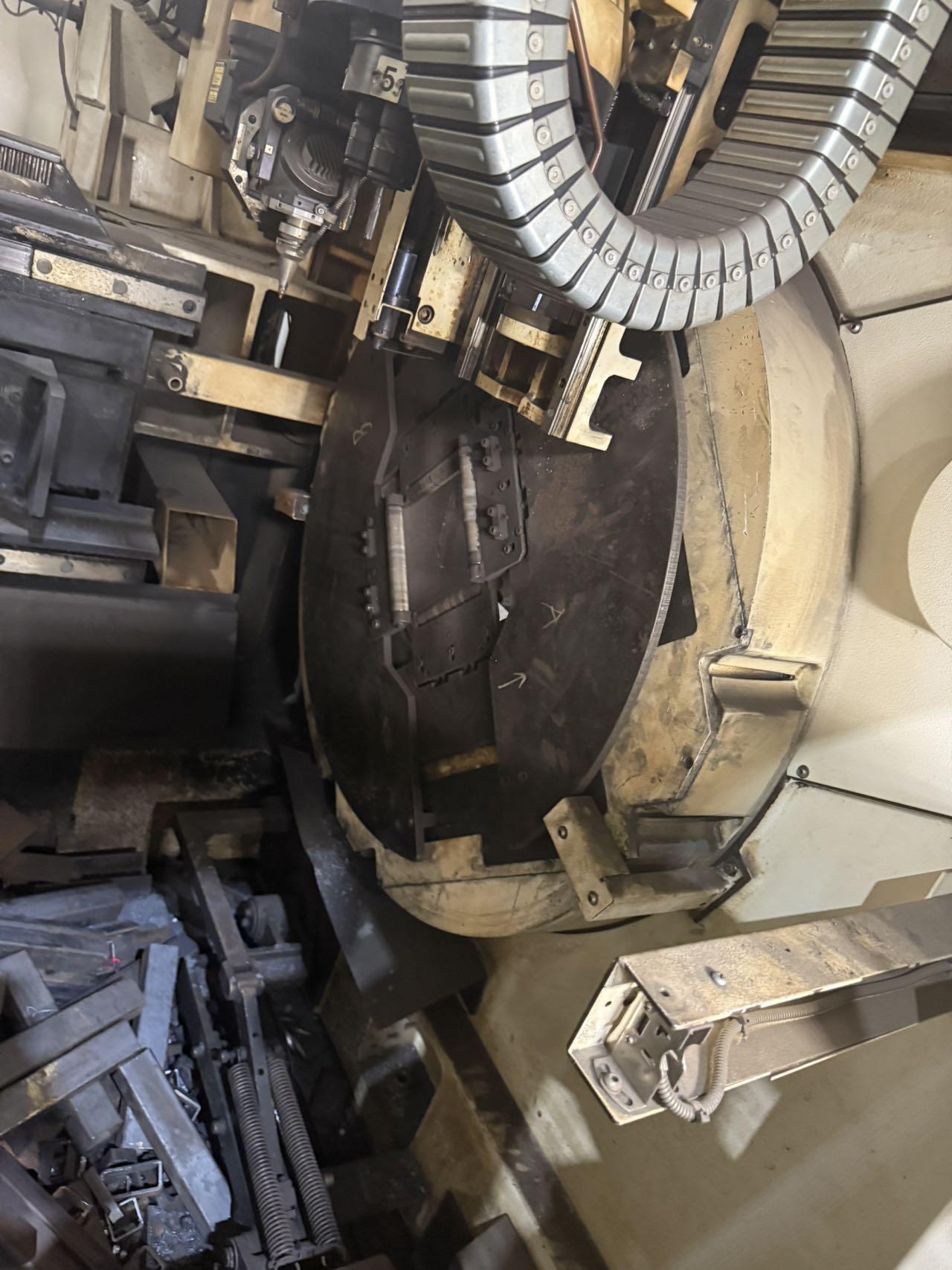

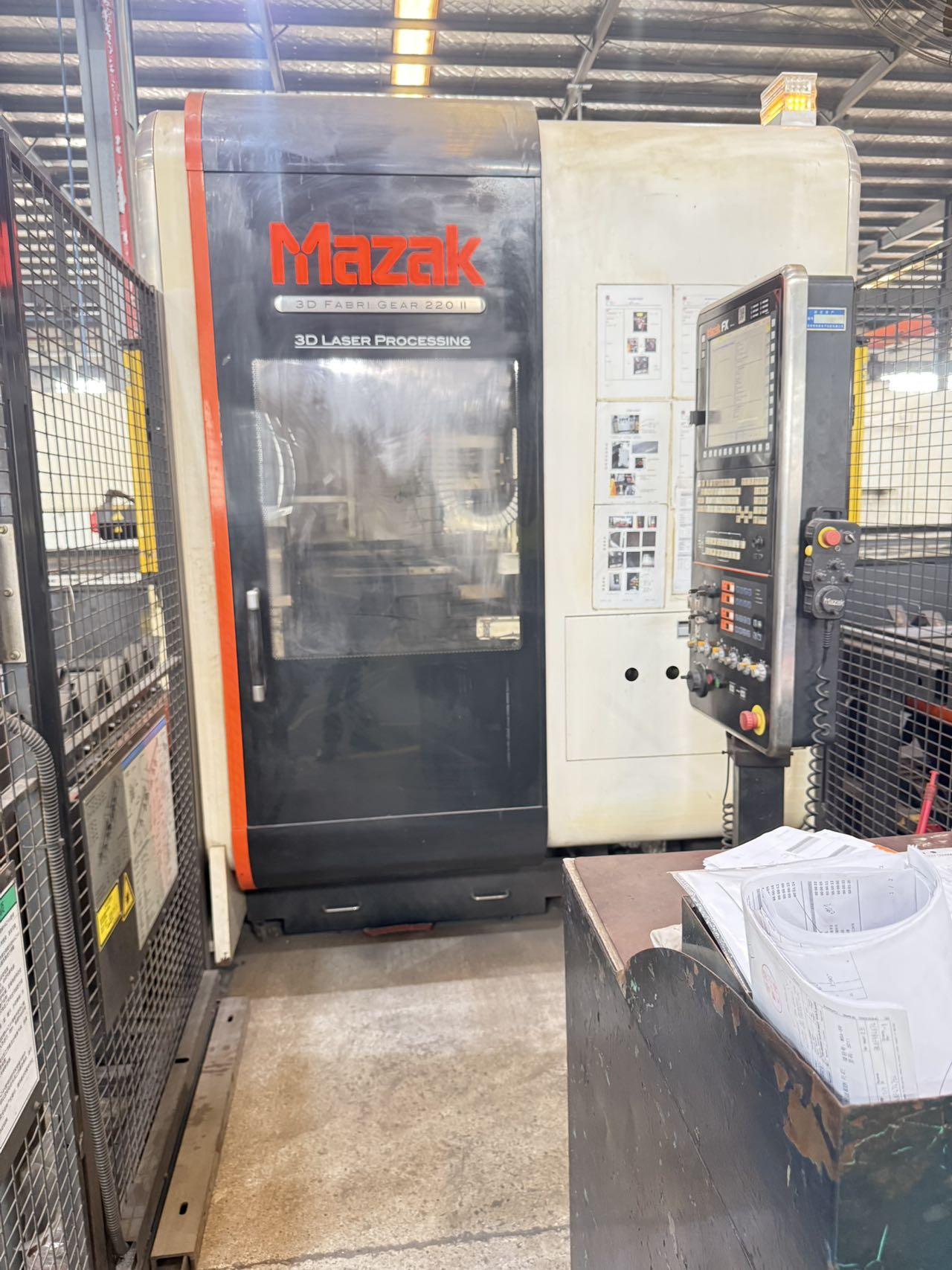

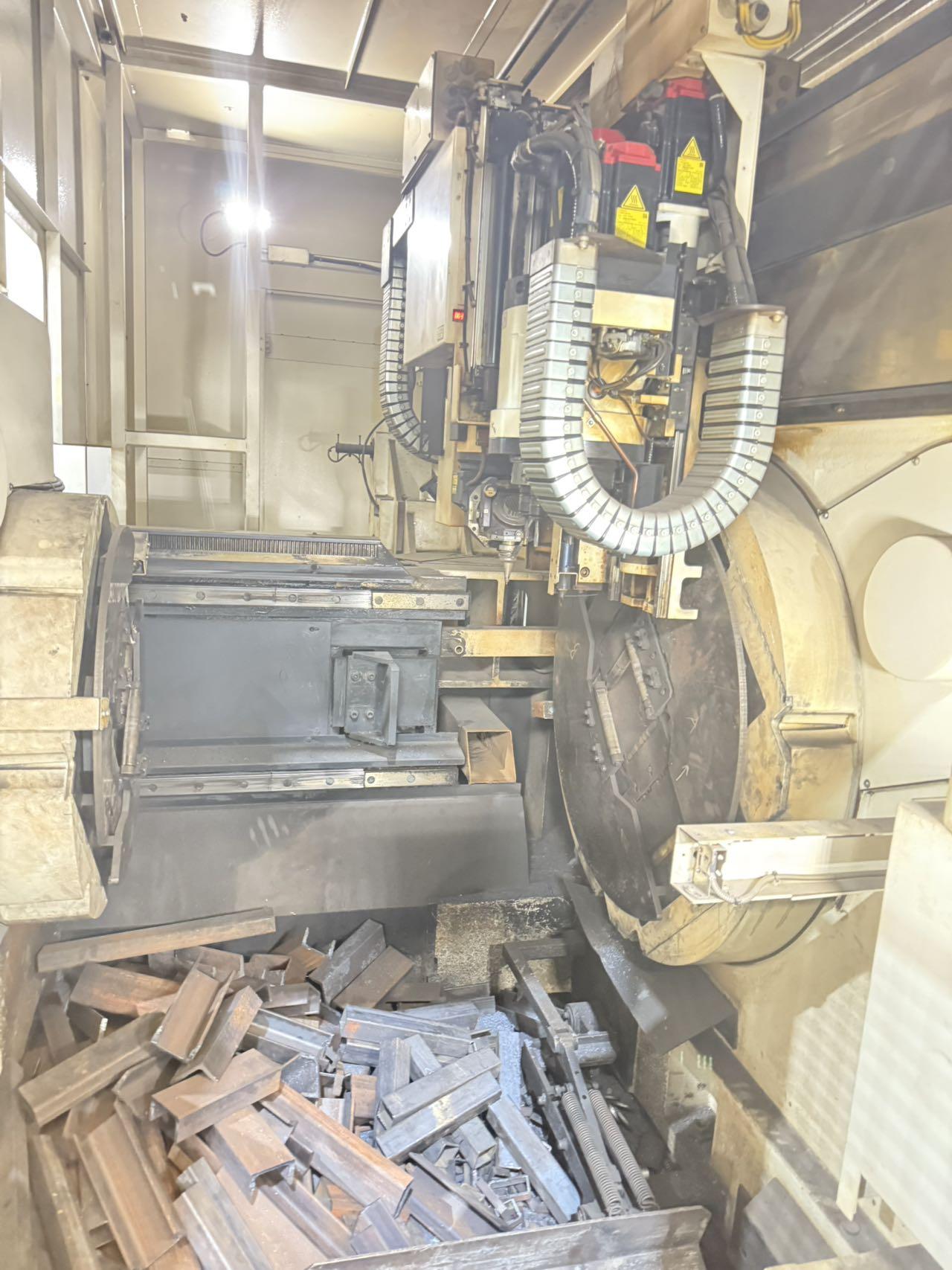

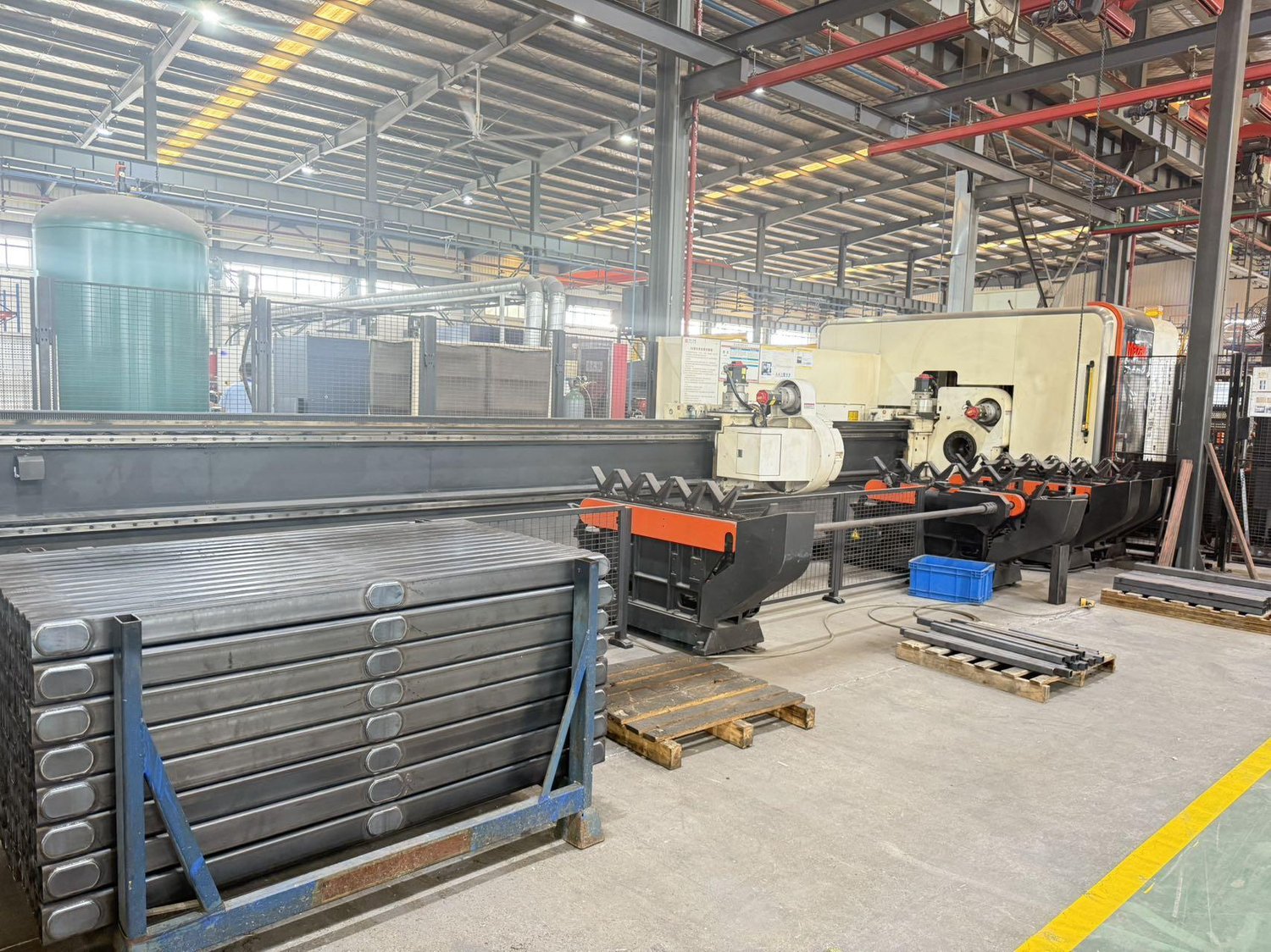

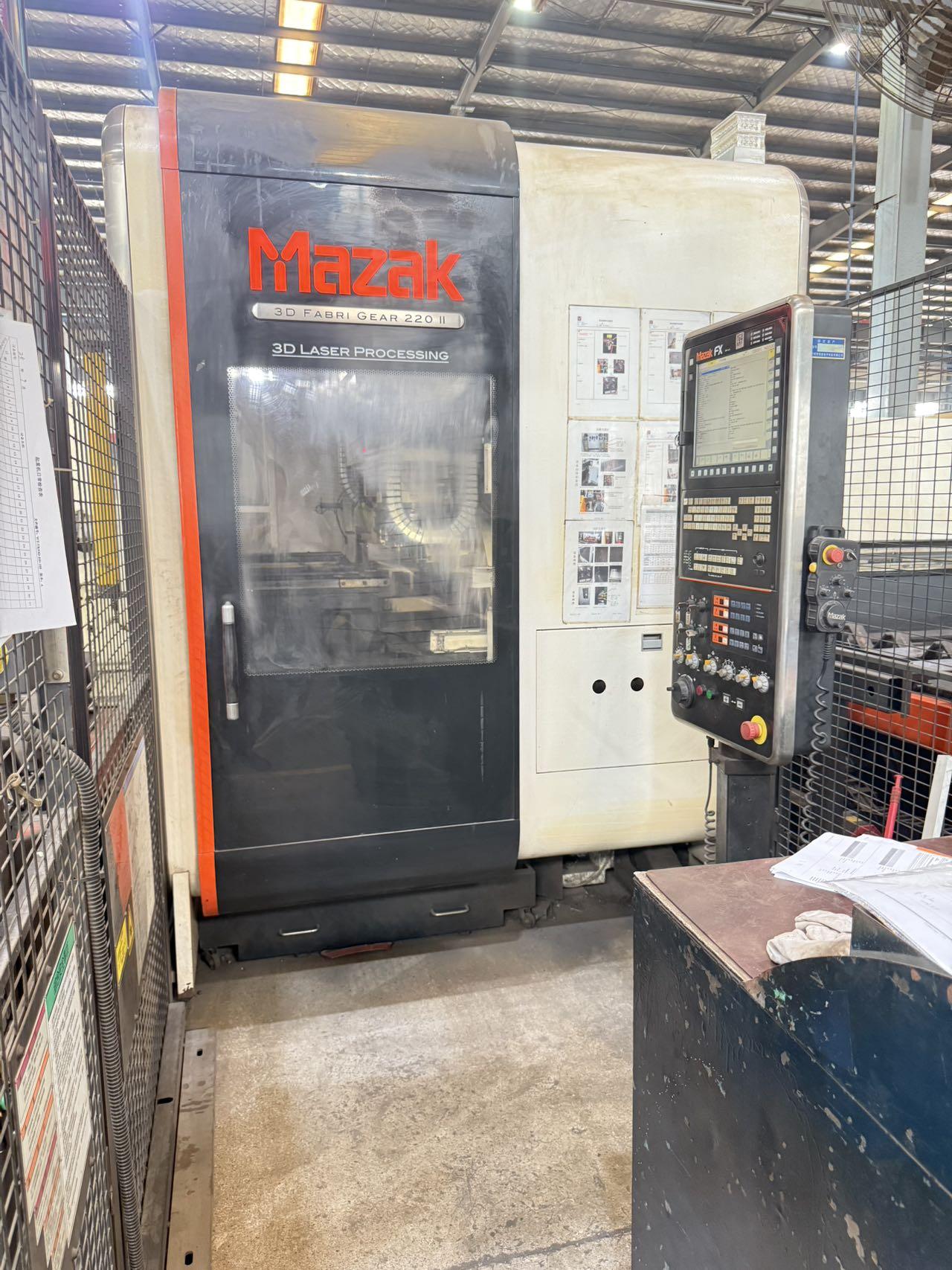

MAZAK 3D FABRI GEAR 220II other

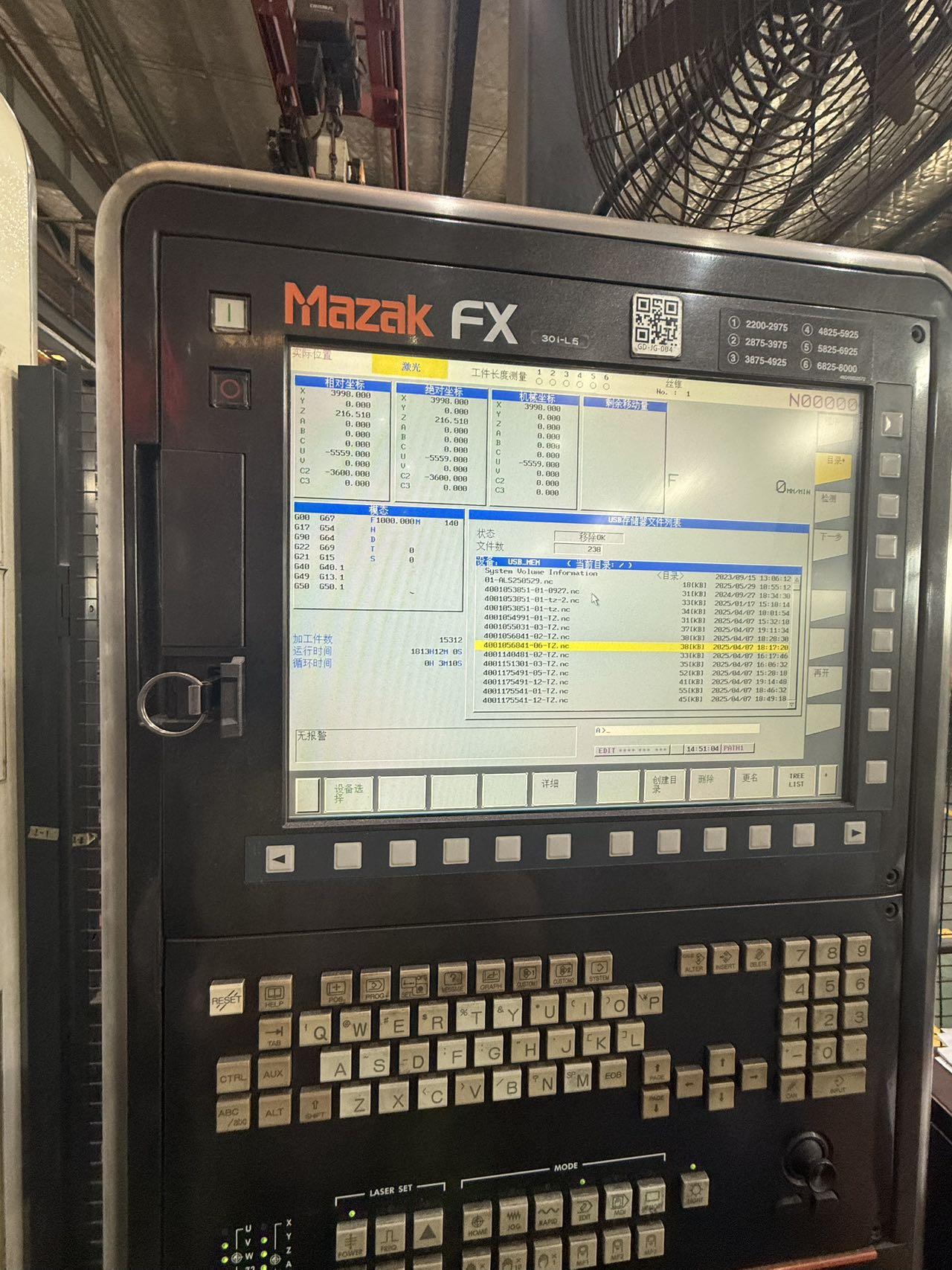

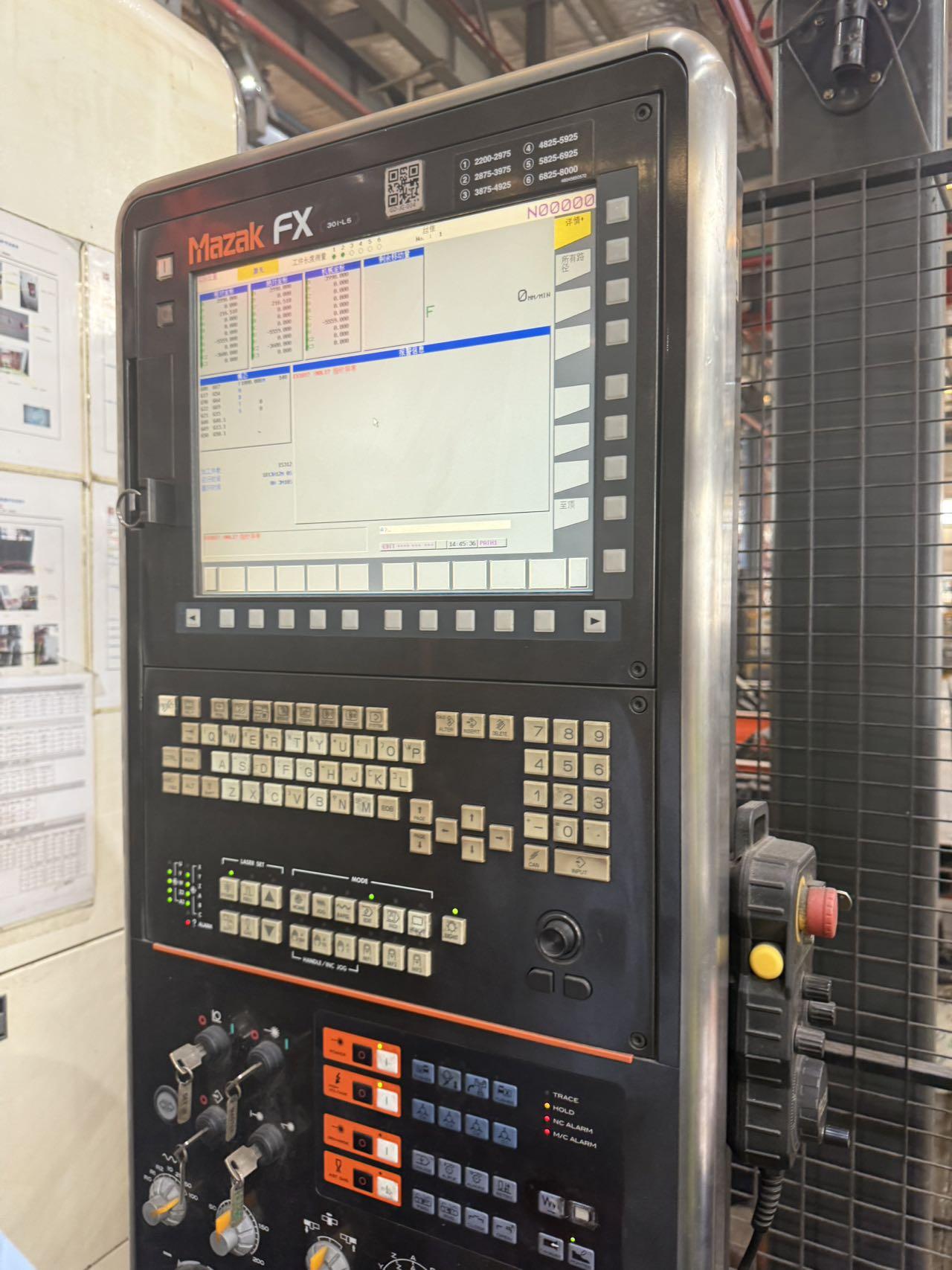

CNC System: Mazak FX control unit
Resonator type: CO2
Resonator brand: Panasonic Type 10
Laser output power: 4.0 kW
Laser gases: He, N2, CO2
Maximum material thickness (mild steel): 22 mm
Maximum material thickness (stainless steel): 10 mm
Maximum material thickness (aluminum): 8 mm

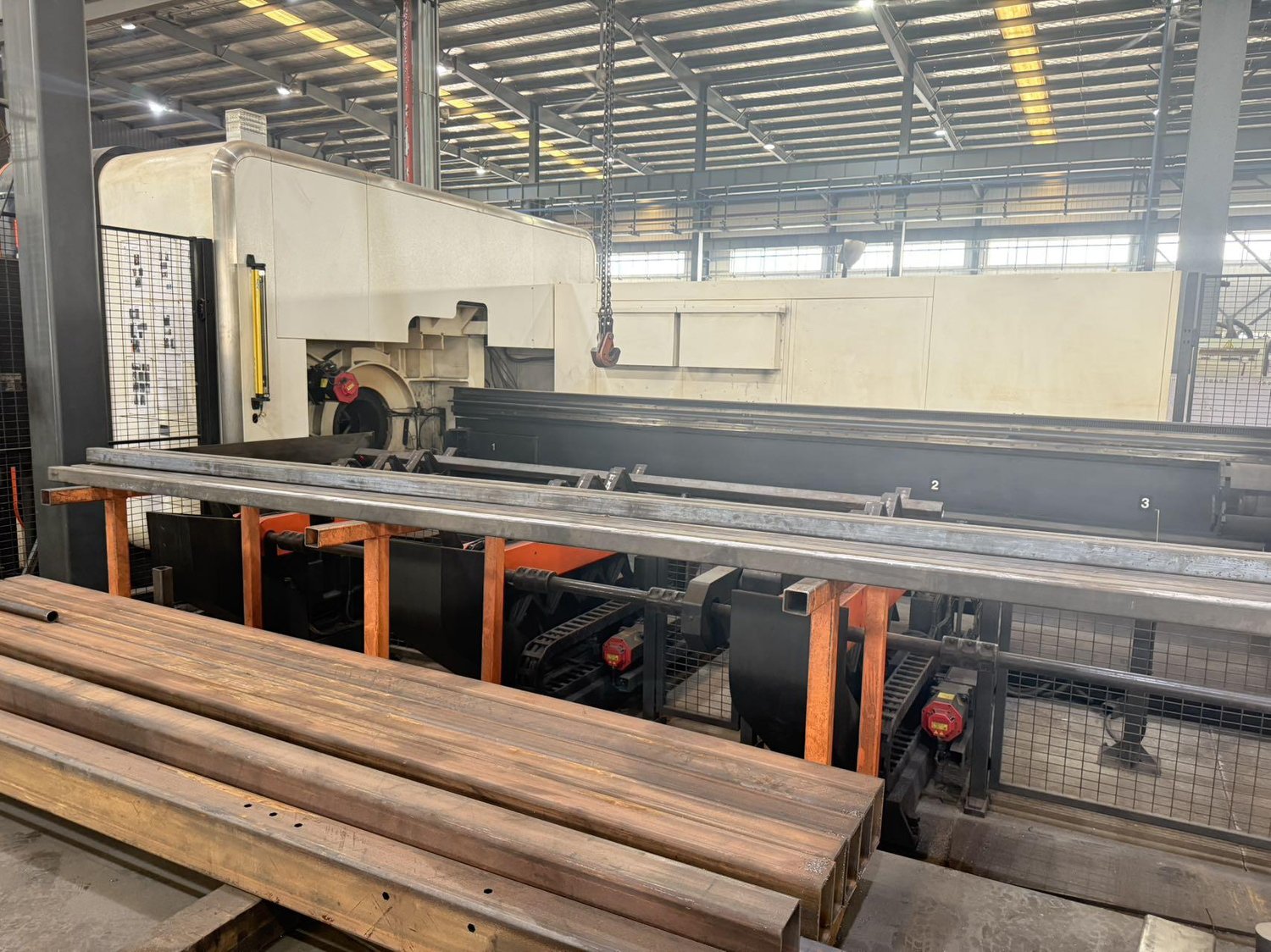

Maximum workpiece length (loading/unloading): 8000 mm
Maximum material diameter (round): 220 mm
Maximum material diameter (square): 150 mm
Maximum workpiece weight per piece: 357 kg
Travel:

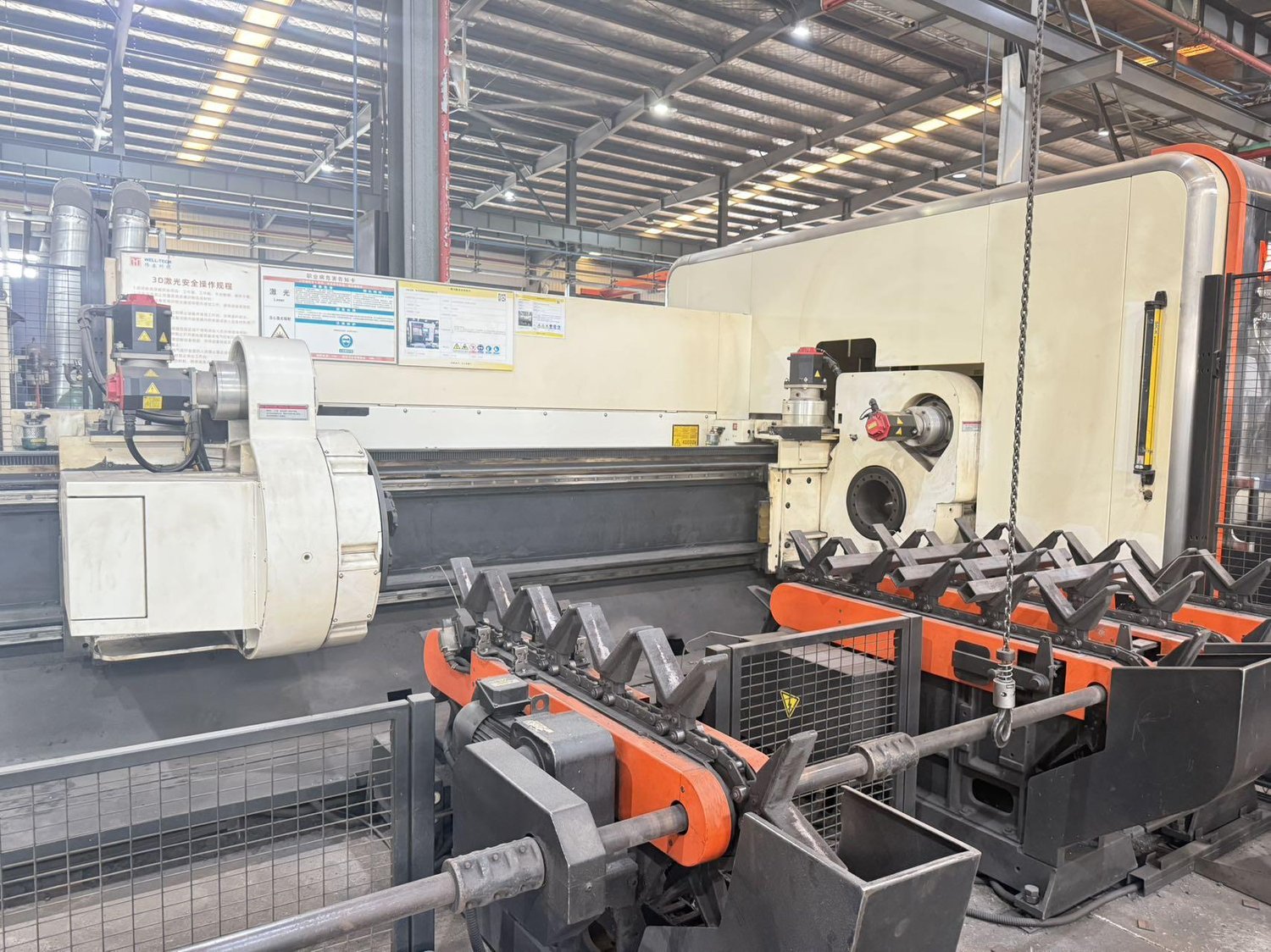

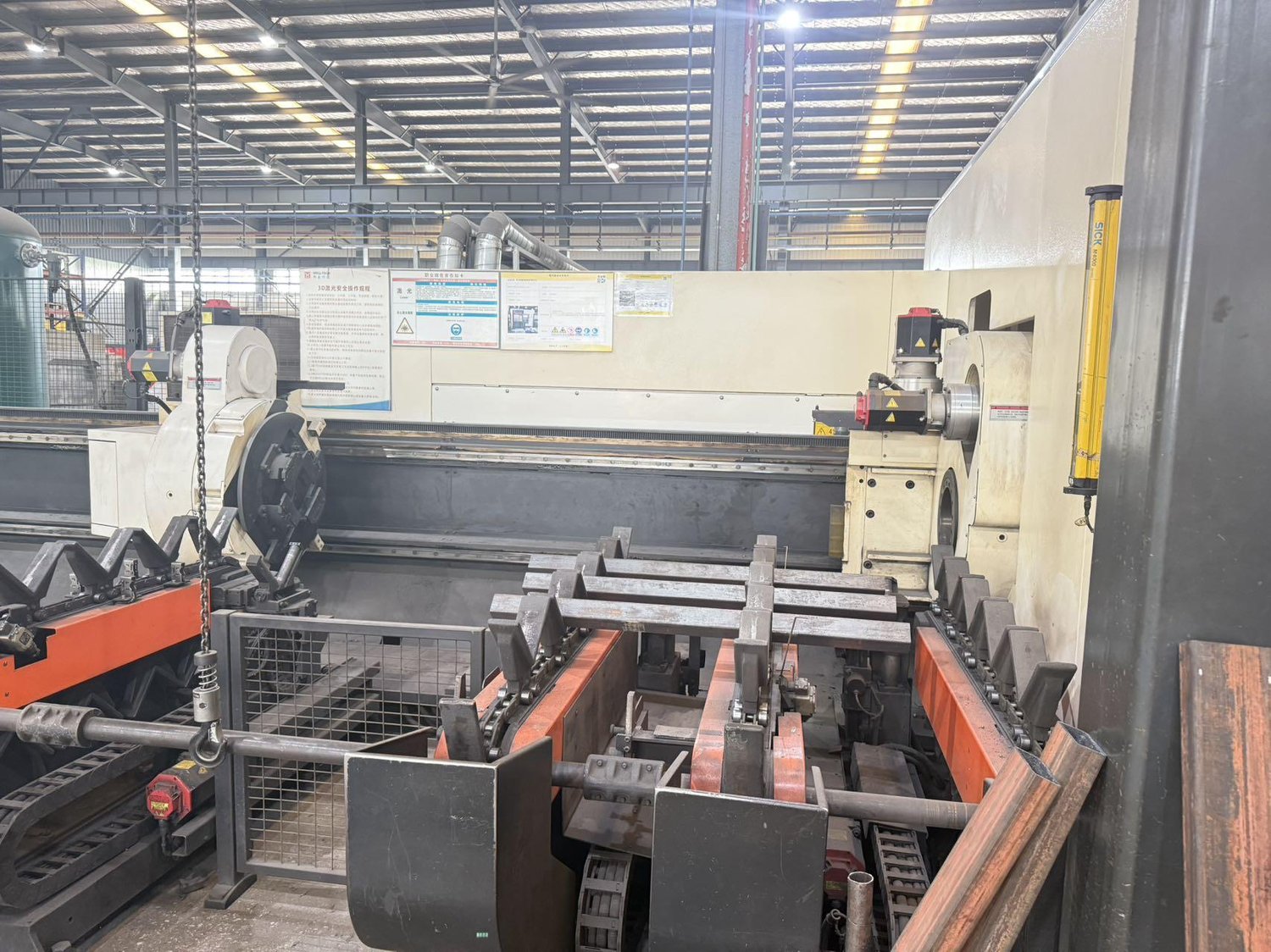

X-axis chuck left-right travel: 9050 mm
U-axis chuck left-right travel: 9000 mm
V-axis chuck left-right travel: 2310 mm

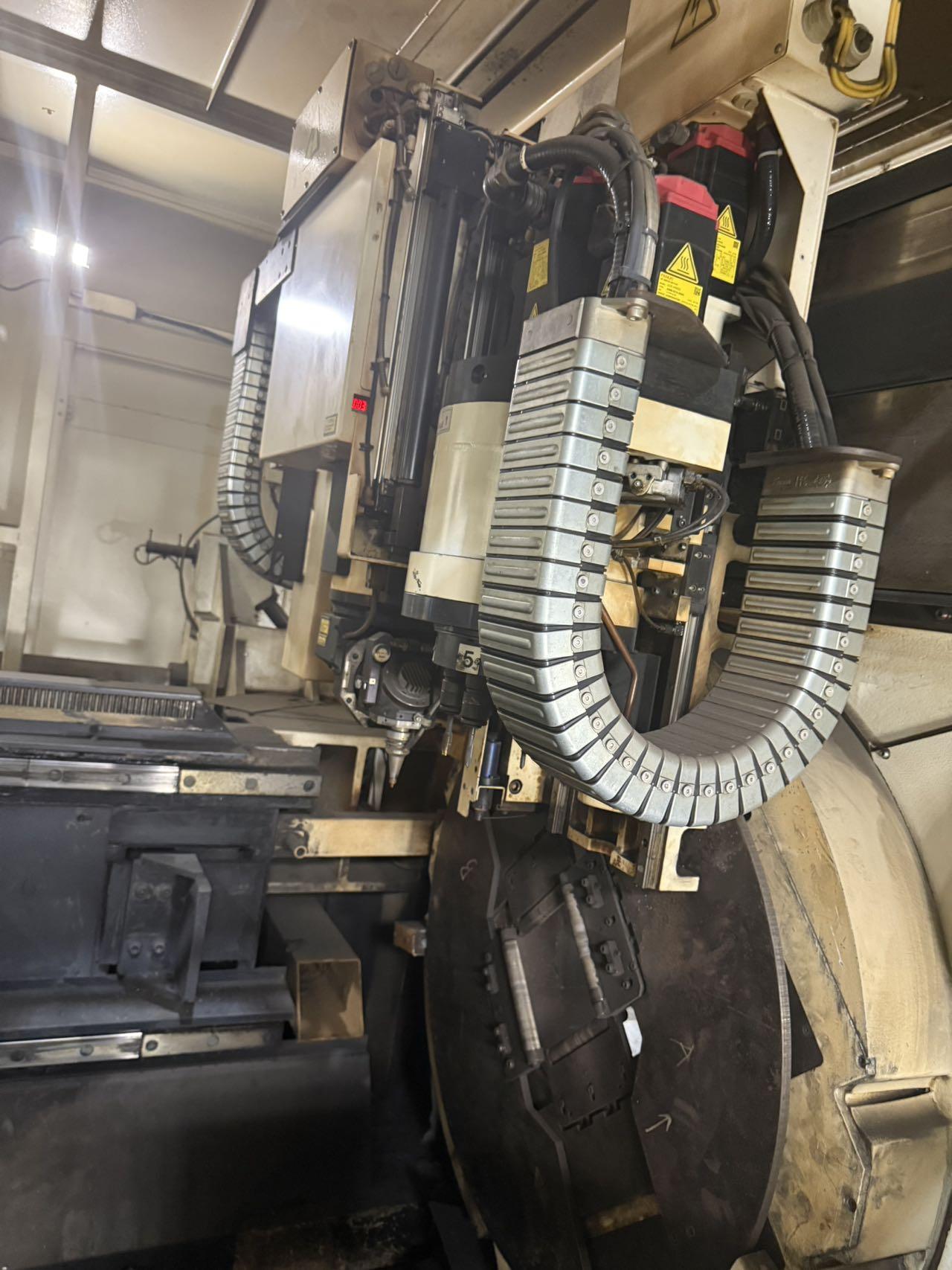

Y-axis head front-back travel: 986 mm
Z-axis head up-down travel: 370 mm
A-axis head rotation travel: ±99,999.999°
B-axis head swing travel: ±135°
