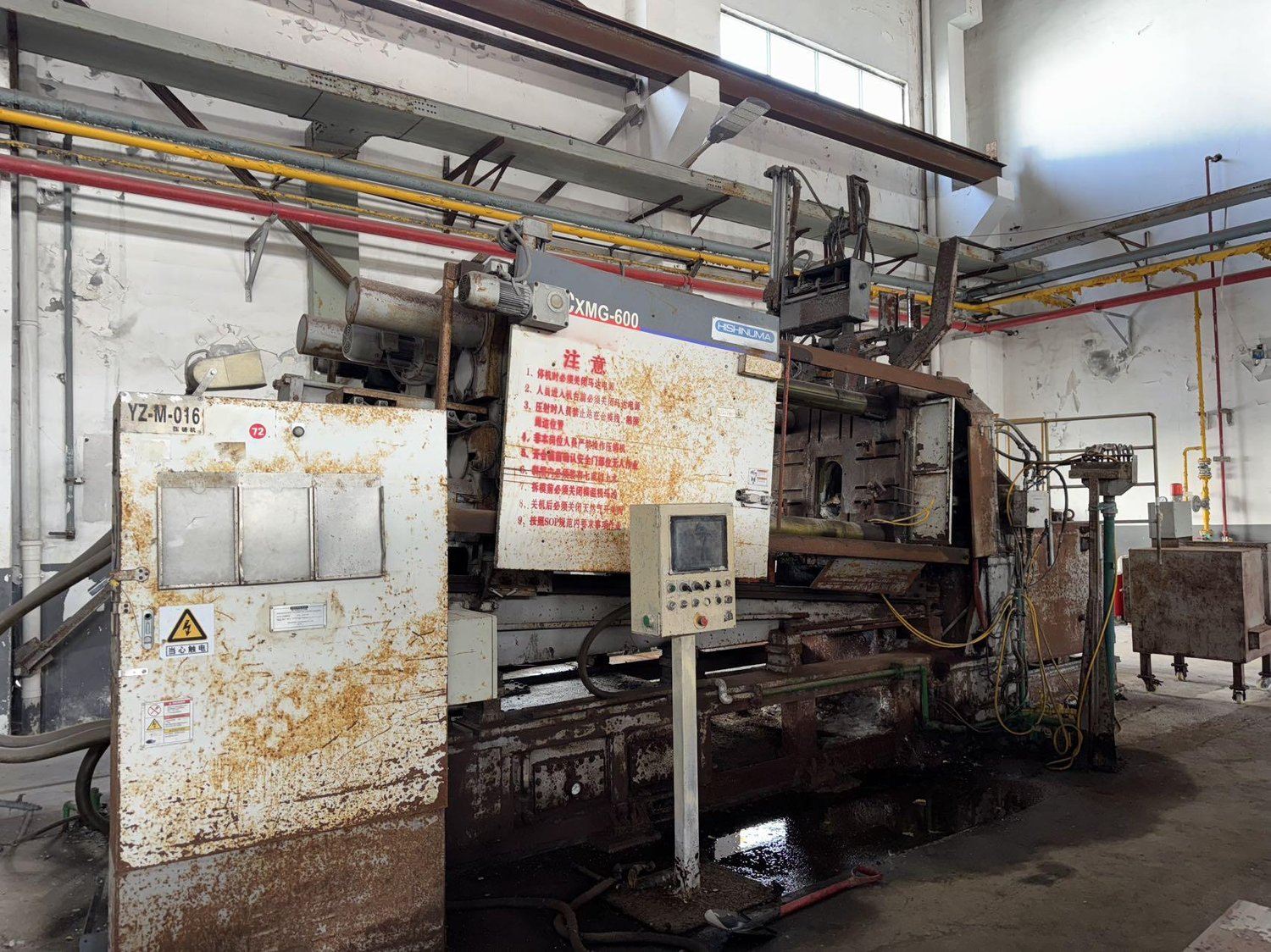

HISHINUMA CXMG600 other

Guide Column Spacing: 710 × 710 mm
Mold Travel: 644 mm
Mold Height: 350 - 800 mm
Injection Force: 208 kN
Injection Travel: 230 mm
Injection Position: 0 / -160 mm
Top Force: 285 kN
Ejection Travel: 160 mm
Nozzle Contact Force: 70 kN
Nozzle Contact Travel: 550 mm
Injection Column Diameter: Φ80/90/100 mm
Casting Pressure: 41/32/26 MPa
Casting Area (Efficiency 100%): 1463 / 1875 / 2307 cm²
Maximum Injection Weight (Efficiency 75%): 1.56 / 1.97 / 2.44 kg
Empty Cycle Time: 9 seconds
Working Pressure: 14 MPa
Oil Tank Capacity: 700 liters
Furnace Capacity: 870 kg
Motor Power: 37 kW
Power Supply Capacity: 62 kVA
