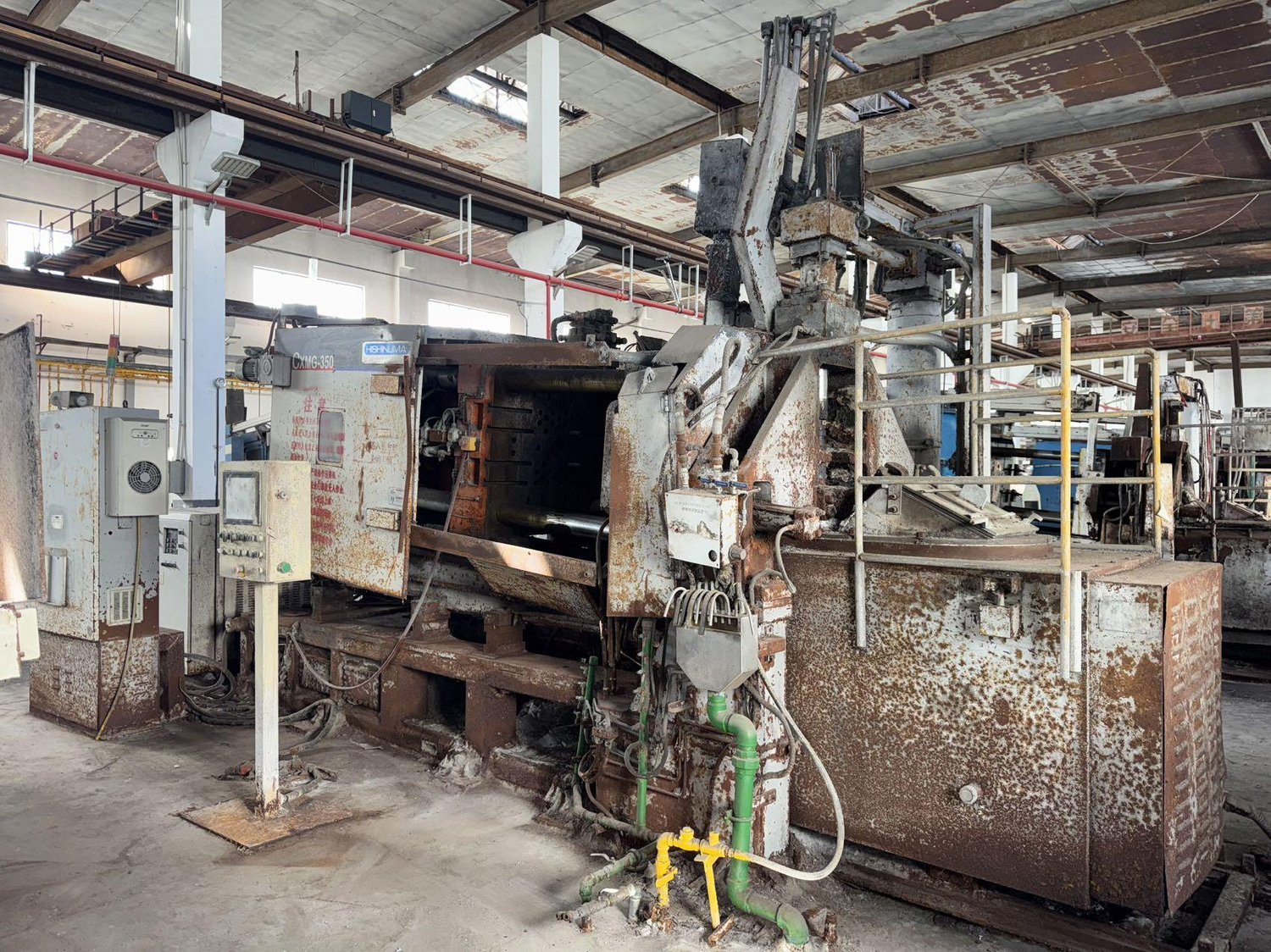

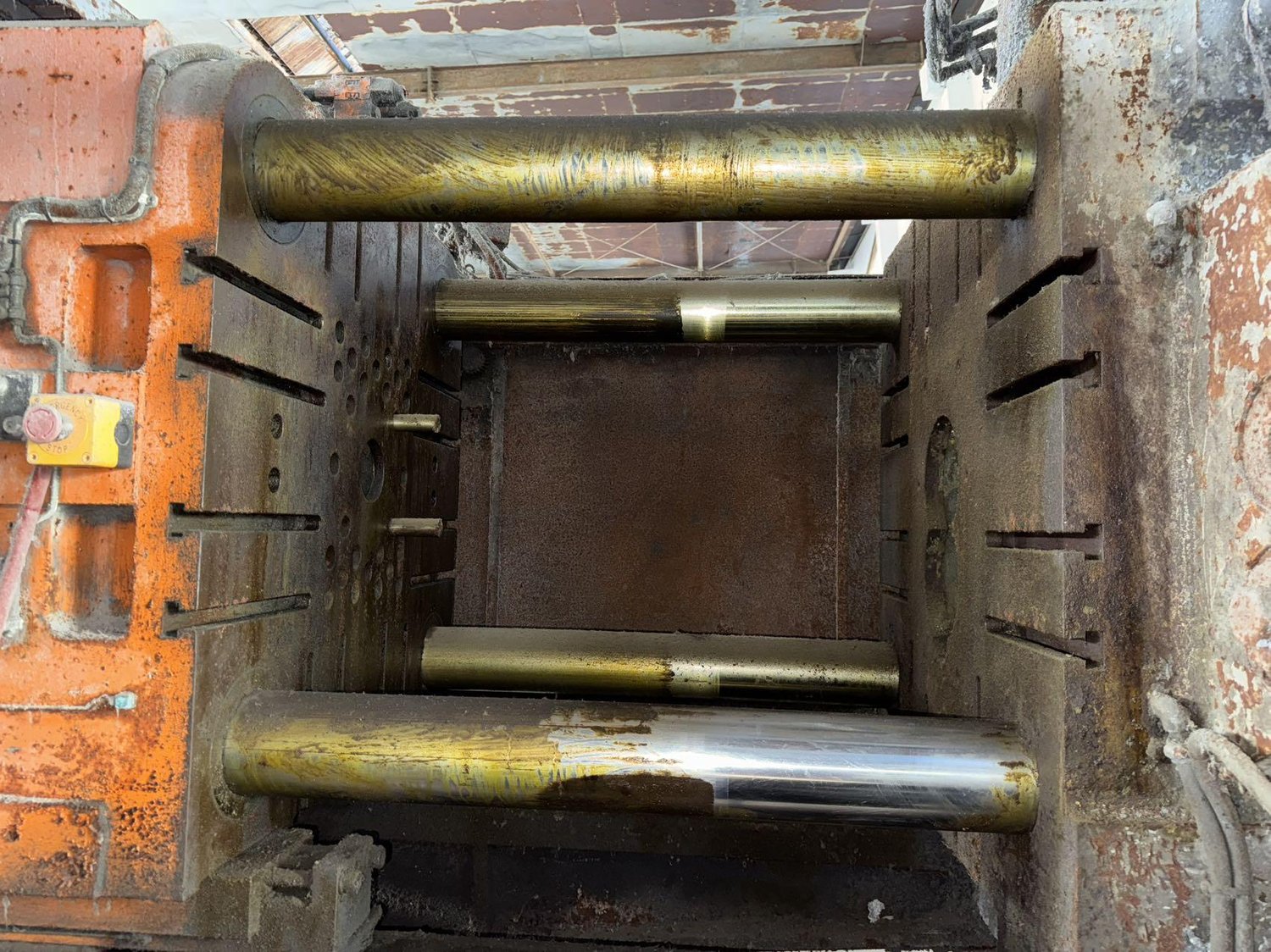

HISHINUMA CXMG350 other

Guide Column Spacing: 600 × 600 mm
Mold Travel: 500 mm
Mold Height: 300 - 700 mm
Injection Force: 164 kN
Injection Travel: 230 mm
Injection Position: 0 / -150 mm
Top Force: 191 kN
Ejection Travel: 120 mm
Nozzle Contact Force: 70 kN
Nozzle Contact Travel: 400 mm
Injection Plunger Diameter: Φ80/90 mm
Casting Pressure: 32/25 MPa
Casting Area (Efficiency 100%): 1093 / 1400 cm²
Maximum Injection Weight (Efficiency 75%): 1.56 / 1.97 kg
Empty Cycle Time: 6 seconds
Working Pressure: 14 MPa
Oil Tank Capacity: 600 L
Furnace Capacity: 600 kg
Motor Power: 22 kW
Power Supply Capacity: 35 kVA
Electric Furnace Output Power: 81.6 kW
