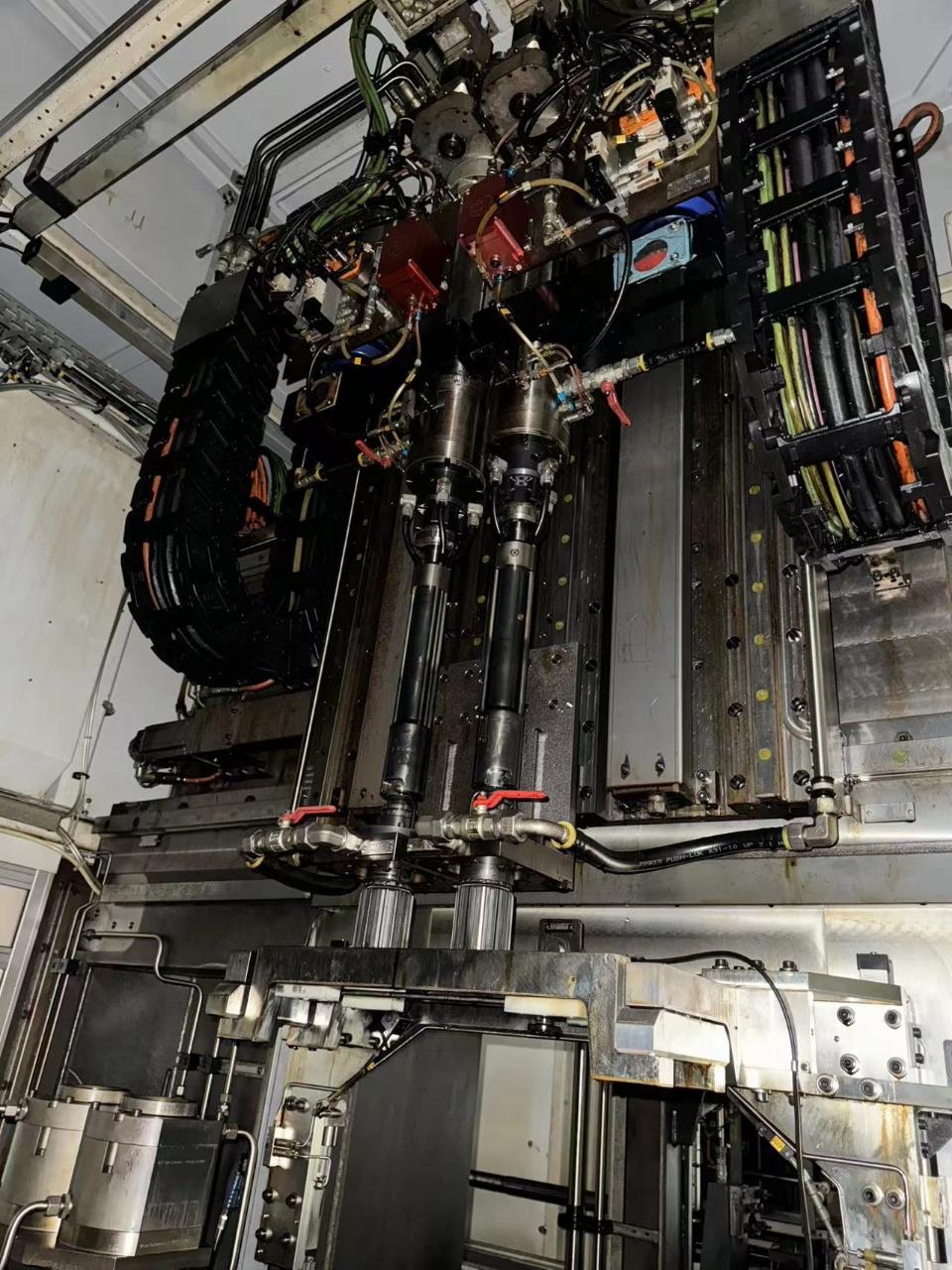

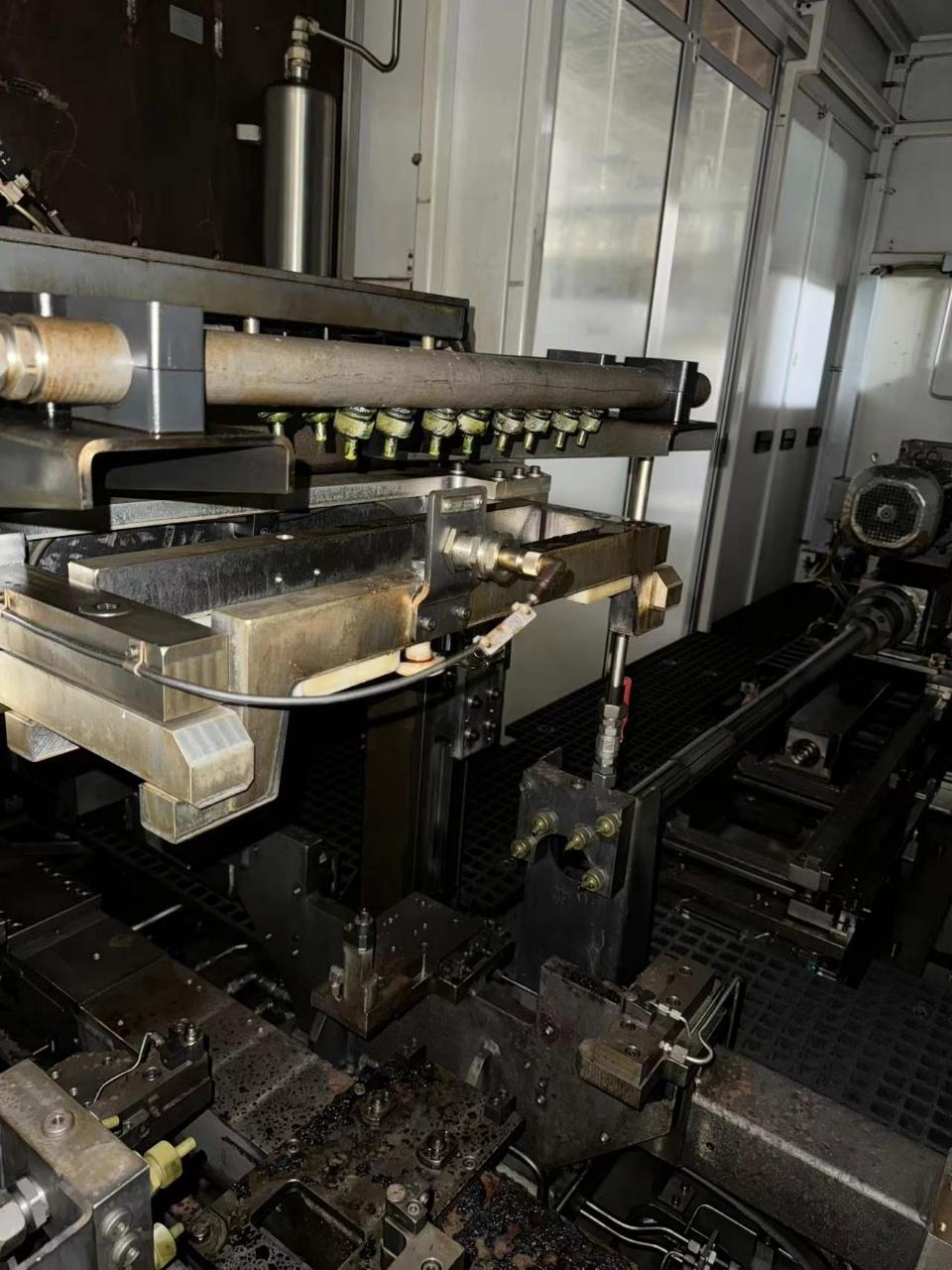

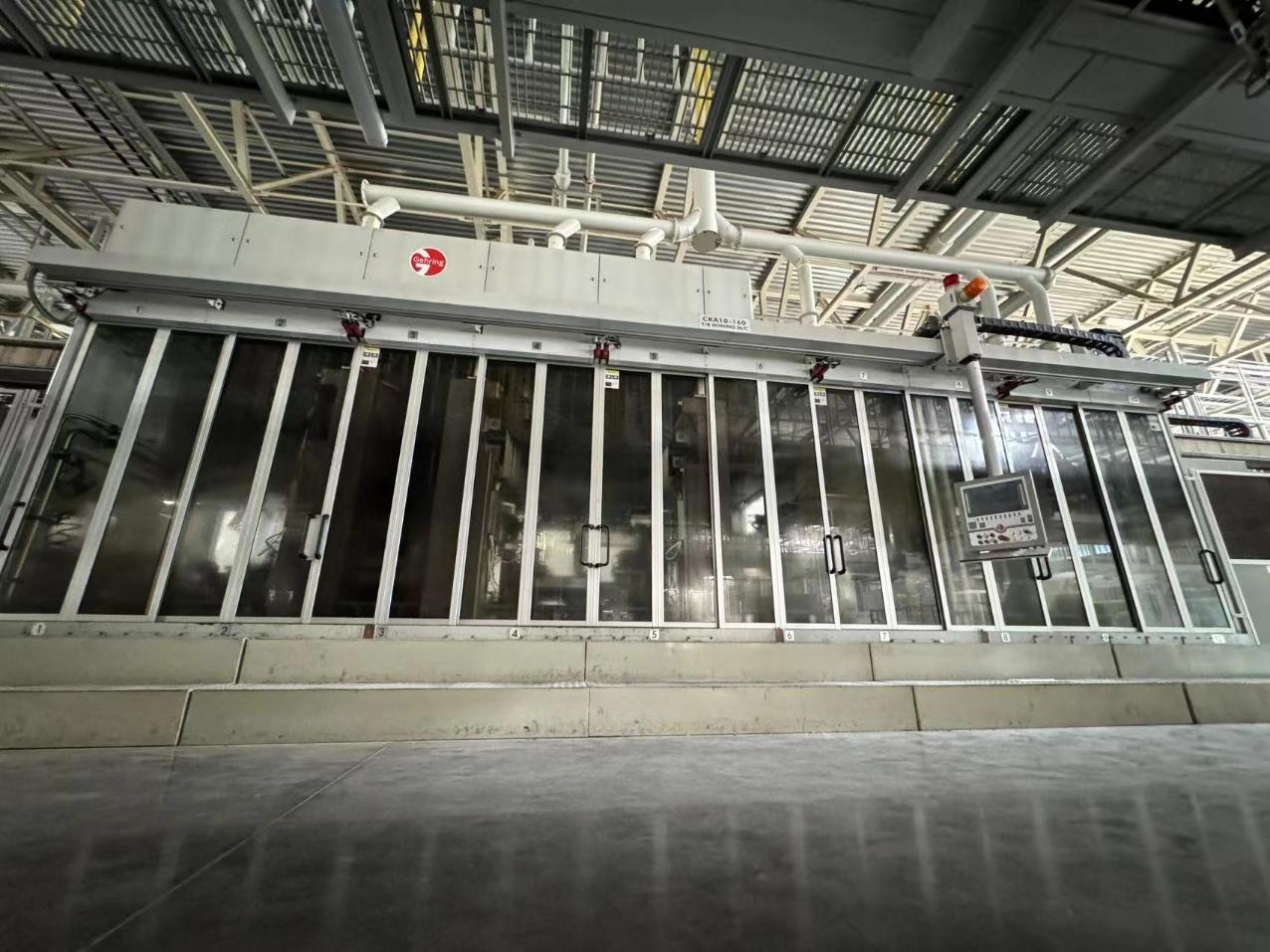

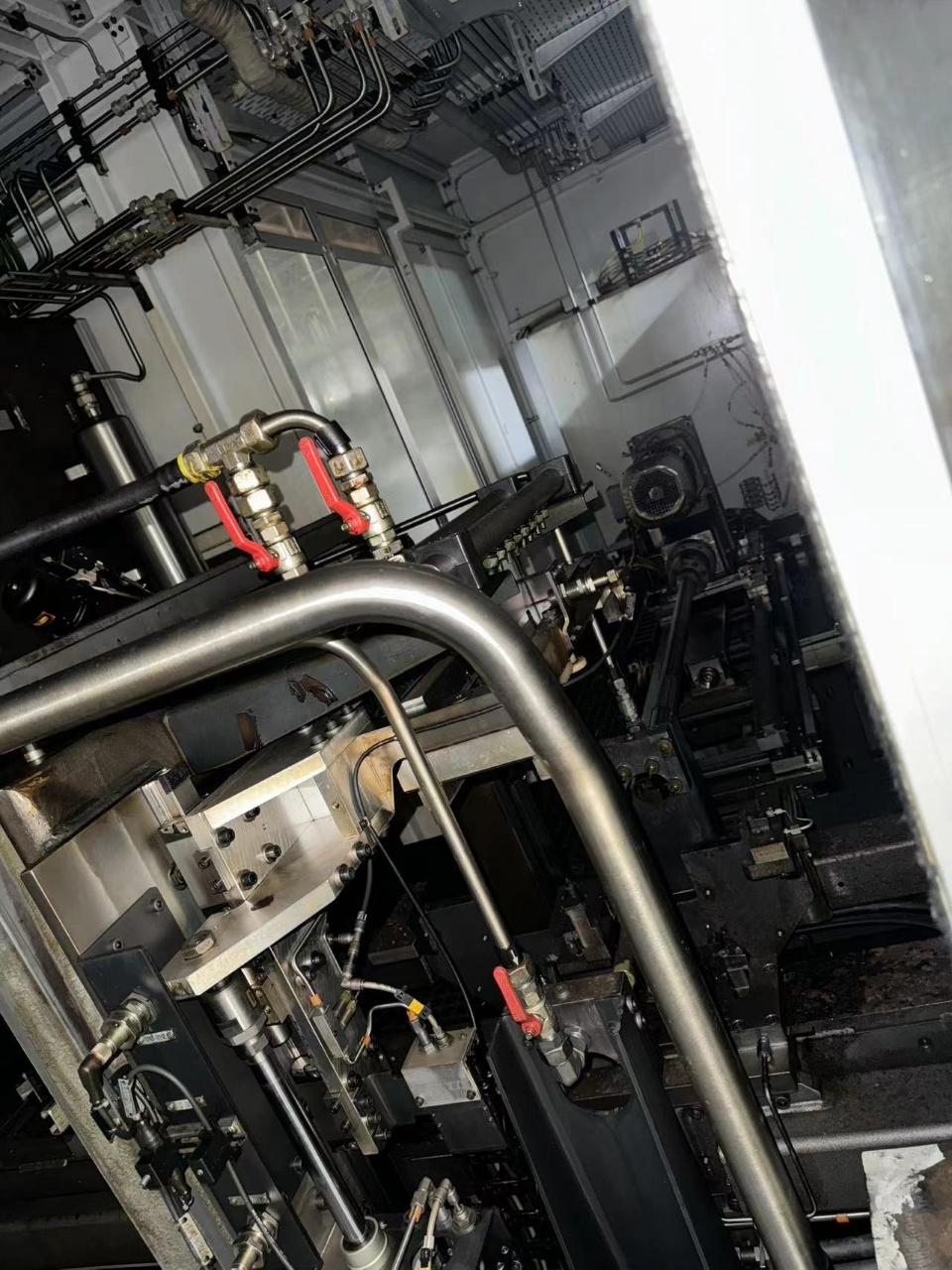

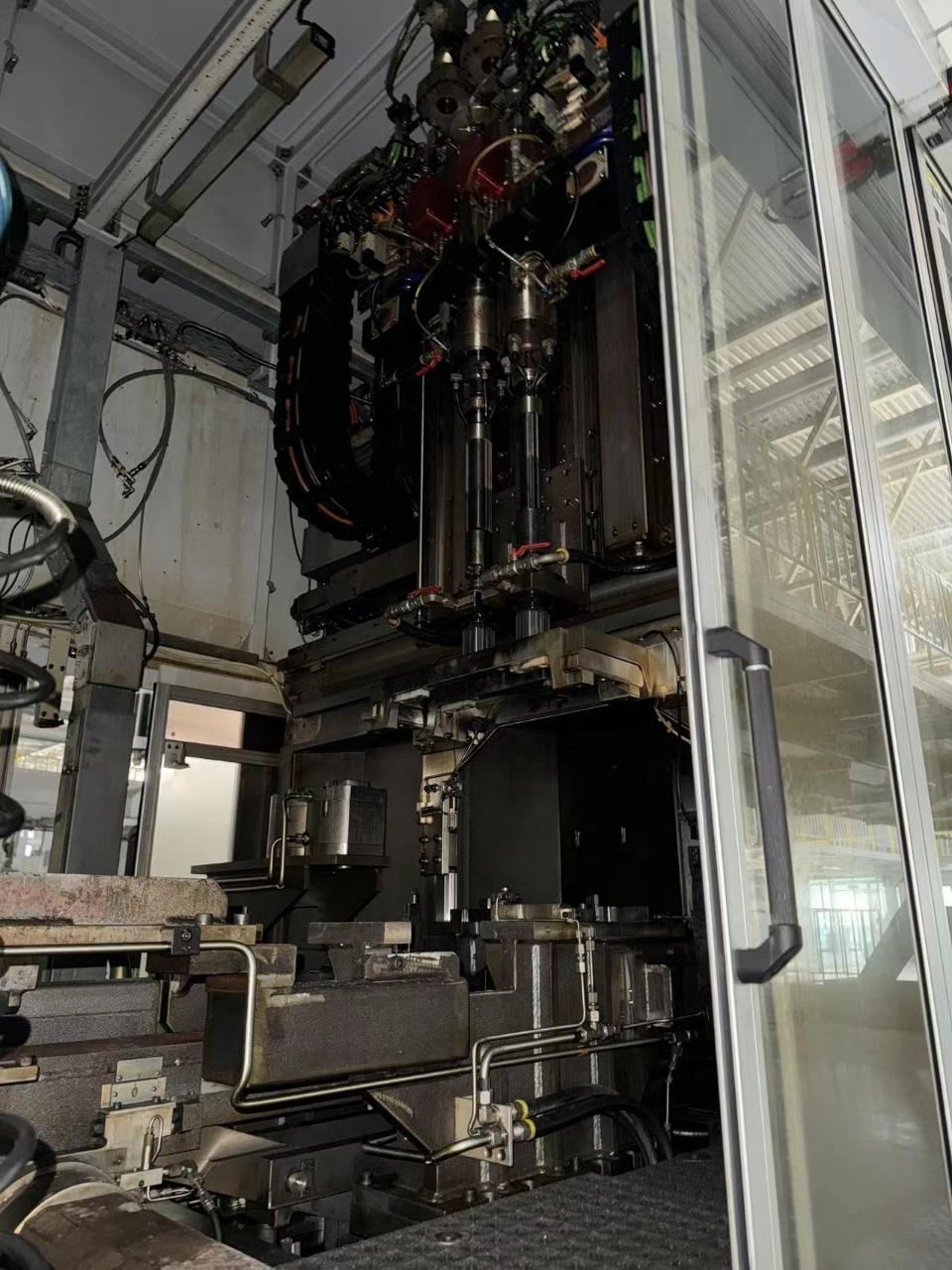

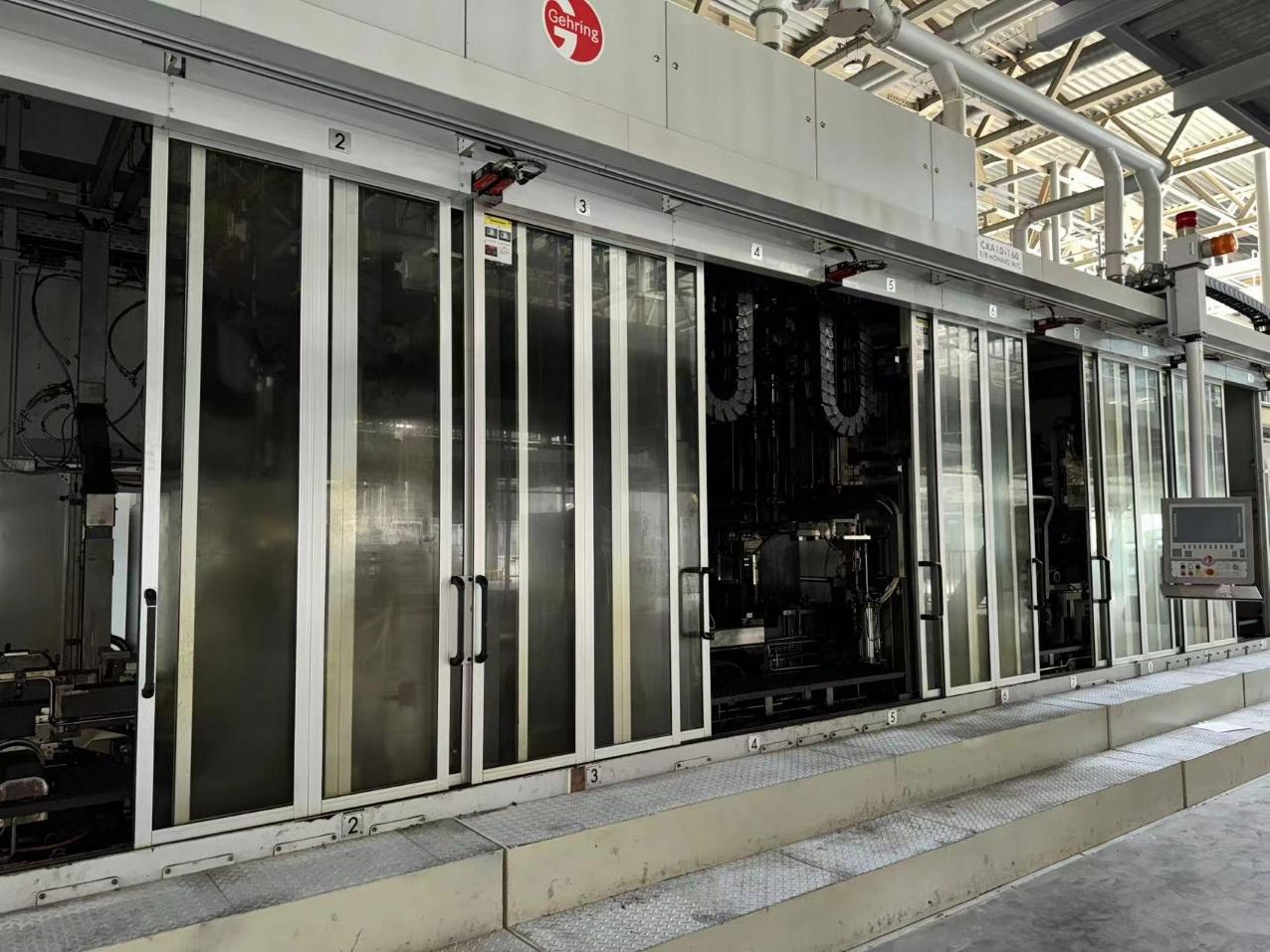

Gehring PT 6-600LSR 1500-90 Honing machine

Honing ability

Diameter: 45-100 mm

Maximum length: 250mm

Lifting/spindle

spindle: 6

Lifting length: 10-600 mm

Lifting speed: 0-40 m/min

travel drive: Electric mechanical type

Spindle speed: 10-600 rpm

Feed measurement

spindle 1-2: EMZ/F + Cylindromatic FP11-1

spindle 3-6: EMZ/F/HA2 + Diacontrol AP11-1

Pressure rating: Variable

Fixture/Transport

LSR 1500-90

Honing ability

Diameter: 45-85 mm

Maximum length: 500mm

Lifting/spindle

spindle: 1

Lifting length: 30-1500 mm

Lifting speed: 0-15 m/min

Spindle speed: 10-400 rpm

travel drive: Electric mechanical type

Feed measurement

Feed CNC System: EMZ/R

Measurement: Post-gauge Feedback

Fixture/Transport

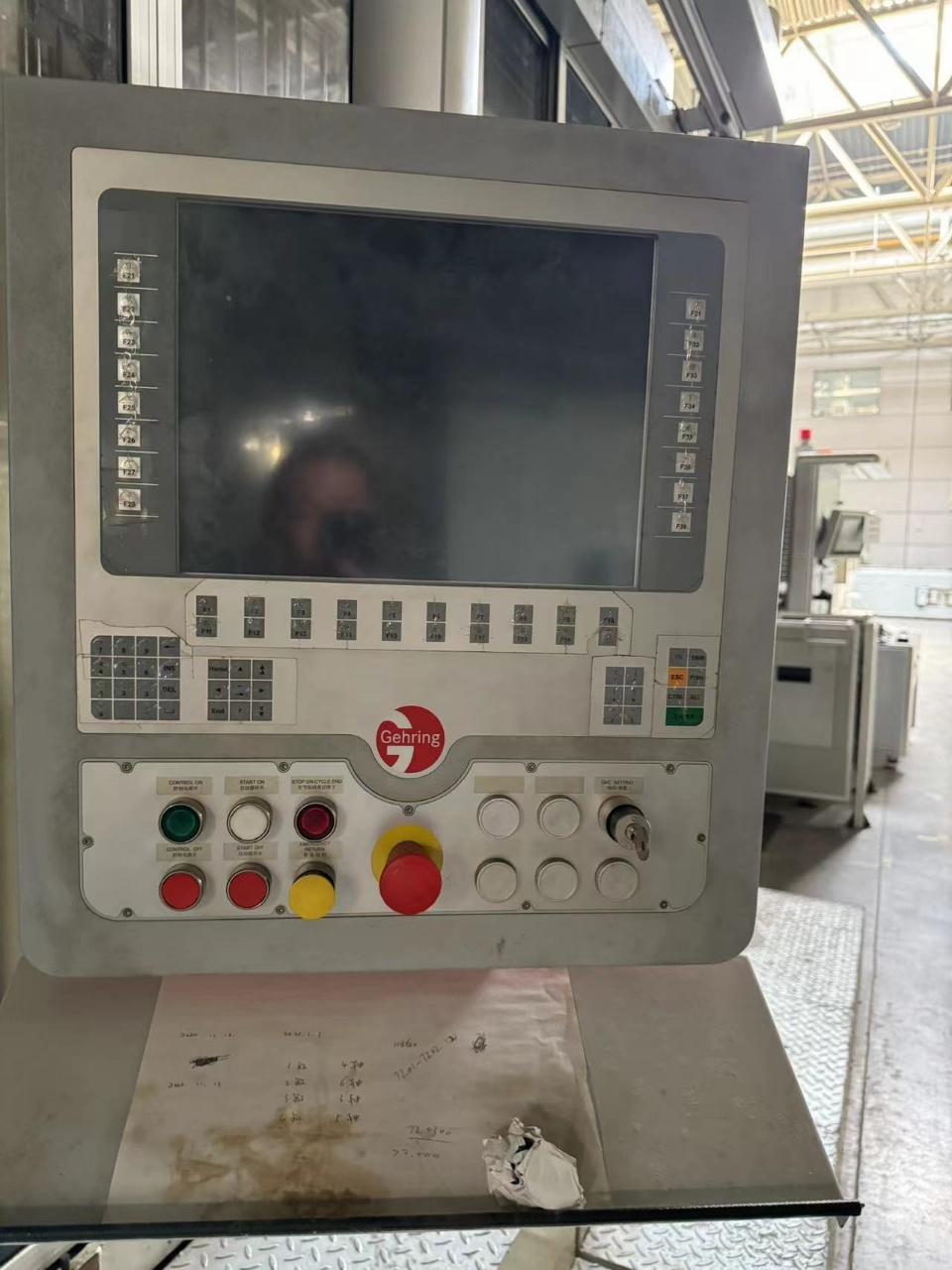

Control CNC System

machining  control: Gehring

machine tool control: Siemens S7
