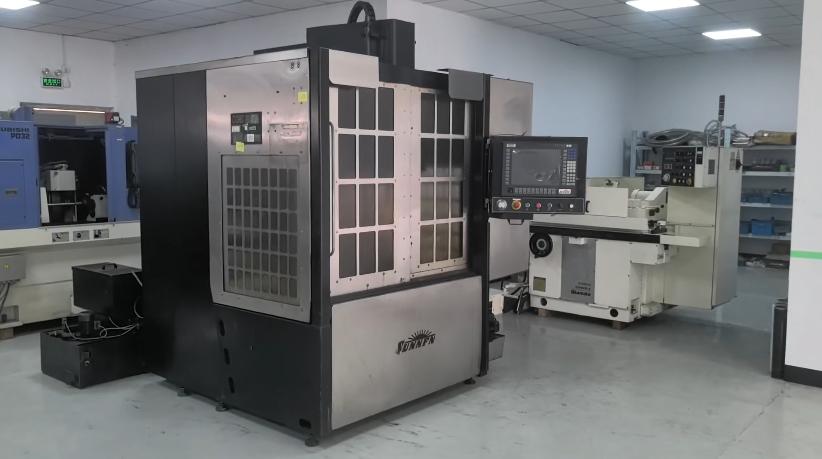

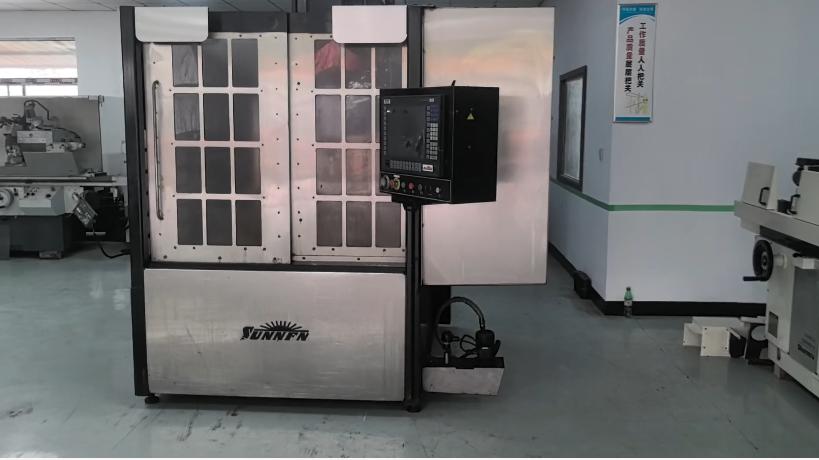

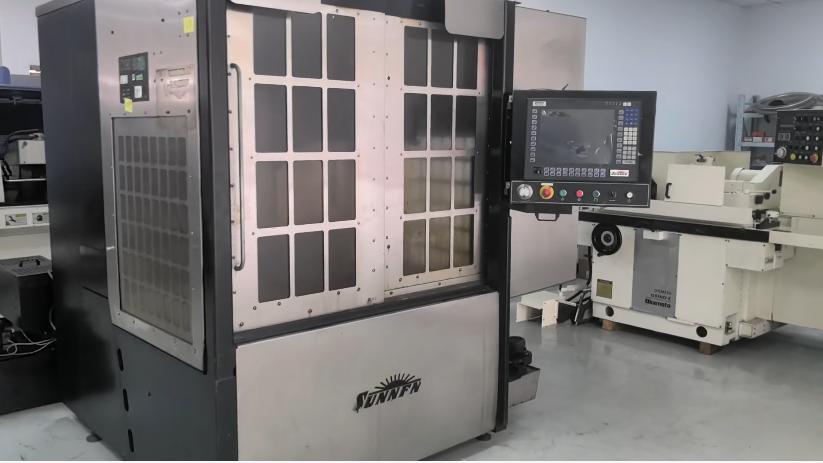

SUNNEN SV-210 Honing machine

Diameter range: 19–203 mm
Maximum workpiece weight: 907.2 kg
Maximum workpiece length: 610 mm
Worktable size: 914 x 1016 mm
Slide frame length: 762 mm
X-axis travel: 737–762 mm
Y-axis reciprocating speed: 20–160 strokes per minute
Travel motor power: 7.5 kW
Maximum thrust: 1360.8 kg
Spindle speed: 90–600 RPM (revolutions per minute)
Spindle motor power: 5.6 kW
Maximum rotational feed force: 31.8 N·m
