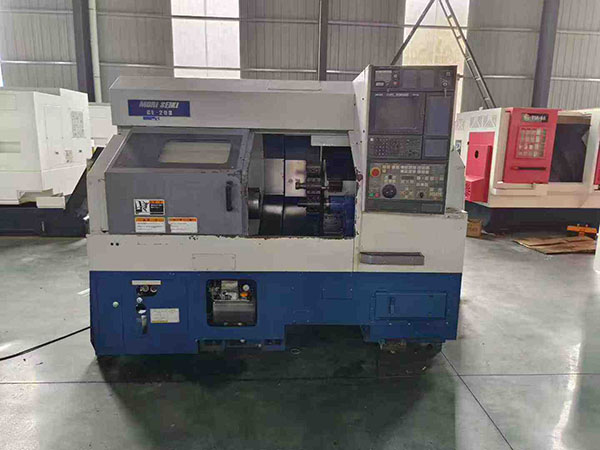

Used Mori Seiki CL-203A/500 High-Precision CNC Lathe
| Specification | Details |
| Stock Number | 810429 |
| Brand | Mori Seiki |
| Model | CL-203A/500 |
| Origin | Japan |
| Max. Turning Diameter | φ410 mm |
| Max. Turning Length | 550 mm |
| Spindle Power (Standard) | 7.5 / 5.5 kW |
| Max. Spindle Speed | 4,500 rpm |
1. Equipment Overview: The Legacy of Mori Seiki Reliability
The Mori Seiki CL-203A/500 represents a pinnacle in the evolution of compact, high-performance CNC lathes. Mori Seiki, a name synonymous with Japanese engineering excellence, developed the CL series to address the needs of manufacturers requiring high speed, consistent accuracy, and long-term durability. This specific machine, stock number 810429, is a prime example of why Japanese-made machine tools dominate the global market. Unlike entry-level lathes, the CL-203A is built on a heavy-duty casting that dampens vibrations, allowing for superior surface finishes and extended tool life.
Designed for high-efficiency production, the CL-203A/500 is particularly well-suited for the precision turning of various materials, from aluminum to high-tensile alloys. Its ergonomic design ensures that operators can perform setups quickly, while the compact footprint allows it to be integrated into crowded shop floors without sacrificing accessibility for maintenance. For businesses looking to upgrade their production capabilities with a trusted brand, this used machine offers the perfect balance of legendary performance and significant capital savings.
2. Technical Parameter Deep Dive: Why the CL-203A/500 Stands Out
To truly appreciate the value of this Mori Seiki CL-203A/500, one must look at the synergy between its mechanical specifications. The machine offers a substantial work envelope with a maximum turning diameter of 410mm. This capacity is impressive for its size class, allowing it to handle diverse workpieces that typically require much larger machines. The 550mm turning length provides ample space for shaft work, ensuring versatility across different industrial sectors.
High-Torque Spindle and Speed Dynamics
At the heart of the CL-203A is its 7.5 / 5.5 kW spindle motor. This dual-rated power output ensures that the machine can maintain high torque at lower RPMs for heavy roughing cuts, while also providing the agility needed for high-speed finishing. The maximum spindle speed of 4,500 rpm is a critical feature for modern workshops using advanced carbide and ceramic tooling. High RPM capability translates directly into better surface integrity and the ability to work with smaller diameter parts effectively, where high surface footage is necessary for optimal cutting conditions.
Structural Rigidity and Japanese Craftsmanship
The "Made in Japan" label on this Mori Seiki is a guarantee of superior craftsmanship. The bed and headstock are designed with thermal stability in mind, minimizing the drift that occurs during long production runs as the machine warms up. The guideways are engineered to provide a smooth, low-friction movement while maintaining the stiffness required for heavy metal removal. This structural integrity is why Mori Seiki machines are often found still producing parts to tight tolerances even after decades of service.
3. Application Case Studies: Proven Performance Across Industries
The Mori Seiki CL-203A series has been a workhorse in the automotive industry for years. For instance, a leading Tier-2 supplier utilized these machines for the production of transmission valves and specialized fittings. The machine's ability to hold sub-10-micron tolerances consistently allowed the client to reduce their scrap rate by 15% compared to less rigid alternatives. The fast turret indexing time of the CL-203A significantly reduced idle time, making it ideal for high-volume automotive contracts.
In the medical device manufacturing sector, this lathe has proven equally capable. When machining stainless steel orthopedic components, the CL-203A’s rigid spindle prevents the chatter that often plagues lighter lathes. This results in a mirror-like finish directly off the machine, reducing the need for secondary polishing operations. Whether it's a small job shop or a large-scale manufacturing plant, the CL-203A/500 adapts to the specific demands of the project with ease.
4. Maintenance History and Machine Condition
Maintenance is the most critical factor when purchasing a used CNC machine. This CL-203A/500 has been meticulously maintained by its previous owners under a strict preventative maintenance schedule. The spindle has been checked for runout and vibration, passing all industrial standards for high-precision turning. The lubrication system is fully operational, ensuring that all moving parts are protected from wear and tear.
Our technicians have performed a comprehensive multi-point inspection on the electrical cabinet and control systems. The cooling fans are clean, the wiring is original and untouched, and the Fanuc-based control system boots up without any error codes. We have also verified the accuracy of the X and Z axes, ensuring that the ball screws are in excellent condition with minimal backlash. This machine is not just "used"; it is "production-ready," meaning you can put it to work the moment it arrives at your facility.
5. Value Proposition: Why Invest in a Used Mori Seiki?
Investing in a used Mori Seiki CL-203A/500 is one of the smartest financial moves a manufacturing manager can make. The initial depreciation of the machine has already been absorbed, allowing you to acquire world-class Japanese technology at a fraction of the cost of a new model. Because Mori Seiki machines are built to such high standards, their residual value remains high, protecting your investment for years to come.
Furthermore, the availability of parts and service for Mori Seiki is unmatched. With a global network of distributors and independent technicians familiar with the CL-203A platform, you will never have to worry about long-term downtime. The machine uses standard tooling and common CNC programming logic, which means your existing team can operate it without expensive retraining. In terms of ROI (Return on Investment), the CL-203A/500 is a champion, delivering high-quality parts and reliable uptime that pays for itself in record time.
6. Frequently Asked Questions (FAQ)
Q1: What CNC control does the Mori Seiki CL-203A typically use?
A: Most CL-203A models are equipped with the highly reliable Mori Seiki MSC (Fanuc-based) control system, known for its user-friendly interface and robust processing power.
Q2: Can this machine handle bar feeding?
A: Yes, the CL-203A is designed to be easily integrated with automatic bar feeders, making it a great choice for unmanned, continuous production runs.
Q3: What are the power requirements for this machine?
A: The machine generally operates on 3-phase AC200V/220V. For regions with different voltages (like 380V or 480V), a step-down transformer is required.
Q4: Is the 410mm diameter the maximum swing or maximum turning diameter?
A: The φ410mm refers to the maximum turning diameter, providing a generous work zone for a wide variety of industrial parts.
