What are the common types of machine tools？
Machine tools are essential equipment for shaping, cutting, and processing various materials. Here’s a detailed breakdown of the common types, categorized by their functions, working principles, and applications:
### **1. Lathes (Turning Machines)**
**Function**: Rotate the workpiece while a cutting tool removes material to create cylindrical or rotational shapes.
**Key Features**:
- **Manual/Engine Lathe**: Operated by hand, suitable for simple parts (e.g., shafts, bowls).
- **CNC Lathe**: Computer-controlled for precision and complex geometries (e.g., threads, tapers).
- **Specialized Types**:
- **Turret Lathe**: Multiple cutting tools on a turret for automated operations.
- **Boring Lathe**: For enlarging existing holes with high accuracy.
**Applications**: Automotive parts (axles), pipes, mechanical shafts, and custom components.
### **2. Milling Machines**
**Function**: Use rotating cutting tools to remove material from a fixed workpiece, creating flat surfaces, slots, or 3D contours.
**Key Features**:
- **Vertical Milling Machine**: Spindle axis is vertical; ideal for drilling and slotting.
- **Horizontal Milling Machine**: Spindle axis is horizontal; better for heavy-duty cutting.

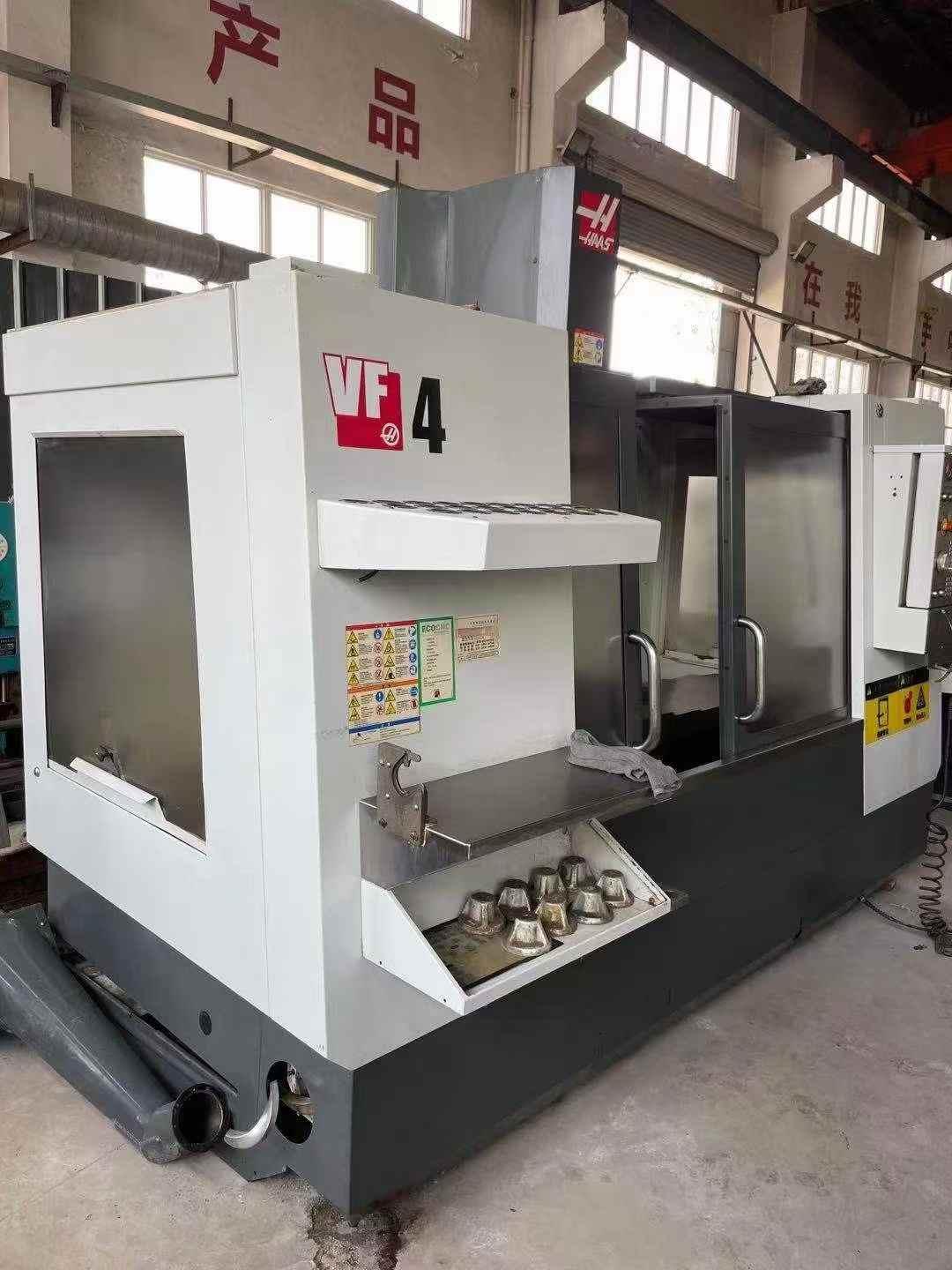

- **CNC Milling Machine**: Capable of 3-axis to 5-axis machining for complex parts (e.g., molds, aerospace components).
- **Bed Type Milling Machine**: Large, rigid frame for heavy workpieces (e.g., machine bases).
**Applications**: Prototyping, gear manufacturing, die/mold making, and aerospace components.
### **3. Drilling Machines**
**Function**: Create holes in workpieces using drill bits.
**Key Features**:
- **Bench Drill Press**: Small, table-mounted for light-duty drilling (e.g., in workshops).
- **Radial Drill Press**: Arm can swing around to drill holes at different positions on large workpieces.
- **Deep Hole Drill**: For holes with high depth-to-diameter ratios (e.g., gun barrels).
- **CNC Drill/Tap Center**: Automates drilling and tapping (thread creation) for mass production.
**Applications**: Plumbing fixtures, electronics enclosures, and mechanical assemblies.
### **4. Grinding Machines**
**Function**: Use an abrasive wheel to remove material for finishing, shaping, or sharpening.
**Key Features**:
- **Surface Grinder**: Flattens or finishes flat surfaces (e.g., metal plates).
- **Cylindrical Grinder**: Smooths cylindrical parts (e.g., shafts, bearings).
- **Tool and Cutter Grinder**: Sharpens cutting tools (e.g., drill bits, end mills).
- **Centerless Grinder**: No chuck; ideal for high-volume, small-diameter parts (e.g., pins).
- **Jig Grinder**: High-precision for toolmaking and die components.
**Applications**: Precision parts (bearings, gears), tool sharpening, and surface finishing.
### **5. Shaping and Planing Machines**
**Function**: Create flat or linear surfaces using a reciprocating cutting tool.
- **Shaper**: Tool moves back-and-forth across a stationary workpiece (e.g., small parts).
- **Planer**: Workpiece moves past a fixed tool; better for large surfaces (e.g., shipbuilding).
**Applications**: Vintage machining, small-scale metalworking, and repair work.
### **6. Broaching Machines**
**Function**: Use a long, toothed broach tool to cut precise shapes (e.g., keyways, splines) in a single pass.
**Key Features**:
- **Vertical Broacher**: For small parts (e.g., gear hubs).
- **Horizontal Broacher**: For larger workpieces (e.g., automotive shafts).
**Applications**: Gear manufacturing, keyway cutting, and firearm components.
### **7. Sawing Machines**
**Function**: Cut workpieces into sections using a blade or abrasive wheel.
**Key Types**:
- **Band Saw**: Continuous loop blade for curved or straight cuts (e.g., metal, wood).
- **Circular Saw**: Rotating blade for straight cuts (e.g., pipes, sheet metal).
- **Cold Saw**: High-precision for metal cutting without excessive heat.
- **Miter Saw**: Angled cuts for framing or woodworking.
**Applications**: Metal fabrication, woodworking, and construction.
### **8. Gear Cutting Machines**
**Function**: Manufacture gears with precise tooth profiles.
**Key Types**:
- **Gear Hobbing Machine**: Uses a hob (cylindrical cutter) to create spur, helical, or worm gears.
- **Gear Shaper**: Reciprocating cutter for internal or external gears.
- **Gear Grinding Machine**: Finishes gears for high precision (e.g., in aerospace).
**Applications**: Automotive transmissions, robotics, and industrial gearboxes.
### **9. CNC Machines (Computer Numerical Control)**
**Function**: Automated machines controlled by computer programs for high precision and repeatability.
**Key Types**:
- **CNC Lathe/Mill**: Combine functions for complex parts (e.g., Swiss-type lathes for small components).
- **CNC Router**: For non-metallic materials (wood, plastic, foam) using spinning cutters.
- **Multi-Axis Machining Centers**: 4-axis or 5-axis machines for intricate 3D parts (e.g., turbine blades).
**Applications**: Mass production, aerospace, medical devices, and robotics.
### **10. Specialized Machines**
- **Electrical Discharge Machines (EDM)**: Use electrical sparks to cut hard materials (e.g., tool steel, carbide).
- **Wire EDM**: Thin wire creates precise contours.
- **Ram EDM**: Shaped electrode hollows out cavities.
- **Laser Cutting Machines**: High-power lasers cut through metal, plastic, or wood with minimal heat damage.
- **Waterjet Cutters**: High-pressure water mixed with abrasives cuts tough materials (e.g., stone, metal) without heat.
- **Press Brakes**: Bend sheet metal into angles or curves for enclosures or structures.
- **Punches and Shears**: Cut or shape sheet metal in bulk (e.g., for automotive body panels).
### **11. Woodworking Machines**
Though often categorized separately, these share principles with metalworking tools:
- **Table Saw**: Circular blade for wood cutting.
- **Router**: Spinning bit for shaping wood edges or grooves.
- **Planer**: Smooths wood surfaces to uniform thickness.
- **Lathe**: Shapes wood into bowls, chair legs, or decorative elements.
### **Conclusion**
Machine tools vary widely in design and purpose, from traditional manual lathes to advanced CNC multi-axis systems. Choosing the right tool depends on the material, required precision, production volume, and the complexity of the part. Modern manufacturing often combines multiple machine types—especially CNC and specialized tools—to achieve efficiency and accuracy in complex projects.
