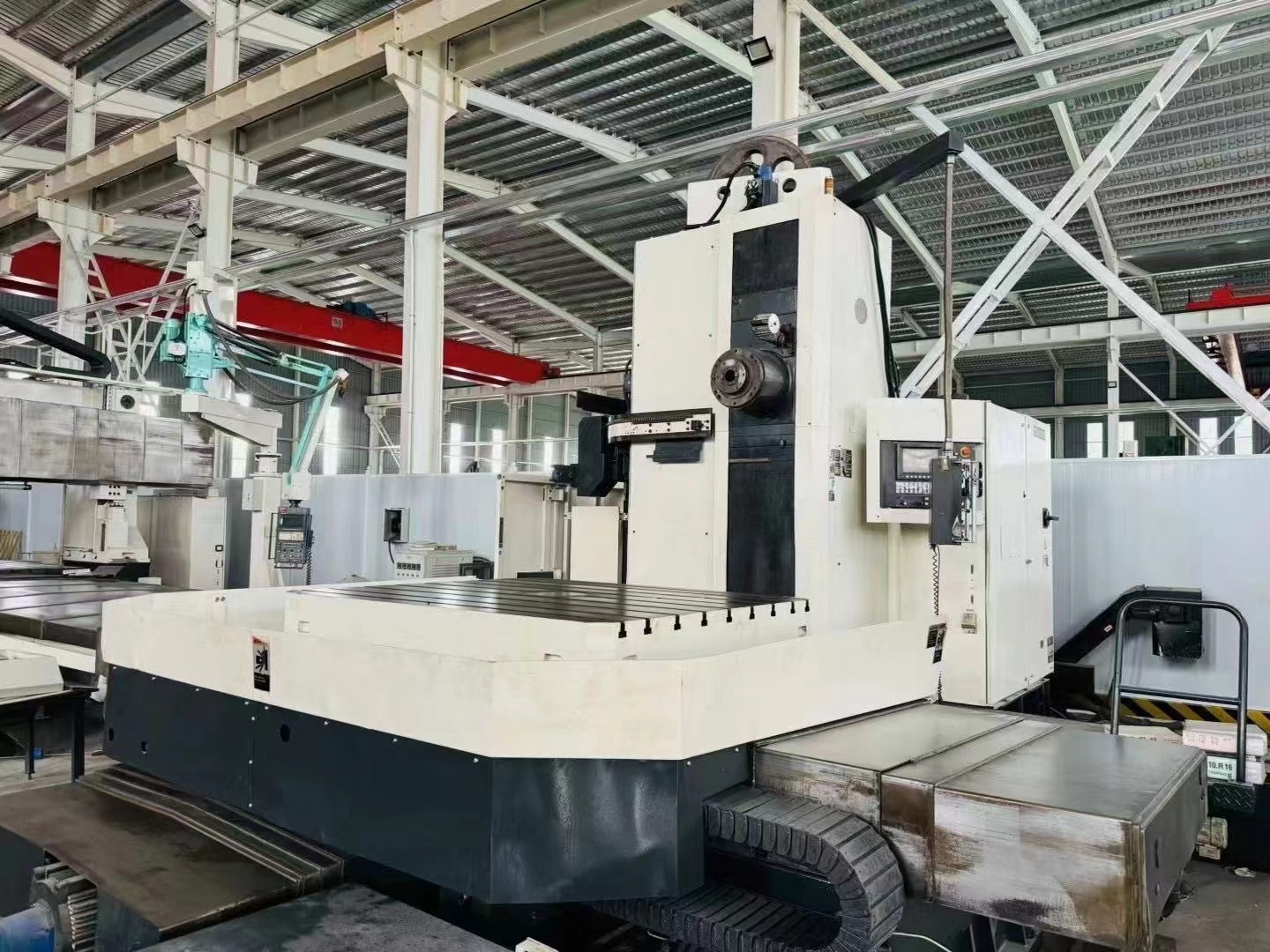

For repeat production of precision bores, a CNC boring machine should be evaluated against the part, batch size and required process sequence—not simply its control system. CNC motion and programmed cycles can improve consistency across repeated operations, but achieved accuracy also depends on machine condition, workholding, tooling, setup and measurement. Start with the production requirement Define the bore sizes and locations, workpiece material, number of operations, batch frequency and acceptance criteria. Include the full part envelope and the way parts will be loaded and clamped. These details determine whether the machine’s travel, spindle arrangement, workholding and tooling access suit the job. Ask suppliers to explain how they will demonstrate CNC boring machine accuracy on representative parts. Specify the measurement method, inspection locations and whether results should be checked after a warm-up or across repeated setups. A machine’s stated positioning performance is not, by itself, proof of finished-part accuracy. CNC control and repeatability The CNC system coordinates axis movement, spindle operation and programmed machining sequences. For recurring batches, saved programs reduce reliance on manual repositioning and make operation sequences easier to reproduce. Repeatability still depends on a stable datum, consistent clamping, tool condition, offset management and operator procedure. During evaluation, review the control functions the job actually needs: program storage and transfer, tool and offset management, cycle recovery, probing or measurement integration, and compatibility with the buyer’s programming workflow. Confirm who develops and validates the initial program, how revisions are controlled, and what operator training is included in the project scope. Productivity, automation and application fit Estimate cycle time from the complete sequence, including loading, clamping, tool changes, inspection and changeovers. Automation is worthwhile when it reduces a recurring constraint, such as frequent loading or unattended operation; its value depends on part variation, batch size, material flow and the need for in-process checks. Include integration, guarding, maintenance and recovery from interruptions in the assessment. Production scenario Assessment priority Configuration question Repeated parts in stable batches Program and setup repeatability Can proven workholding and tool offsets be reused? High-mix, low-volume work Changeover and programming effort How quickly can programs, tooling and fixtures change? Long cycles or frequent loading Utilization and operator time Would probing, automatic loading or monitoring address a real bottleneck? Large or complex workpieces Access, support and datum strategy Can the part be clamped and machined through the required sequence? Questions to resolve before specification How should accuracy be verified? Agree on a representative part test, inspection method and acceptance criteria before purchase. Does CNC automatically mean unattended production? No. Unattended running requires suitable part presentation, tool-life planning, monitoring, safety provisions and a defined response to faults. What should an automation quotation include? Clarify interfaces, fixtures, loading equipment, guarding, controls integration, commissioning responsibilities and operator training. Compare proposals using the same part, process sequence and production assumptions. This keeps CNC configuration, automation scope and expected output tied to measurable application needs.

When pivot bores, bearing housings or aligned holes become worn or misaligned, replacing the entire structure is often unnecessary. A line boring machine restores the bore axis and machining surface directly on the component, usually with the equipment positioned at the repair site. This makes line boring useful for heavy machinery where dismantling and transport would create excessive downtime. What Line Boring Corrects Line boring repairs a series of holes that must share one accurate centerline. Typical problems include enlarged bores caused by load and wear, oval holes, damage from loose bushings, and misalignment between opposing supports. The process is different from general boring because the cutting tool travels along a supported boring bar that references the existing structure. The objective is not simply to enlarge one hole, but to restore the relationship between multiple bores. How the Line Boring Process Works The repair begins with an inspection of the component, bore condition and access restrictions. A technician then mounts the boring bar supports and drive unit securely around the workpiece. Alignment is established from the required centerline, existing bore geometry or the repair drawing. Once the bar is stable and correctly positioned, the cutter removes material progressively along the bore. Finishing may include a final machining pass and preparation for a replacement bushing or bearing. The repaired geometry is then inspected before reassembly. Stage Purpose Typical decision Inspection Assess wear, damage, access and reference points Confirm whether on-site line boring is suitable Setup Install supports, boring bar and drive system Choose stable mounting positions and cutter access Alignment Establish the required common bore axis Set the repair datum and verify bar position Boring Remove damaged material in controlled passes Select a sequence that protects rigidity and surface quality Finishing Complete the final bore surface and fit condition Prepare for bushing, bearing or pin installation Inspection Verify the finished bore and alignment Record measurements before equipment assembly Line Boring Machine Applications Common line boring machine applications include excavator boom and arm pivots, loader and crane joints, bulldozer frames, agricultural equipment, mining machinery, marine structures and industrial equipment with aligned bearing seats. The method is especially valuable where the component is too large to move economically or where removing it would interrupt production. Restoring the original centerline can also support accurate bushing installation and reduce uneven loading during operation. Why Buyers Specify On-Site Line Boring On-site line boring can reduce dismantling, heavy transport and machine downtime, but the result depends on access, structural rigidity, alignment references and the condition of surrounding material. Buyers should provide photographs, bore dimensions, component drawings if available, equipment model, site restrictions and the required repair outcome when requesting a field repair assessment. These details allow the service provider to confirm tooling suitability, measurement requirements and the practical scope of work. FAQ Can line boring correct two misaligned bores? Yes. When the component can be securely supported, the boring bar can establish a common axis and machine the related bores in line. The required reference and material condition must be assessed before work begins. Is line boring only used on heavy equipment? No. Heavy equipment is a major use case, but the process also applies to industrial, marine, agricultural and structural components with aligned bores that require restoration. What information is needed for a line boring quotation? Useful information includes bore locations and dimensions, photographs, equipment type, access conditions, material or bushing details, site location and any available drawings or measurement records.

When a workpiece is too large, heavy or structurally complex for a conventional machining center, a horizontal boring machine can provide the working envelope, spindle reach and rigidity required for accurate internal machining. Its horizontal spindle arrangement is suited to large castings, fabricated structures, gear housings and machinery bases that must be bored, drilled, milled or inspected in a controlled setup. The correct selection depends on more than nominal machine size. Buyers should match the machine to the workpiece envelope, required bore diameter, part weight, spindle travel, table or floor mounting arrangement, material and accuracy requirements. Why the Horizontal Configuration Matters In a horizontal boring machine, the spindle approaches the workpiece along a horizontal axis. This layout supports large components that are difficult to orient vertically and allows several related operations to be completed without repeatedly repositioning the part. For heavy workpieces, support from a rigid table, foundation or fixture helps control vibration and cutting deflection. The result is more predictable bore geometry, especially when machining deep holes, aligned bearing seats or multiple bores that must share a common centerline. Actual performance still depends on machine condition, tooling, fixturing, cutting parameters and operator practice. Key Selection Criteria for Large Workpieces Selection factor What to verify Why it affects the decision Workpiece envelope Maximum length, width, height and required access around the part Determines whether the component can be loaded, positioned and machined without interference Workpiece weight Table, foundation, fixture and loading-system capacity Insufficient support can increase vibration, deflection and setup risk Bore requirements Diameter range, bore depth, spindle travel and tool reach Defines whether the machine can complete the hole in one stable setup Accuracy and rigidity Required alignment, surface finish and repeatability, plus machine condition Heavy-duty boring demands structural stability throughout the cutting cycle Process scope Need for milling, drilling, tapping, facing or multiple setups Broader capability may reduce handling and secondary operations Horizontal Boring Machine Applications Common horizontal boring machine applications include machining hydraulic-cylinder housings, engine and transmission cases, pump bodies, gearbox housings, machine bases, construction-equipment components, shipbuilding parts and large welded fabrications. The machine is especially suitable when bore alignment, perpendicularity and positional accuracy matter across a large component. Fixed horizontal equipment is generally selected for planned production or heavy repair work in a machining facility, where the part can be transported to the machine and securely fixtured. Portable line boring equipment serves a different situation: it is used when the component is difficult to move and machining must be performed at the installation site. The decision should therefore begin with logistics and setup location, not only bore diameter. Questions Buyers Should Confirm Is a horizontal boring machine suitable for every large workpiece?Not necessarily. The part must fit the machine envelope, loading method and fixture arrangement, and its weight must be compatible with the supporting structure. Does a larger machine automatically provide better accuracy?No. Accuracy depends on rigidity, alignment, thermal condition, spindle and feed condition, tooling, fixturing and verification methods as well as nominal size. When should portable equipment be considered instead?Consider portable line boring when moving the damaged or installed component is impractical. Choose fixed horizontal equipment when controlled shop-floor setup, broader machining capability and repeatable workholding are the priority.

Selecting a boring machine starts with the actual hole, not the machine catalogue. A machine that appears capable on paper can still be the wrong purchase when its boring range does not cover the smallest and largest bores, its setup cannot hold the required geometry, or its configuration does not suit the workpiece. The result may be unnecessary tooling, slow setups, restricted access, or a repair that cannot be completed in position. For buyers asking how to select a boring machine, follow a practical decision chain: define the bore size, establish the accuracy target, assess the application and workpiece condition, then match those requirements to a machine type. This approach keeps the specification focused on the parameters that affect whether the machine can perform the job. Start with the consequences of choosing the wrong size Buying a machine for only the most common bore size can create a costly operating gap. A machine may be unable to reach a larger occasional repair bore, while an oversized setup may lack the rigidity, tooling practicality or adjustment control needed for smaller work. Bore size also affects bar selection, cutter reach, drive arrangement and how the machine is supported and aligned. Before comparing machines, list the full bore envelope rather than a single nominal diameter. Include the smallest bore to be machined, the largest bore, typical bore depths, interrupted or damaged areas, and whether a bar must pass completely through the workpiece. For repair work, account for wear, ovality or weld build-up that may make the effective starting condition different from the original dimension. Match boring machine bore size to the real work range The stated boring machine bore size range should cover the job with usable adjustment room. Operating at the extreme low or high end of a machine's range may require special tooling or compromise the practical setup. Buyers should also distinguish between the diameter a machine can theoretically bore and the diameter it can machine under the required access, depth and alignment conditions. Parameter to define Why it affects selection Information to provide to a supplier Minimum and maximum bore diameter Determines whether the bar and cutting arrangement cover the full working range. Finished diameters and estimated starting diameters. Bore length or depth Affects bar length, support requirements and rigidity. Machined length, blind or through bore, and access from each side. Bore centre distance and spacing Determines whether multiple aligned bores can be machined in one setup. Centre-to-centre dimensions and number of bores. Workpiece access Influences mounting, bar installation and drive placement. Photos, clearance limits and obstruction locations. Material and bore condition Affects cutting method, tooling and expected machining time. Material where known, damage type, weld build-up or bushing condition. For example, a worn pivot bore on a large excavator attachment may require a portable setup because moving the structure is impractical. The bore diameter alone is not enough: the supplier also needs to know the bore length, whether adjacent bores must remain coaxial, and whether there is clearance to install and support the boring bar. Set the accuracy requirement before selecting the machine Boring machine accuracy is more than final diameter. The required result may include diameter control, roundness, straightness, surface finish, and alignment with one or more existing bores. In many field repairs, restoring the centreline relationship between pivot bores is as important as returning a bore to its nominal diameter. Define the acceptance requirement in functional terms. A bore intended to receive a replacement bushing needs an appropriate fit with that bushing. A pair of hinge bores may need to share a common axis so that the pin does not bind or wear unevenly. If drawings specify tolerances or geometric controls, provide them. If they do not, state the mating part, fit expectation and operating consequence of misalignment. Higher accuracy needs usually demand more attention to alignment, bar support, setup stability and measurement during machining. This does not automatically mean choosing the physically largest or most complex machine. It means choosing a machine and setup method that can maintain the required geometry in the available working environment. Use the application to determine the machine type Once bore size and accuracy are known, the application determines which machine arrangement is workable. The key question is whether the workpiece can be brought to a machine or the machine must be brought to the workpiece. Portable line boring for in-place repair Portable line boring is generally considered when the component is large, fixed in service, difficult to transport or part of a welded structure. Typical situations include equipment pivots, construction and mining attachments, booms, frames, industrial housings and other components with aligned bores. The machine must fit the available access and be aligned to the intended bore centreline. Its value comes from machining the bore in position, not simply from its nominal diameter range. Shop-based boring for removable components A shop machine may be more suitable when the component can be removed and fixtured securely, when controlled positioning is available, or when the work involves a broader series of operations. The deciding factor is the complete process: lifting and transport, setup time, datum control, bore orientation and repeatability across parts. Single bore versus aligned bore work A single damaged bore can often be approached as a diameter-restoration task. Multiple bores carrying the same pin or shaft require a line-boring perspective. In that case, confirm the distance between bores, the required common axis, available bar support locations and any obstructions between the bores. Selecting solely by the largest diameter may overlook the alignment requirement that defines the repair. A parameter-led selection checklist Record the bore envelope: minimum diameter, maximum diameter, starting condition and finished size. Map the bore geometry: length, number of bores, spacing, blind or through access, and required centreline relationship. State the accuracy target: diameter tolerance, fit, alignment and any drawing requirements. Assess the work environment: removable or fixed workpiece, mounting space, access, lifting limits and nearby obstructions. Identify the machining scope: boring only, or related operations such as facing, bushing preparation or weld build-up machining. Send complete job information: dimensions, drawings where available, photos and a description of the repair objective. Providing this information enables a supplier to assess machine range, bar configuration, support method and access suitability against the job. It is more useful than asking for a general-purpose recommendation without workpiece data. FAQ Should the machine's bore range exactly match my bore diameter? No. The required diameter should sit within the practical operating range, with consideration for tooling, access, bore depth and the needed adjustment margin. Confirm the actual job conditions rather than relying only on a headline diameter range. How do I choose between a portable boring machine and a shop machine? Choose based on whether the workpiece can be removed, transported and fixtured efficiently without compromising the repair. Portable line boring is often appropriate for large, installed or difficult-to-move structures; shop-based machining can suit removable components with stable fixturing and controlled access. What accuracy details should I provide for a bore repair? Provide the finished diameter, fit with the mating pin or bushing, tolerance if specified, bore length, and whether the bore must align with another bore. Photos and drawings can also clarify datums, access restrictions and the intended repair result. Can one machine handle both small and large bores? Some machines and tooling systems may cover a broad range, but suitability depends on the specific bore sizes, required rigidity, bar length, access and accuracy. A broad stated range should be checked against the full set of job parameters before purchase.
