Boring Machine Accuracy: Key Factors That Affect Machining Results

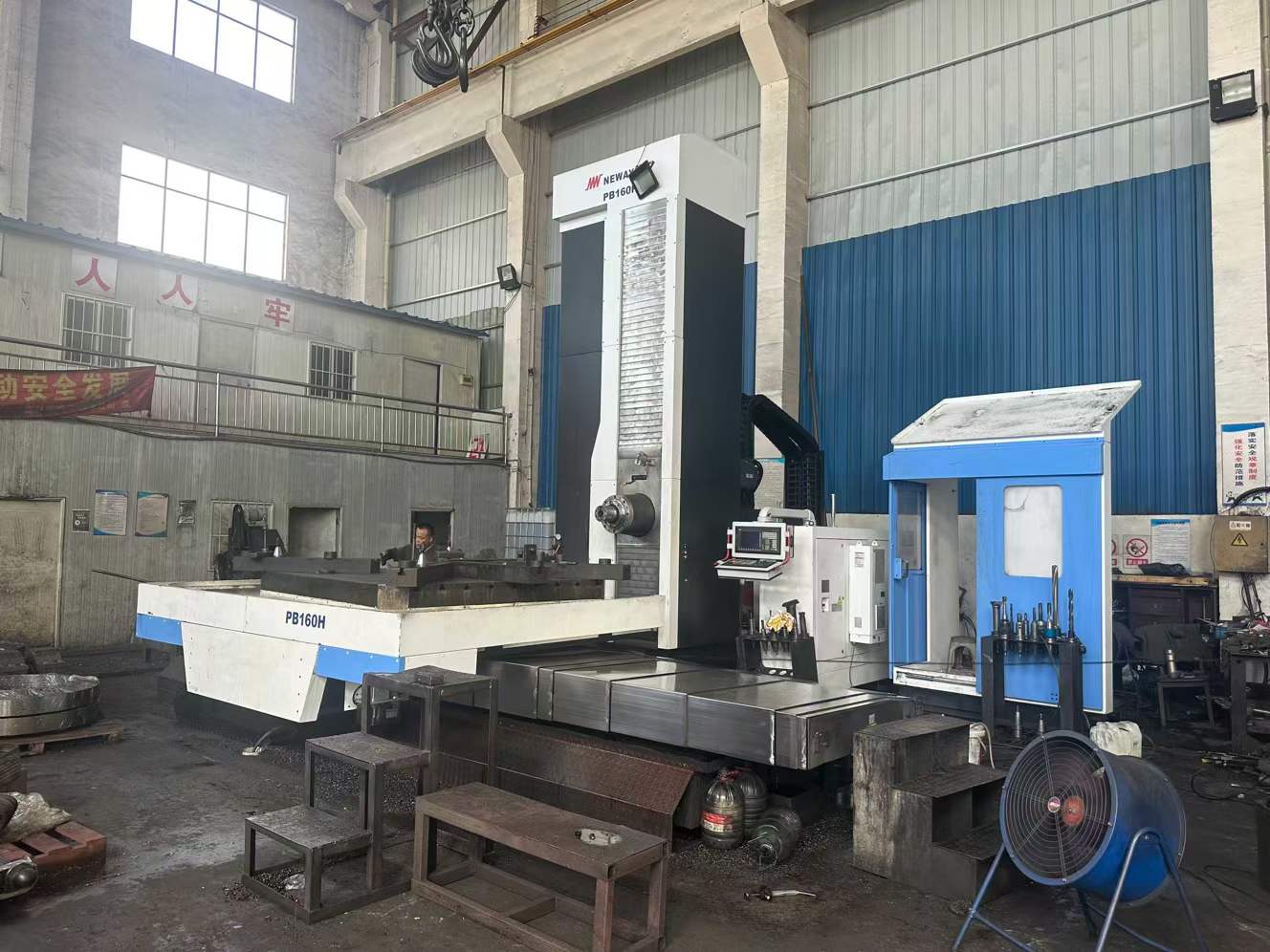

A bore can meet its diameter requirement yet still fail assembly because its axis is misplaced, its shape is distorted or adjacent bores are misaligned. Boring machine accuracy therefore needs to be assessed against the drawing’s dimensional, geometric and surface finish requirements.
For portable line boring repairs on excavator pivots, loader frames and similar assemblies, the machine, mounting arrangement and workpiece form one machining system. Published machine capability alone cannot establish the finished result.
Accuracy Factors Checklist
| Factor | Effect on results | Control before finishing |
|---|---|---|
| Machine and bar rigidity | Deflection and vibration can produce taper, chatter or size variation. | Minimize unsupported bar length and tool overhang; check supports and bearing condition. |
| Alignment and mounting | An incorrect bar axis produces bores in the wrong position. | Reference approved datums and recheck alignment after securing mounts. |
| Tool condition and cutting parameters | Wear, built-up edge and excessive cutting forces alter size and finish. | Check insert condition, tool clamping, speed, feed and depth of cut. |
| Workpiece condition | Clamping distortion, weld stress and heat can change geometry. | Inspect cracks, weld repairs, support points and temperature. |
| Measurement method | Limited sampling or unsuitable gauges can miss defects. | Use calibrated instruments with resolution and uncertainty appropriate to the tolerance. |
Control the Setup Before Adjusting the Cut
Establish the required bore axis from the drawing or an approved repair reference. Worn bores may no longer represent the original centerline. For line boring accuracy, verify the relationship between all relevant bores, rather than centering independently on each damaged opening.
Secure the component and supports, then check that the bar rotates freely and the alignment remains stable. Stop the drive before adjusting tools or supports. A light trial cut can reveal chatter or uneven engagement, but it does not prove positional accuracy.
Select cutting parameters for the material, insert and setup rigidity. Excessive cutting force can deflect the bar; an excessively light cut can cause rubbing. Leave controlled finishing stock, monitor tool wear and investigate dimensional drift before continuing.
Verify Size, Form and Axis Separately
Clean and deburr the bore before inspection. Measure diameter at multiple depths and angular positions to screen for taper and ovality. These readings alone do not establish roundness, cylindricity or coaxiality; use an inspection method suited to each drawing requirement.
Account for workpiece and instrument temperature. Where clamping may distort the component, agree whether acceptance measurements apply in the clamped or released condition. Record the setup, measurement locations and results.
Accuracy and Alignment FAQ
Does correct alignment guarantee an accurate bore?
No. Alignment establishes the intended axis, while rigidity, tooling, cutting conditions and workpiece stability determine whether machining maintains it.
What information is needed to assess achievable accuracy?
Provide bore dimensions, spacing, material, required tolerances, datum references, repair history, access restrictions and the proposed inspection method. Any accuracy commitment should be confirmed for those conditions.
