How to Select a Boring Machine Based on Bore Size, Accuracy and Application
Selecting a boring machine starts with the actual hole, not the machine catalogue. A machine that appears capable on paper can still be the wrong purchase when its boring range does not cover the smallest and largest bores, its setup cannot hold the required geometry, or its configuration does not suit the workpiece. The result may be unnecessary tooling, slow setups, restricted access, or a repair that cannot be completed in position.
For buyers asking how to select a boring machine, follow a practical decision chain: define the bore size, establish the accuracy target, assess the application and workpiece condition, then match those requirements to a machine type. This approach keeps the specification focused on the parameters that affect whether the machine can perform the job.
Start with the consequences of choosing the wrong size
Buying a machine for only the most common bore size can create a costly operating gap. A machine may be unable to reach a larger occasional repair bore, while an oversized setup may lack the rigidity, tooling practicality or adjustment control needed for smaller work. Bore size also affects bar selection, cutter reach, drive arrangement and how the machine is supported and aligned.
Before comparing machines, list the full bore envelope rather than a single nominal diameter. Include the smallest bore to be machined, the largest bore, typical bore depths, interrupted or damaged areas, and whether a bar must pass completely through the workpiece. For repair work, account for wear, ovality or weld build-up that may make the effective starting condition different from the original dimension.
Match boring machine bore size to the real work range
The stated boring machine bore size range should cover the job with usable adjustment room. Operating at the extreme low or high end of a machine's range may require special tooling or compromise the practical setup. Buyers should also distinguish between the diameter a machine can theoretically bore and the diameter it can machine under the required access, depth and alignment conditions.
| Parameter to define | Why it affects selection | Information to provide to a supplier |
|---|---|---|
| Minimum and maximum bore diameter | Determines whether the bar and cutting arrangement cover the full working range. | Finished diameters and estimated starting diameters. |
| Bore length or depth | Affects bar length, support requirements and rigidity. | Machined length, blind or through bore, and access from each side. |
| Bore centre distance and spacing | Determines whether multiple aligned bores can be machined in one setup. | Centre-to-centre dimensions and number of bores. |
| Workpiece access | Influences mounting, bar installation and drive placement. | Photos, clearance limits and obstruction locations. |
| Material and bore condition | Affects cutting method, tooling and expected machining time. | Material where known, damage type, weld build-up or bushing condition. |
For example, a worn pivot bore on a large excavator attachment may require a portable setup because moving the structure is impractical. The bore diameter alone is not enough: the supplier also needs to know the bore length, whether adjacent bores must remain coaxial, and whether there is clearance to install and support the boring bar.
Set the accuracy requirement before selecting the machine
Boring machine accuracy is more than final diameter. The required result may include diameter control, roundness, straightness, surface finish, and alignment with one or more existing bores. In many field repairs, restoring the centreline relationship between pivot bores is as important as returning a bore to its nominal diameter.
Define the acceptance requirement in functional terms. A bore intended to receive a replacement bushing needs an appropriate fit with that bushing. A pair of hinge bores may need to share a common axis so that the pin does not bind or wear unevenly. If drawings specify tolerances or geometric controls, provide them. If they do not, state the mating part, fit expectation and operating consequence of misalignment.
Higher accuracy needs usually demand more attention to alignment, bar support, setup stability and measurement during machining. This does not automatically mean choosing the physically largest or most complex machine. It means choosing a machine and setup method that can maintain the required geometry in the available working environment.
Use the application to determine the machine type
Once bore size and accuracy are known, the application determines which machine arrangement is workable. The key question is whether the workpiece can be brought to a machine or the machine must be brought to the workpiece.
Portable line boring for in-place repair
Portable line boring is generally considered when the component is large, fixed in service, difficult to transport or part of a welded structure. Typical situations include equipment pivots, construction and mining attachments, booms, frames, industrial housings and other components with aligned bores. The machine must fit the available access and be aligned to the intended bore centreline. Its value comes from machining the bore in position, not simply from its nominal diameter range.

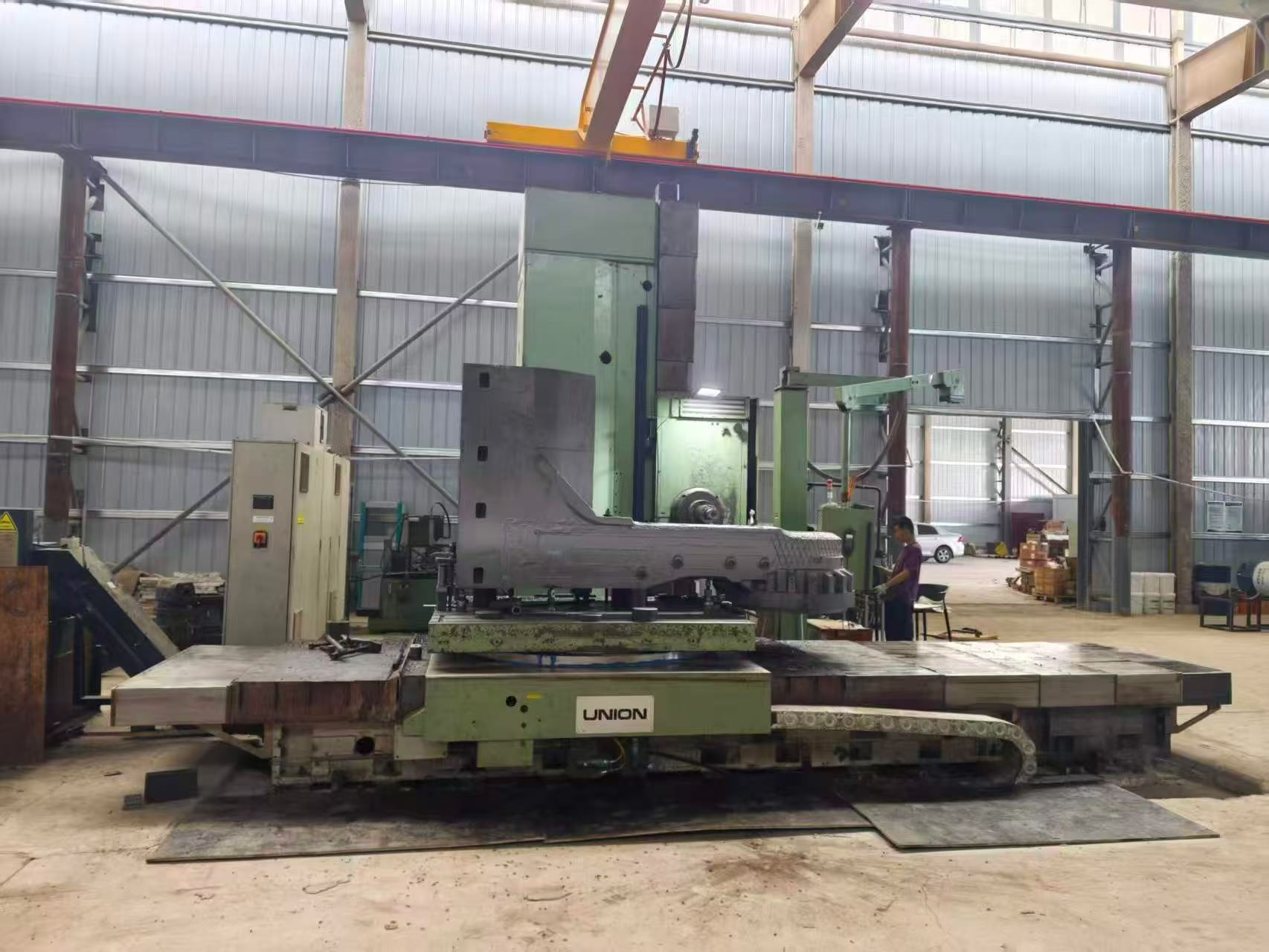

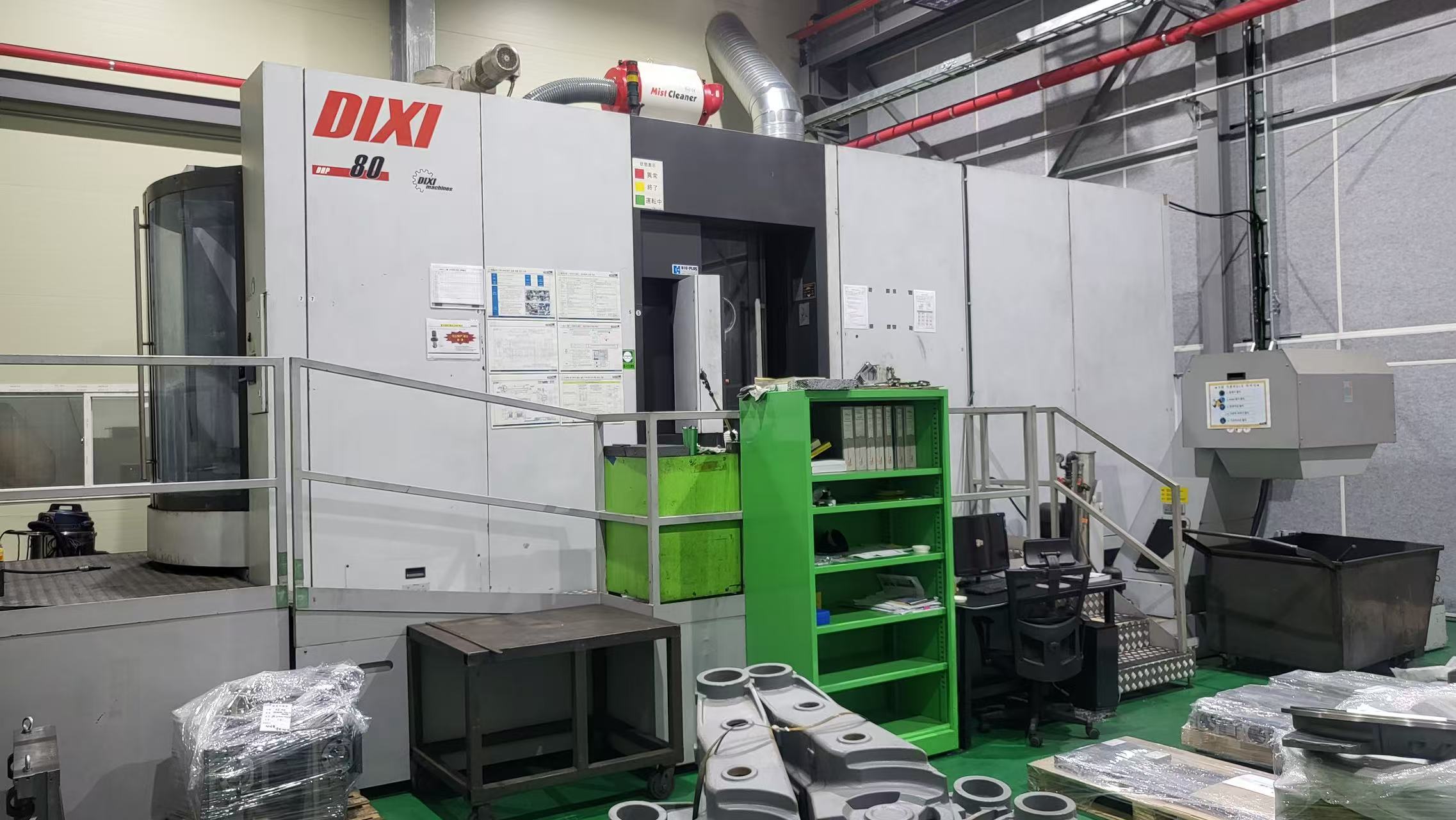

Shop-based boring for removable components
A shop machine may be more suitable when the component can be removed and fixtured securely, when controlled positioning is available, or when the work involves a broader series of operations. The deciding factor is the complete process: lifting and transport, setup time, datum control, bore orientation and repeatability across parts.
Single bore versus aligned bore work
A single damaged bore can often be approached as a diameter-restoration task. Multiple bores carrying the same pin or shaft require a line-boring perspective. In that case, confirm the distance between bores, the required common axis, available bar support locations and any obstructions between the bores. Selecting solely by the largest diameter may overlook the alignment requirement that defines the repair.
A parameter-led selection checklist
- Record the bore envelope: minimum diameter, maximum diameter, starting condition and finished size.
- Map the bore geometry: length, number of bores, spacing, blind or through access, and required centreline relationship.
- State the accuracy target: diameter tolerance, fit, alignment and any drawing requirements.
- Assess the work environment: removable or fixed workpiece, mounting space, access, lifting limits and nearby obstructions.
- Identify the machining scope: boring only, or related operations such as facing, bushing preparation or weld build-up machining.
- Send complete job information: dimensions, drawings where available, photos and a description of the repair objective.
Providing this information enables a supplier to assess machine range, bar configuration, support method and access suitability against the job. It is more useful than asking for a general-purpose recommendation without workpiece data.
FAQ
Should the machine's bore range exactly match my bore diameter?
No. The required diameter should sit within the practical operating range, with consideration for tooling, access, bore depth and the needed adjustment margin. Confirm the actual job conditions rather than relying only on a headline diameter range.
How do I choose between a portable boring machine and a shop machine?
Choose based on whether the workpiece can be removed, transported and fixtured efficiently without compromising the repair. Portable line boring is often appropriate for large, installed or difficult-to-move structures; shop-based machining can suit removable components with stable fixturing and controlled access.
What accuracy details should I provide for a bore repair?
Provide the finished diameter, fit with the mating pin or bushing, tolerance if specified, bore length, and whether the bore must align with another bore. Photos and drawings can also clarify datums, access restrictions and the intended repair result.
Can one machine handle both small and large bores?
Some machines and tooling systems may cover a broad range, but suitability depends on the specific bore sizes, required rigidity, bar length, access and accuracy. A broad stated range should be checked against the full set of job parameters before purchase.
