Used AWEA SP3016 CNC Gantry Milling Machine for Production Evaluation

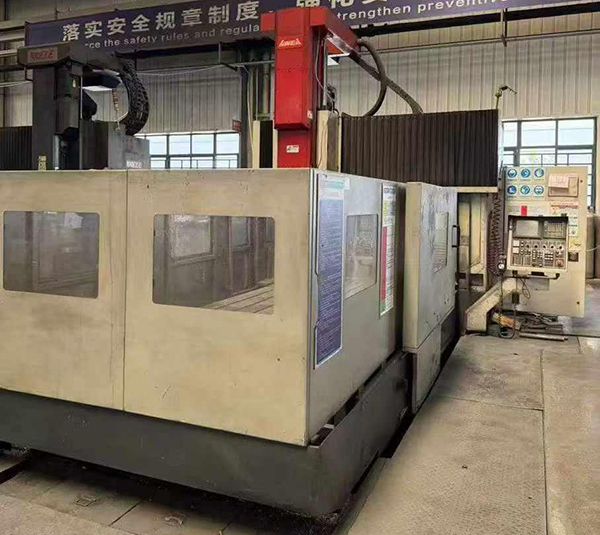

This used AWEA SP3016 CNC Gantry Milling Machine is a large-table, double-column CNC gantry mill with a Fanuc 18i-MB CNC system, 3060 mm X-axis travel, 1600 mm Y-axis travel, 760 mm Z-axis travel, a 3000 x 1500 mm table, and 10,000 kg table load capacity. It is suitable for mold bases, fixture plates, large structural parts, and precision-machined plates used in automotive, aerospace, mold making, medical device tooling, and electronics tooling plants. Stock number 812113 is in stock, available for inspection, and positioned as an immediate capacity upgrade for factories that need a cost-effective used gantry milling machine without waiting for a new build.
Core Specifications and What They Mean in Production
The AWEA SP3016 is a CNC gantry milling machine built for workpieces that are too large, too heavy, or too wide for a conventional vertical machining center. Its double-column design, long X-axis travel, and wide worktable make it practical for machining long plates, die shoes, mold bases, structural components, and parts with multiple features in a single setup. For procurement and process engineering teams, the key question is not only whether the machine can cut the part, but whether the travel, table size, spindle clearance, and load capacity match the actual production envelope.
The 3060 mm X-axis travel supports long workpieces and allows machining across nearly the full length of the 3000 mm table. This is important for mold plates, automotive fixture bases, aerospace panels, and long machine frames where moving the part between operations would add setup time and increase alignment risk. The 1600 mm Y-axis travel is useful for wide plates and tooling blocks, while the 760 mm Z-axis travel provides room for taller workpieces, fixtures, and tool length.
The 1700 mm distance between the double columns defines the practical maximum width for the part and fixture passing through the gantry opening. In production planning, this should be checked against the largest raw workpiece size, not only the finished part size. The 200 to 960 mm spindle nose-to-table distance defines the available vertical clearance range. This affects whether the machine can accommodate thick molds, tall fixtures, long cutting tools, or stacked workholding.
The 3000 x 1500 mm table and 10,000 kg maximum table load make this Yawei gantry mill suitable for heavy machining setups. Heavy mold bases, die plates, castings, and steel fixtures can be clamped with enough table area for locating blocks and clamps. The 22 / 26 kW main motor power supports milling work where cutter diameter, material hardness, and depth of cut require more power than a smaller machining center can typically provide.
Tooling Match and Part Fit
A CNC gantry milling machine is often selected when the workpiece footprint is the limiting factor. The AWEA SP3016 should be evaluated against the actual dimensions of your tooling, raw stock, clamps, and required cutter reach. With a 3000 x 1500 mm worktable and 3060 x 1600 mm travel range, it is well suited for large plates, mold bases, press tooling components, and large fixture bodies. The table size can also support several smaller components in one setup when batch flexibility is more important than dedicating the spindle to one small part at a time.
Suitable Workpiece and Tooling Examples
- Automotive: die plates, fixture bases, checking fixture frames, battery tray tooling plates, and large structural machining.
- Aerospace: aluminum structural plates, fixture tooling, long ribs, and large-format machining setups where X-axis travel is critical.
- Mold making: plastic mold bases, die shoes, core and cavity support plates, and large insert machining where table load and spindle clearance matter.
- Medical devices: mold tooling, precision fixture plates, and production tooling for large or multi-cavity components.
- Electronics: large die sets, fixture plates, heat sink tooling, and precision base plates used in assembly or forming processes.
The Fanuc 18i-MB CNC system is a widely used industrial control platform for milling applications. For plants already running Fanuc-based machines, operator workflow, program format, and shop-floor familiarity may be easier to align than with a completely different control environment. The control should still be checked during inspection for program input, axis movement, alarm history, and interface condition.
Frequently Asked Questions
What does the 3060 mm X-axis travel mean for part selection?
The 3060 mm X-axis travel allows the cutter to cover long workpieces close to the full length of the 3000 mm table. It is useful for mold bases, fixture plates, aerospace plates, and long structural components where machining in one setup is preferred over repositioning.
Can the Yawei SP3016 handle heavy mold and die components?
The machine has a 3000 x 1500 mm table and a maximum table load of 10,000 kg. That makes it suitable for heavy mold bases, die shoes, steel plates, and large fixture bodies, provided the workpiece footprint and clamping method fit the table and gantry opening.
How should I judge whether my tooling fits between the columns?
Check the 1700 mm distance between the double columns against the widest raw workpiece, not only the finished part. Include side clamps, fixture plates, lifting clearance, and any protruding features when deciding whether the setup can pass safely through the gantry.
Why is the 200 to 960 mm spindle nose-to-table distance important?
This range defines the vertical working envelope. A tall fixture, thick mold base, long holder, or extended cutter can reduce available clearance. Before purchase, add together the table setup height, workpiece height, tool holder length, cutter length, and required machining depth.
Is this used CNC gantry milling machine suitable for mixed production?
Yes, if your mixed production includes large plates, tooling bases, molds, fixtures, and structural parts. The SP3016 is best viewed as a versatile all-round machine for factories that need one large-capacity machine to support multiple industries and part families.
Is the Yawei SP3016 CNC Gantry Milling Machine in stock?
Yes. Stock number 812113 is in stock and available now for inspection and shipment. Send an inquiry with your part size, material, and tooling requirements to evaluate production suitability.
