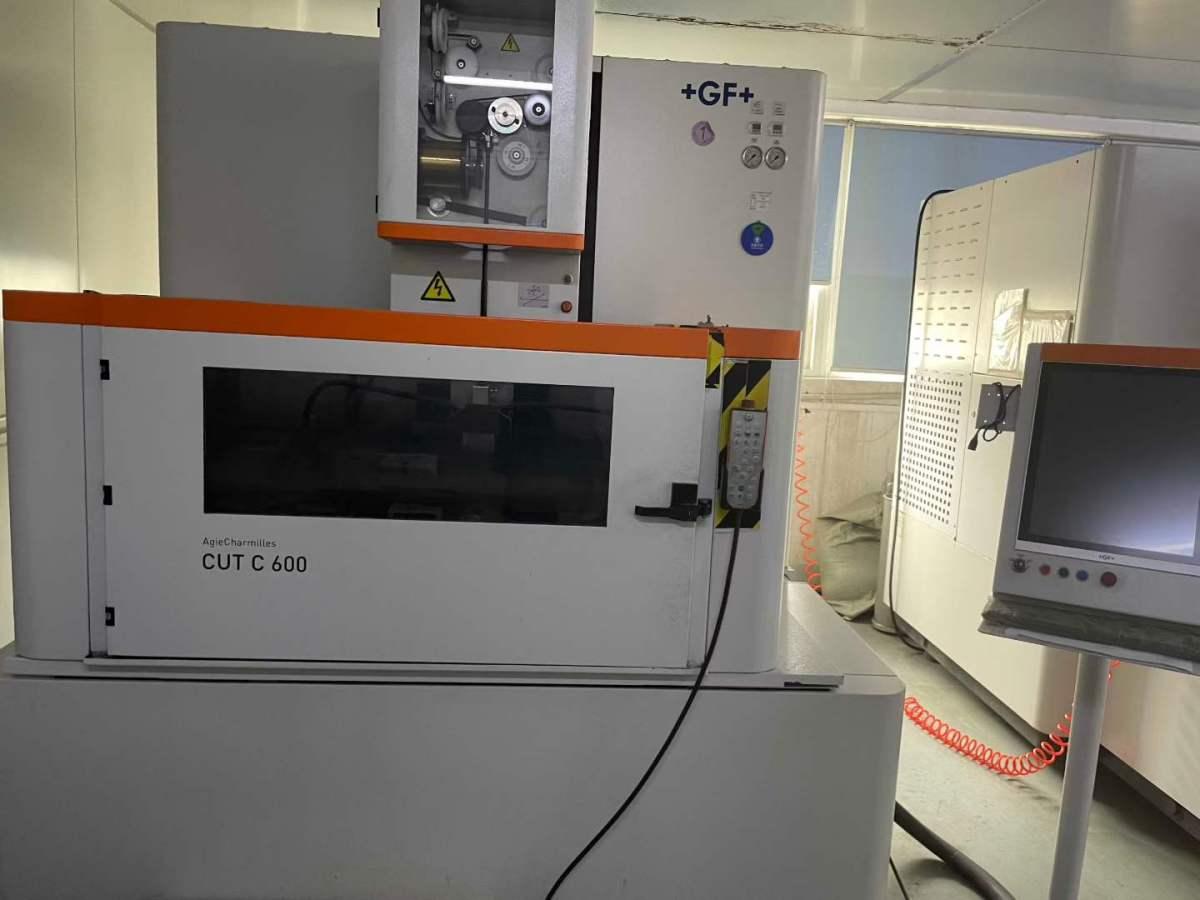

Charmilles CUT C 600 Wire cutting machine

Three-axis travel: 600 × 400 × 350 mm
U/V axis travel: ±50 mm
Axis travel speed: 0–3000 mm/min
Maximum workpiece size: 1030 × 800 × 350 mm
Maximum workpiece weight: 1000 kg
Maximum taper / workpiece thickness: ±30° / 50 mm
Wire diameter range: 0.15 / 0.20 / 0.25 / 0.30 mm
Maximum spool weight: 8 kg (standard)
Best surface roughness (steel / cemented carbide): 0.25 / 0.30 μm
