CHMER G53F Wire cutting machine

[Product Information]:

  • Inventory number：810567
  • Brand：CHMER
  • Model：G53F
  • Origin：Taiwan, China
  • Location：China
  • Year：2018
  • Create Time：2026-01-23

Specifications:

Three-axis Travel: 500 × 300 × 220 mm
U × V Axis Travel: 60 × 60 mm
Maximum Workpiece Dimensions (Length × Width × Height): 825 × 600 × 215 mm
Maximum Workpiece Weight: 550 kg
Maximum Feed Rate of X × Y: 800 mm/min
Wire Diameter Range: Ø0.15 to Ø0.3 mm
Maximum Wire Feed Rate: 300 mm/sec


PDF Download Click to Contact Seller

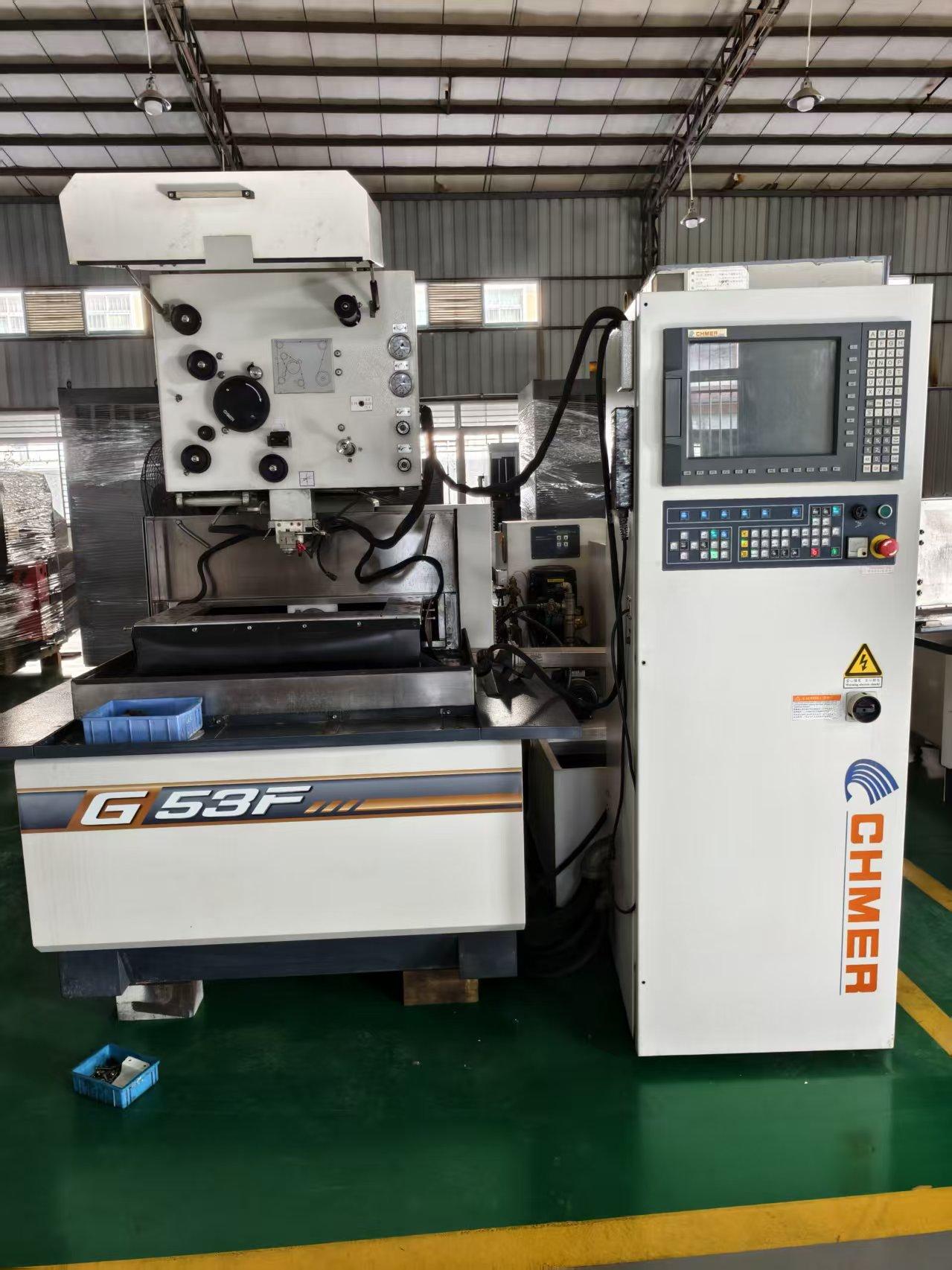

Product Image
