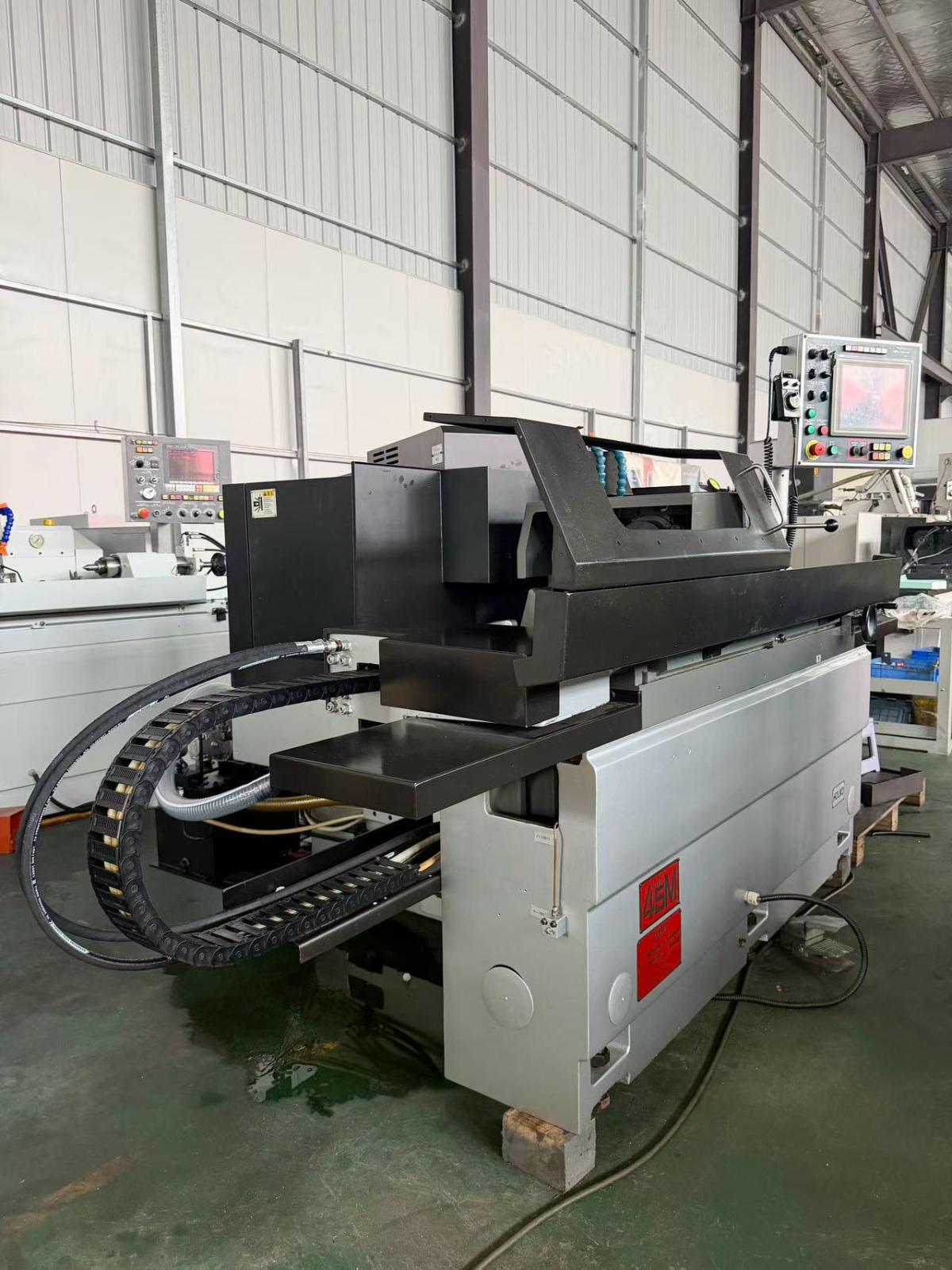

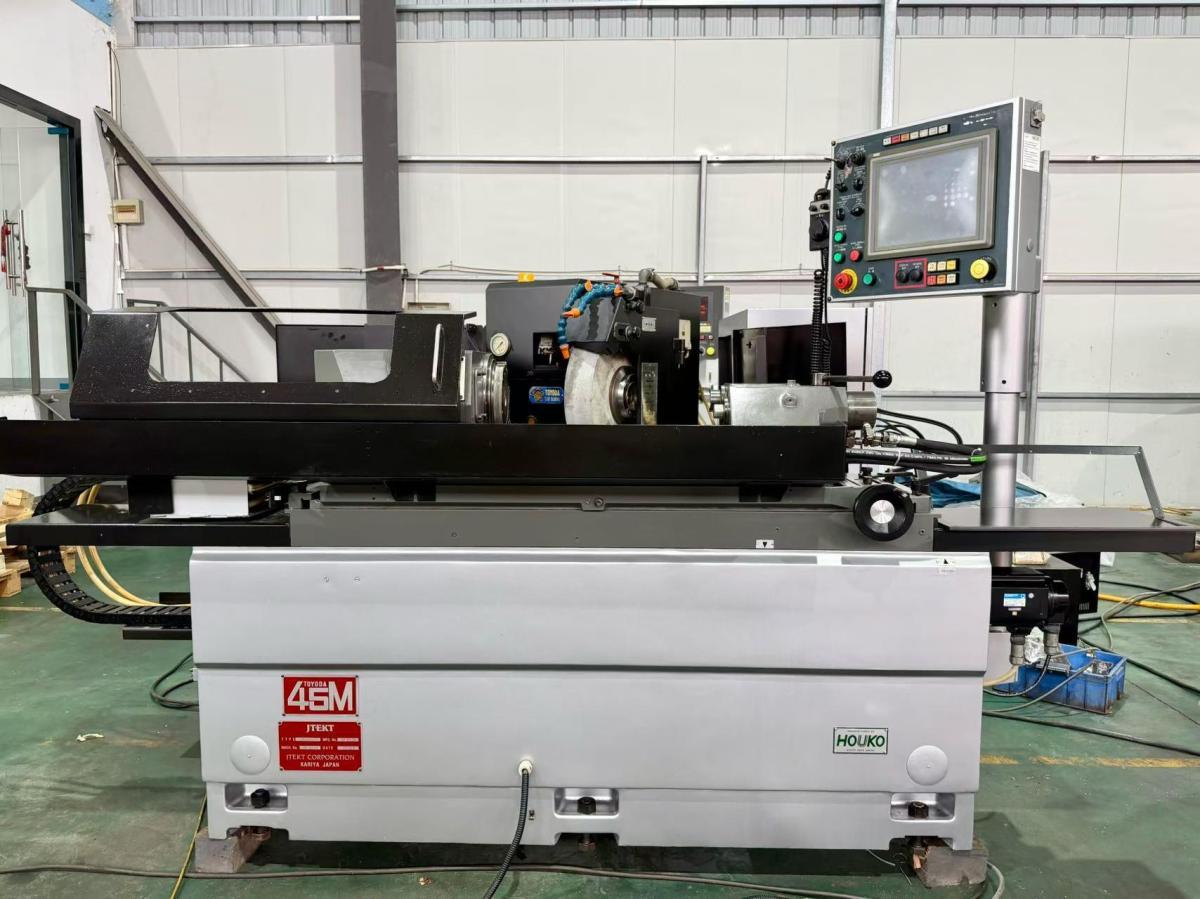

JTEKT GE4A-50II CNC Cylindrical grinder

CNC System: [Not specified]
Maximum Worktable Swing Diameter: Ø320 mm
Distance Between Centers: 500 mm
Workpiece Center Worktable Rotation Angle: 60°
Maximum Load Between Centers: 150 kg

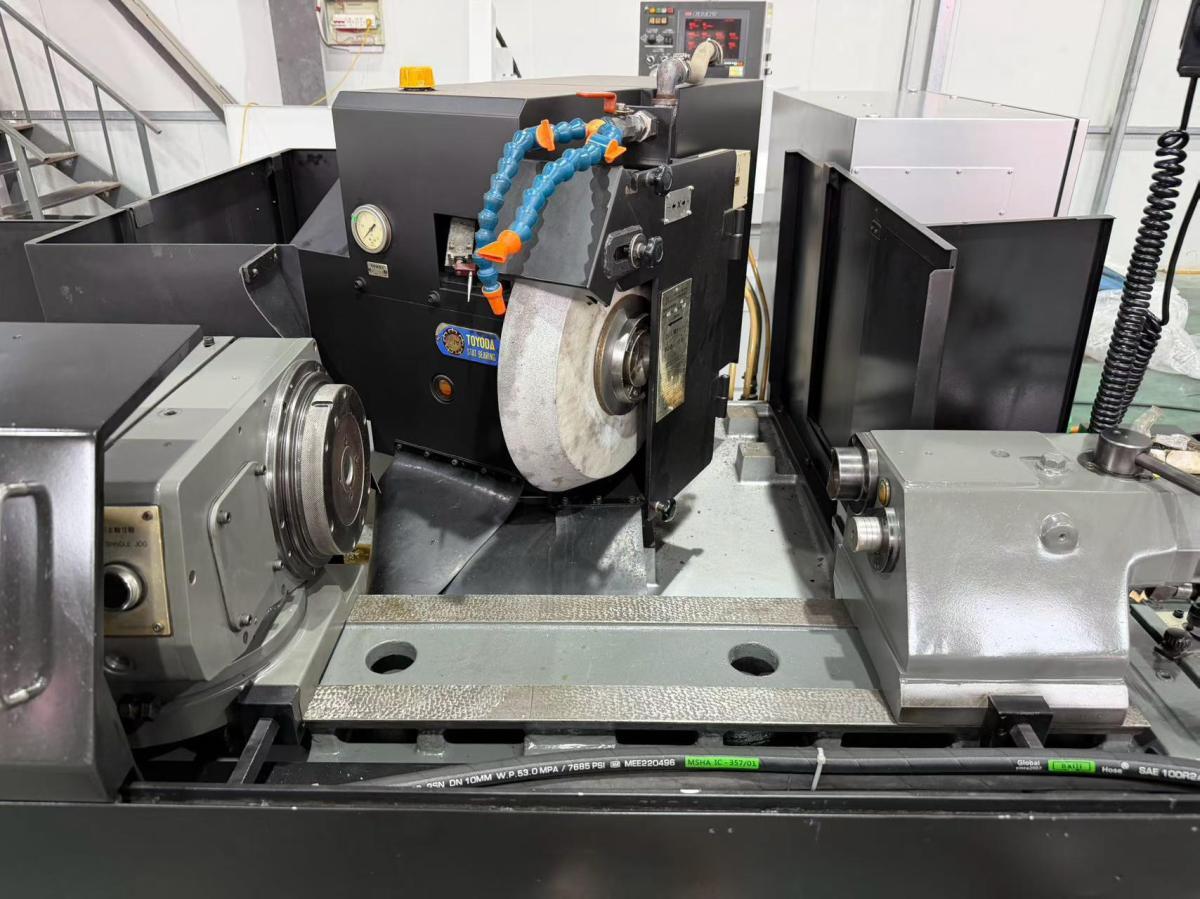

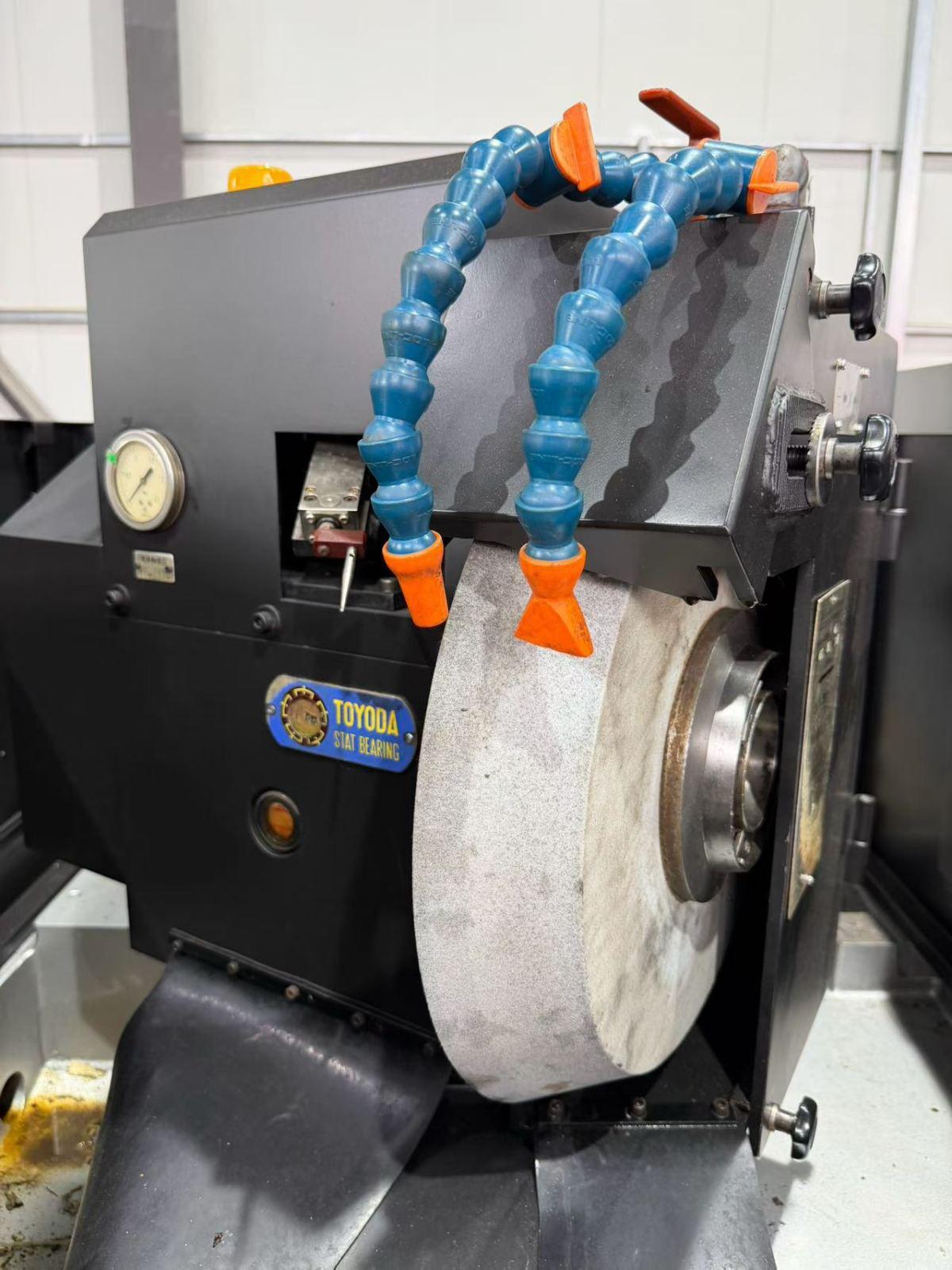

Grinding Wheel Size: Ø405 × 75 × Ø127 mm
Grinding Wheel Speed: 2120 rpm
Grinding Wheel Peripheral Speed: 45 m/s
Maximum Worktable Travel: 500 mm
Worktable Rapid Feed Rate: 15 m/min
Minimum Setting Unit: 0.0001 mm
Worktable Rotation Angle: 10° to 0°
Headstock Swivel Angle: 90°
Headstock: Chuck mountable

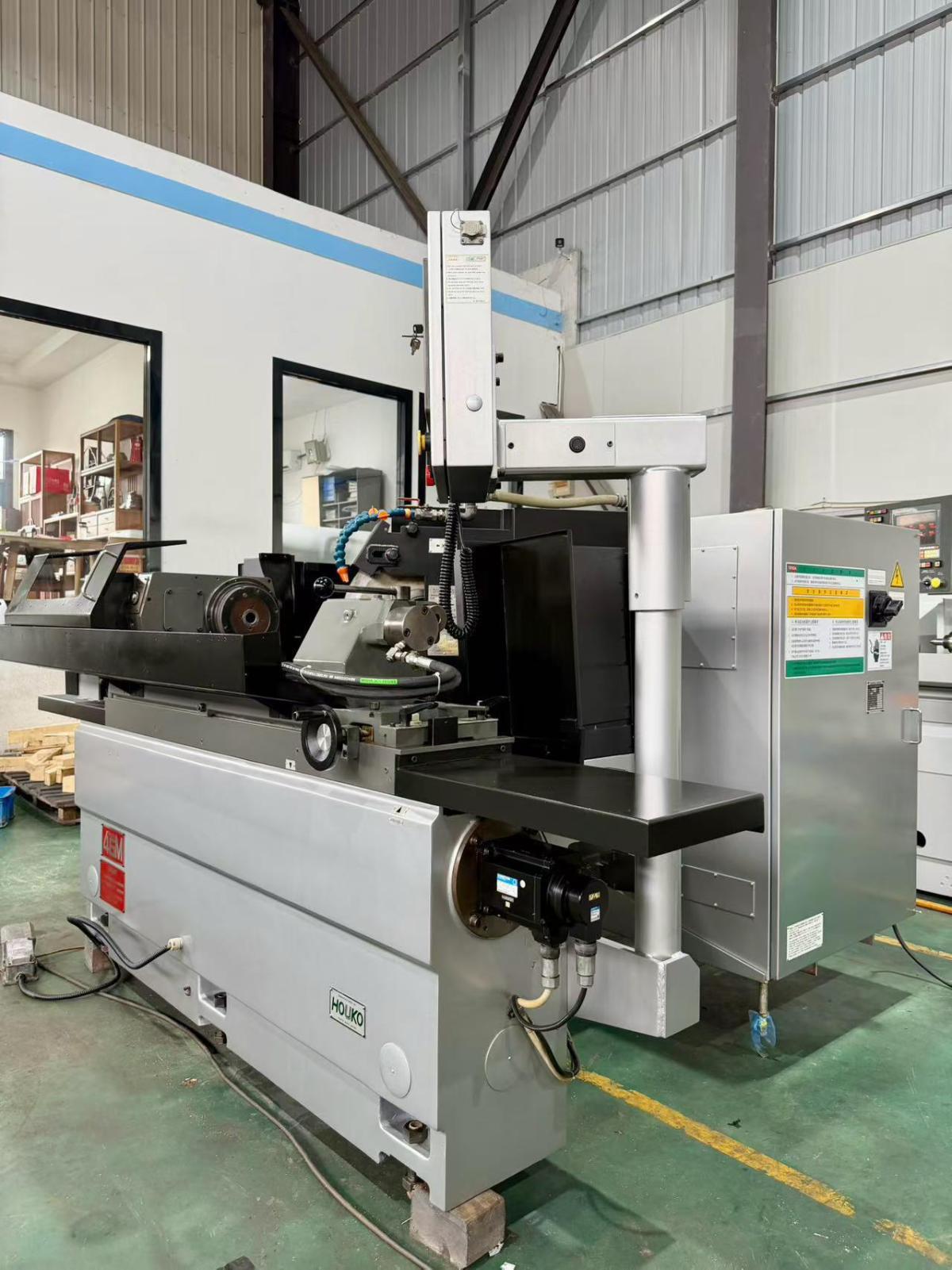

Measuring Device: End-face measurement
Tailstock: Hydraulic
Machine Dimensions: 3540 × 2050 mm
Machine Weight: 4500 kg
