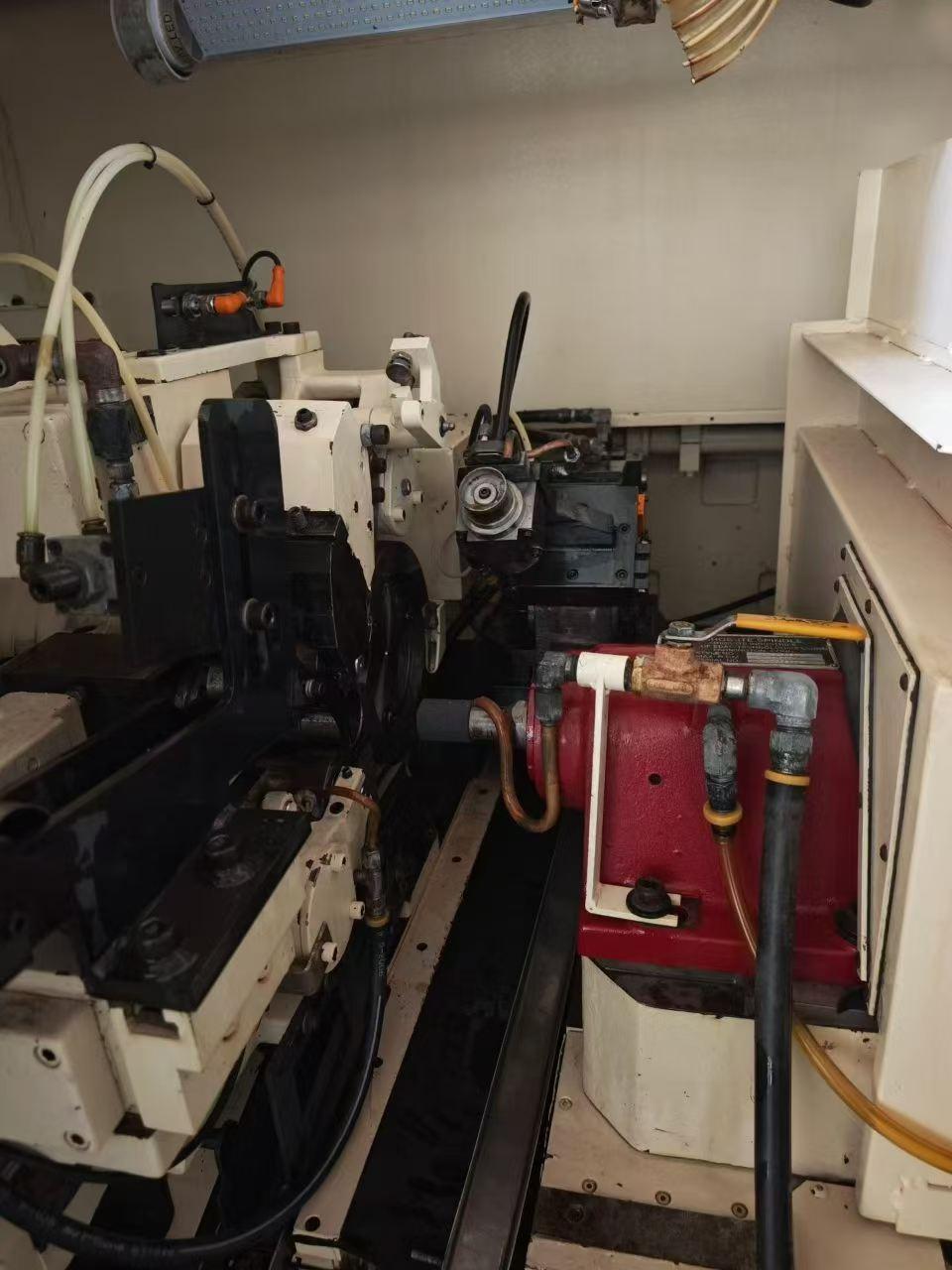

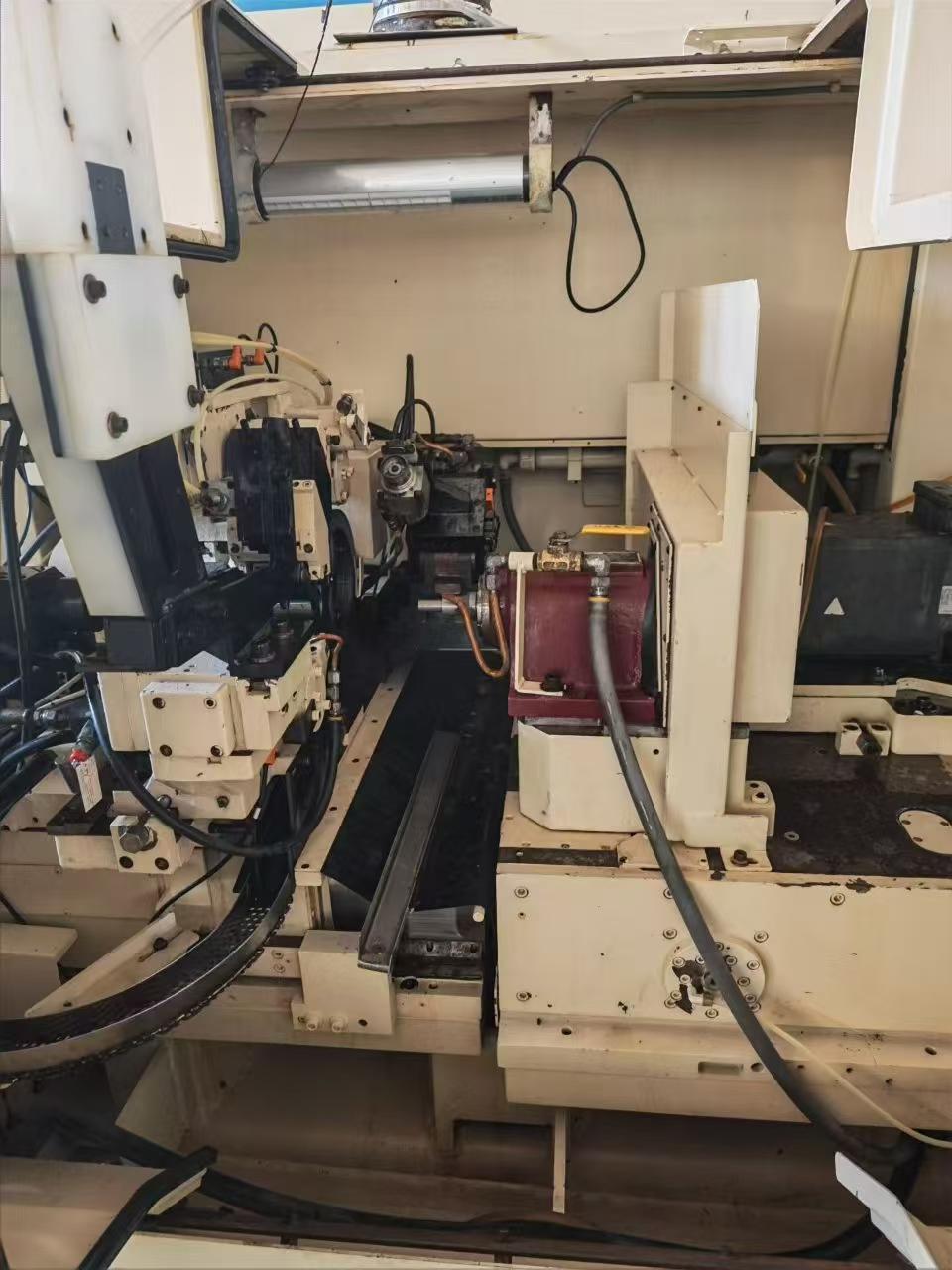

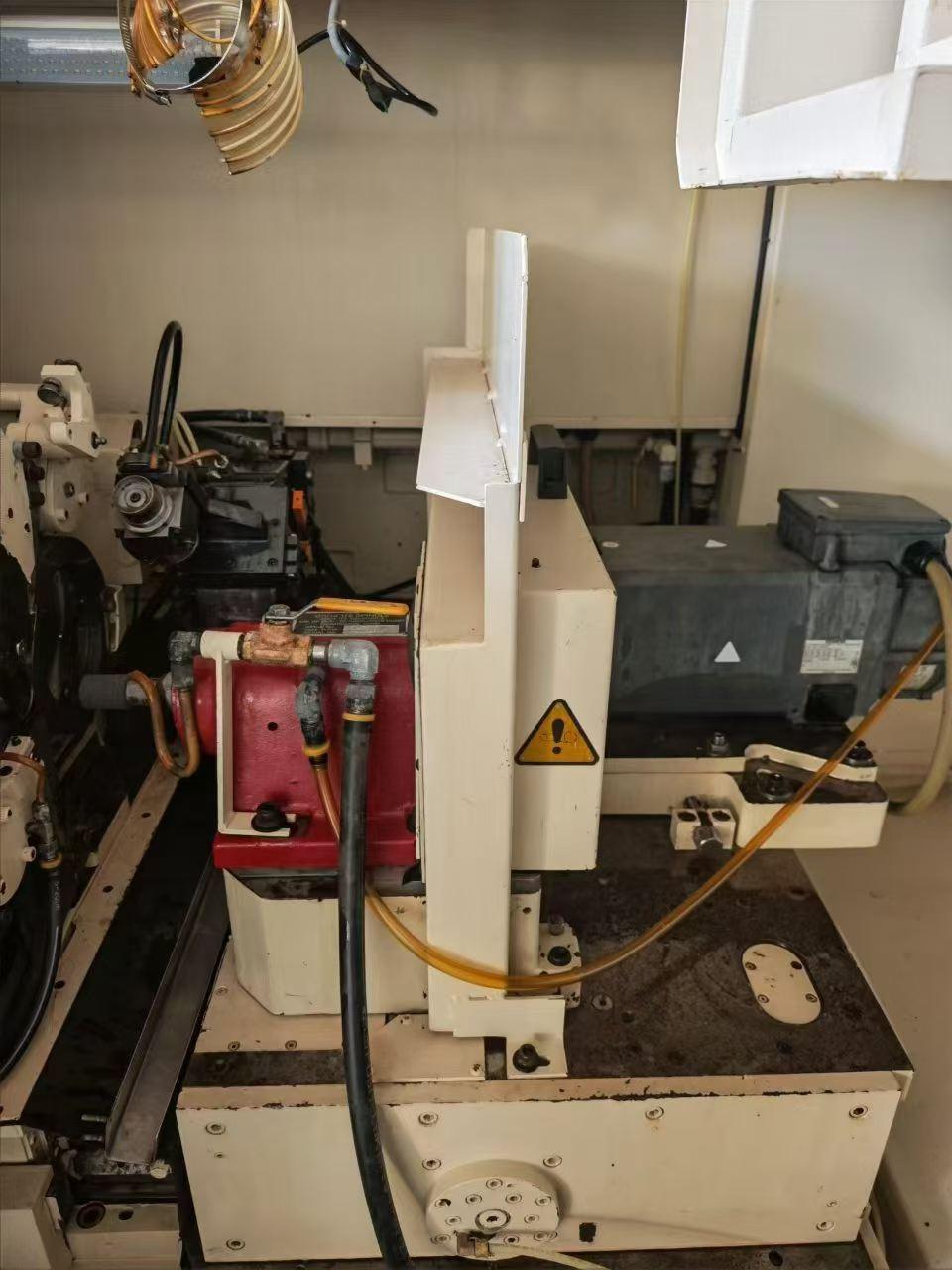

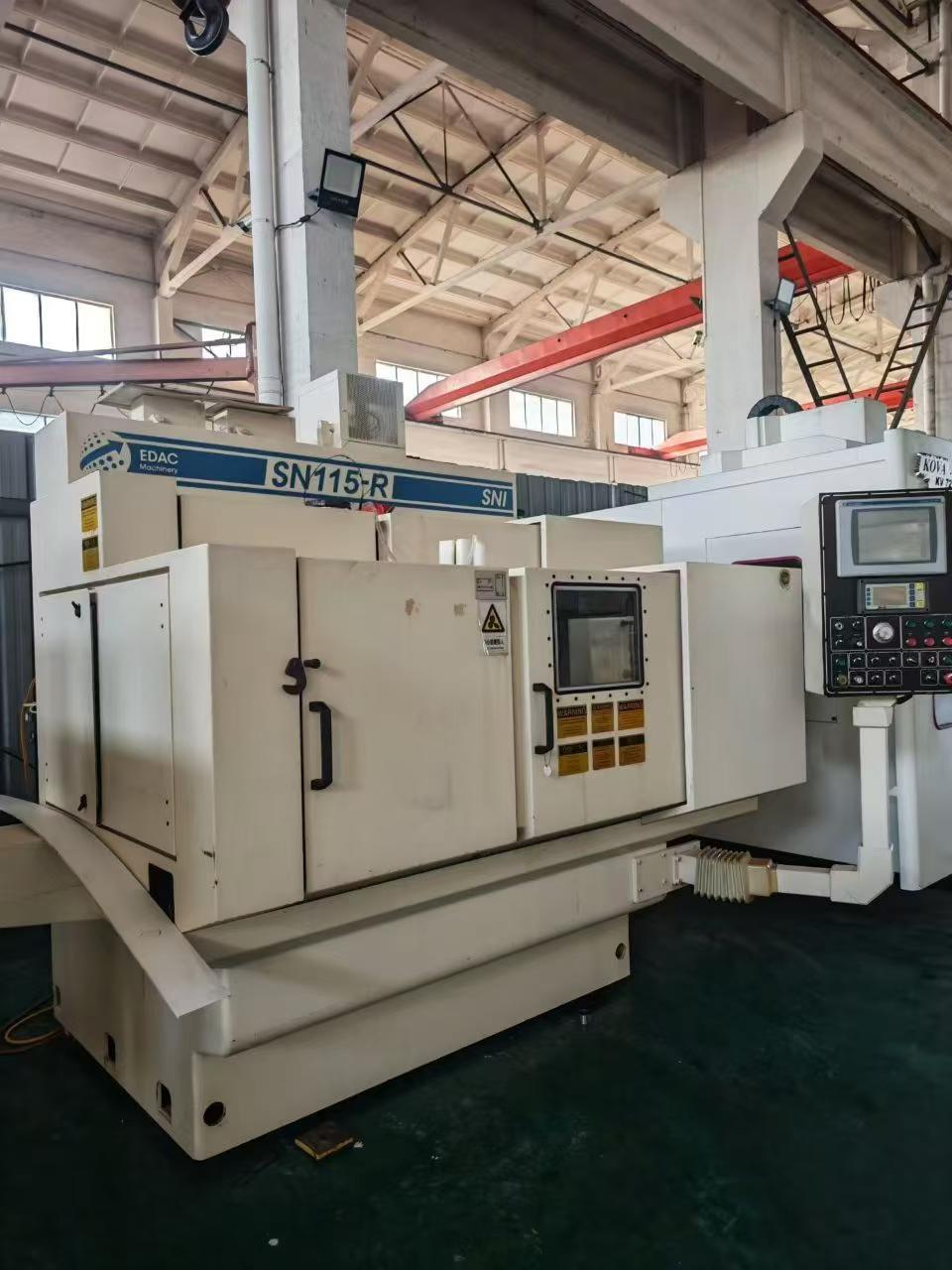

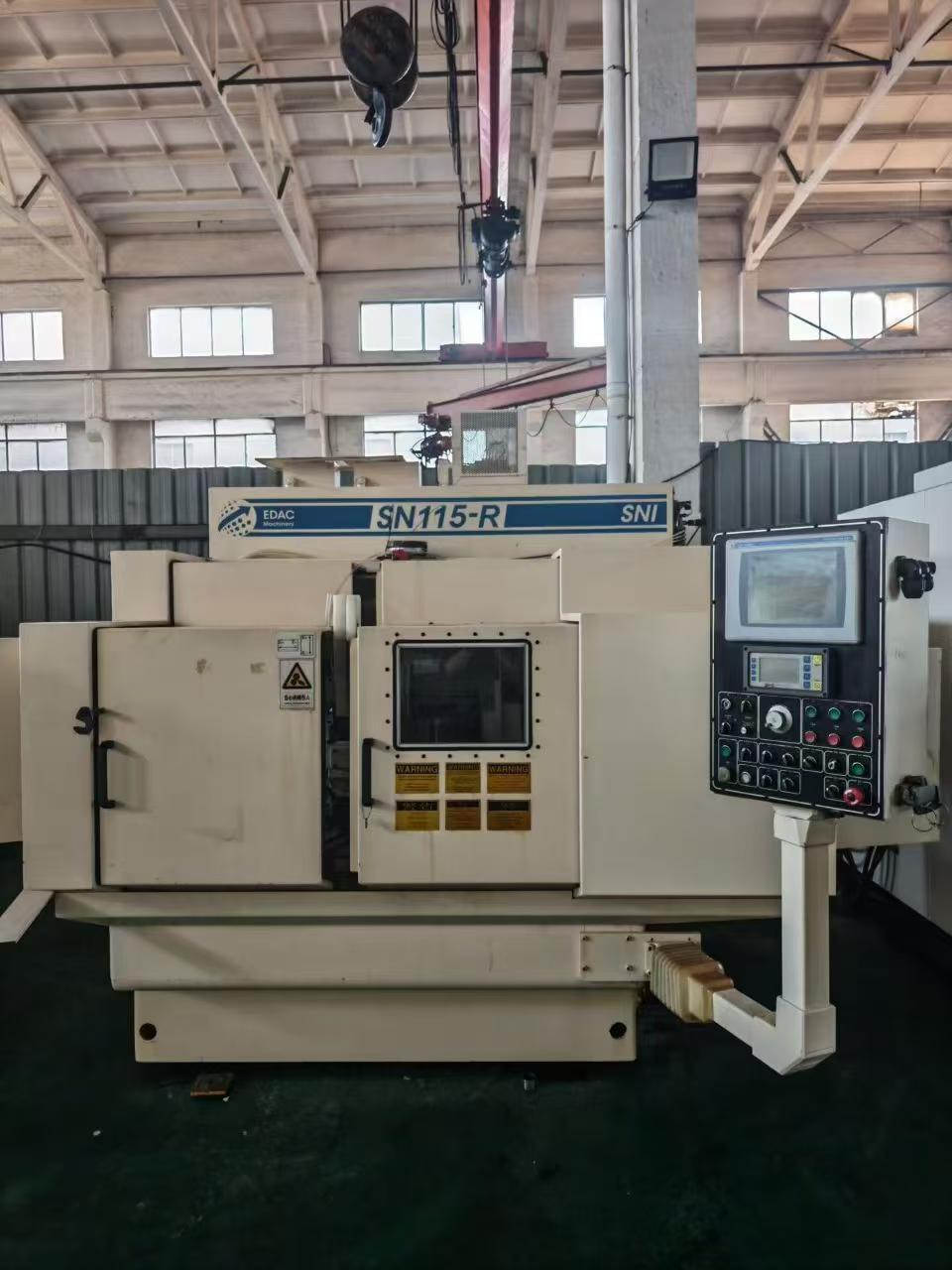

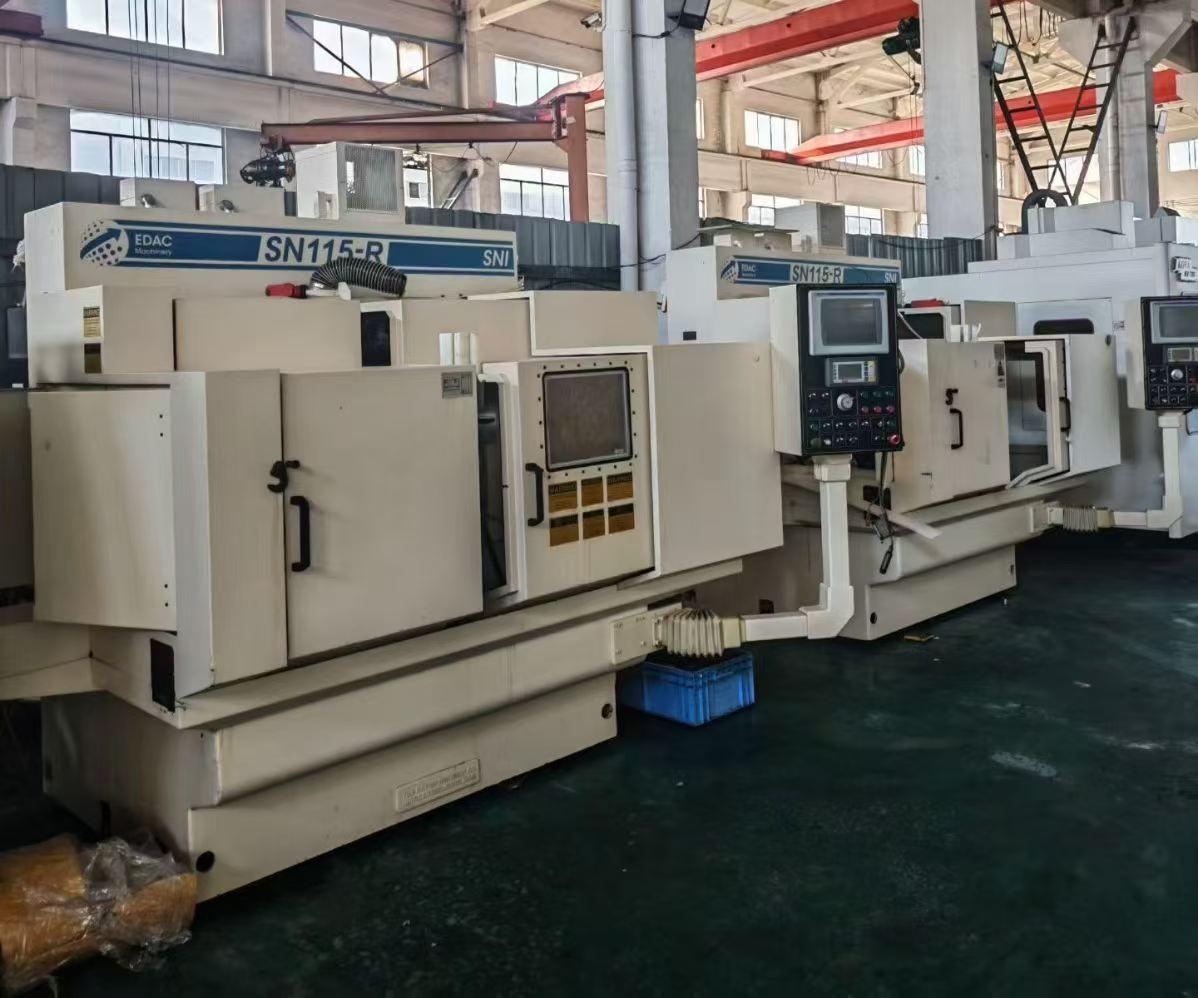

SNI SN115-R Centreless grinding machine

Grinding Hole Diameter Range: Φ10 to Φ115 mm
Maximum Workpiece Length: 120 mm
Grinding Method: Mainly Plunge Grinding
Grinding Cycle: Supports Multi-Stage Grinding Cycles Controlled by Programs
Roundness Accuracy: ≤0.001 mm (1 μm Grade)
Cylindricity Accuracy: ≤0.002 mm (2 μm Grade)
Dimensional Consistency: ≤±0.003 mm (Batch Machining)
Surface Roughness: Ra0.05 to Ra0.2 μm
Production Cycle: Approximately 10 to 30 seconds per workpiece

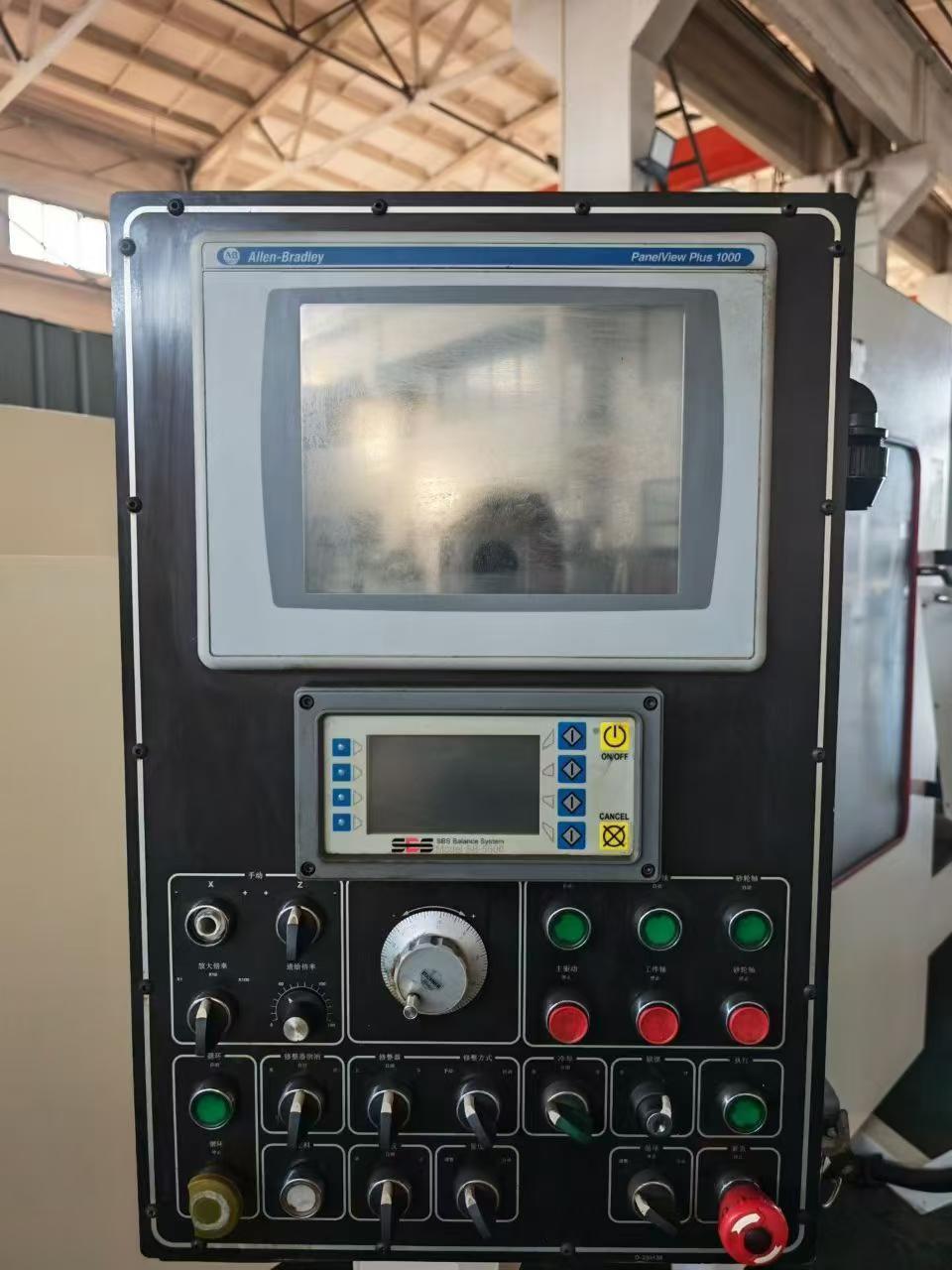

Number of Controlled Axes: 3-Axis Simultaneous Control (Grinding Wheel Feed Axis X, Workpiece Feed Axis Z, Dresser Axis)
Feed Resolution: 0.1 μm Grade
