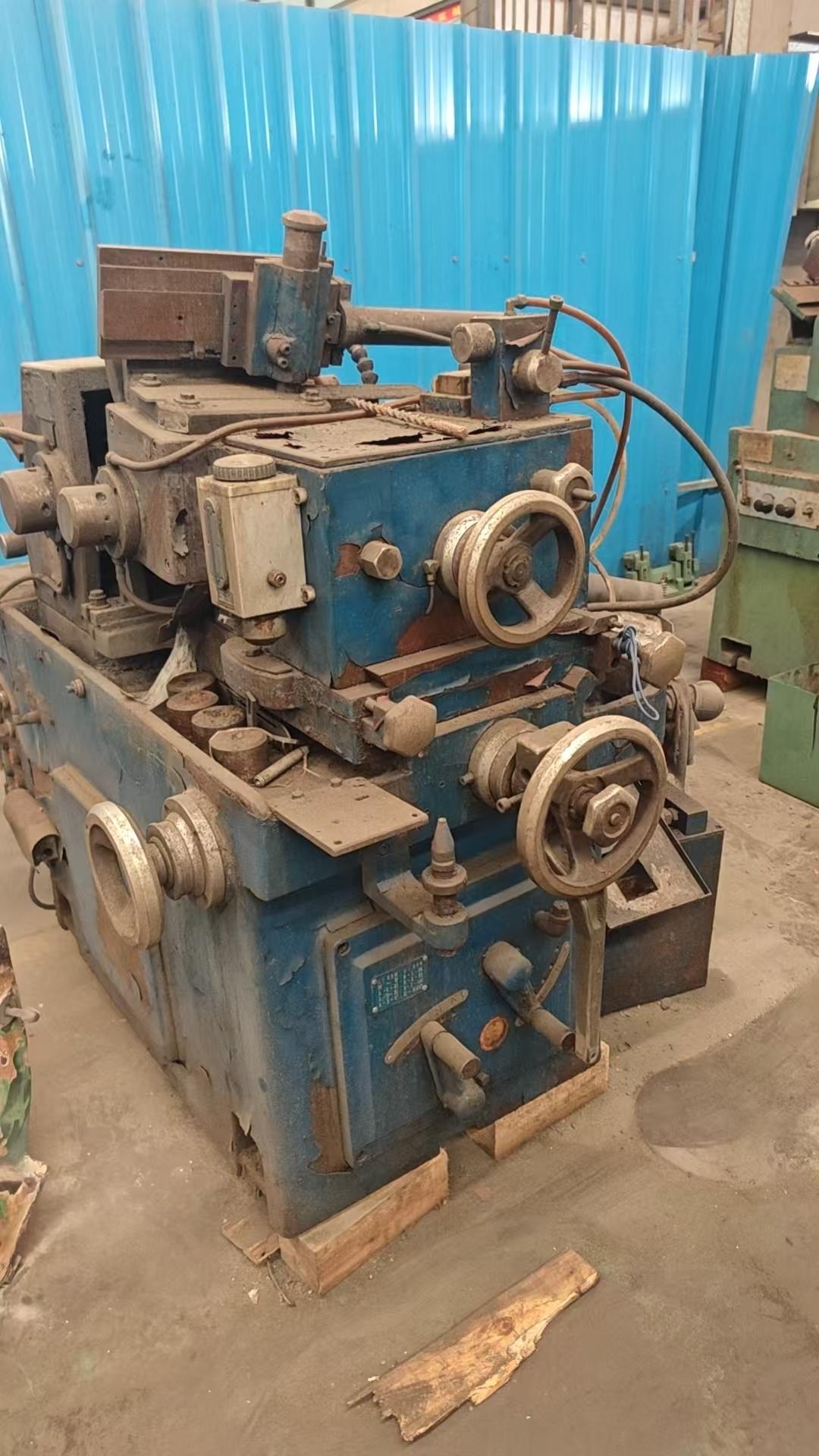

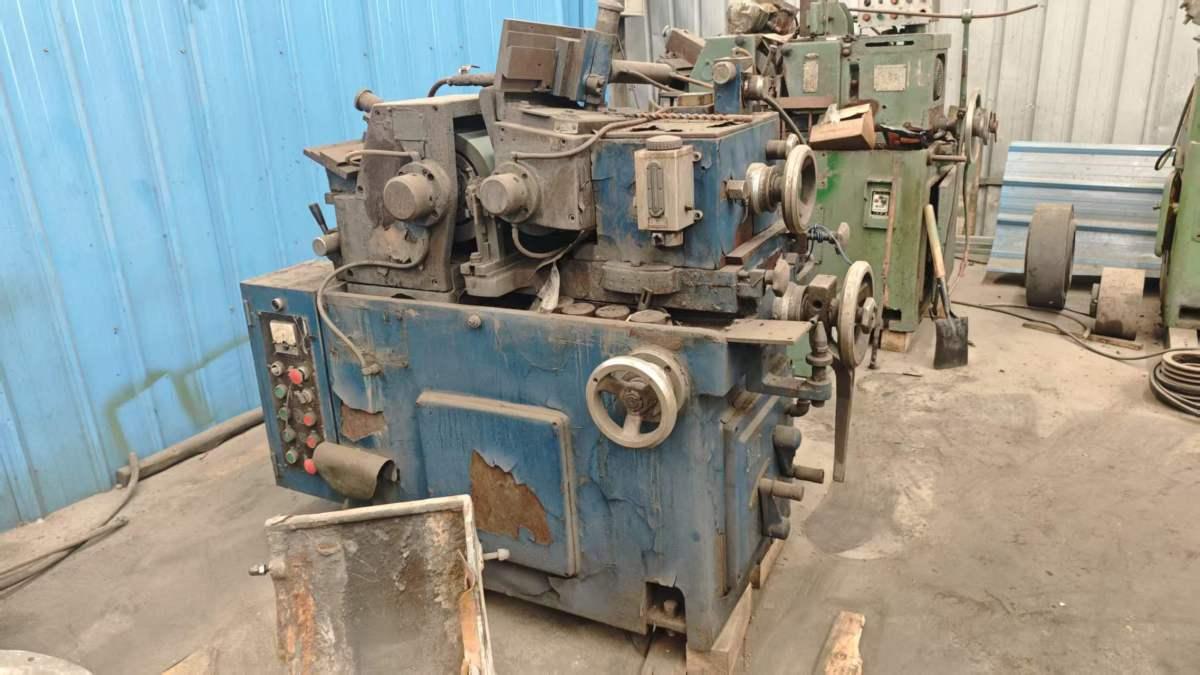

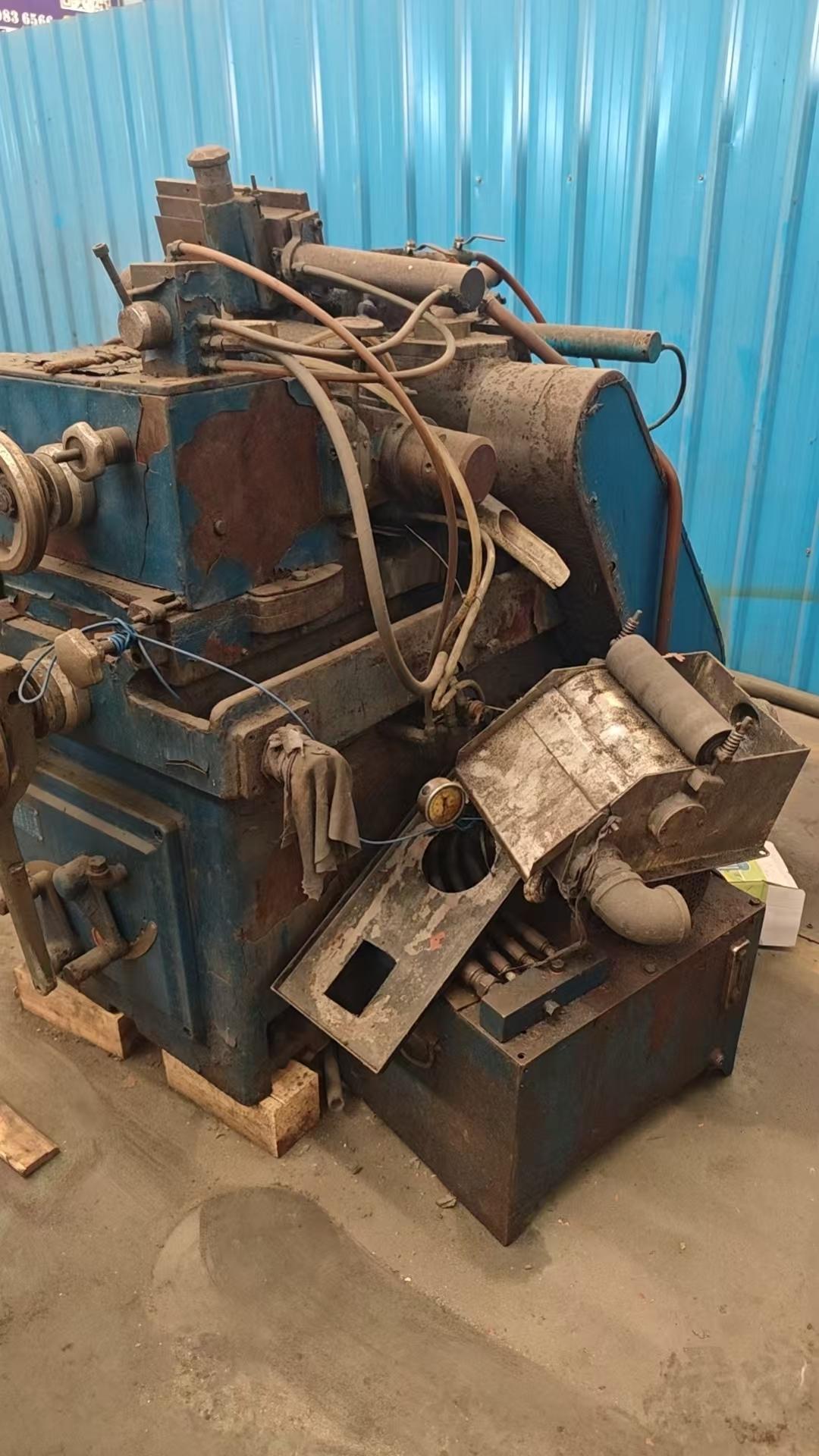

ZHENFU AM-12 Centreless grinding machine
[Product Information]:
- Inventory number：812893
- Brand：ZHENFU
- Model：AM-12
- Origin：Taiwan, China
- Location：China
- Year：2013
- Create Time：2026-08-12
Specifications:
Grinding Workpiece Diameter (Standard Support Plate): Φ4–Φ35 mm
Grinding Workpiece Diameter (Optional High Support Plate): Φ25–Φ55 mm
Grinding Wheel Specification: Φ305 × 150 × Φ120 mm
Regulating Wheel (Guide Wheel) Specification: Φ205 × 150 × Φ90 mm
Grinding Wheel Speed: 1950 rpm
Grinding Wheel Motor: 5.5 kW (7.5 HP)
Regulating Wheel Speed: 0–320 rpm (Variable Frequency Stepless Speed Control)
Regulating Wheel Motor: 2.0 kW
Regulating Wheel Inclination Angle:
Through-Feed Grinding Angle: -3° to +5°
In-Feed Grinding Angle: +5°
Feed Handwheel Graduation:
Coarse Feed: 0.02 mm per Division
Fine Feed: 0.001 mm per Division
Overall Dimensions (L × W × H): 1780 × 1400 × 1450 mm
