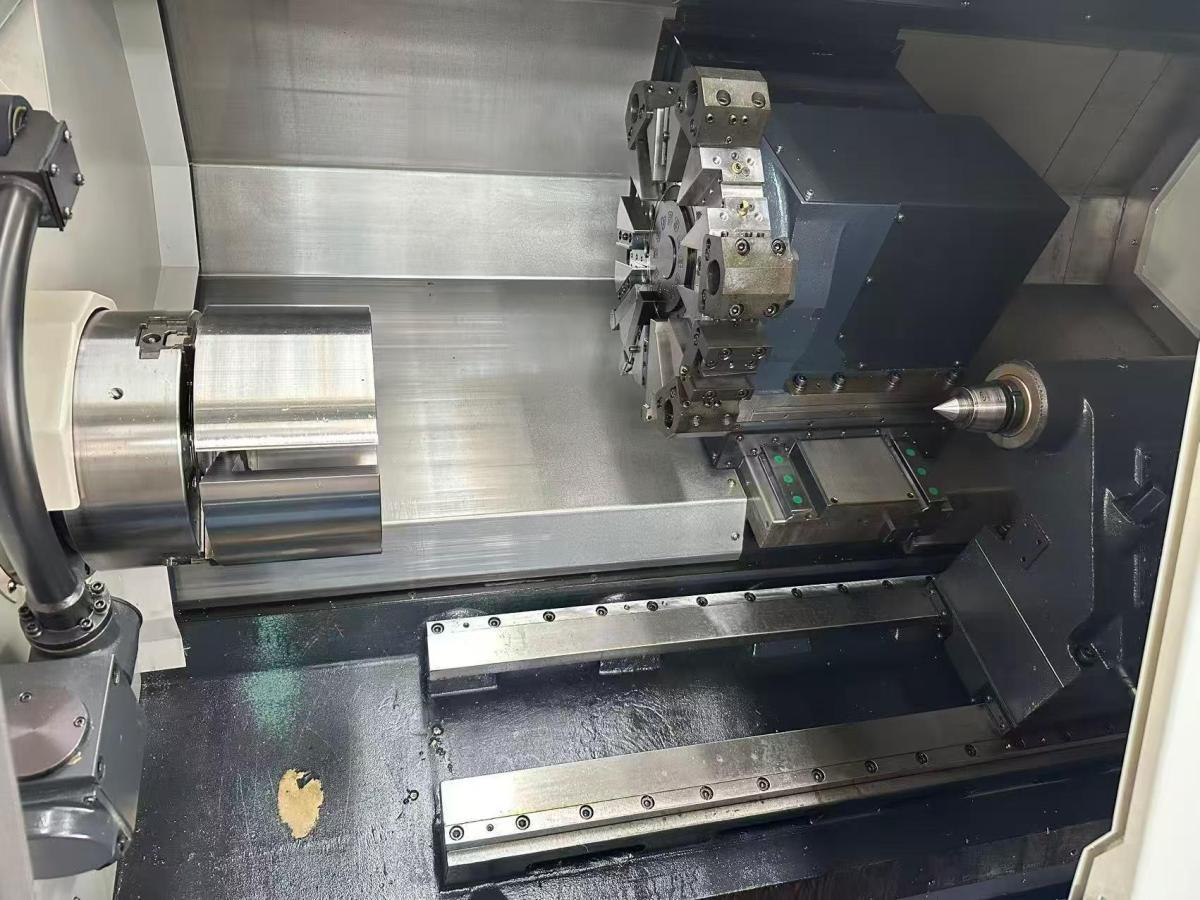

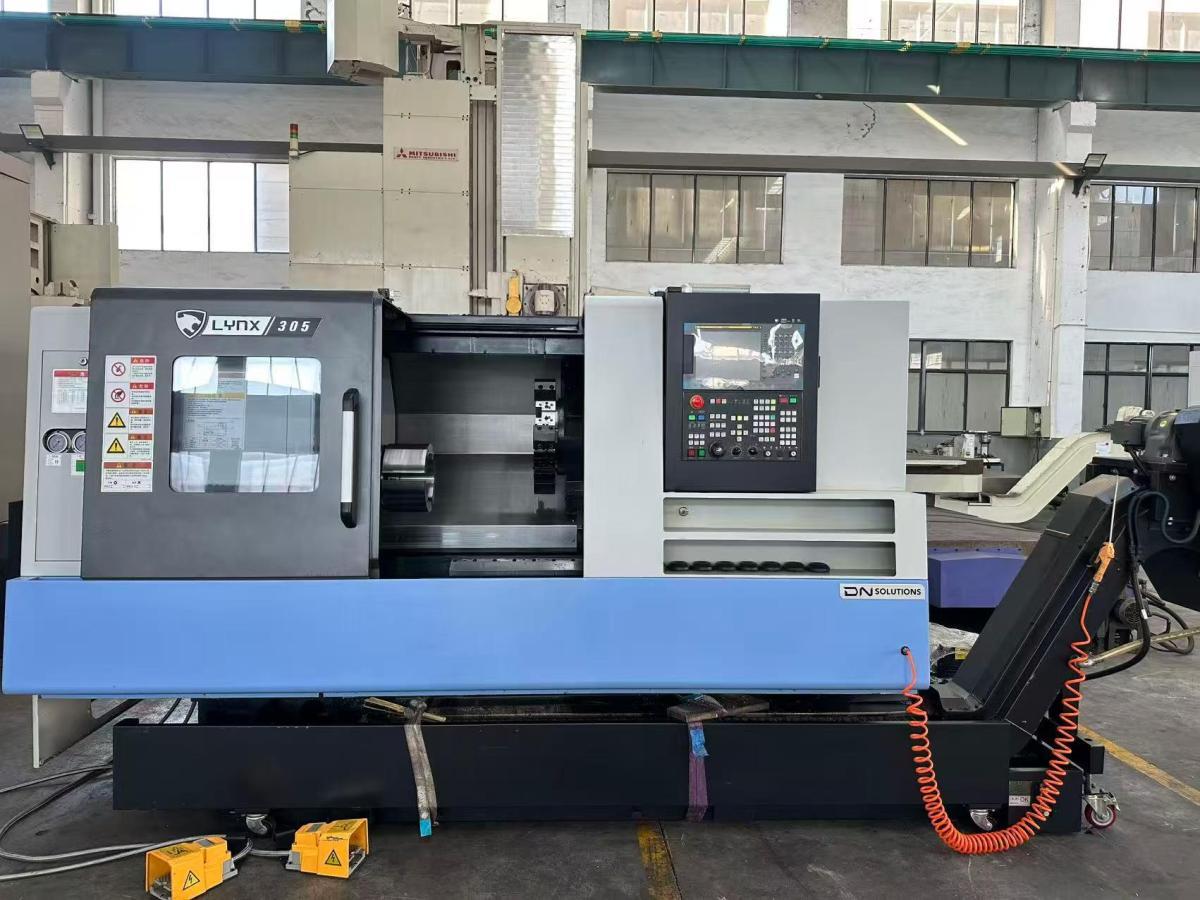

DOOSAN LYNX305 CNC inclined lathe

[Product Information]:

Inventory number：4812946
Brand：DOOSAN
Model：LYNX305
Origin：South Korea
Location：China
Year：2022
Create Time：2026-09-26

Specifications:

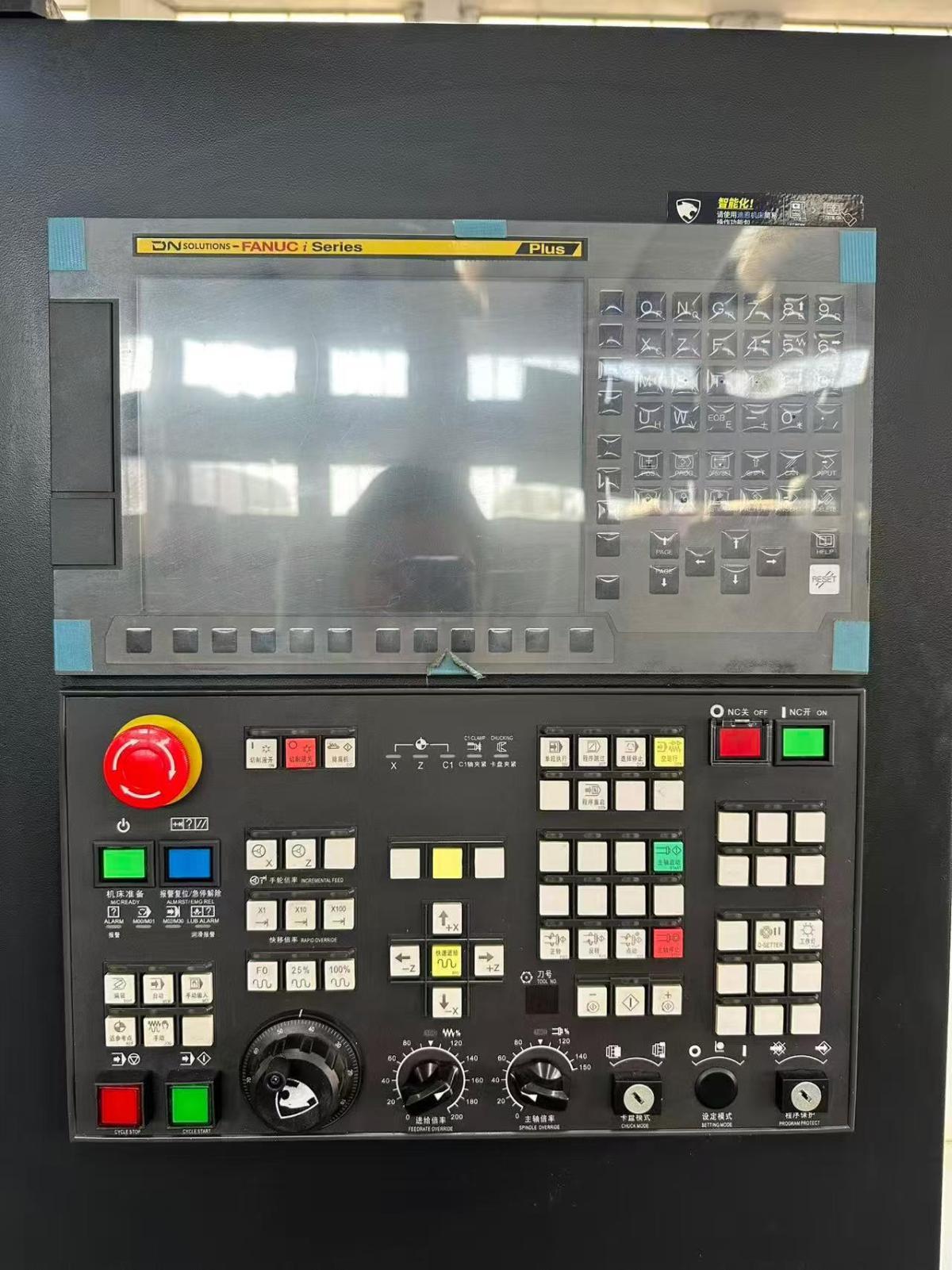

CNC System: FANUC i-Series Plus

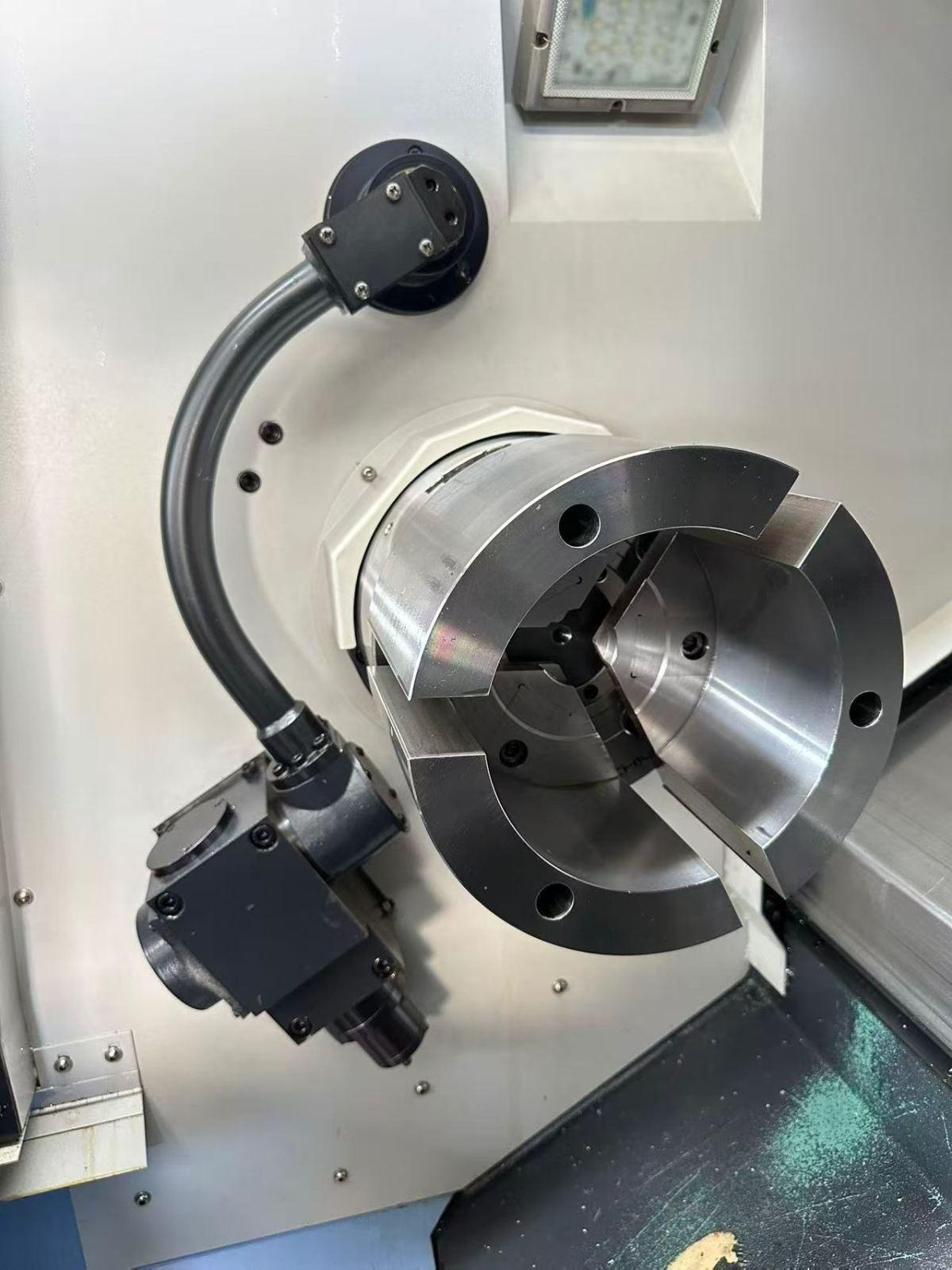

Chuck: 10-inch Hydraulic Chuck

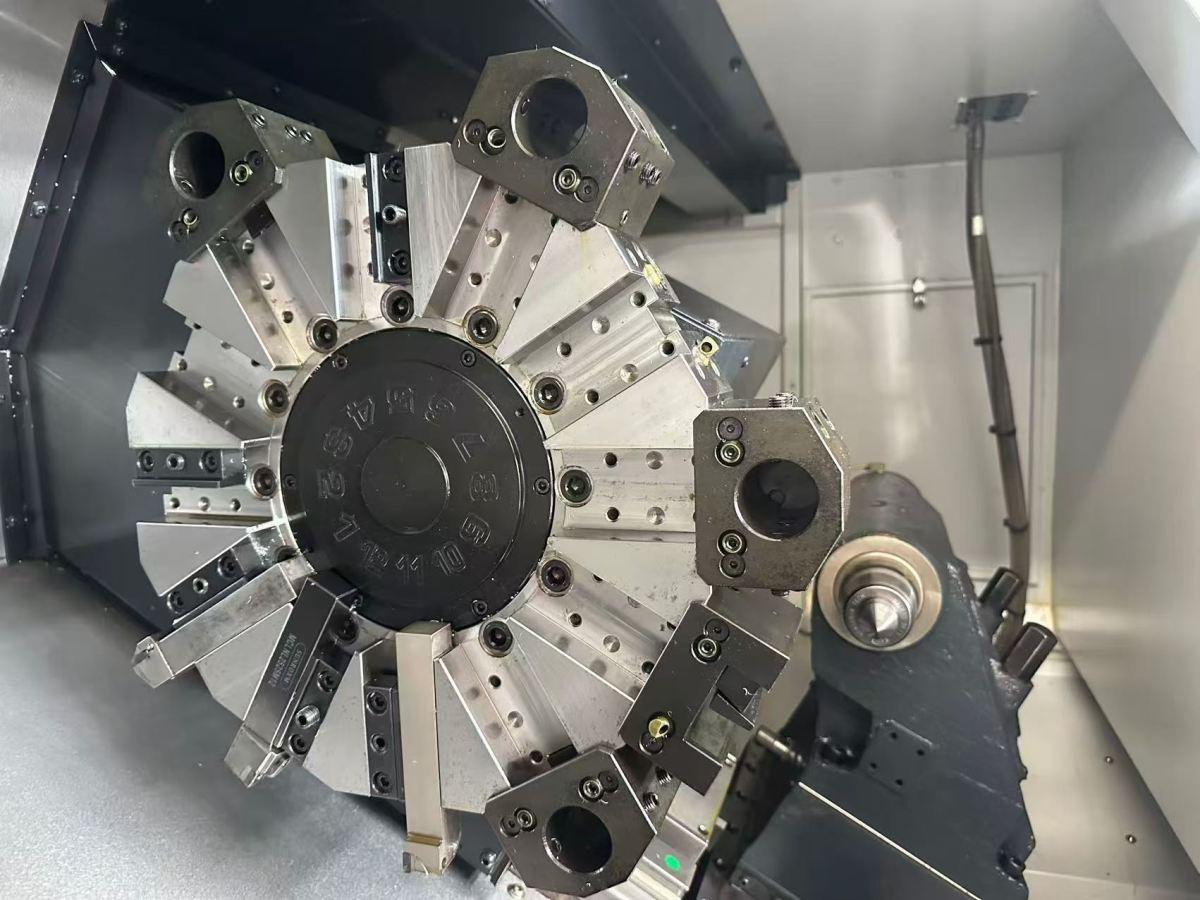

Tool Turret: 12-position Hydraulic Turret
Swing Diameter: Ø651 mm
Maximum Turning Diameter: Ø450 mm
Maximum Machining Length: 765 mm
Spindle Bore: Ø86 mm
Maximum Bar Stock Diameter: Ø76 mm
Spindle Nose: A2-8
Maximum Spindle Speed: 3,500 rpm
Spindle Motor Power: 18.5/15 kW
X-axis Travel: 255 mm
Z-axis Travel: 790 mm
