• Inventory number：85394

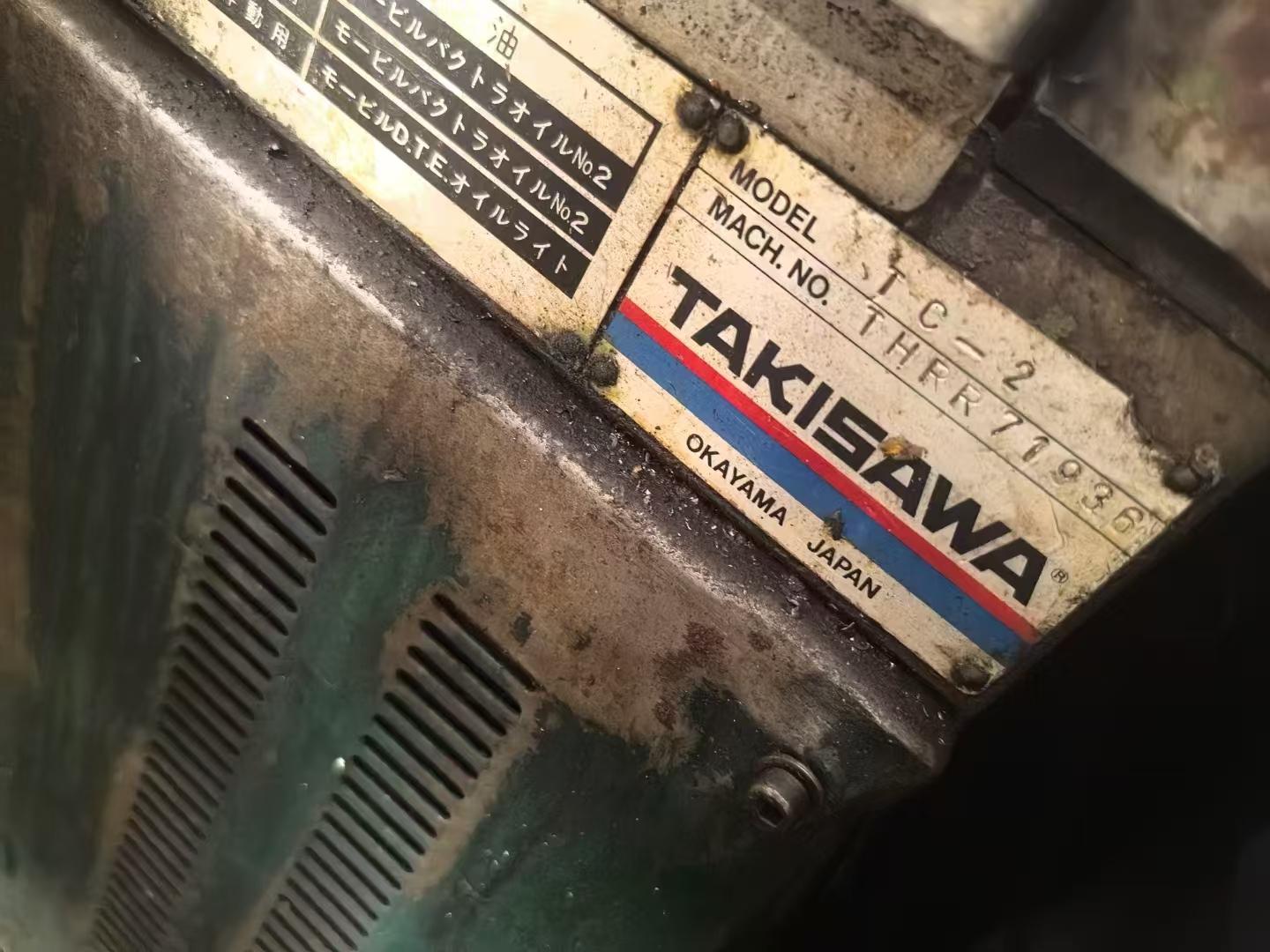

• Brand：Takisawa

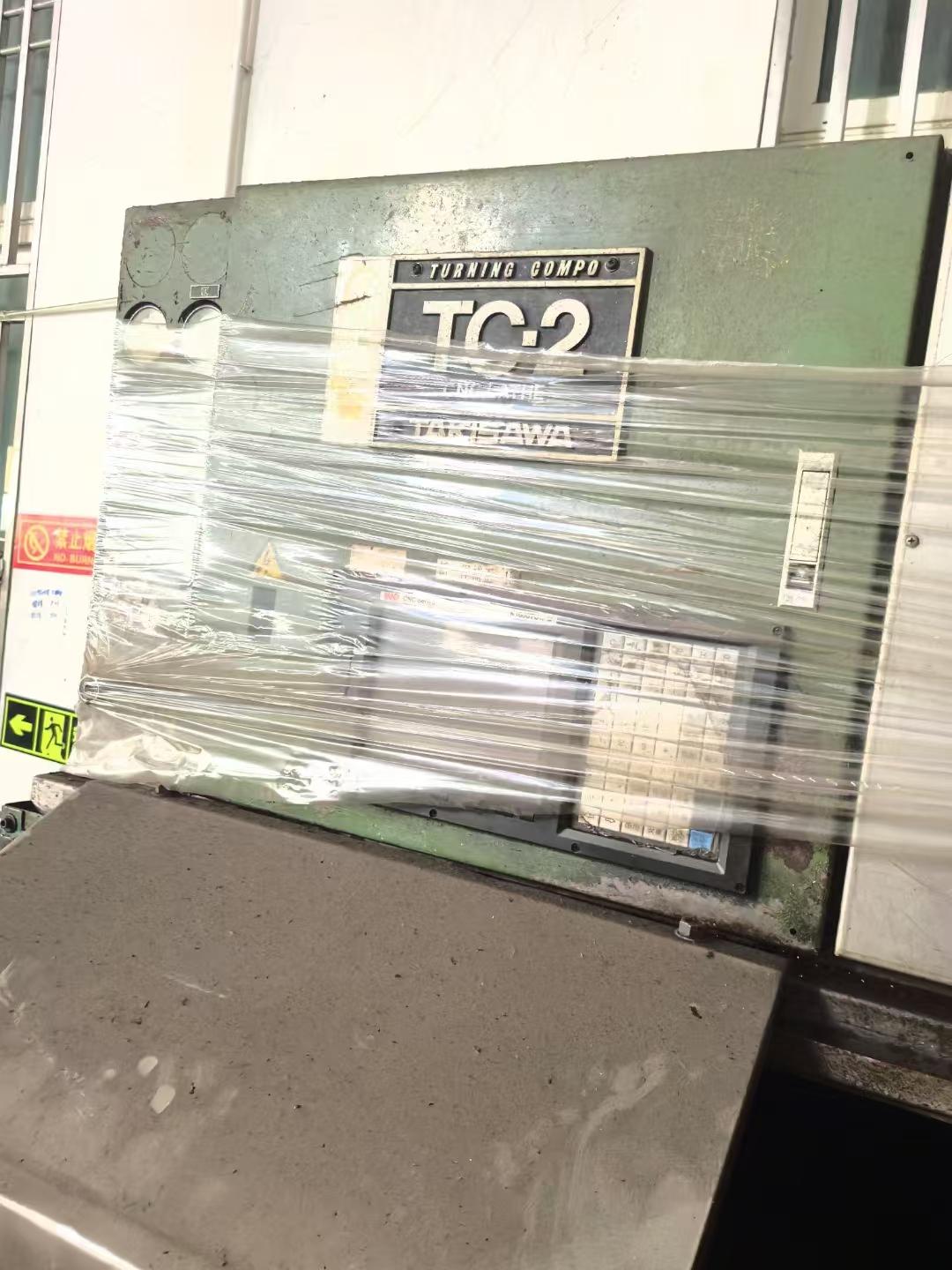

• Model：TC-2
• Origin：Taiwan of China
• Location：China
• Year：Ex-factory date to be added
• Create Time：2024-11-09

Specifications:

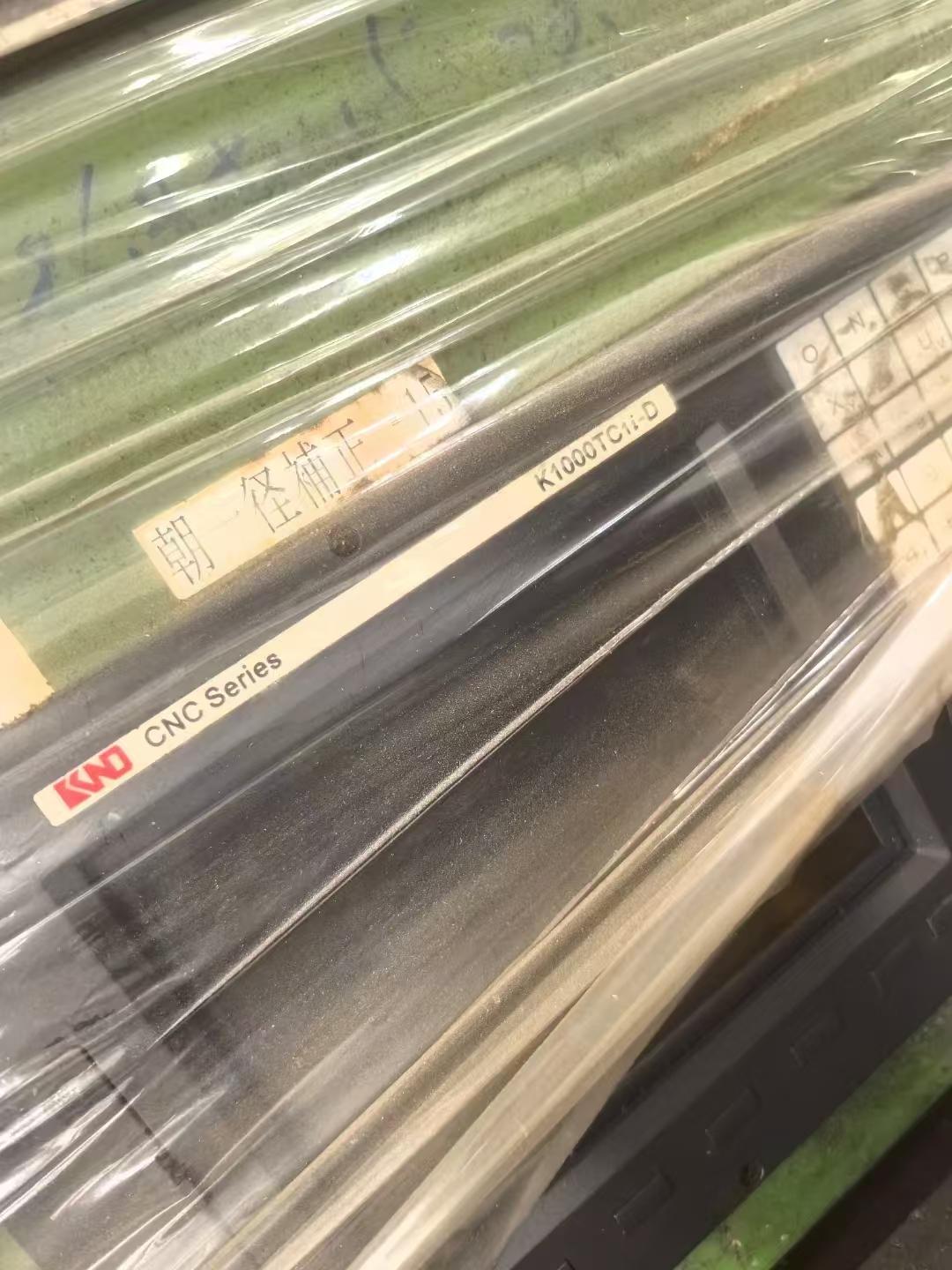

• CNC CNC System :KND1000

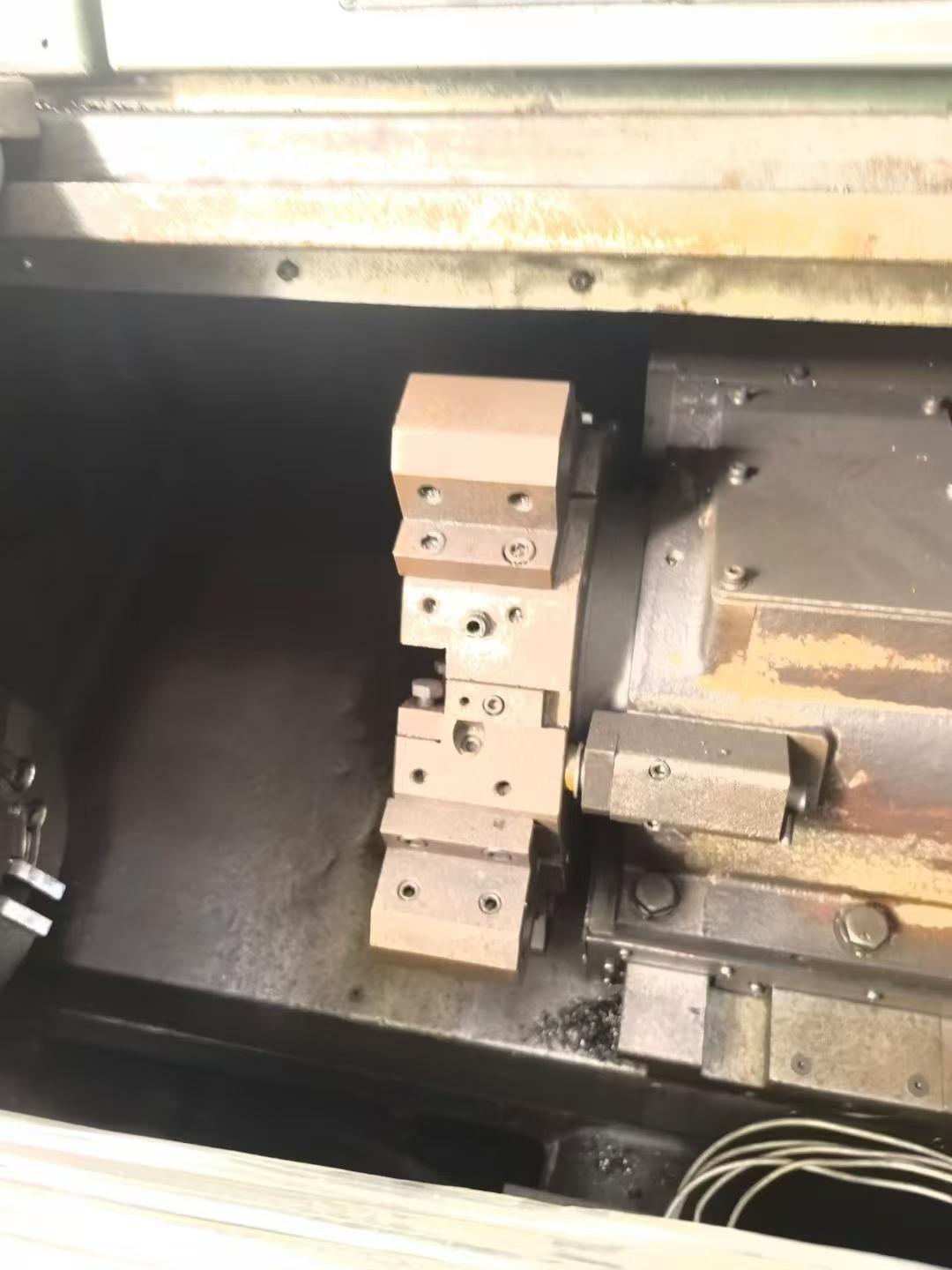

  6 positions turret

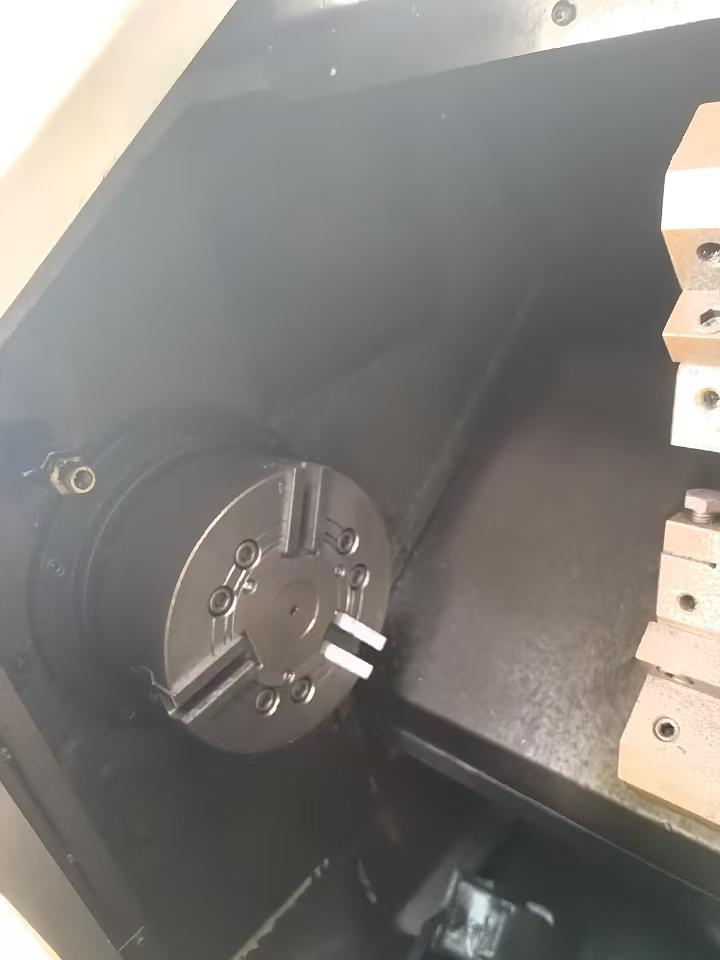

  8 inch hydraulic chuck

  rigid guideway engine

  Maximum rotating diameter (mm) : 420

  Standard machining  diameter (mm) : 225

  Maximum machining  diameter (mm) : 250

  Maximum machining  length (mm) : 300

  Bar machining  diameter (mm) : 51

  travel X axis travel (mm) : 140

  Z-axis travel (mm) : 375

  Spindle speed (RPM) : 64~3200

  spindle nose A2-6 through hole diameter (mm) : 63

  Bearing Internal diameter (mm) : 100
