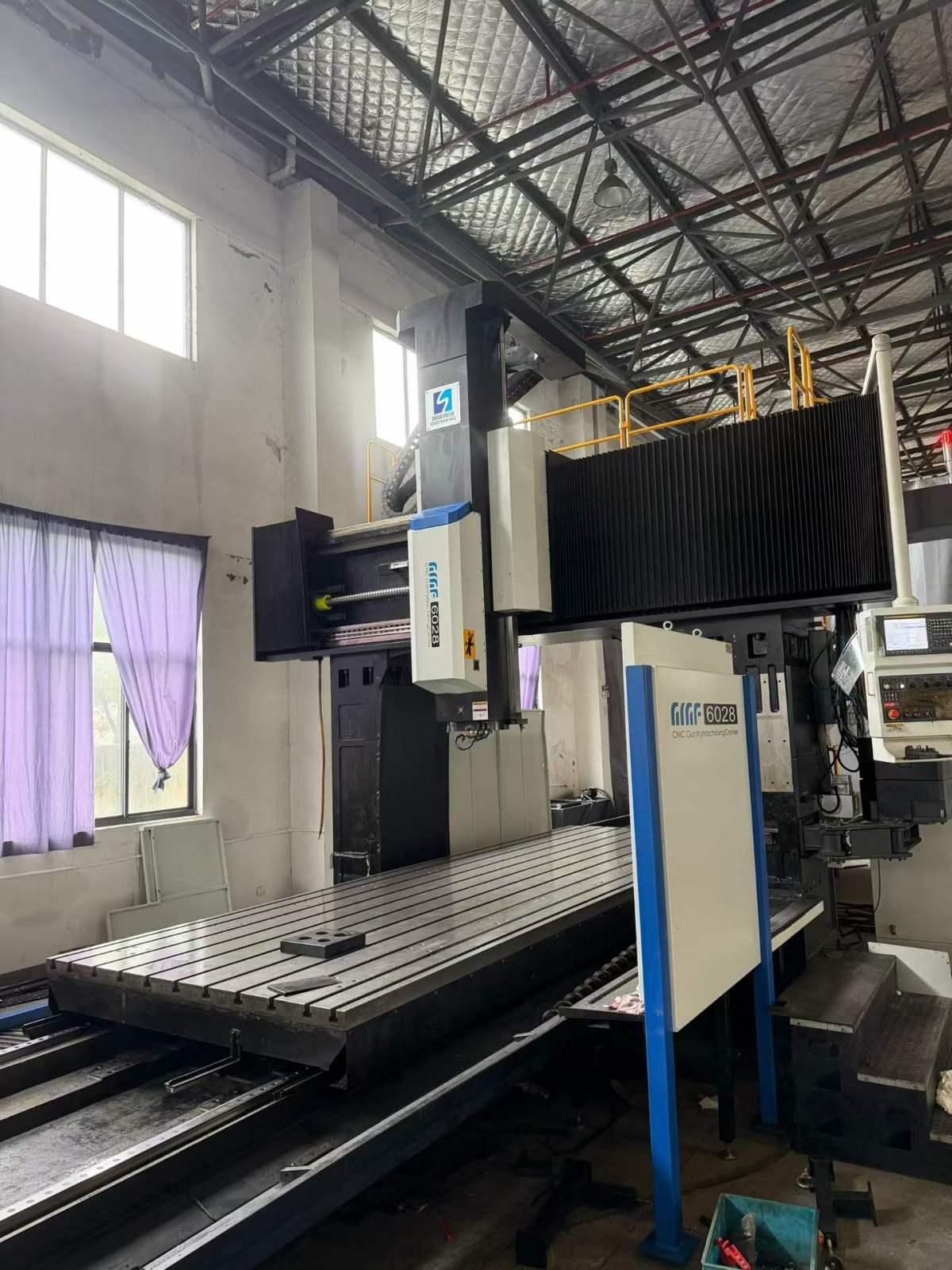

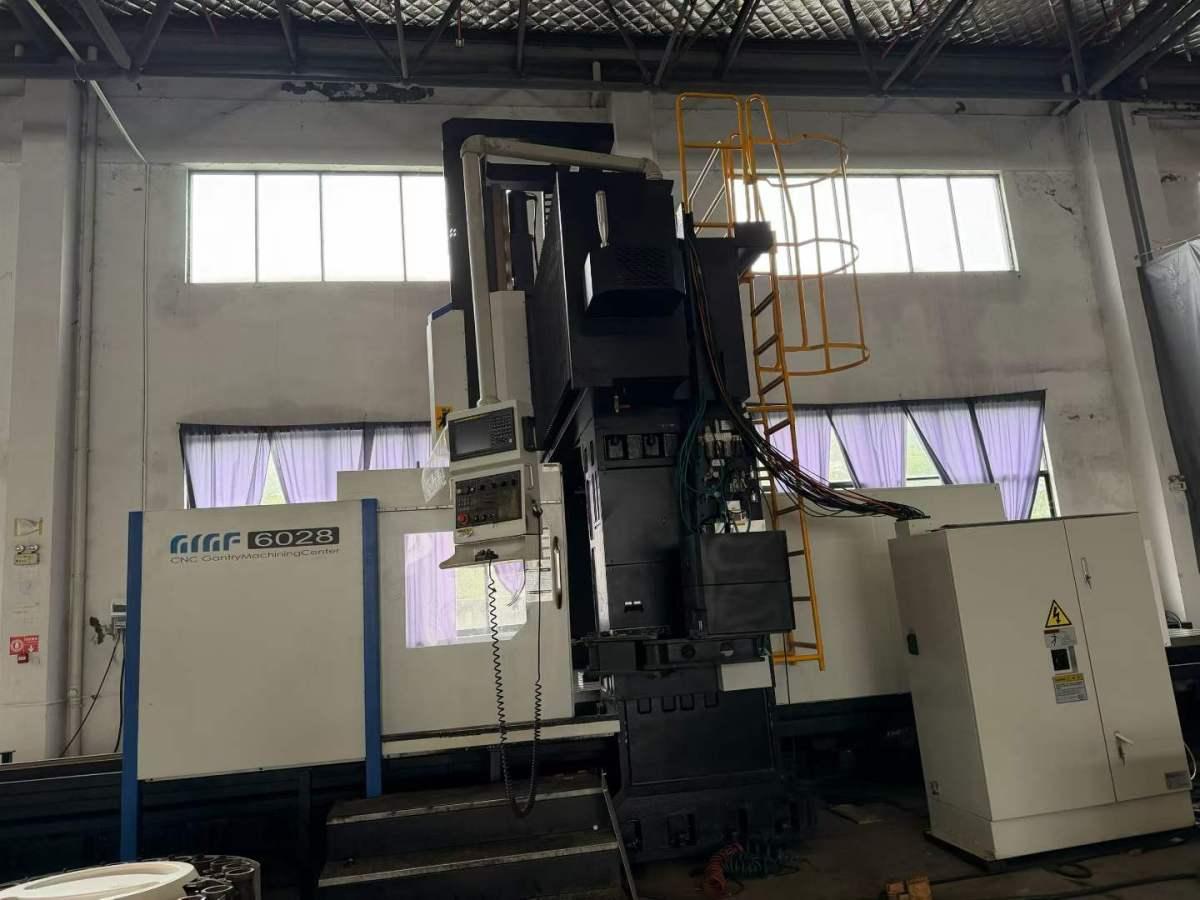

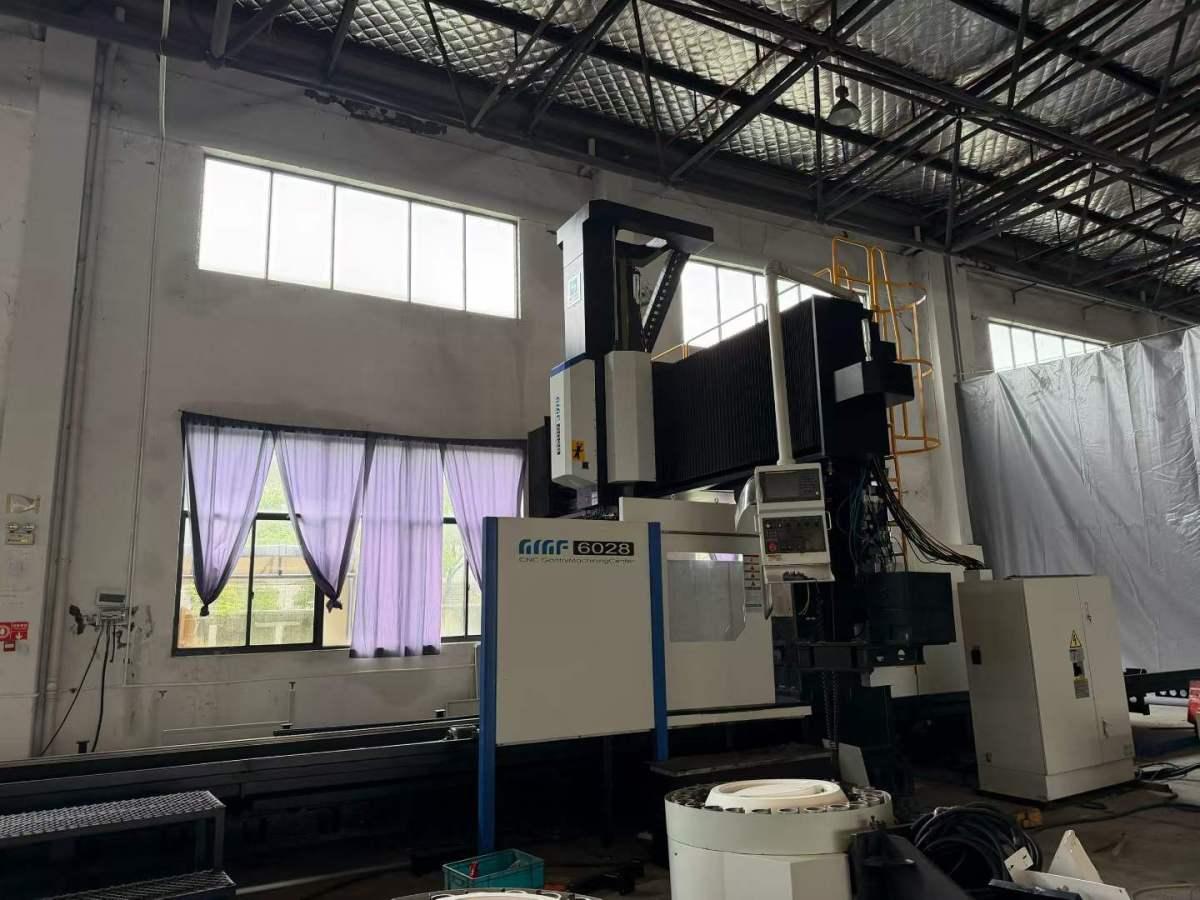

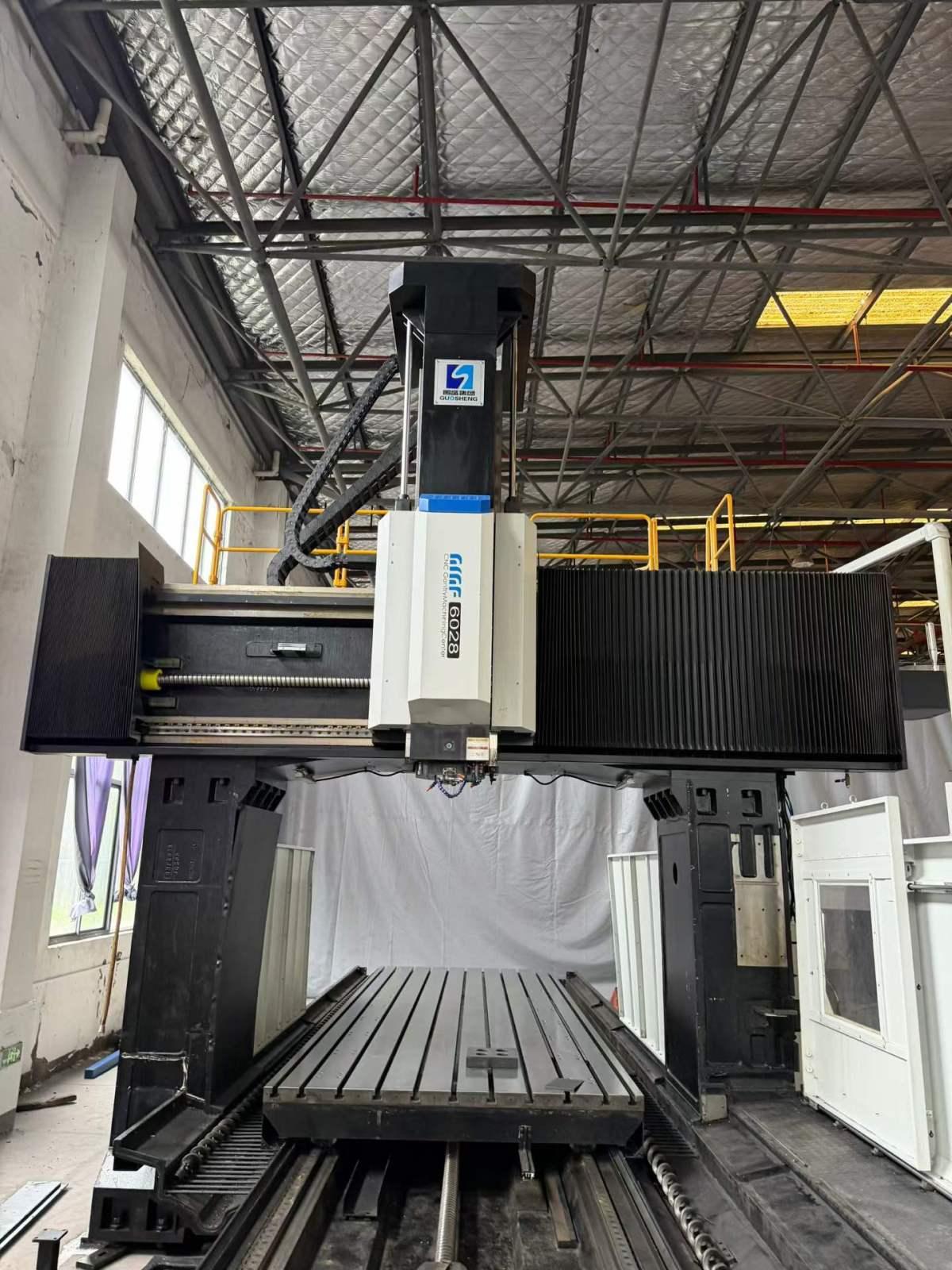

Guosheng GMF6028T Gantry machining centre

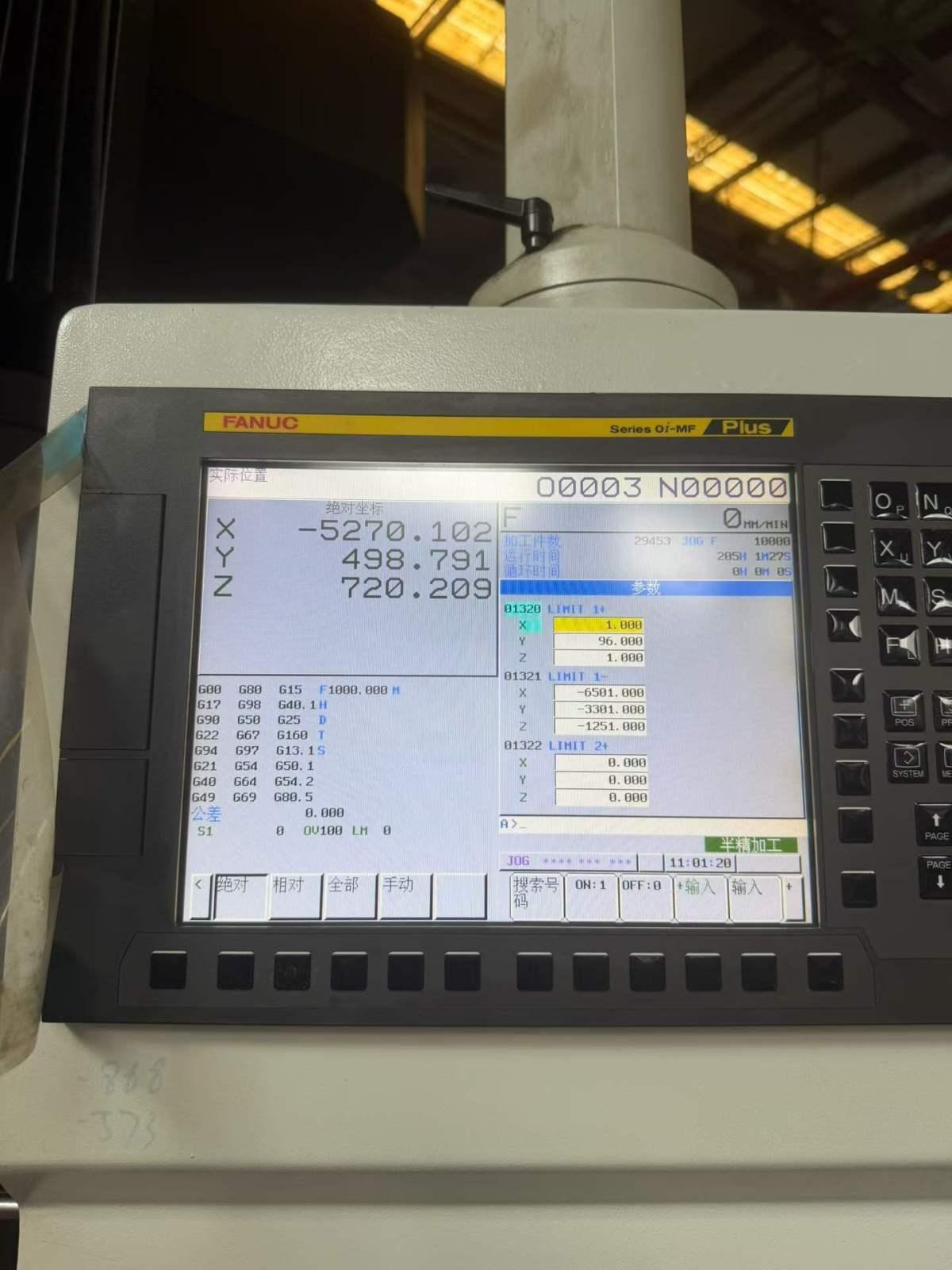

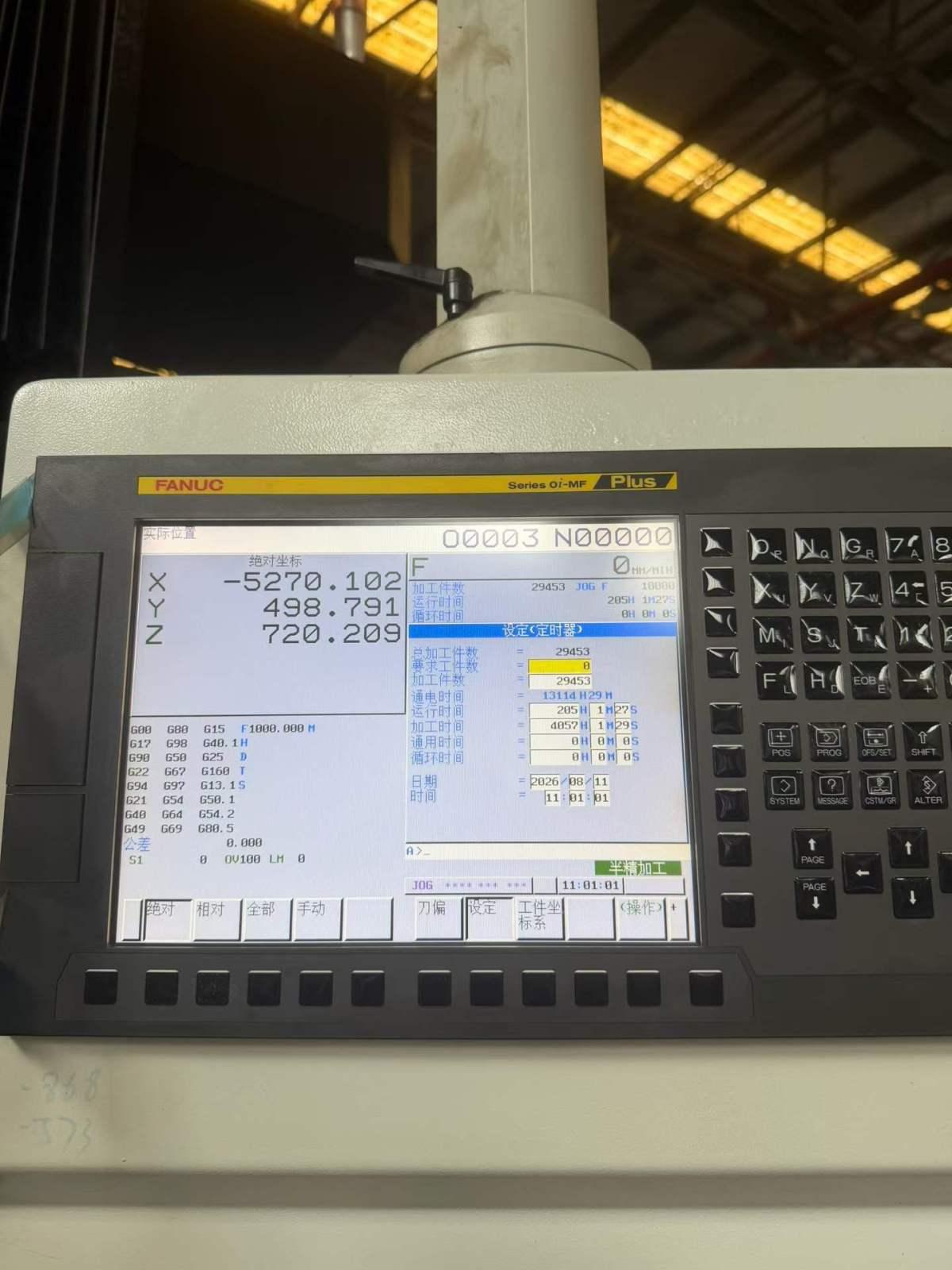

CNC System: FANUC MF Plus
Worktable Size: 6,000 × 2,000 mm
Three-Axis Travel: 6,500 × 3,300 × 1,250 mm
Gantry Width: 2,800 mm
Distance from Worktable Surface to Spindle Nose: 1,750 mm
Worktable Load Capacity: 25 tons
Spindle Type: BT50 Gear-Driven Spindle
Maximum Spindle Speed: 6,000 rpm
Tool Magazine Capacity: 24 Tools
Guideway Configuration: Two Linear Guideways and One Box Guideway
Configuration:
Equipped with a Semi-Automatic Angle Head
