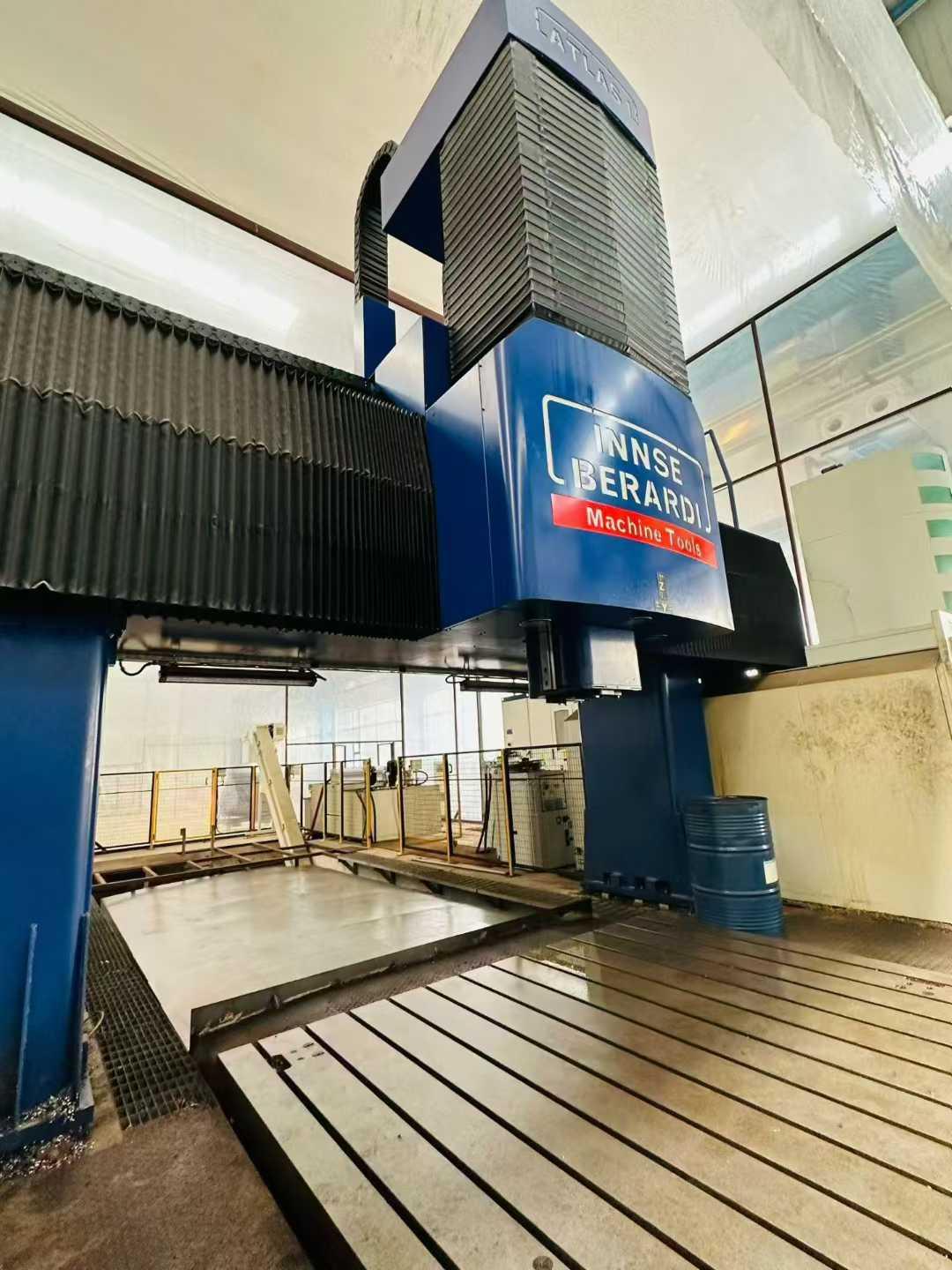

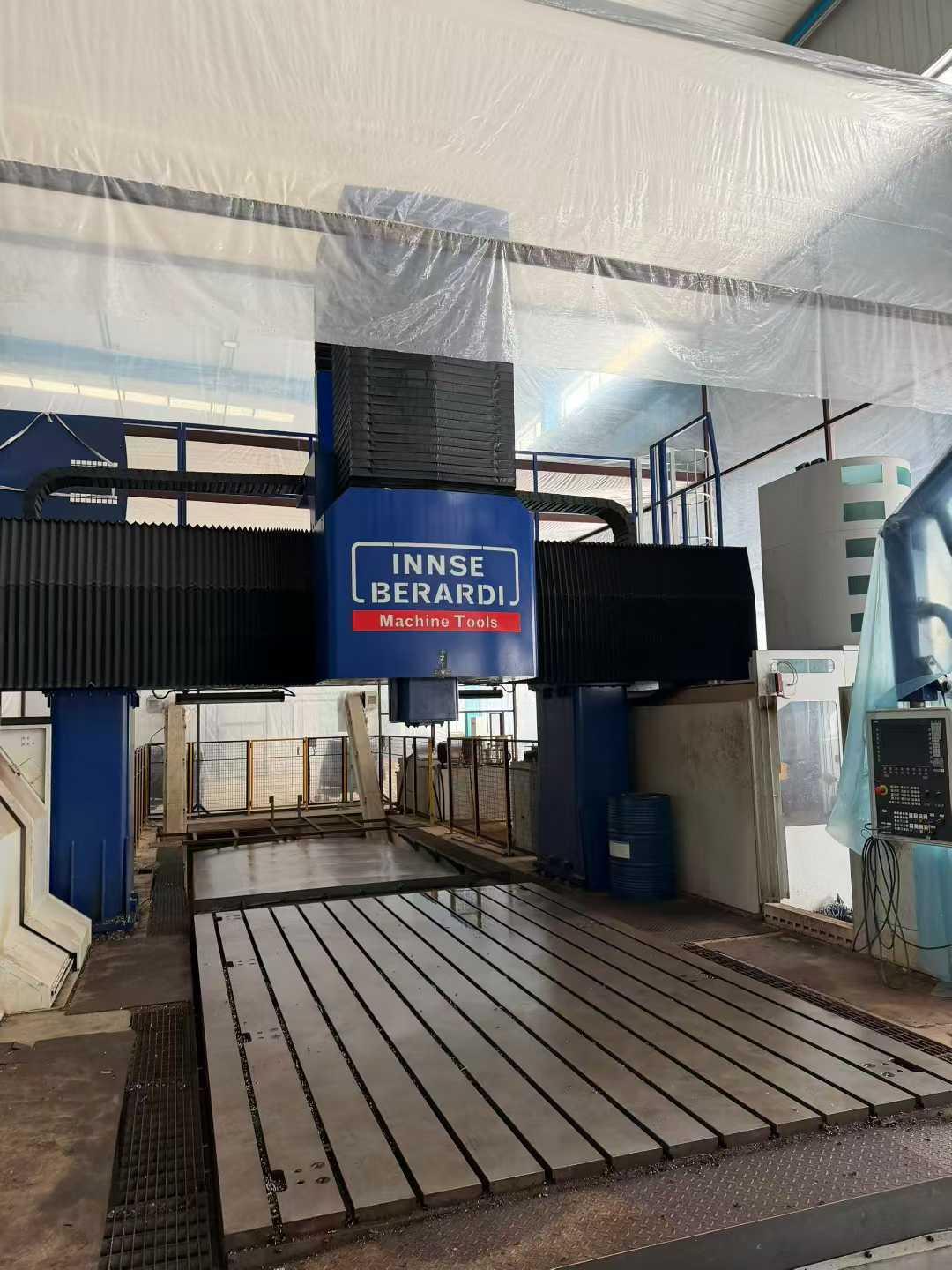

INNSE BERARDI ATLAS Gantry machining centre

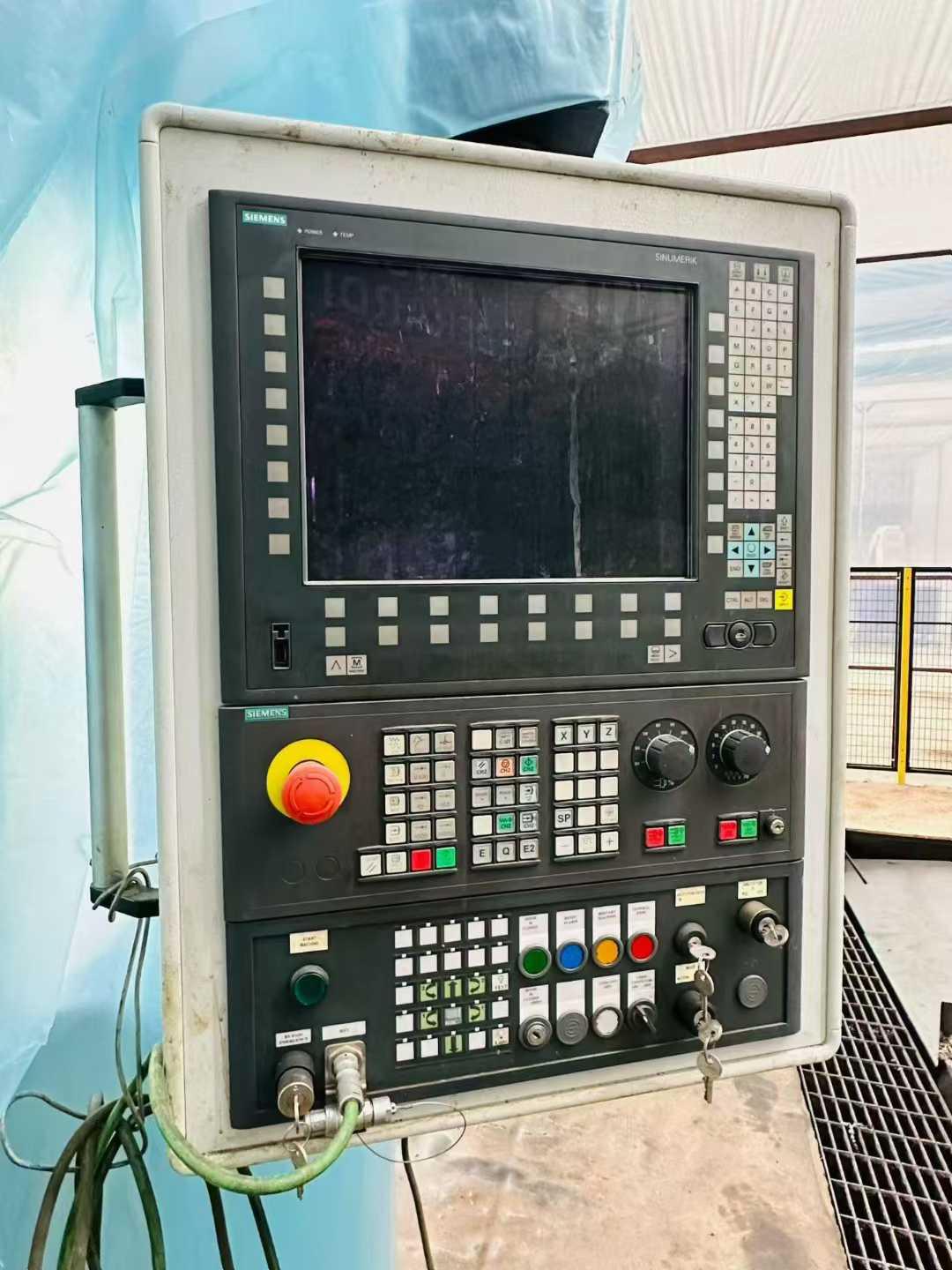

CNC System: Siemens 840DSL

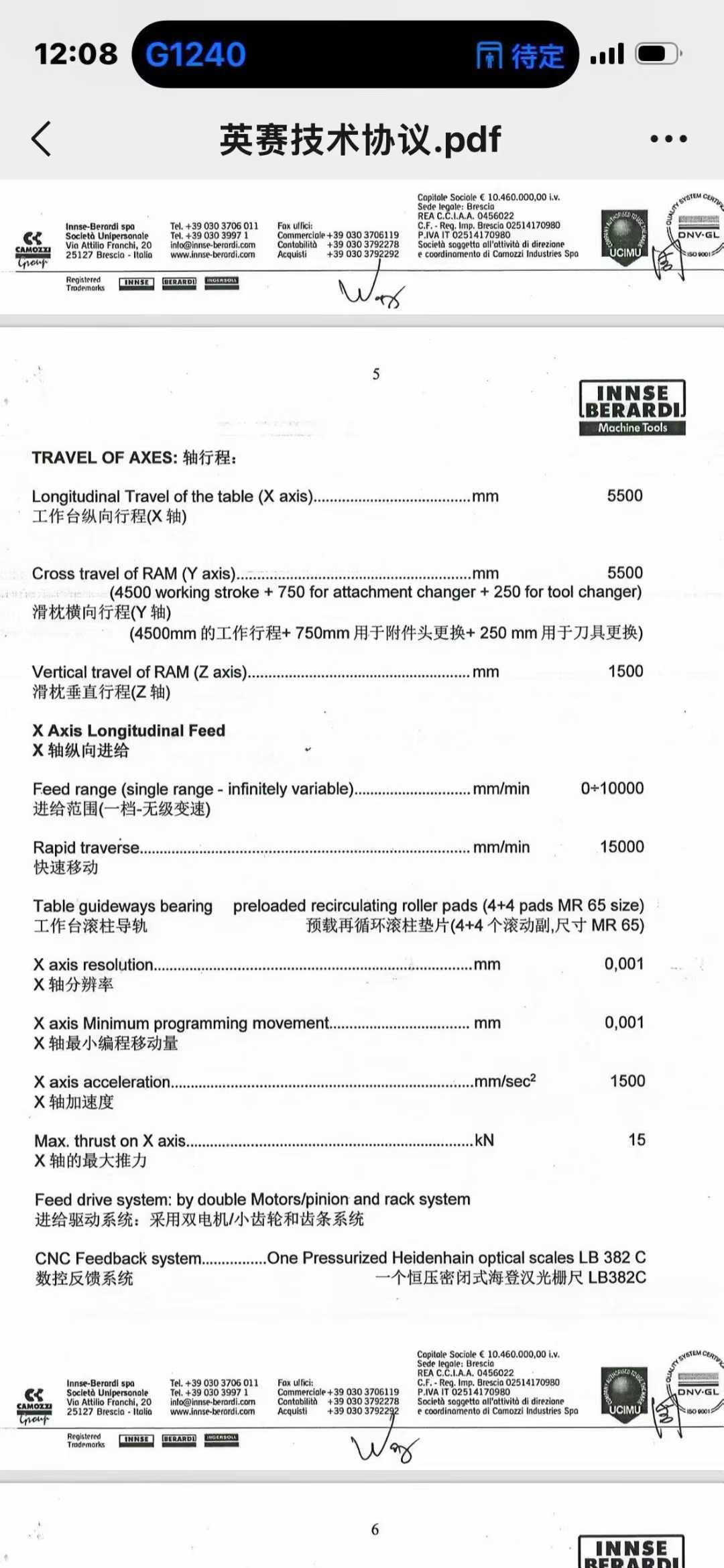

Three-Axis Travel: 5500 mm (X) × 4500 mm (Y) × 1500 mm (Z)

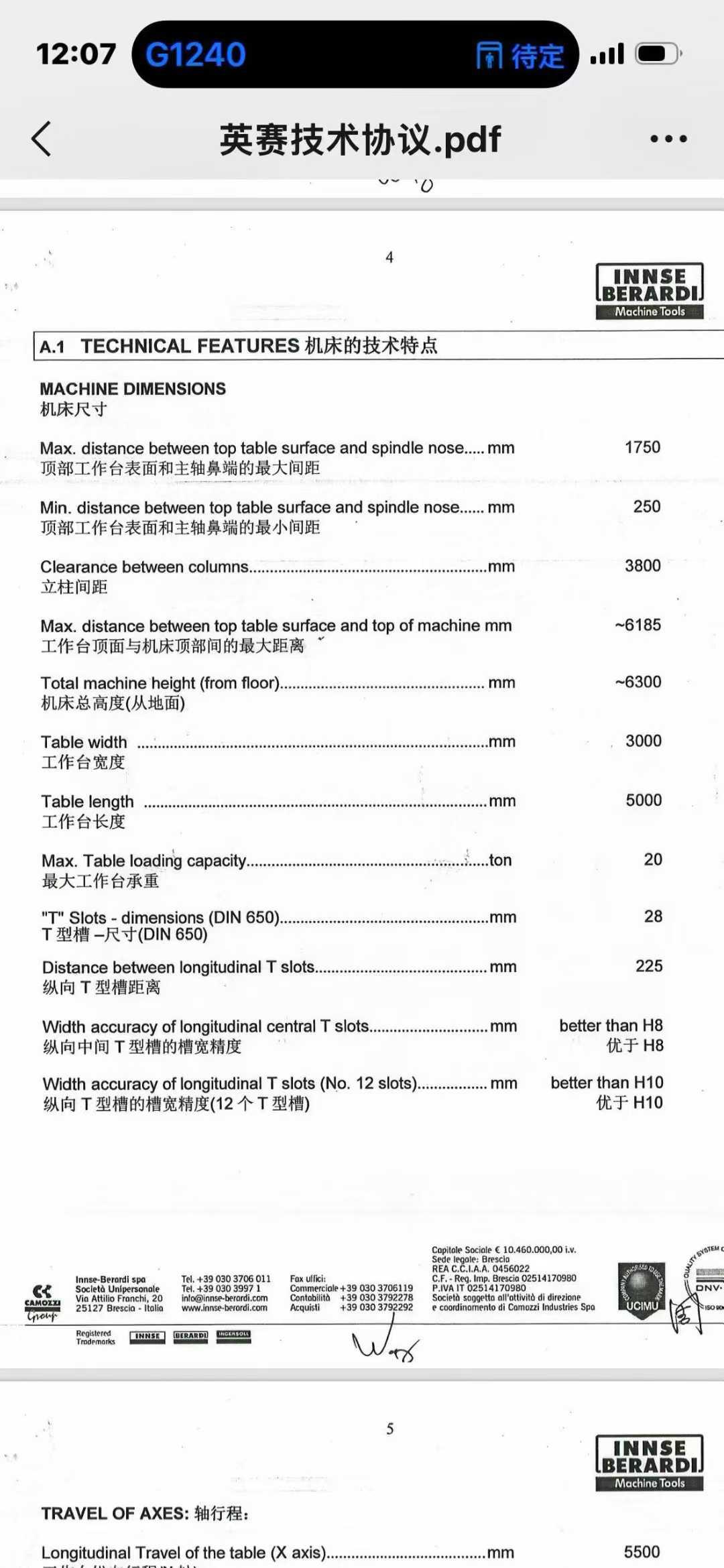

Maximum Distance from the Top Worktable Surface to Spindle Nose: 1750 mm
Minimum Distance from the Top Worktable Surface to Spindle Nose: 250 mm
Column Spacing: 3800 mm
Maximum Distance between the Top Surface of the Worktable and the Top of the Machine Tool: 6185 mm
Total Height of Machine Tool (from the Ground): 6300 mm
Worktable Size: 3000 mm × 5000 mm
Maximum Worktable Load: 20 tons
T-slot Size (DIN 650): 28 mm
Longitudinal T-slot Distance: 225 mm
Fast Movement Rate: 15,000 mm/min
Resolution: 0.001 mm
Minimum Programming Travel: 0.001 mm
Maximum Thrust: 15 kN
Configuration:
Feed Drive CNC System: Dual motors/pinion and rack CNC system
CNC Feedback System: Heidenhain optical scale LB 382C
Preloaded Recirculating Roller Gasket

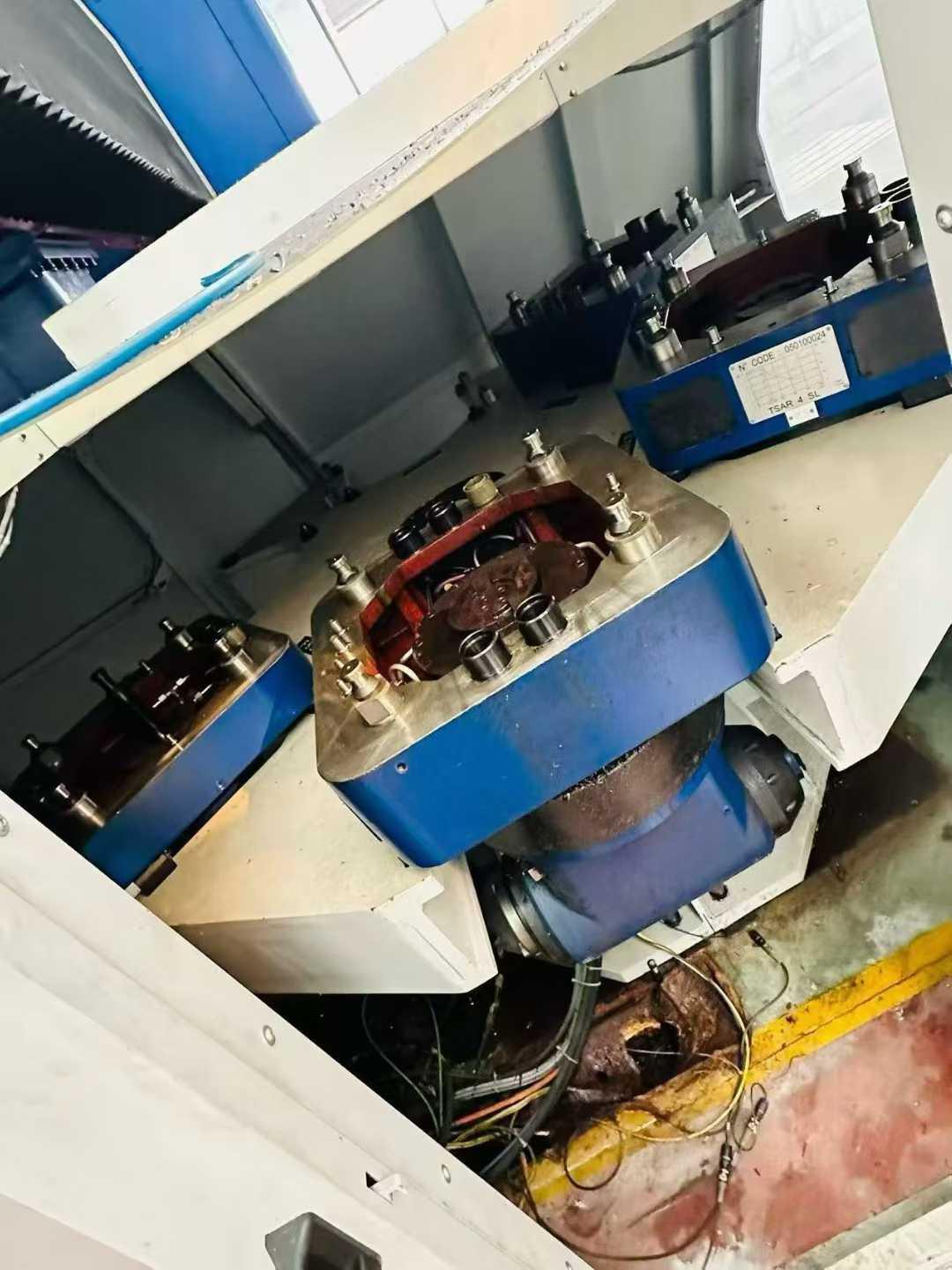

Automatic Horizontal Milling Head
Inner Corner Head
Extended Head
