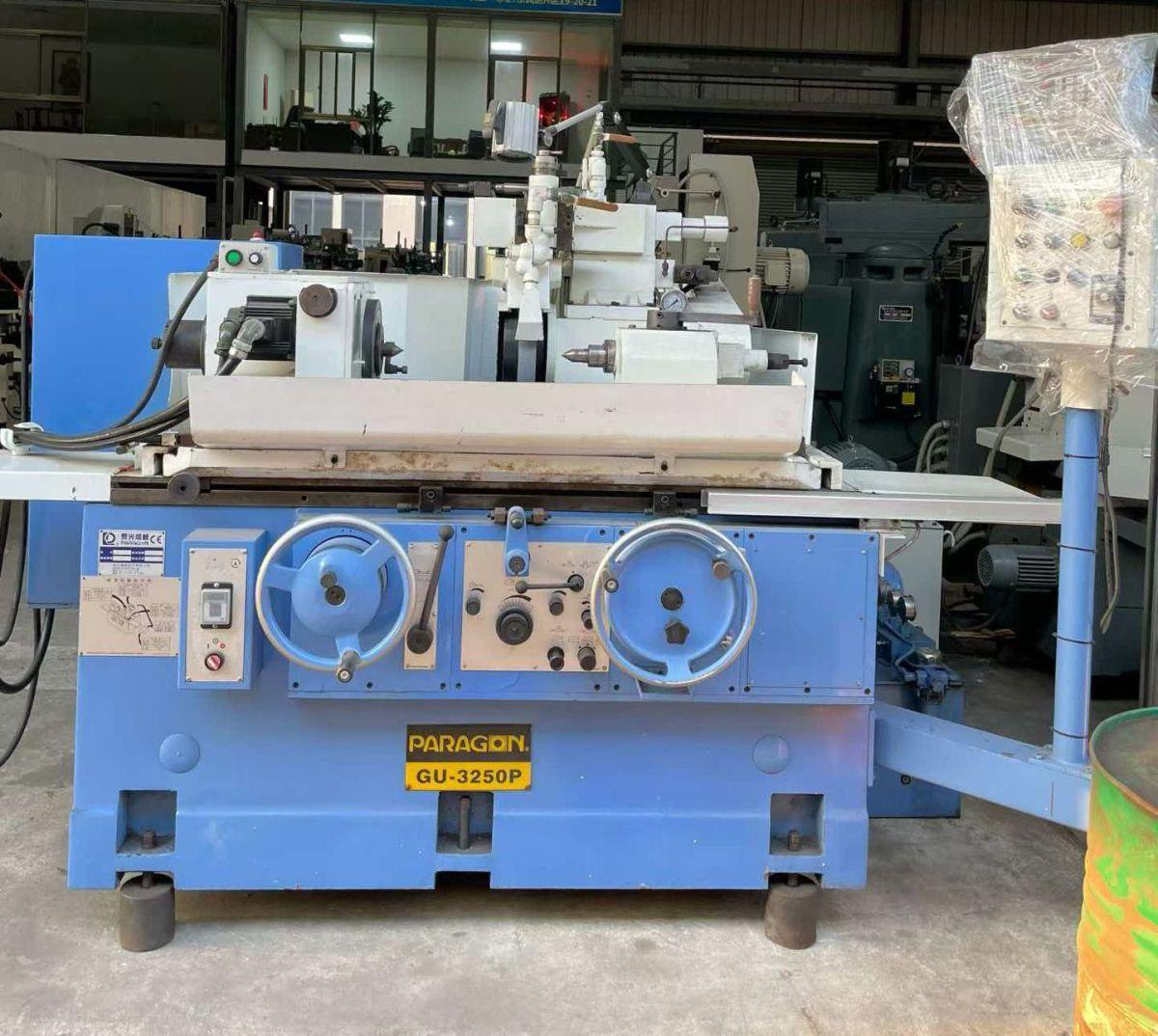

Paragon GU3250P other

Worktable rotation diameter: 320 mm
Distance between centers: 500 mm
Maximum grinding diameter: 280 mm
Grinding wheel size: 405 × 56 × 127 mm
Maximum workpiece load (between centers): 150 kg
Grinding wheel linear speed: 33 m/s
Feed Travel：
Grinding wheel head handwheel feed travel: 160 mm
Automatic rapid feed travel of grinding wheel head: 40 mm
Minimum resolution of grinding wheel head automatic feed: 0.001 mm
Minimum resolution on X-axis: 0.001 mm
X-axis rapid traverse speed: 6
Minimum resolution on Z-axis: 0.01 mm
Minimum automatic reciprocating stroke of Z-axis: 10–14 mm
Structural Parameters：
Manual swivel angle of Z-axis: 0° to +8°
Workpiece spindle speed: 5–750 rpm
Workpiece spindle swivel angle: 90° to -30°
Tailstock quill retraction travel: 35 mm
Tailstock center type: MT4

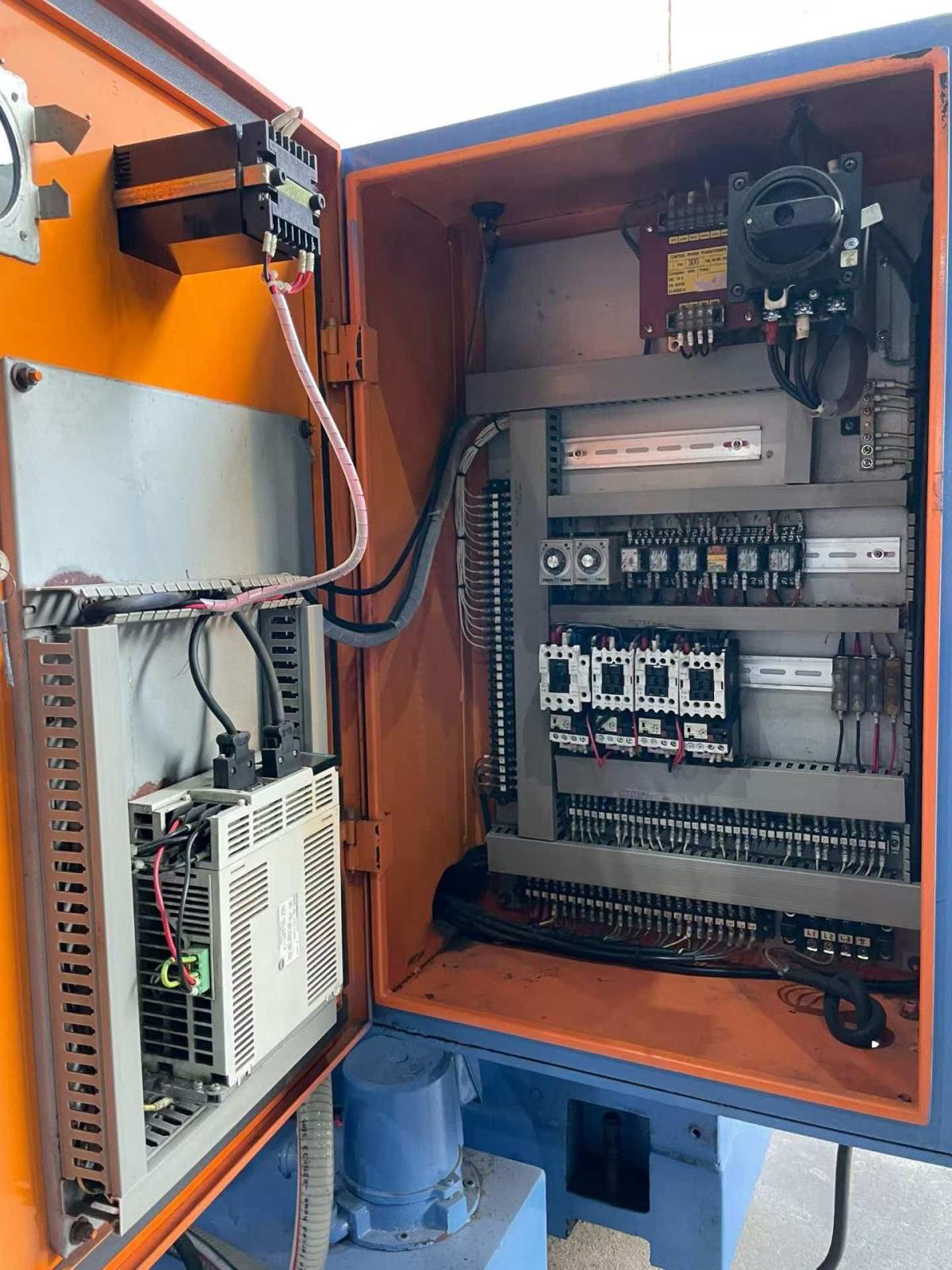

Motor Configuration：
Grinding wheel spindle motor: 5 hp
Workpiece spindle servo motor: 1 kW
Internal grinding motor: 1 hp
Machine overall Parameters：
Machine dimensions: 281 × 227 × 185 cm
Machine weight: 2800 kg
