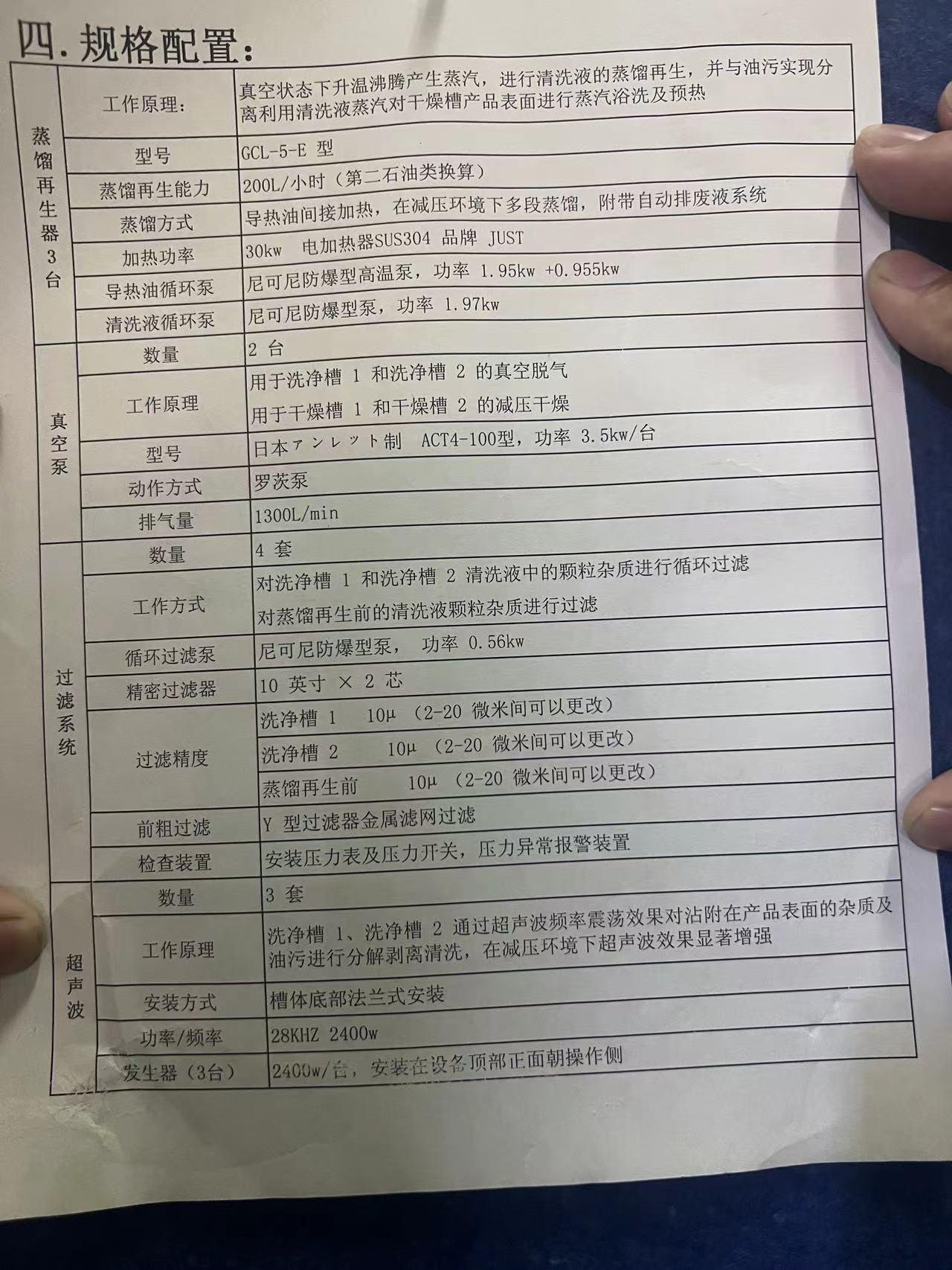

Distillation and regeneration capacity: 200L/ hour (second oil conversion)
Distillation method: indirect heating of thermal oil, multi-stage distillation under vacuum environment, with automatic waste liquid discharge CNC System
Heating power: 30kw, electric heater SUS304 brand JUST
Heat transfer oil circulating pump: Miyanoni explosion-proof high temperature pump, power 1.95kw+0.955kw
Cleaning fluid circulating pump: Nikoni explosion-proof pump, power 1.97kw

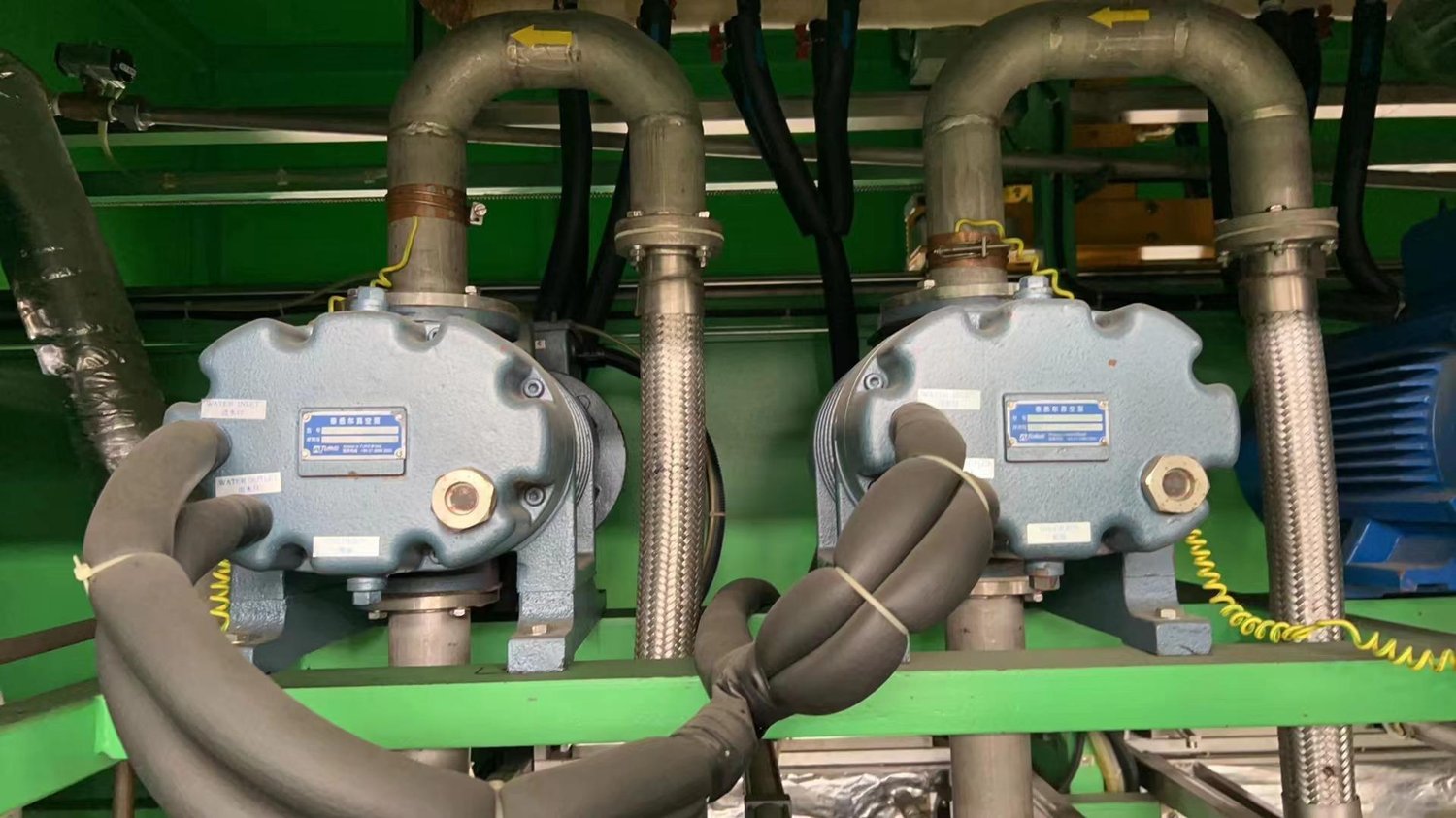

Number of vacuum pumps: 2
How it works:
Vacuum degassing for cleaning Water tank 1 and cleaning Water tank 2
Used for vacuum drying of drying Water tanks 1 and 2

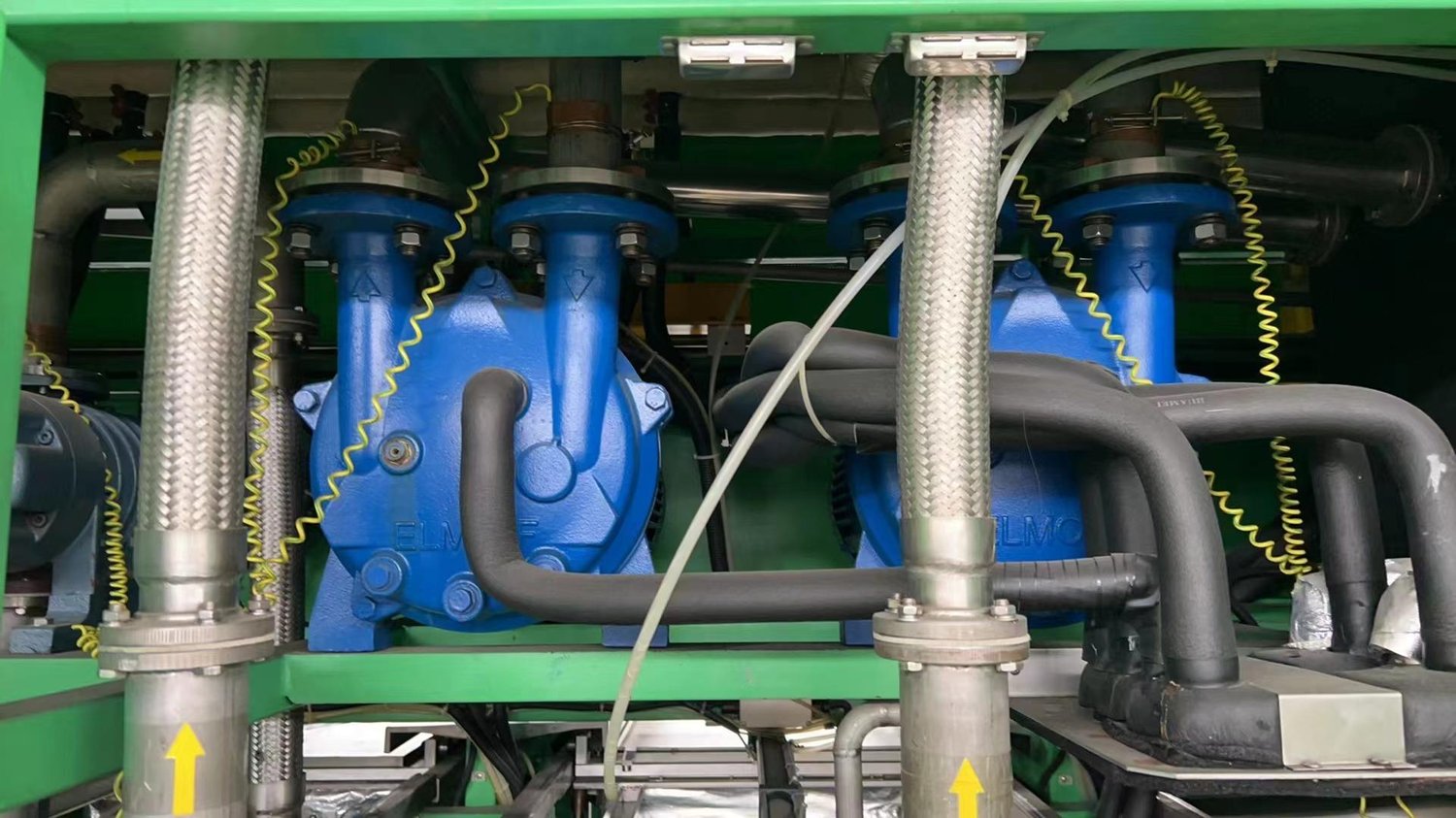

Model: Japan アンレット ACT4-100, power 3.5kw/ set
Mode of operation: Roots pump
Exhaust volume: 1300L/min
Number of filtration CNC Systems: 4 sets
Working mode: Filter the particles and impurities in the cleaning solution of cleaning Water tank 1 and cleaning Water tank 2
The particulate impurities of the cleaning solution before distillation were filtered
Circulating filter pump: Miyanoni explosion-proof pump, power 0.56kw
Precision filter: 10 inch x2 core
Filtration precision:
Cleaning Water tank: 1 10 μm (can be changed between 2-20 μm)
Cleaning Water tank: 210μm (can be changed between 2-20μm)
Before distillation: 10 μm (can be changed between 2-20 μm)
Working principle: Cleaning Water tank 1, cleaning Water tank 2 through the ultrasonic frequency oscillation effect on the impurities and oil attached to the surface of the product to decompose and peel off cleaning, in the vacuum environment ultrasonic effect significantly enhanced
Installation method: Flange installation at the bottom of the Water tank body
power/frequency: 28KHZ 2400w
Generator (3 sets) : 2400w/ set, installed on the top of the equipment facing the operating side
