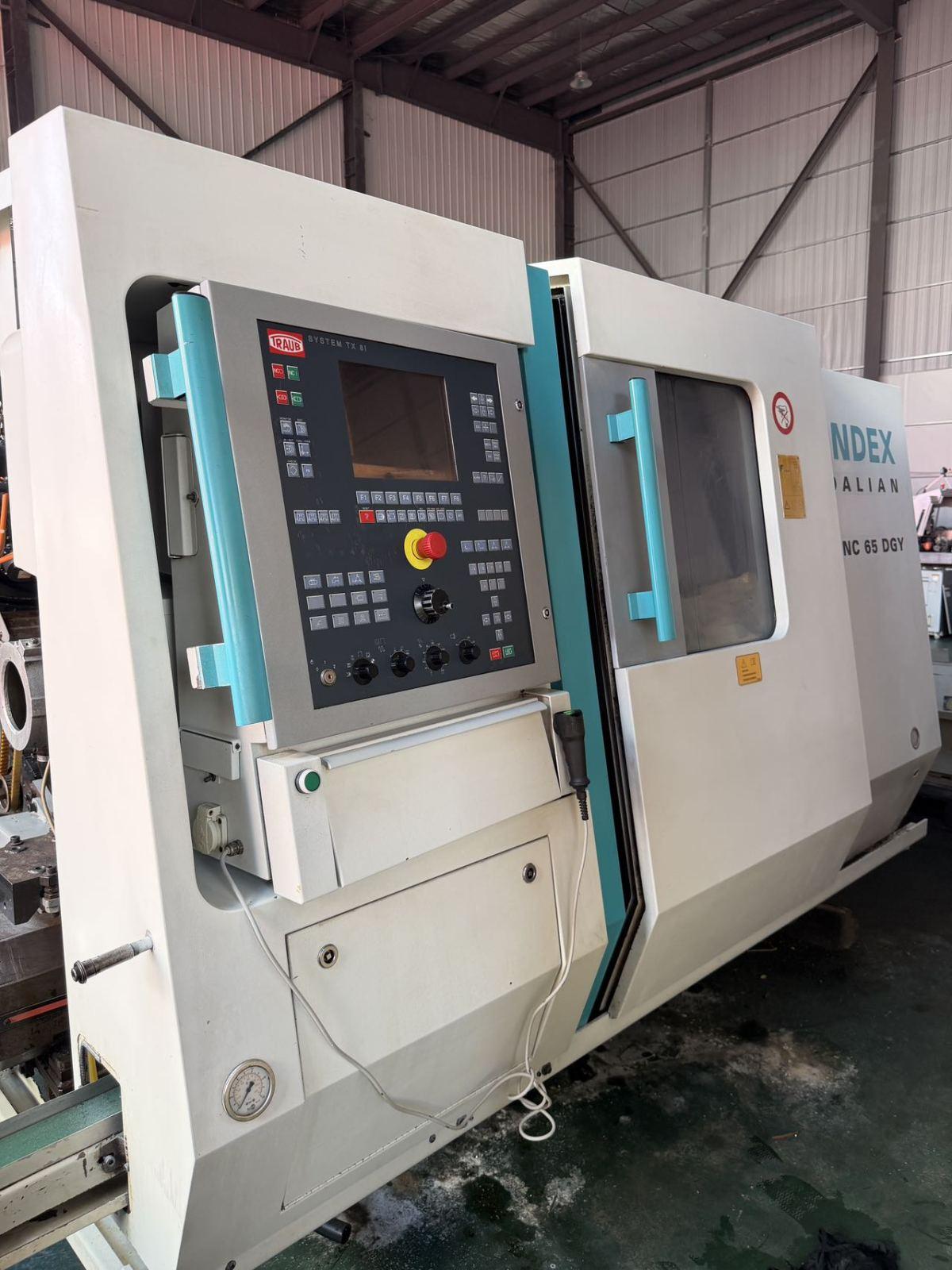

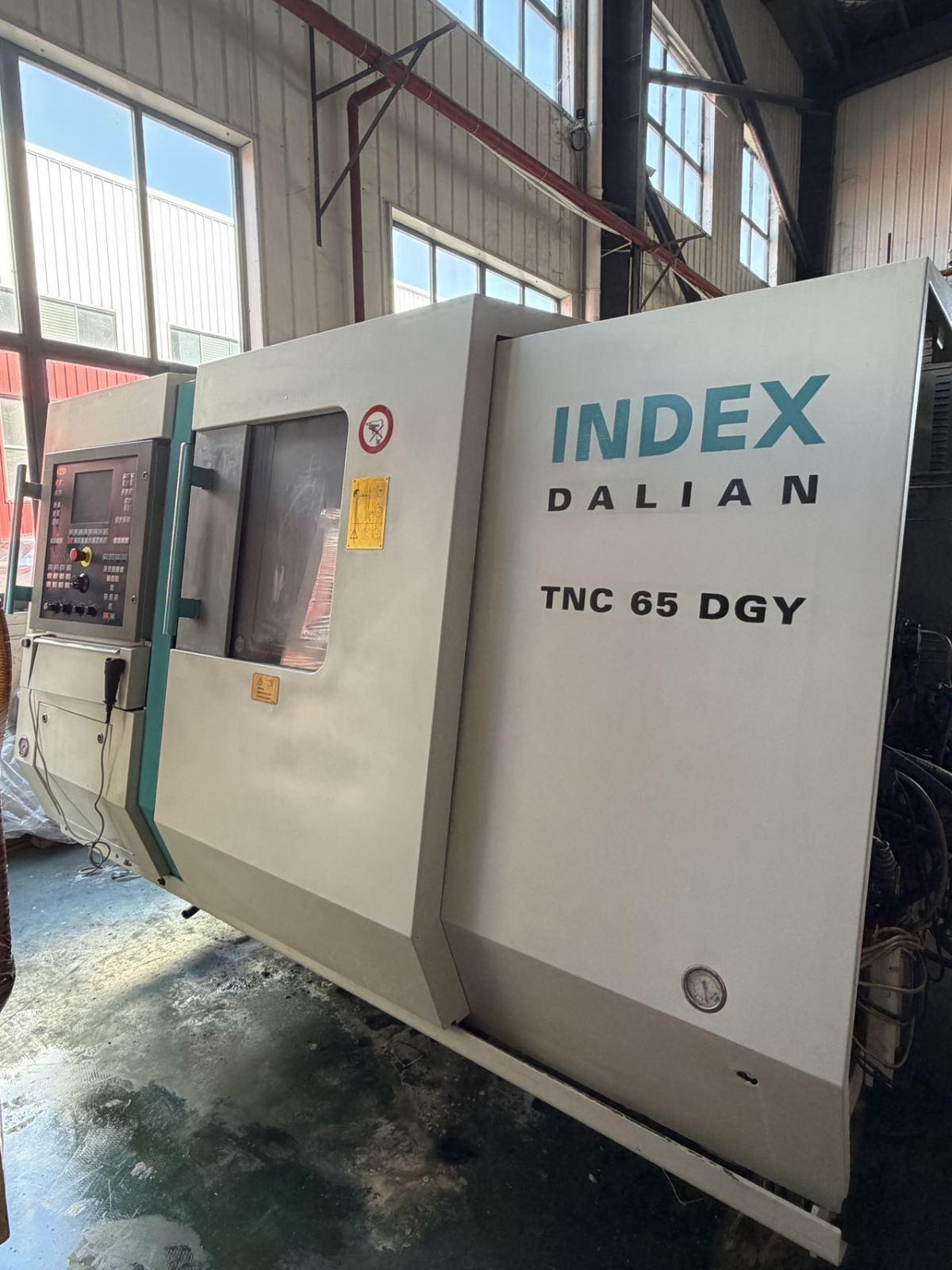

INDEX TNC65 DGY Turn Mill Machining Centre

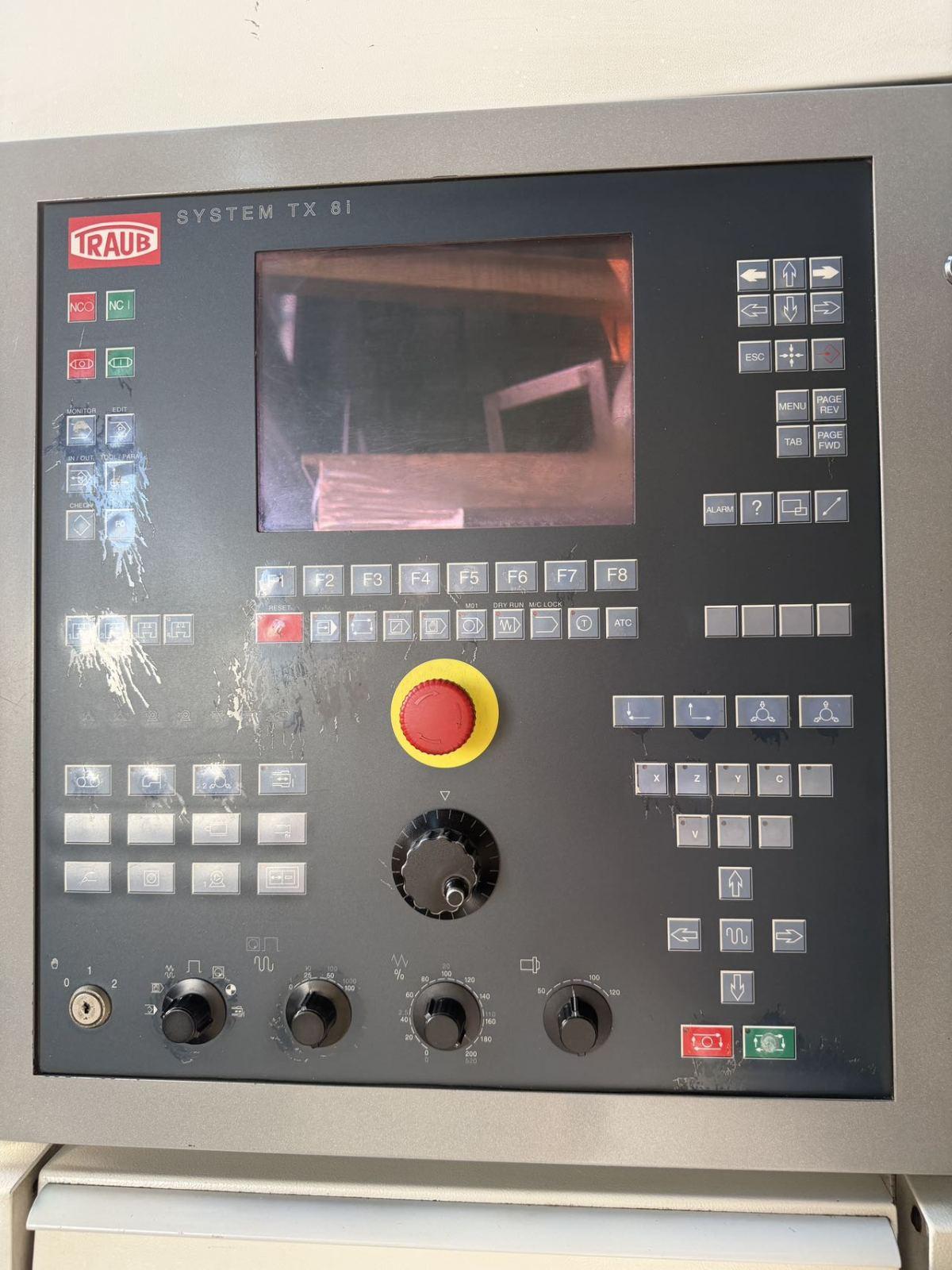

CNC System: TRAUB TX8i
Maximum machining length: 450 mm
Maximum bar stock machining diameter: Φ65 mm
Maximum turning diameter: Φ185 mm
Number of spindles: Two spindles
Spindle C-axis: Both spindles are equipped with C-axis
Spindle taper: A6
Maximum spindle speed: 4,000 rpm
Subspindle power: 11 kW
Maximum chuck diameter: Φ175 mm
Number of turrets: Two turrets
Number of tool positions per turret: 10
Total number of tool positions: 20
Power tools: All tool positions support live tooling
Axis configuration of the first turret: X / Y / Z axes
Axis configuration of the second turret: X / Z axes
Y-axis travel: ±35 mm
X-axis travel: 140 mm
Z-axis travel: 450 mm
