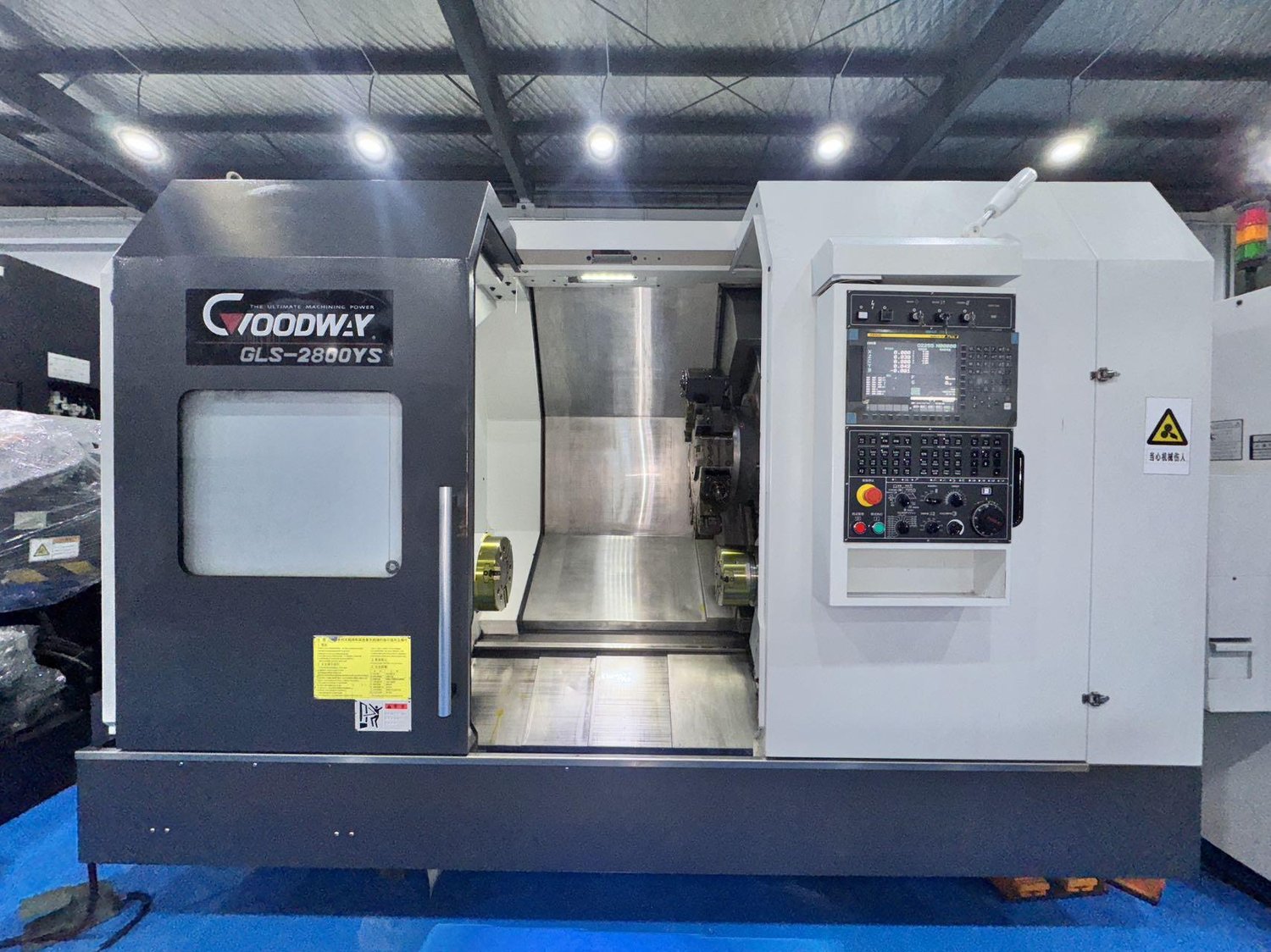

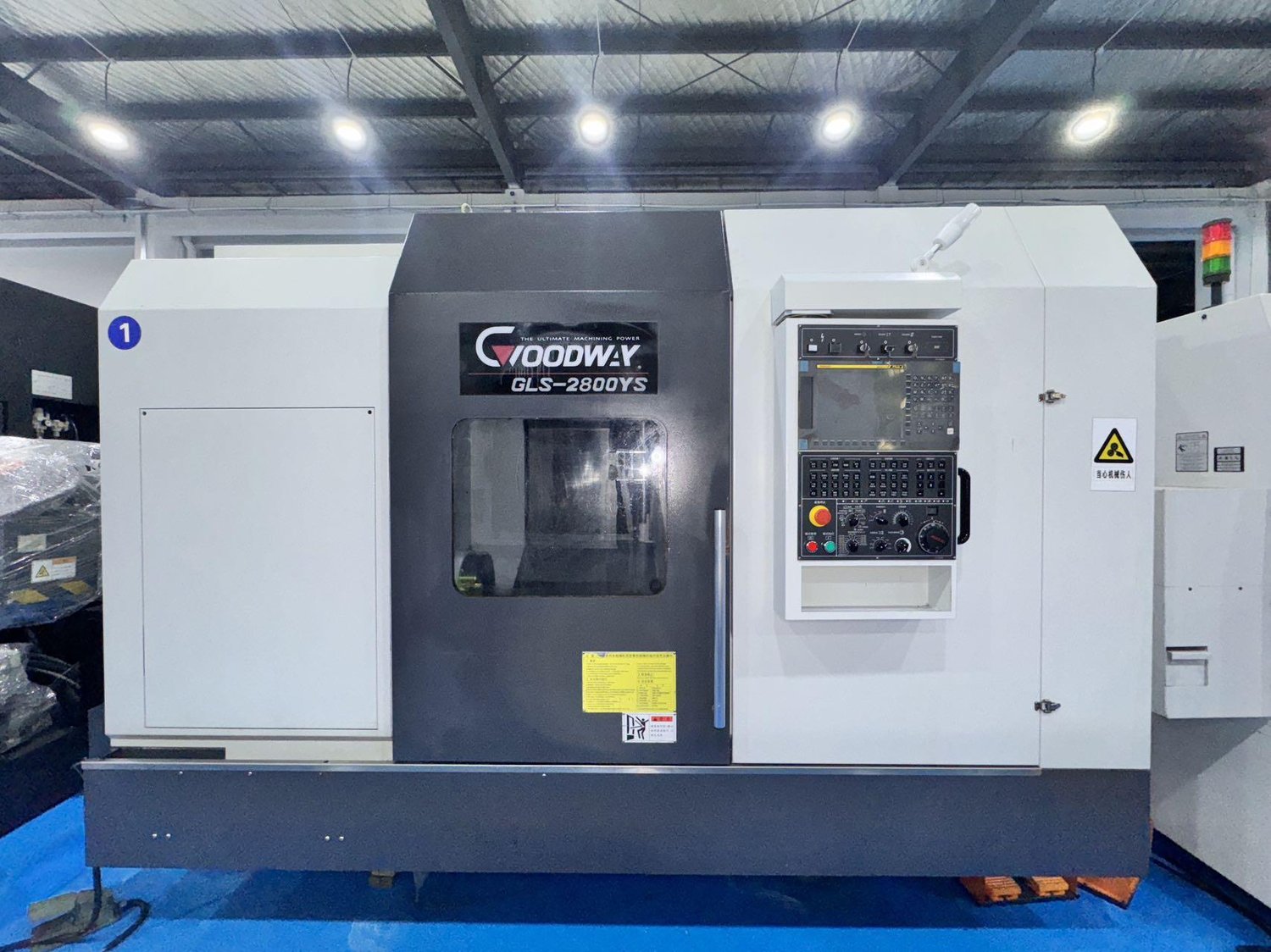

GOODWAY GLS-2800YS Turn Mill Machining Centre
[Product Information]:
- Inventory number：811204
- Brand：GOODWAY
- Model：GLS-2800YS
- Origin：Taiwan, China
- Location：China
- Year：2022
- Create Time：2026-03-12
Specifications:

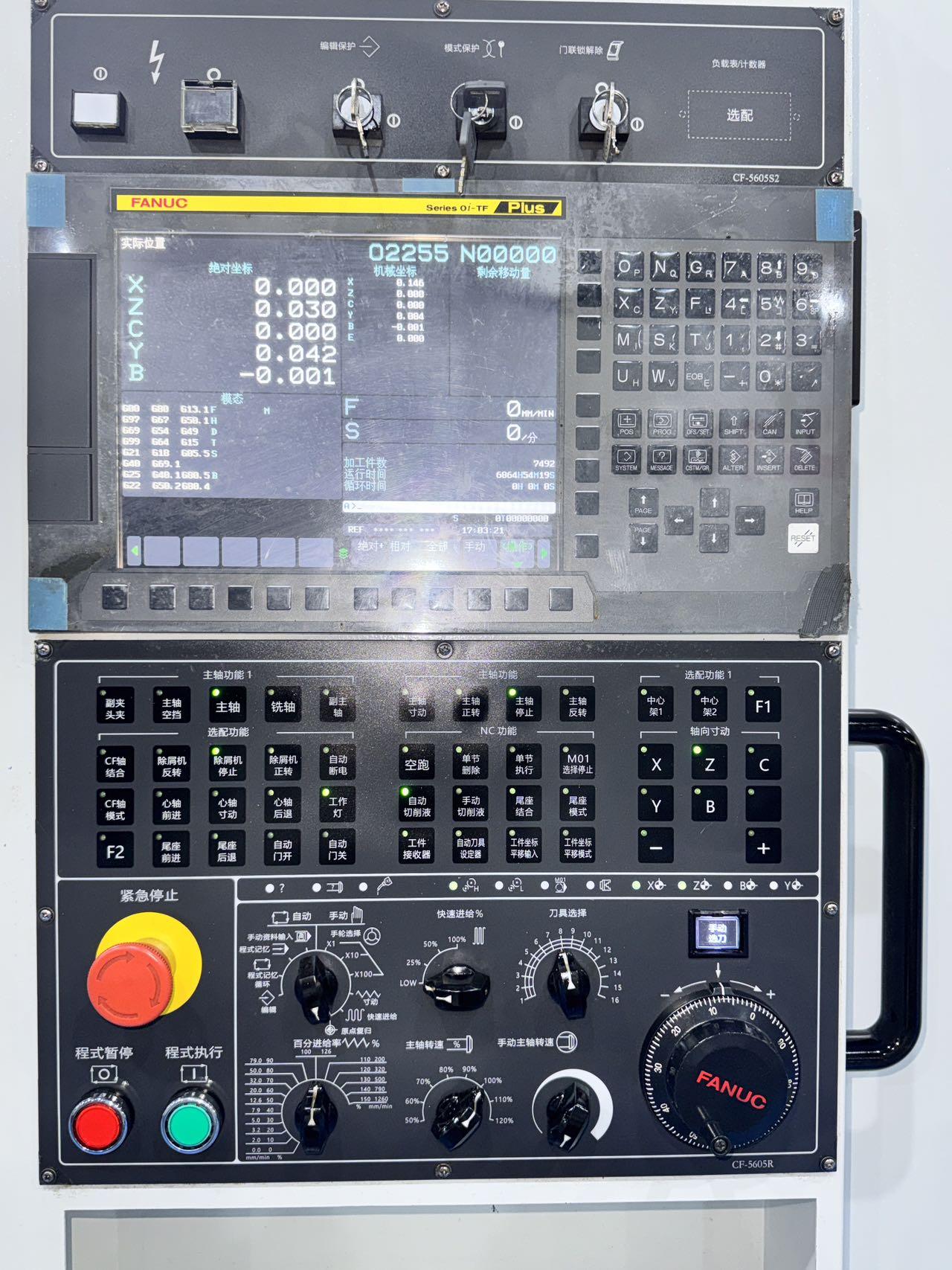

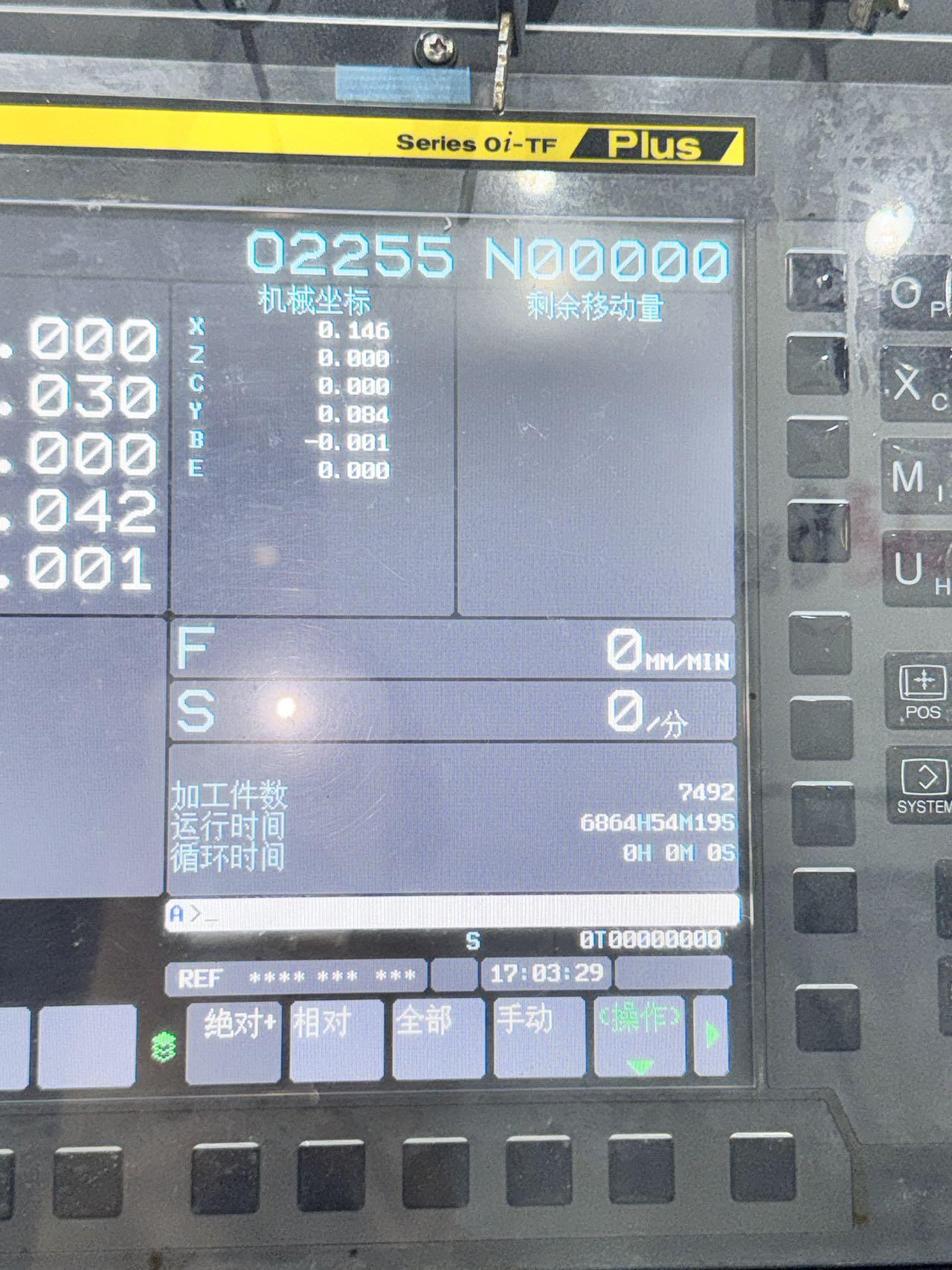

CNC System: FANUC 0i-TF Plus
Axis travel (X/Y/Z): 555 × 200 × 760 mm
Maximum machining diameter: 760 mm
Maximum machining and milling diameter: 440 mm
Maximum milling length: 720 mm
Rapid traverse rate: 24 m/min
Test run accuracy: 0.01 mm
Main Spindle Parameters：
Chuck specification: 10-inch chuck
Drive method: Belt drive
Spindle motor power: 18.5 kW
Maximum spindle speed: 4500 rpm
Spindle through-hole diameter: 76 mm
Sub-Spindle Parameters：

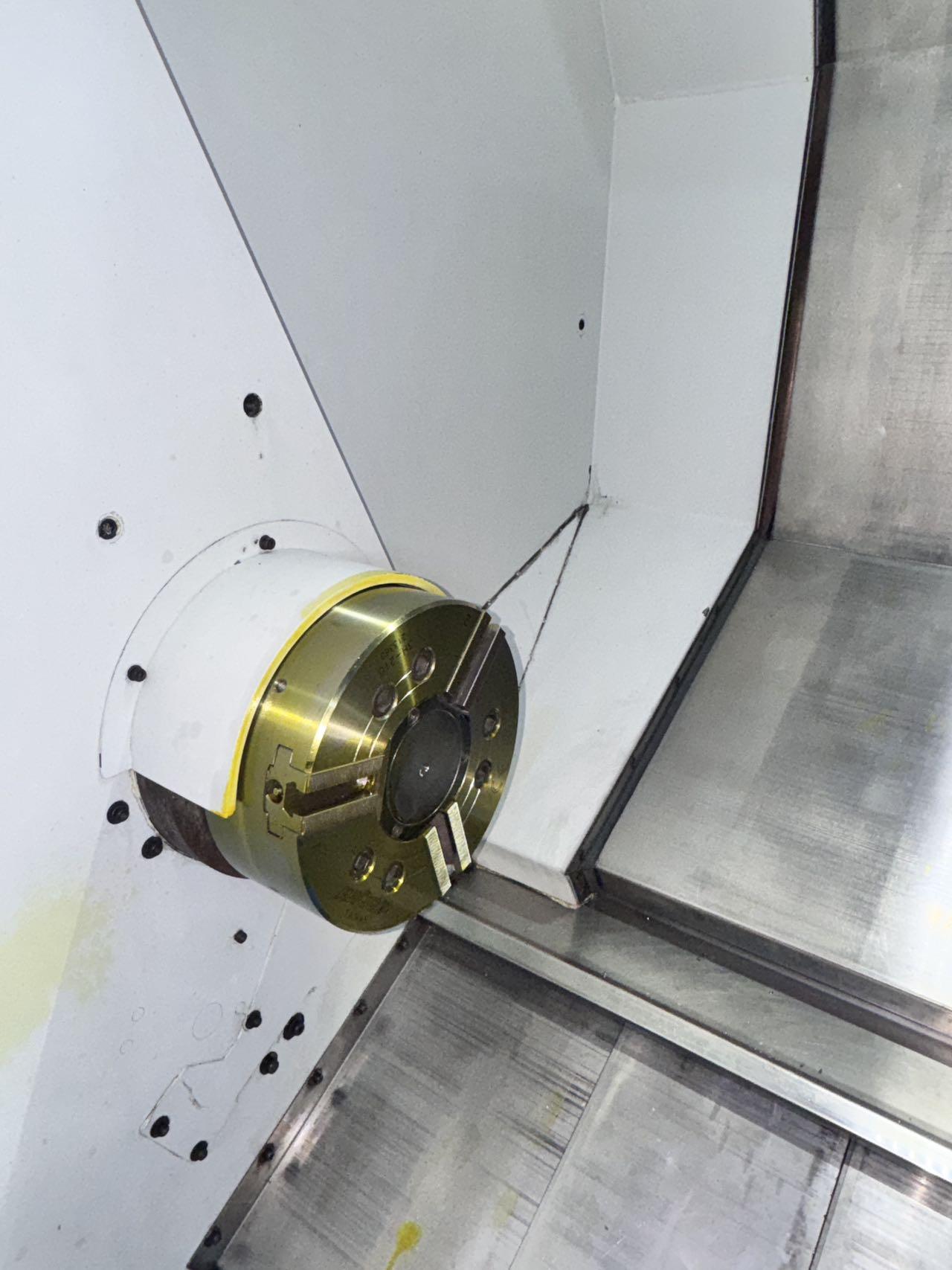

Chuck specification: 8-inch chuck
Drive method: Belt drive
Spindle motor power: 11 kW
Maximum spindle speed: 4500 rpm
Spindle through-hole diameter: 52 mm
Sub-spindle B-axis forward travel: 750 mm
Configuration：

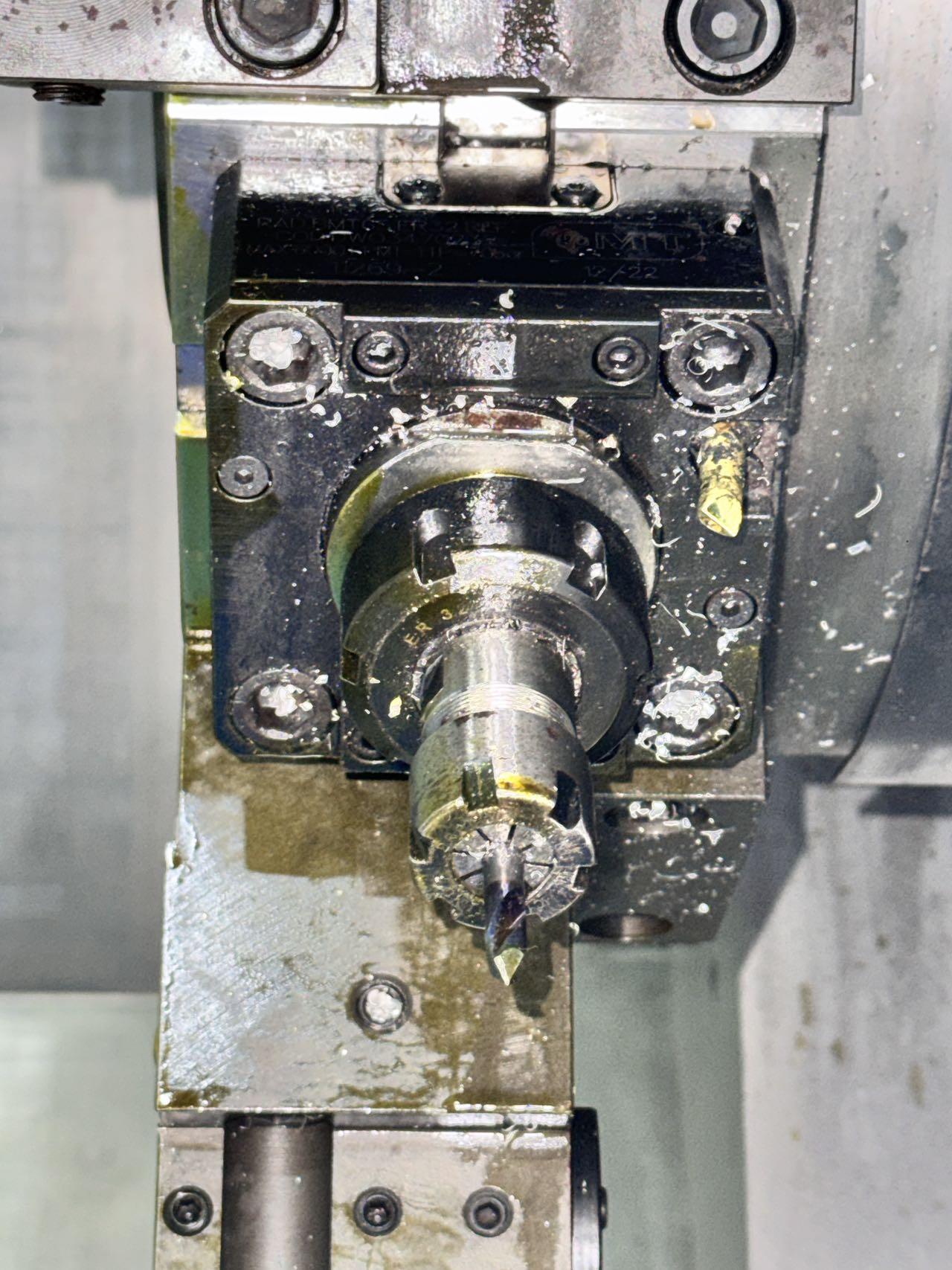

Equipped with German driven tools: one 90° and one 0° (both directions)

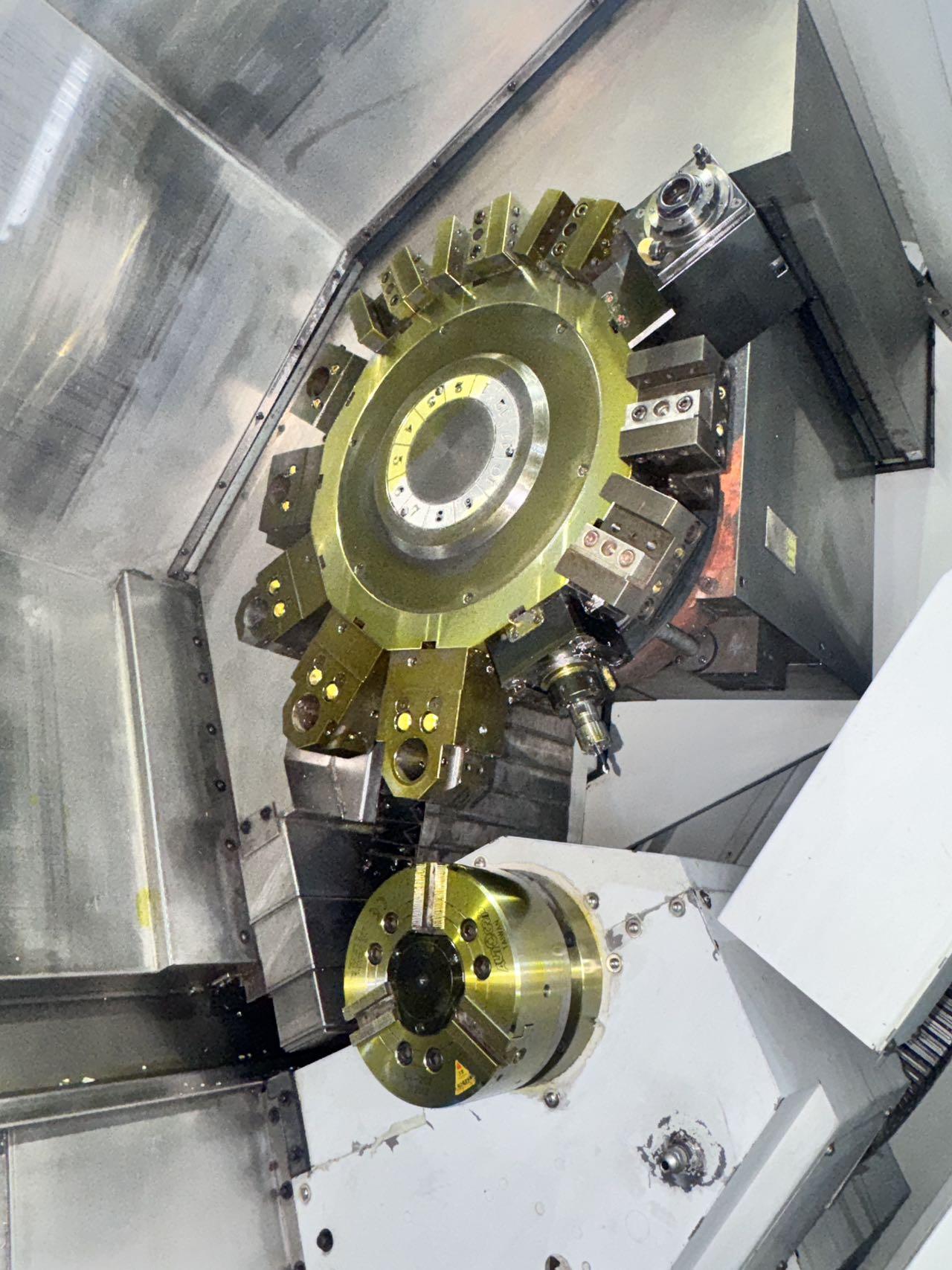

12-station power servo turret
Three-piece curved gear clutch
Equipped with Y-axis
Chip conveyor
High-pressure coolant system
