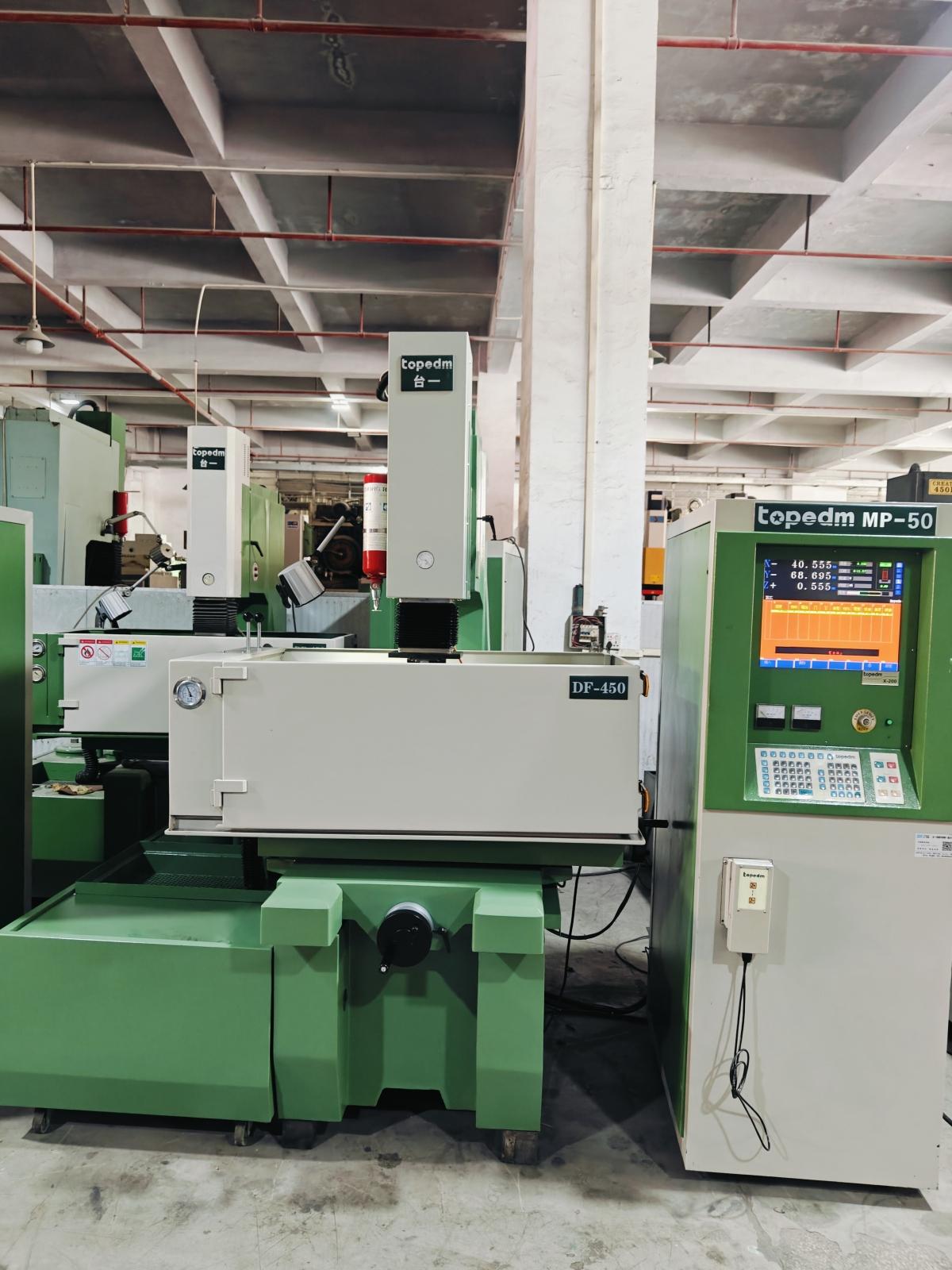

Topedm DF-450 Spark eroder

Worktable size: 700×400mm
three-axis travel: 450×350×200mm
Maximum electrode load: 120kg
Maximum workpiece load: 900kg
Footage inside the working oil Water tank: 1065×640×450mm
Repeated Positioning precision: ±0.005mm
Optimal surface roughness: Ra≤0.2μm

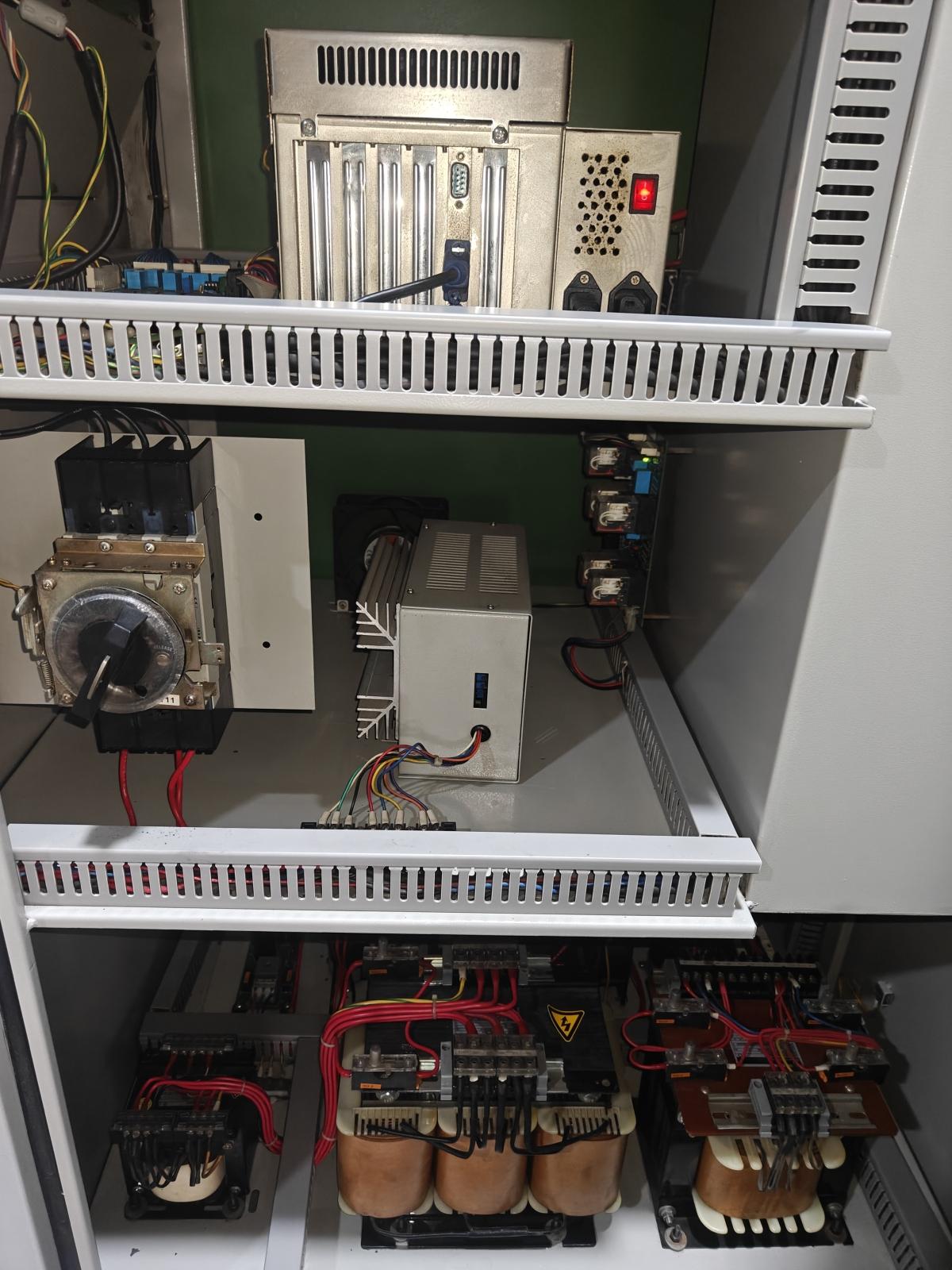

accessory control cabinet: MP-50
Input power supply: Three-phase 380V 50Hz
The rated power of the entire machine: 5.5kVA
Net weight of machine tool: 1500kg
