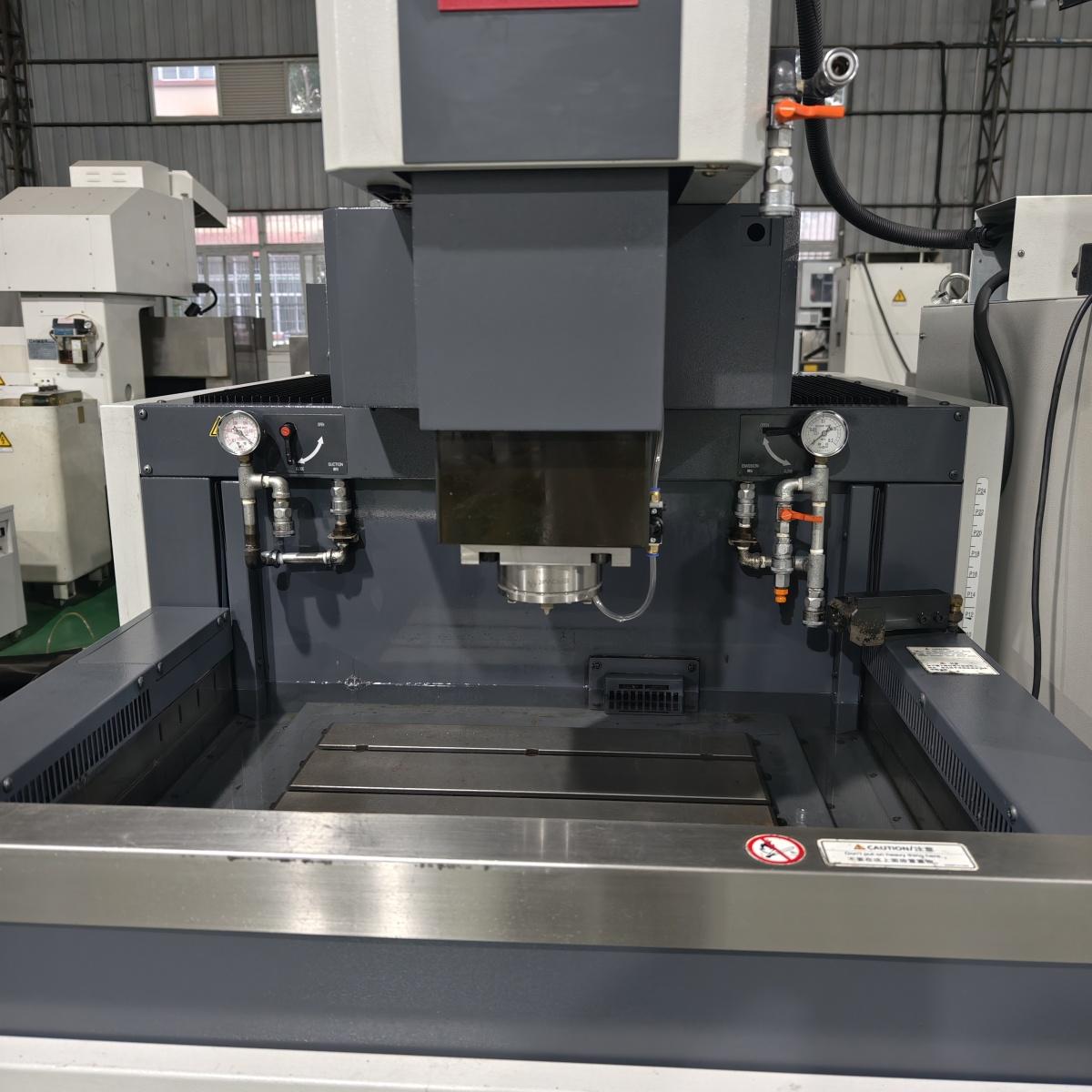

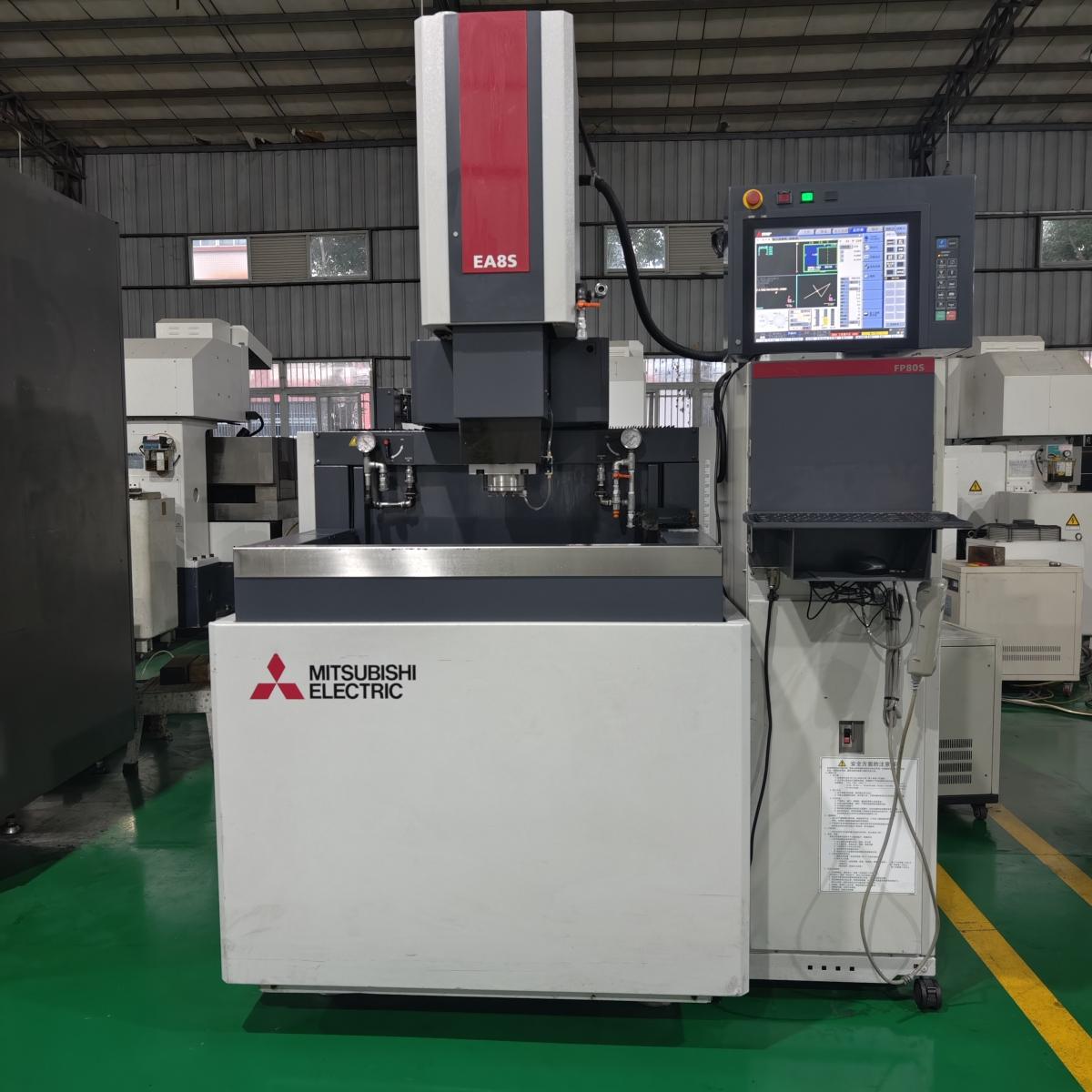

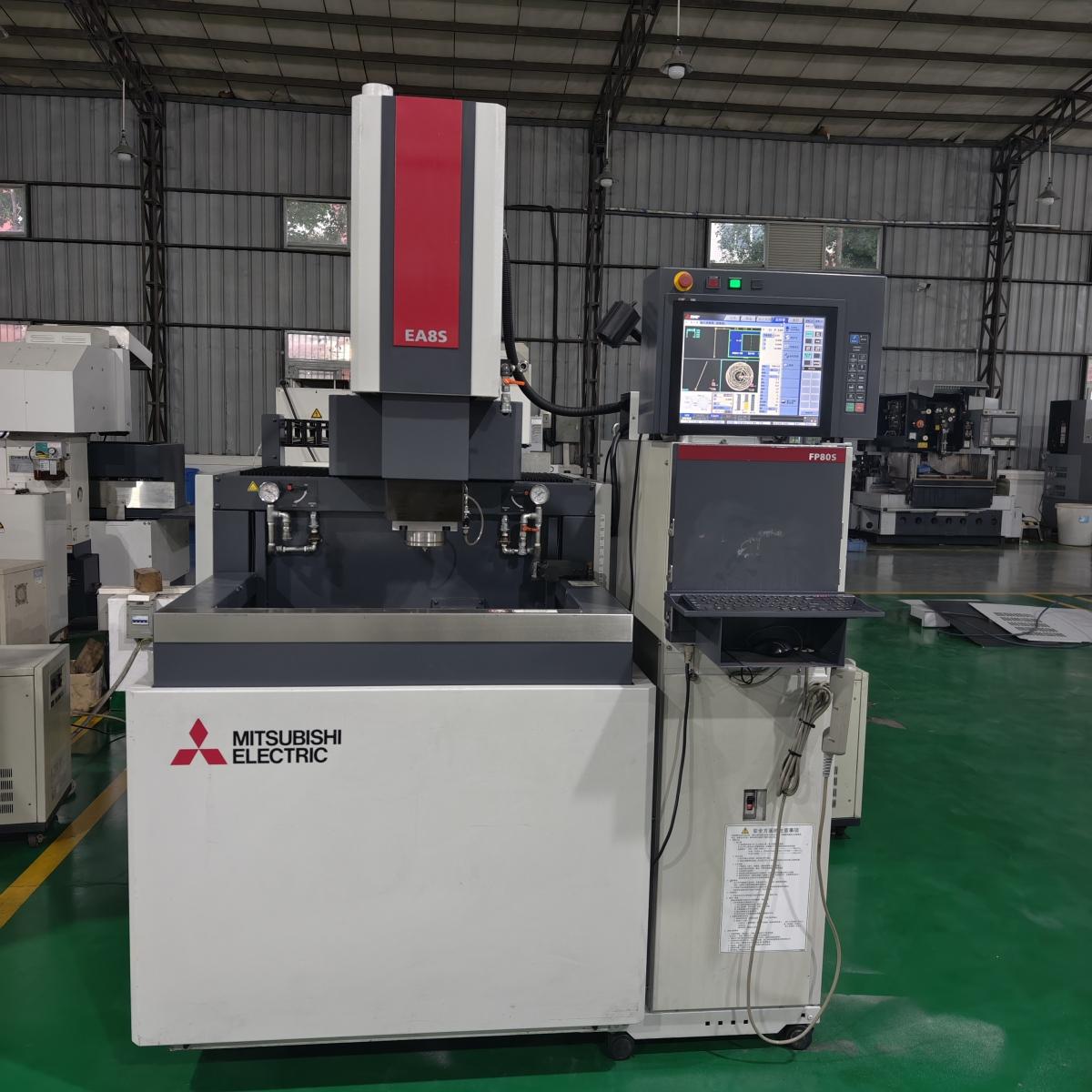

Mitsubishi EA8SM Spark eroder

Three-axis travel: 300 × 250 × 250 mm
Worktable size: 500 × 350 mm
Maximum workpiece size: 770 × 490 × 290 mm
Maximum workpiece weight: 550 kg
Working tank size: 800 × 520 × 300 mm
Distance from spindle head to worktable: 150–400 mm
Maximum electrode weight: 25 kg
Power supply model: FP80S
Maximum machining current: 80 A
Working fluid tank type: Automatic lifting oil tank
Number of controlled axes: Up to 4 axes
Minimum setting unit: 0.0001 mm
Machine weight: Approx. 2000 kg
Machine dimensions: 1530 × 2000 × 2105 mm
