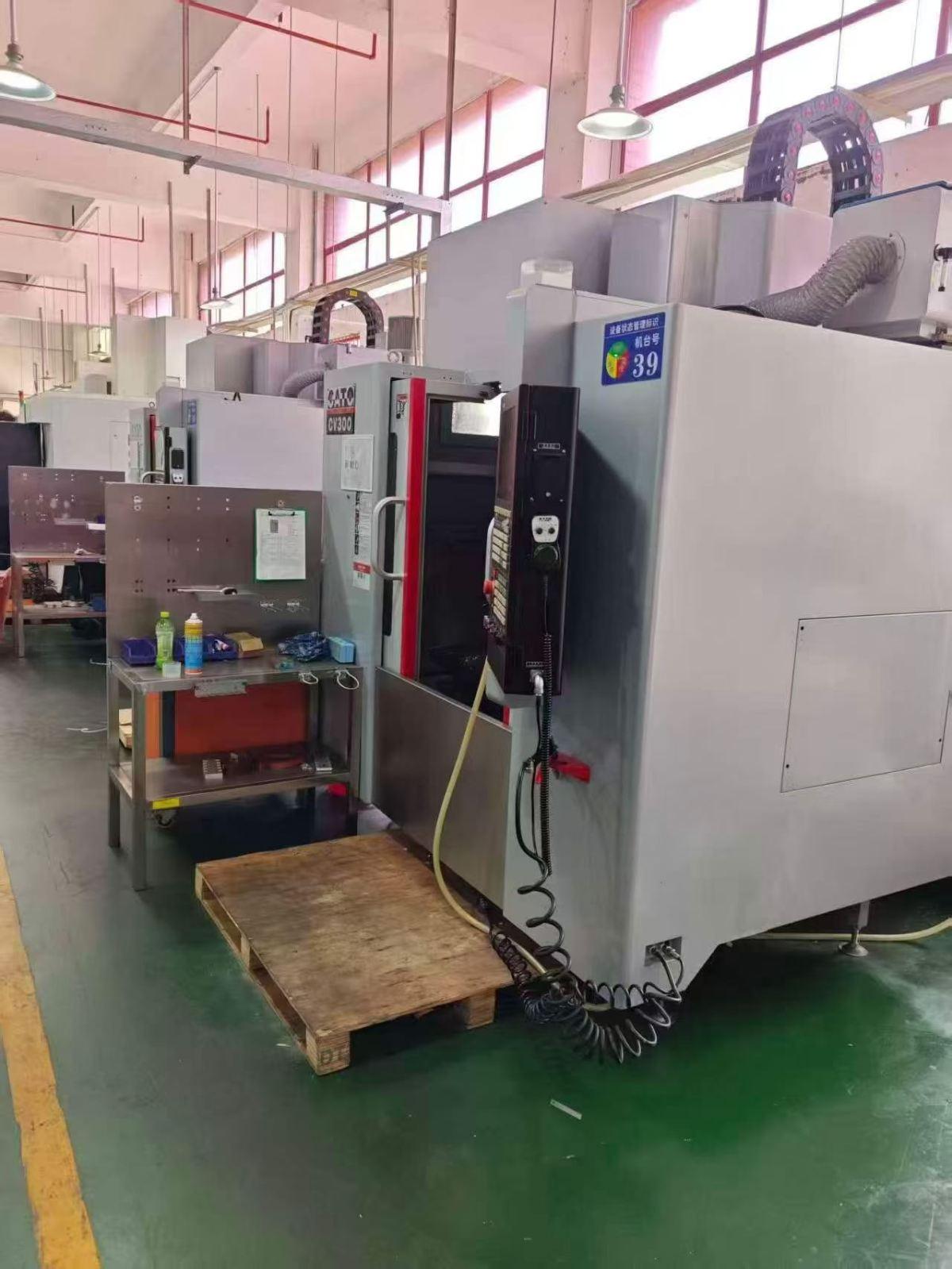

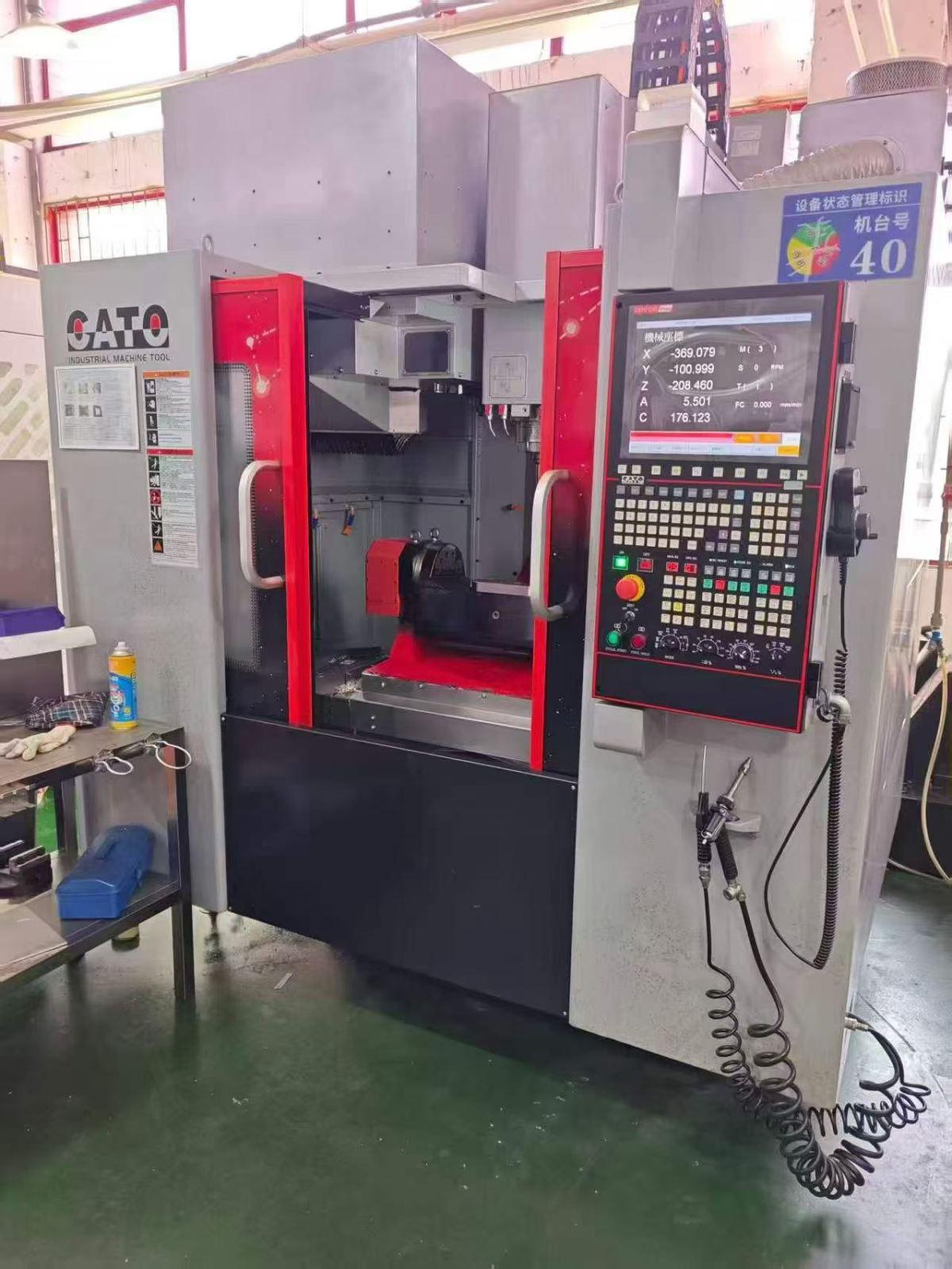

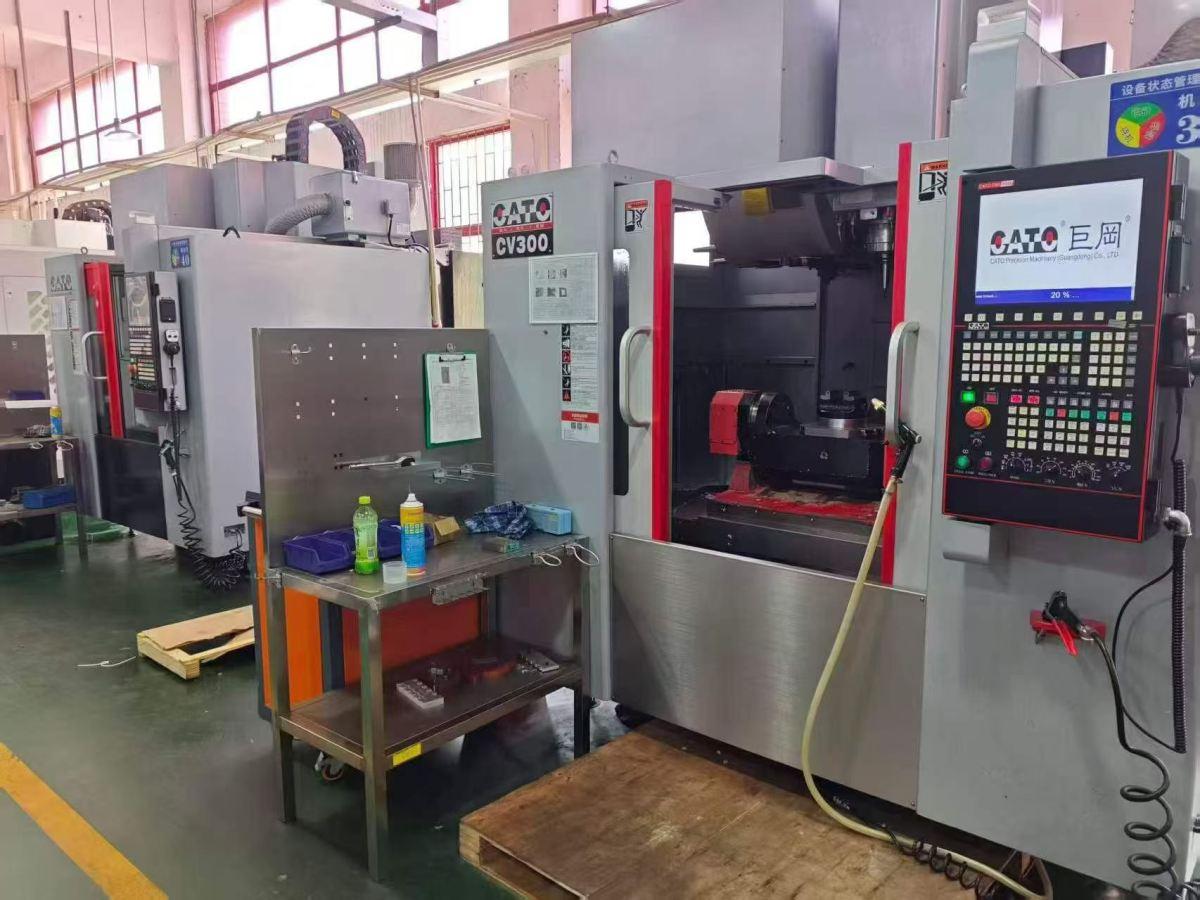

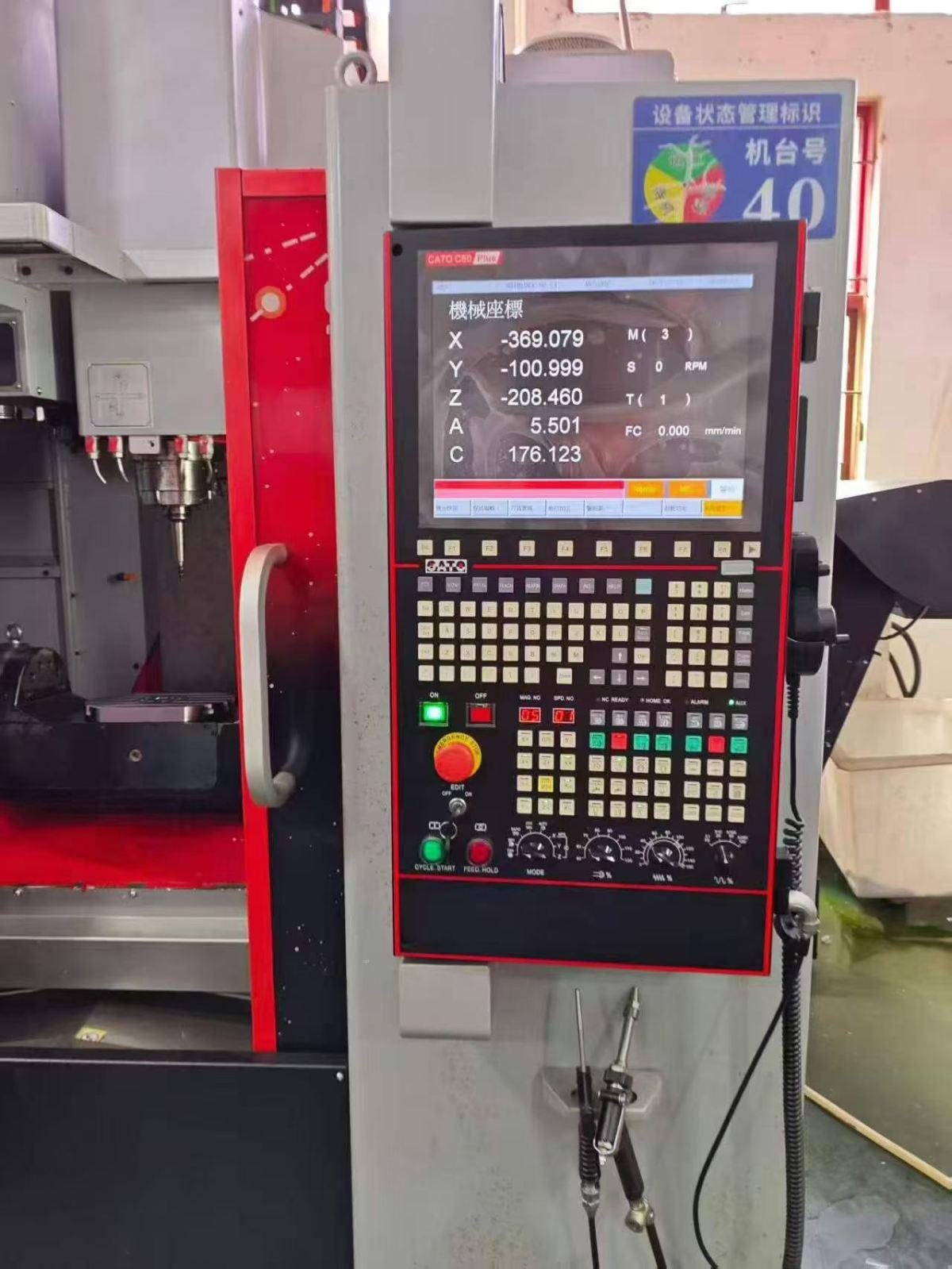

CATO CV300 5 axis machining centre

Three-axis travel: 700 × 570 × 500 mm
Distance from spindle nose to worktable surface: 105–605 mm
Distance from spindle center to column guideway surface: 628 mm
Maximum distance from C-axis disk surface to spindle center when A-axis is at 90°: 330 mm
Rapid traverse speed of X/Y/Z axes: 48/48/48 m/min
Cutting feed rate: 1–12000 mm/min
Spindle Parameters
Spindle type: φ70mm built-in spindle
Spindle taper: HSK-A63
Maximum spindle speed: 20,000 rpm
Spindle motor power: 30/34 kW (continuous / S6 40%)
Spindle motor torque: 47.7/57.3 N·m (continuous / S6 40%)
Tool Magazine Parameters
Tools magazine capacity: 24 tools
Maximum tool diameter: 70mm (full tool) / 120mm (adjacent empty pocket)
Maximum tool length: 300mm
Guideway and Ballscrew Parameter
Guideway type: Roller linear guideways
X-axis guideway: 35mm / 2 sliders
Y-axis guideway: 35mm / 2 sliders
Z-axis guideway: 35mm / 2 sliders
X-axis ballscrew: φ40 × 16
Y-axis ballscrew: φ40 × 16
Z-axis ballscrew: φ40 × 16
Accuracy Parameters
Positioning accuracy: +0.005/300mm
Repeatability accuracy: ±0.003/300mm

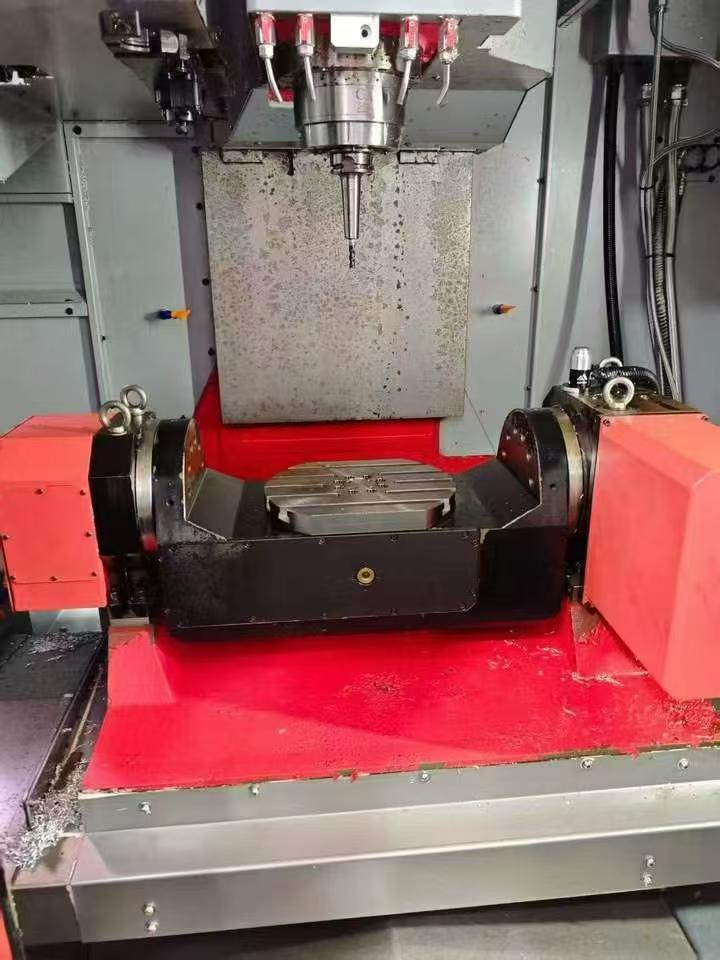

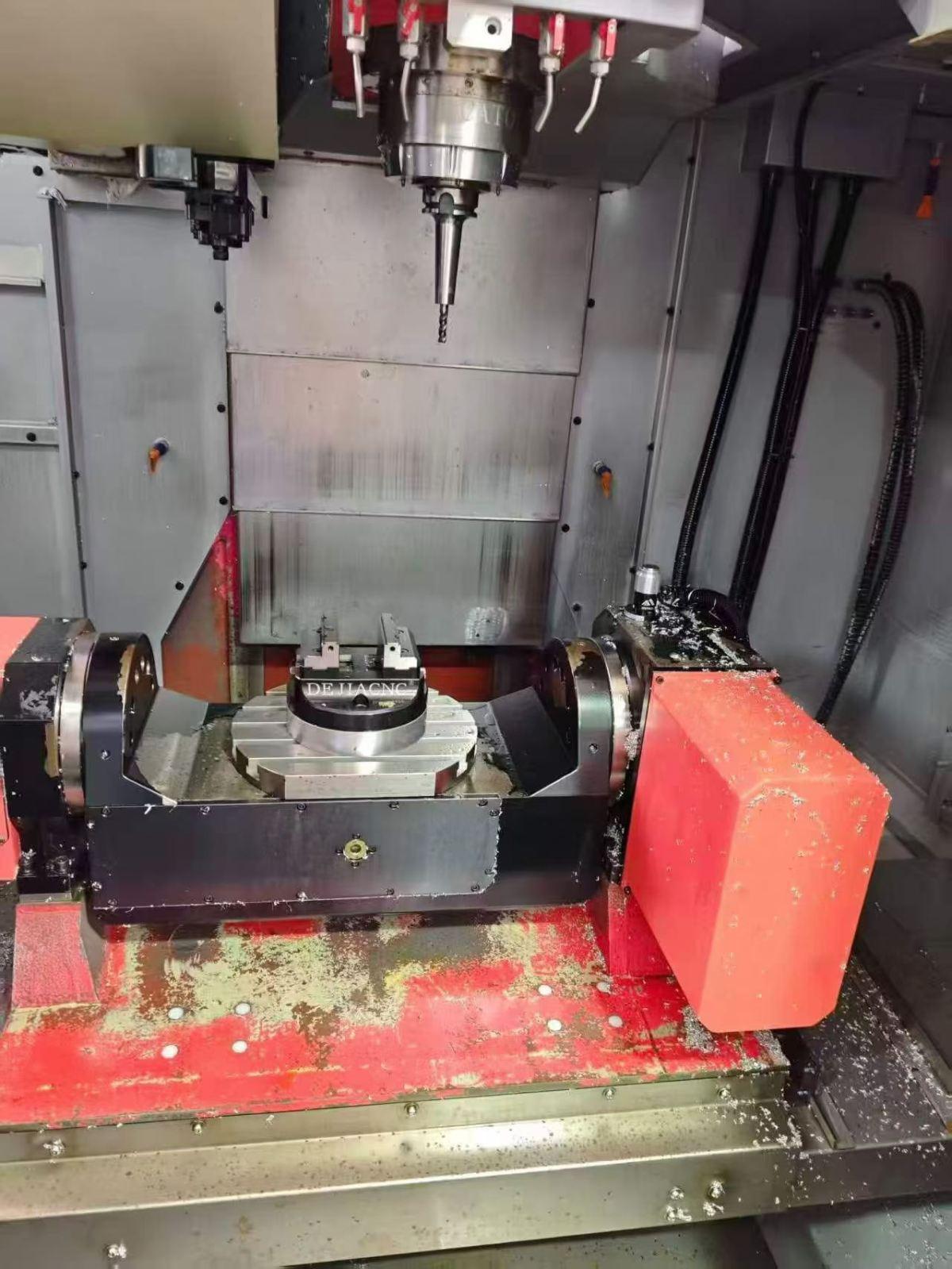

5-axis Rotary Table Parameters
Rotary table drive type: Roller cam drive
Rotary table diameter: φ300 × 250mm
Maximum workpiece machining diameter: 400mm
Rotary table load capacity:
Horizontal position: 100kg
Tilted position: 70kg
Maximum A/C-axis rotation speed:
A-axis: 60rpm
C-axis: 60rpm
A-axis positioning accuracy: 40 arc-sec
A-axis repeatability accuracy: 20 arc-sec
C-axis positioning accuracy: 15 arc-sec
Lubrication and Cooling System
Oil distributor type: Volumetric type
Coolant tank capacity: 240L
Coolant pump specification: 0.32MPa / 16L/min
Overall Dimensions
Machine dimensions (L × W × H): 2453 × 3122 × 2885mm
