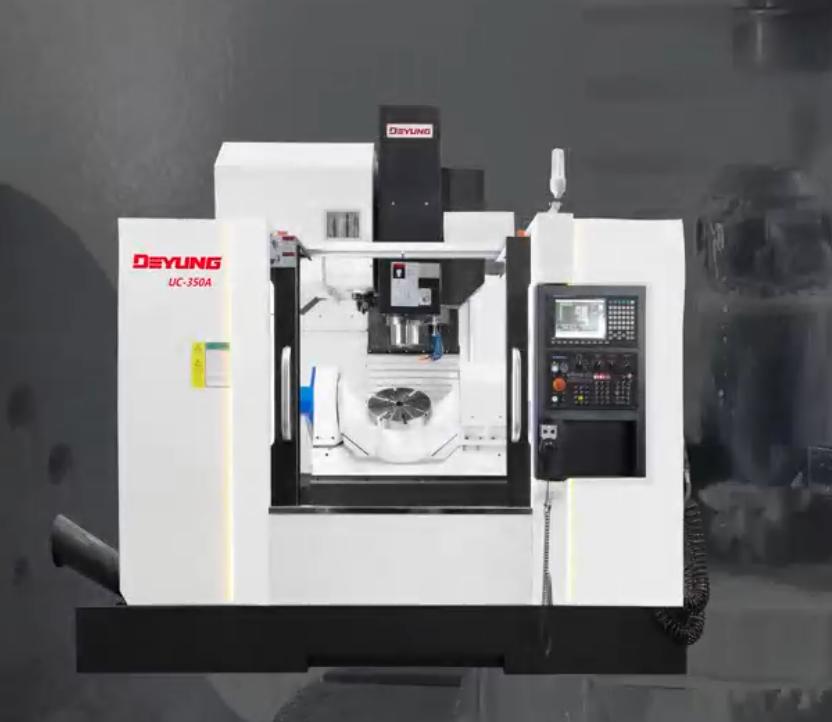

Deyung UC-350A 5 axis machining centre

CNC System：SYNTEC
Three-axis Travel：700 × 520 × 550 mm
A-axis Rotation：±30°
C-axis Rotation：±360°
Distance from Spindle Center to Table Surface：40–590 mm
Spindle Type：Belt-Driven Spindle
Spindle Taper：BT40
Spindle Speed：10–10,000 rpm
Spindle Motor Power：11/16.5 kW
X/Y/Z Axis Motor Power：5.9/5.9/5.9 kW
A/C Axis Motor Power：3.5/5.3 kW
Tool Magazine Capacity：24/30 Tools
Tool Holder Type：BT40
Maximum Tool Length：300 mm
Maximum Tool Diameter (Adjacent Tool / Empty Pocket)：Ø80 / Ø150 mm
Maximum Tool Weight：8 kg

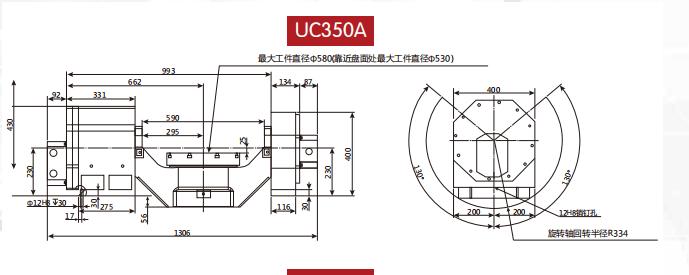

Rotary Table Diameter：Ø350 mm
Center Bore Diameter：Ø46 mm
T-slot Configuration：12H7 (8 × 45° Equal Division)
Maximum Table Load：100 kg
Rapid Traverse Rate (X/Y/Z)：36 / 36 / 36 m/min
Cutting Feed Rate：1–10,000 mm/min
Power Requirement：25 kVA
Coolant Tank Capacity：250 L
Machine Weight：Approx. 6.5 Tons
Machine Dimensions：3450 × 2825 mm
Standard Configuration:
12,000 rpm Direct-Drive Spindle
3-Axis Linear Guideways
Spindle Cooling System
Work Light
Spindle Air Purge System
Spindle Cooling Water Circulation System
Spindle Water Cooling System
Coolant Cooling System
Electrical Cabinet Heat Exchanger
Machine Enclosure
Coolant Wash Gun
Air Gun
Three-Color Warning Light
Full Sheet-Metal Enclosure
M30 Automatic Power-Off Function
Safety Door Interlock
3-Axis Automatic Lubrication System
Hydraulic Oil Cooling Design
24-Tool Automatic Tool Changer
Optional Configuration:
15,000 / 20,000 rpm Built-in Motorized Spindle
3-Axis Linear Scales
A/C-Axis Rotary Scales
Front and Rear Chip Conveyor System
30-Tool Magazine Upgrade
Through-Spindle Coolant (TSC)
Bed Chip Flushing System
Fully Enclosed Air Duct System
Disc-Type Oil Skimmer
Electrical Cabinet Air Conditioner
Oil Mist Recovery Unit
