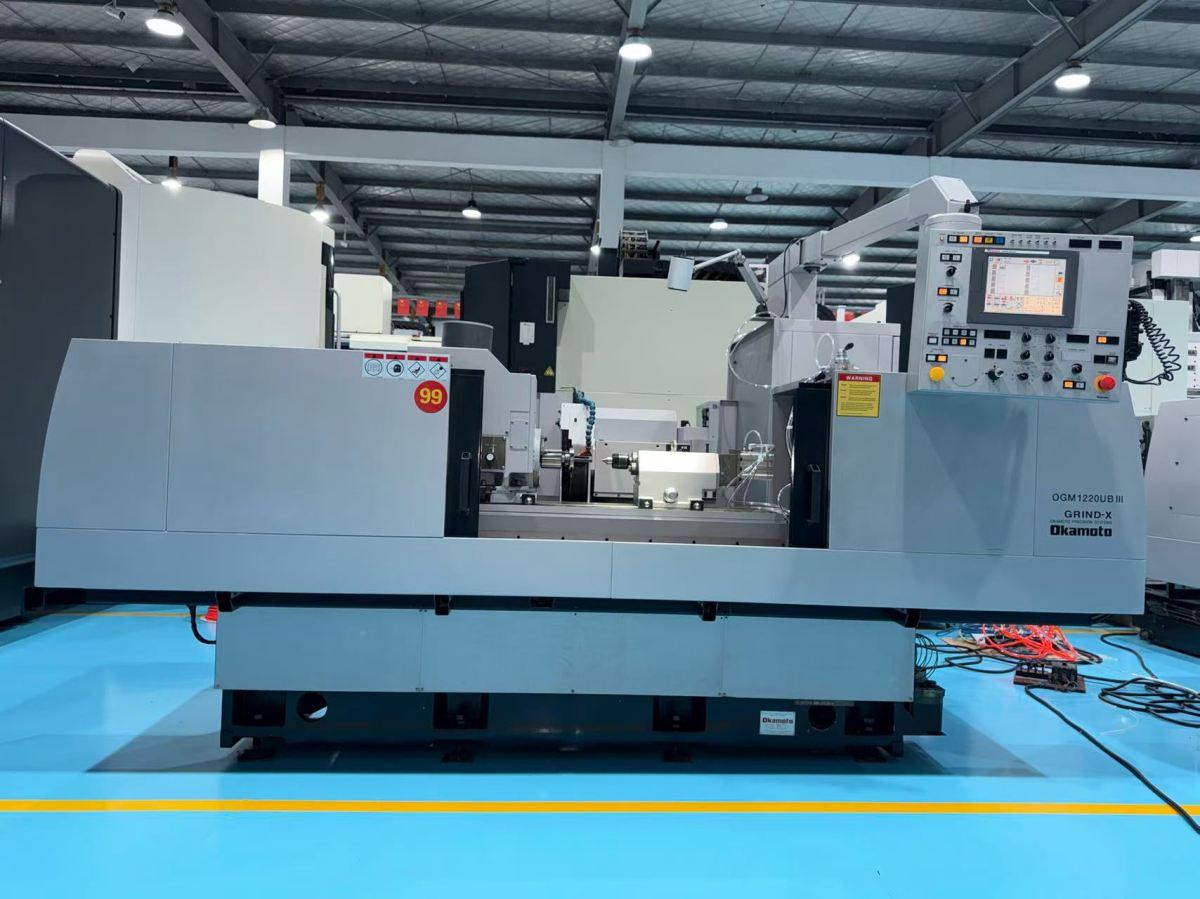

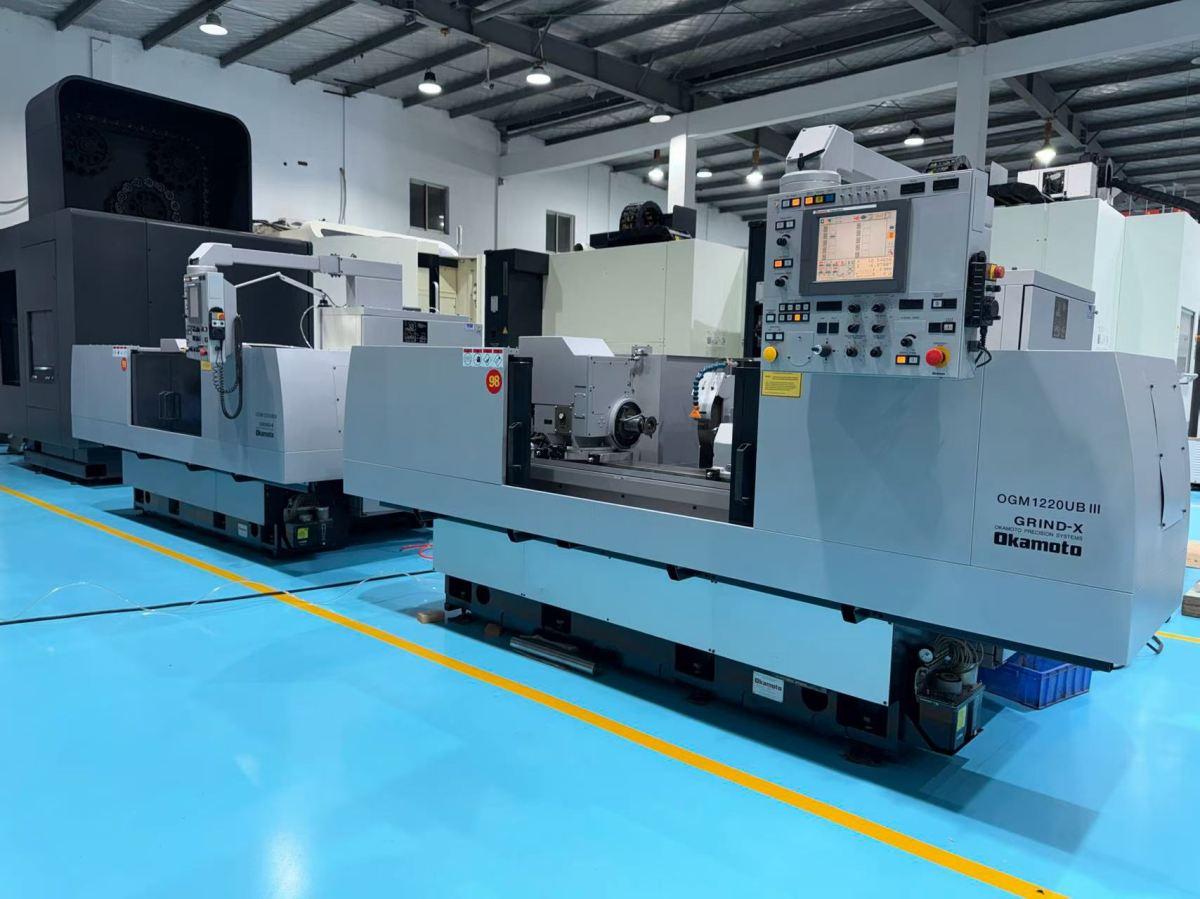

Okamoto OGM-1220UB III CNC Cylindrical grinder
[Product Information]:
- Inventory number：813013
- Brand：Okamoto
- Model：OGM-1220UB III
- Origin："Japan
- Location：China
- Year：2016
- Create Time：2026-08-26
Specifications:
Worktable swing diameter: Ø320 mm
Maximum grinding diameter: Ø305 mm
Distance between centers / Maximum grinding length: 508 mm
Maximum workpiece weight: 60 kg
Grinding wheel size: Ø355 × 38 × Ø127 mm
Grinding wheel head swivel angle: ±30°
Grinding wheel spindle motor: FANUC servo motor 5.5/7.5 kW
Worktable swivel angle: +4° to -11°
Tailstock taper: MT4
Spindle speed: 10–500 rpm
