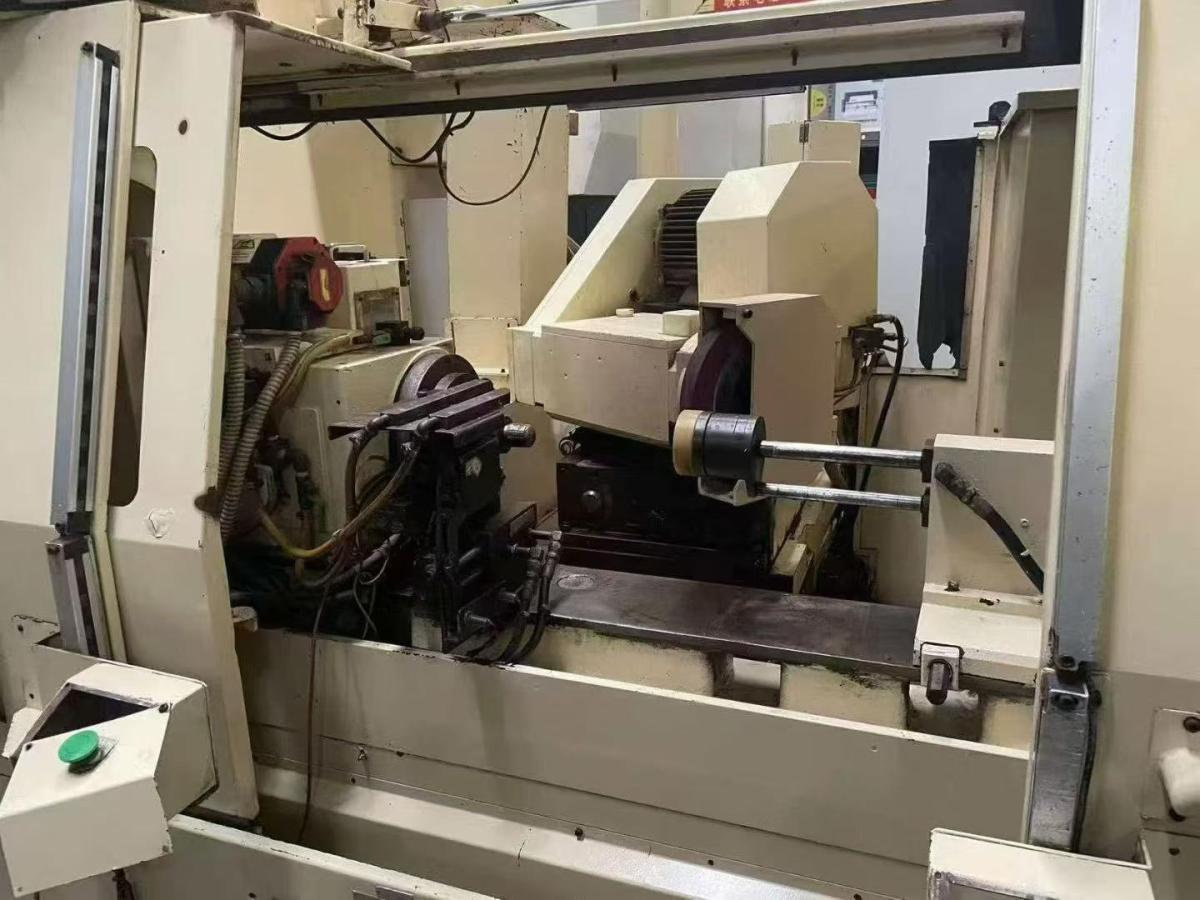

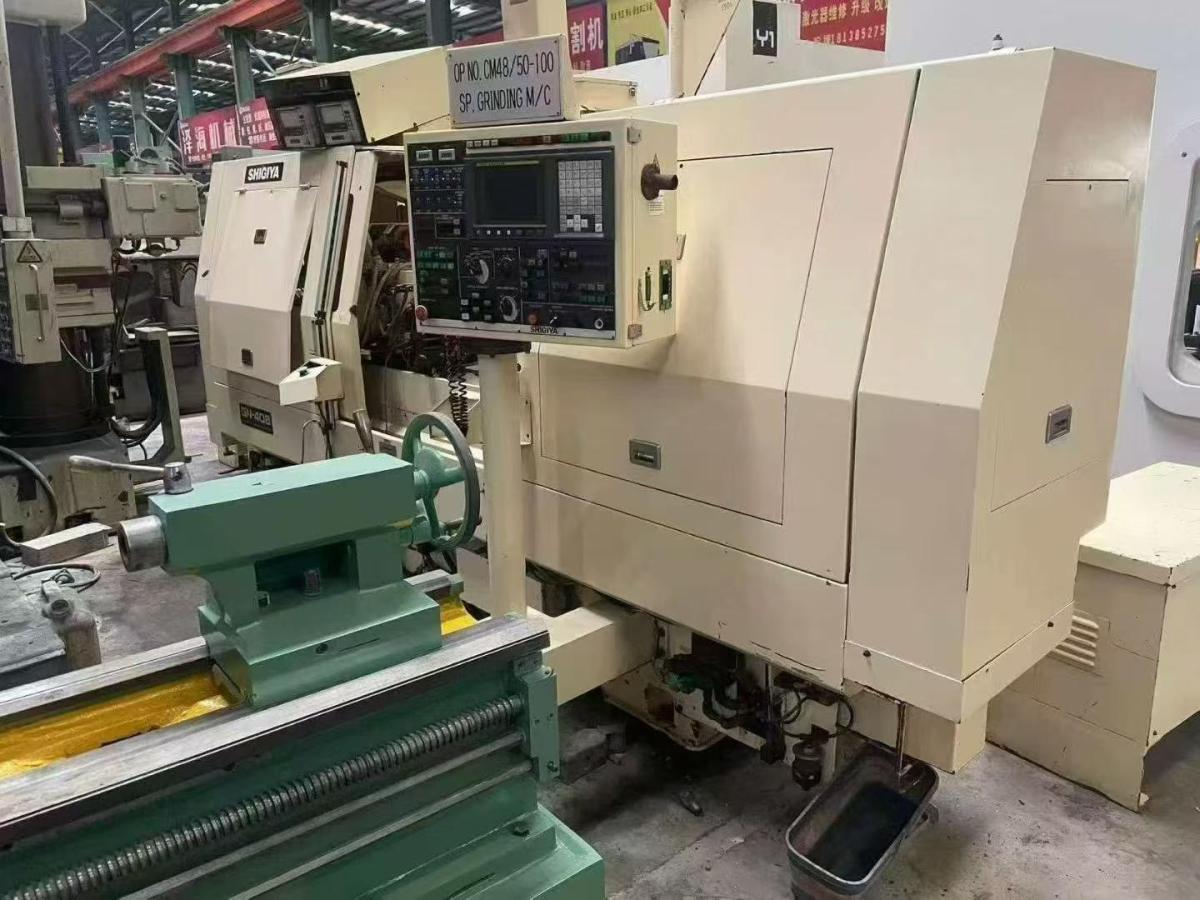

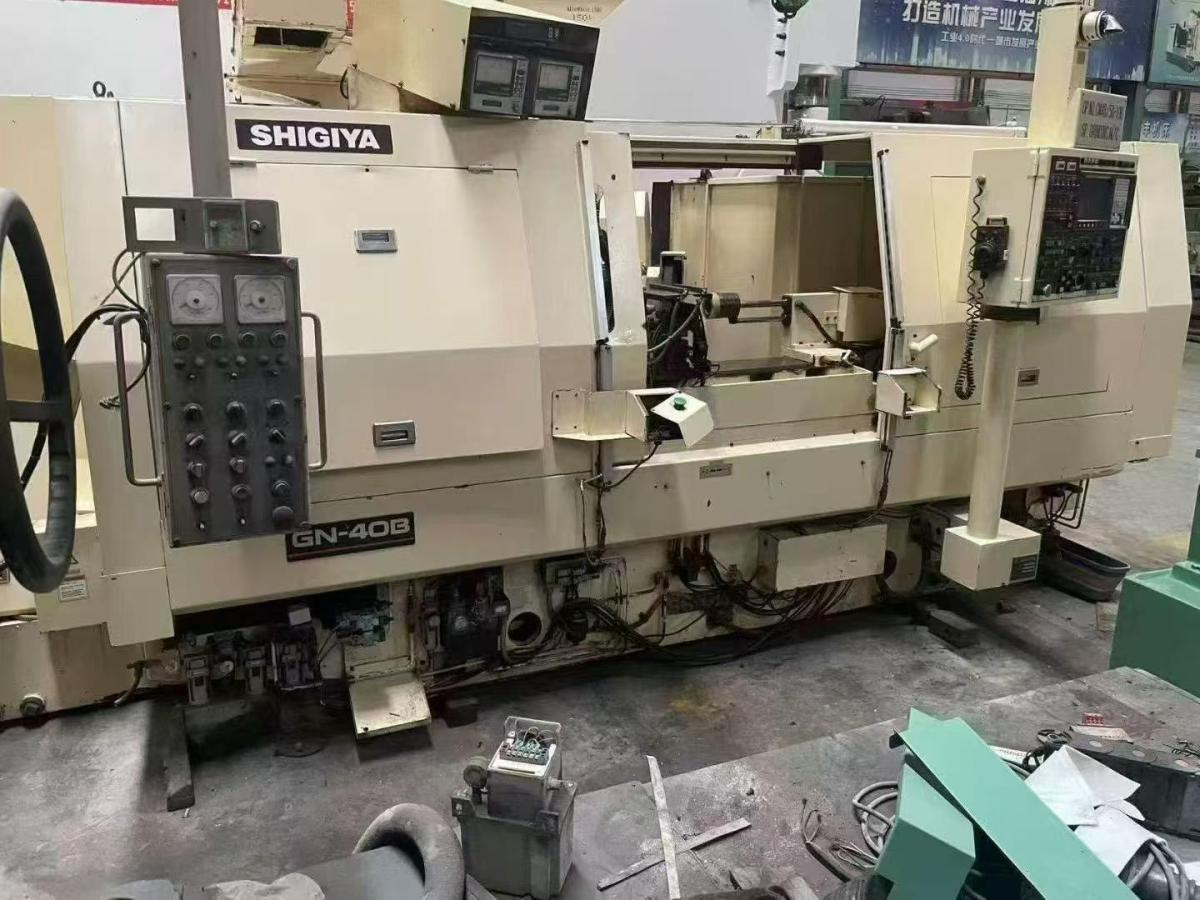

Shigiya GN-40B60S CNC Cylindrical grinder

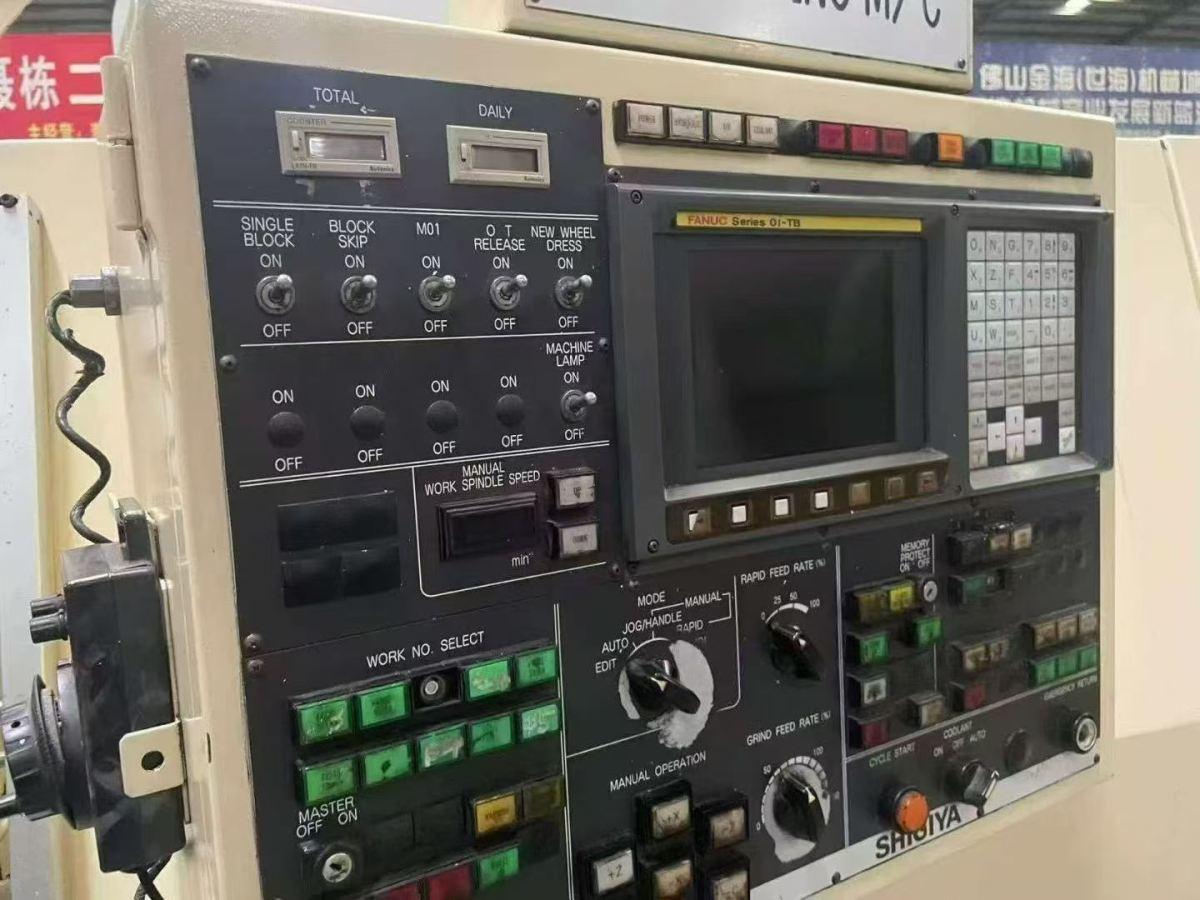

CNC System: Fanuc
Maximum grinding diameter: 400 mm
Maximum grinding length: 600 mm
Distance between centers: 650 mm
Maximum workpiece weight: 300 kg
Center height: 200 mm
Tailstock taper: MT5
Grinding wheel size: 500 × 100 × 203 mm
Grinding wheel spindle speed: 1200 rpm
X-axis travel: 250 mm
Z-axis travel: 650 mm
X-axis rapid traverse: 8 m/min
Z-axis rapid traverse: 12 m/min
Feed resolution: 0.001 mm
Roundness accuracy: ≤ 0.001 mm
Cylindricity accuracy: ≤ 0.002 mm / 300 mm
