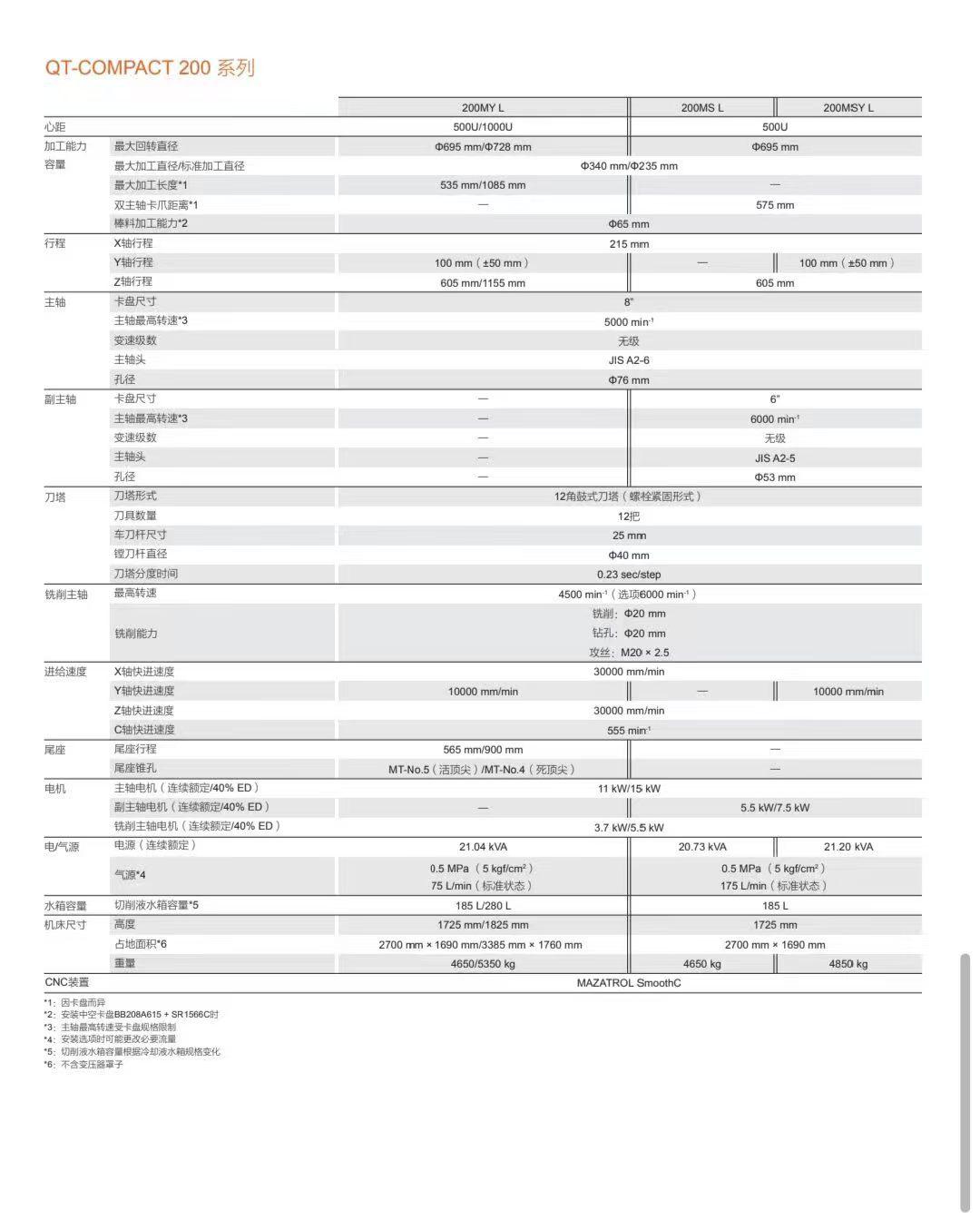

MAZAK QT-COMPACT 200MY L Turn Mill Machining Centre

CNC System: MAZATROL SmoothC
Machining Capacity
Maximum Machining Diameter: Φ695 mm
Maximum Machining Diameter: Φ340 mm
Maximum Machining Length: 535 mm / 1085 mm
Maximum Bar Stock Diameter: Φ65 mm
Chuck Size: 8 inches
Three-axis Travel
X-axis Travel: 215 mm
Y-axis Travel: 100 mm（±50 mm）
Z-axis Travel: 605 mm / 1155 mm
Spindle
Spindle Speed: 5000 rpm
Spindle Motor Power: 15 kW（40% ED）
Spindle Nose: JIS A2-6
Spindle Through Hole: Φ76 mm
Power Tool (Milling Spindle)
Milling Spindle Speed: 4500 rpm
Milling Spindle Motor Power: 5.5 kW
Drilling Capacity: Φ20 mm
Tapping Capacity: M20 × 2.5
Turret
Turret Type: 12-position Power Turret
Number of Tools: 12
Lathe Tool Size: 25 mm
Boring Bar Diameter: Φ40 mm
Tool Change Time: 0.23 sec/step
Rapid Traverse Rate
X-axis Rapid Traverse: 30,000 mm/min
Y-axis Rapid Traverse: 10,000 mm/min
Z-axis Rapid Traverse: 30,000 mm/min
Machine Dimensions
Machine Height: 1725 mm
Floor Space: 2700 × 1690 mm / 3385 × 1760 mm
Machine Weight
Weight: Approximately 4650 kg / 5350 kg
Configuration: Equipped with Y-axis and C-axis
