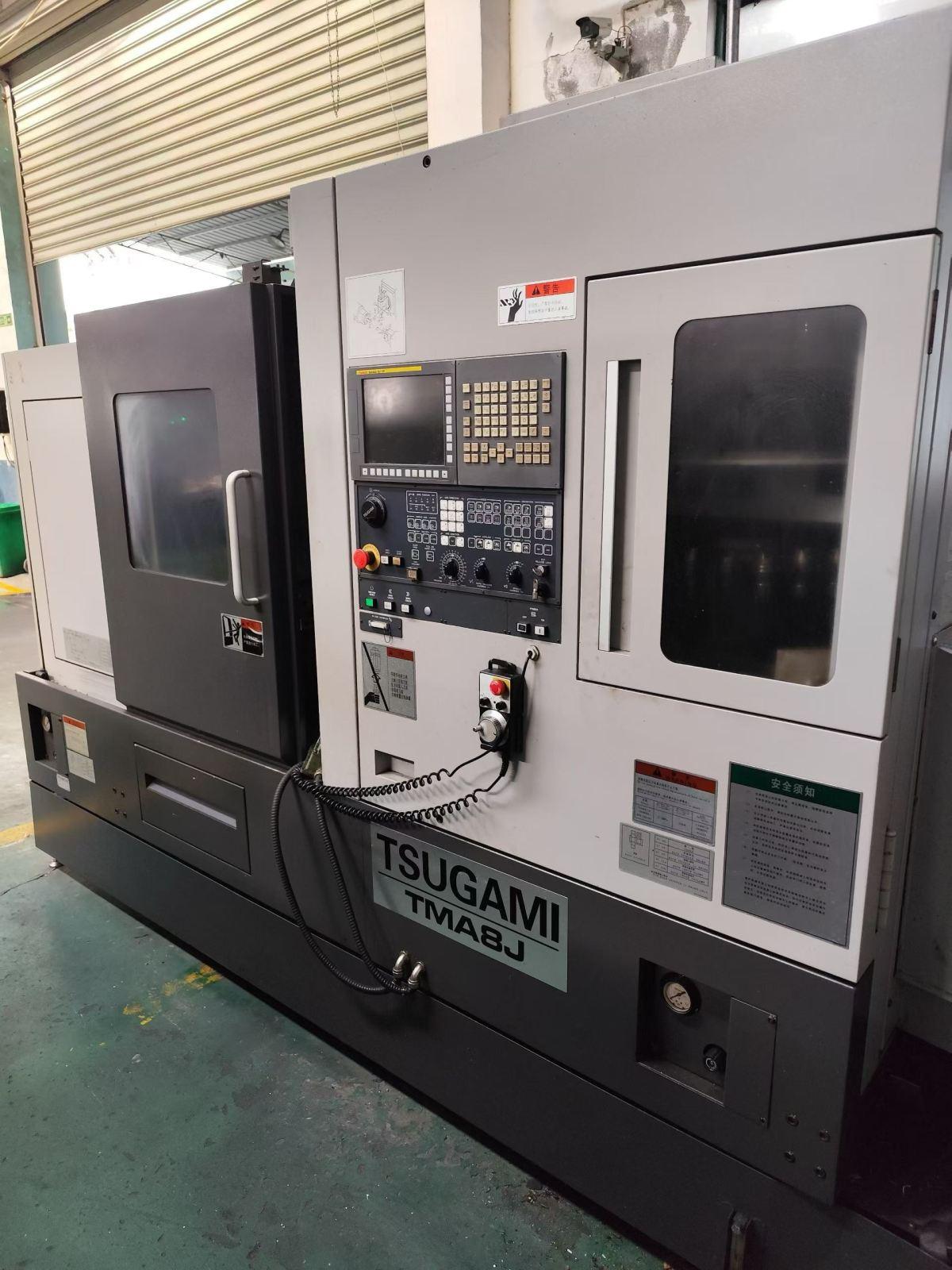

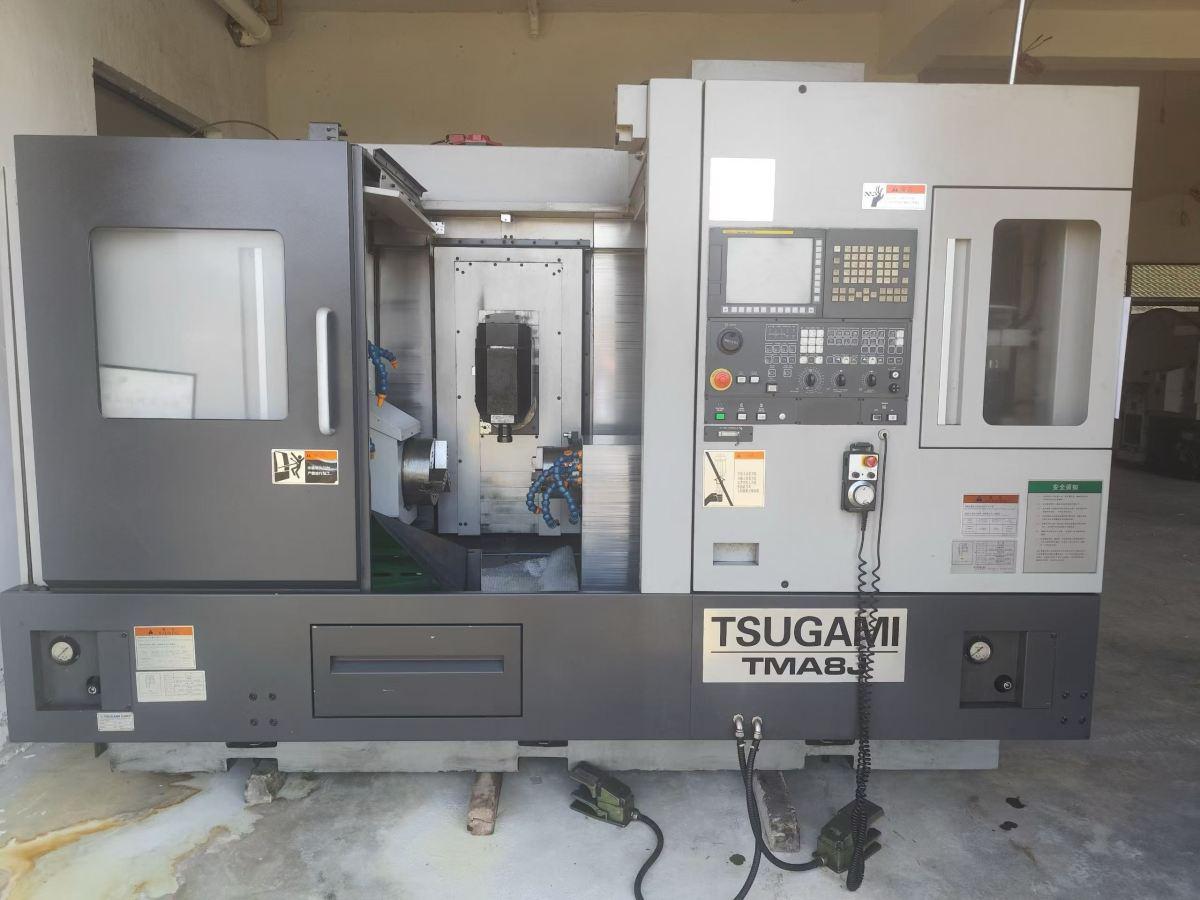

Tsugami TMA8J Turn Mill Machining Centre

Maximum turning diameter: 320mm
Maximum Machining length: 500mm
Bar stock passing capacity: 65mm
chuck specification: 8-inch hollow hydraulic chuck
Maximum machining eccentricity: ±50mm
Spindle speed range: 50-4500r/min
spindle motor power: 15/11kW
spindle through hole diameter: 90mm
spindle nose: A2-8
spindle radial runout: ≤0.001mm
Tool turret form: 12-position servo-powered tool turret
Tool: 12 (all can be equipped with power Tools)
Power tools speed: 0-6000r/min
The power of the power tools motor is 3.7/2.2kW
Dota indexing: 0.2 seconds per workstation
Tool interface: BMT55
X-axis travel: 190mm
Z-axis travel: 520mm
Y-axis travel: ±50mm
