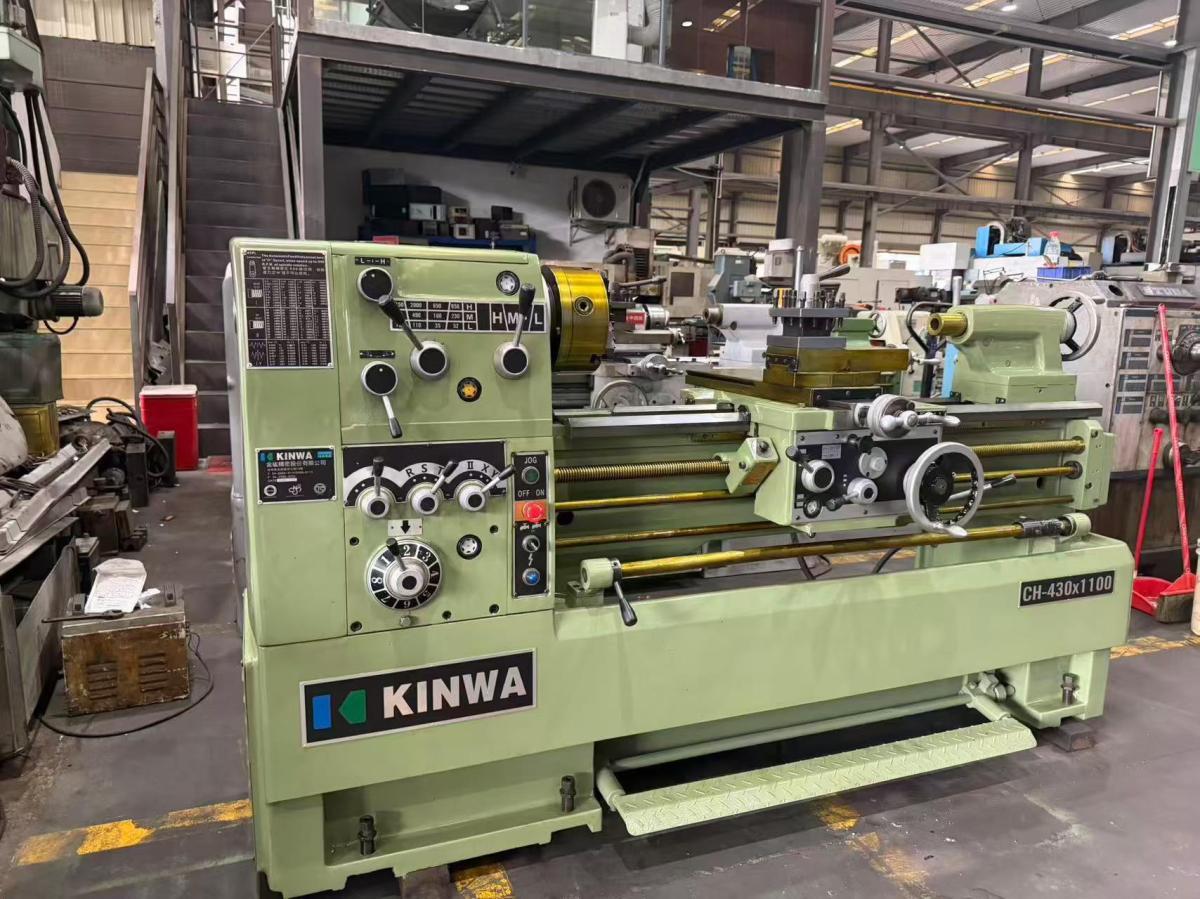

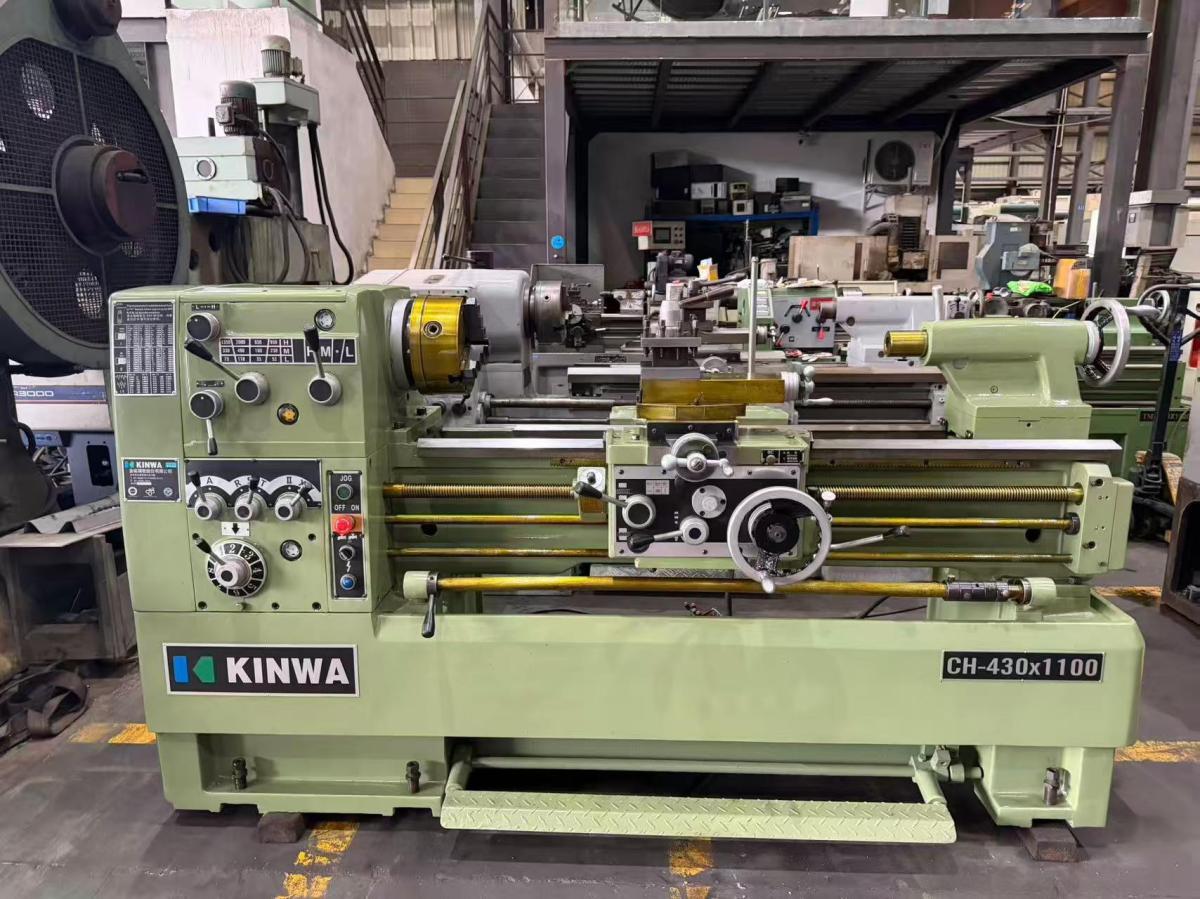

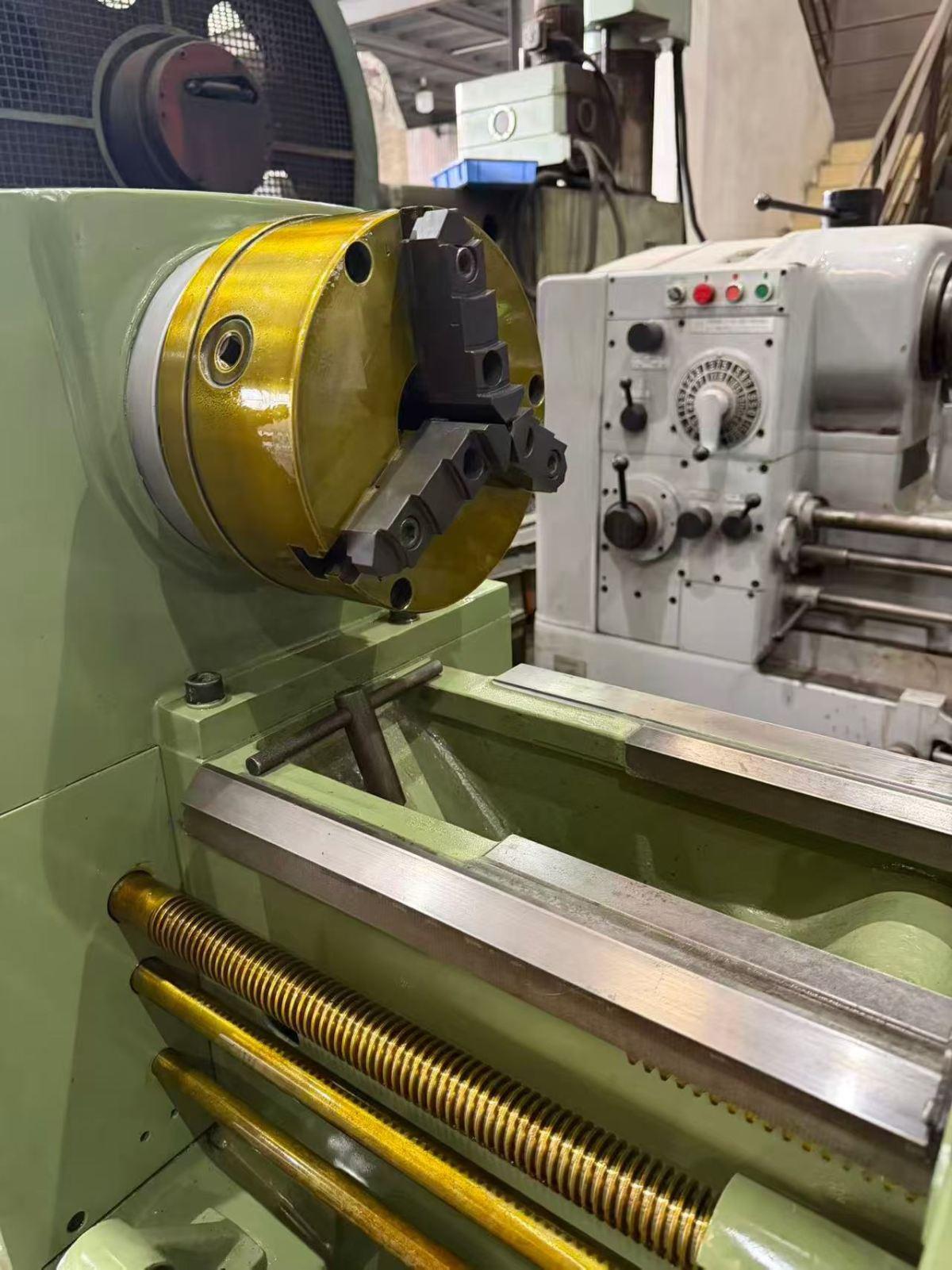

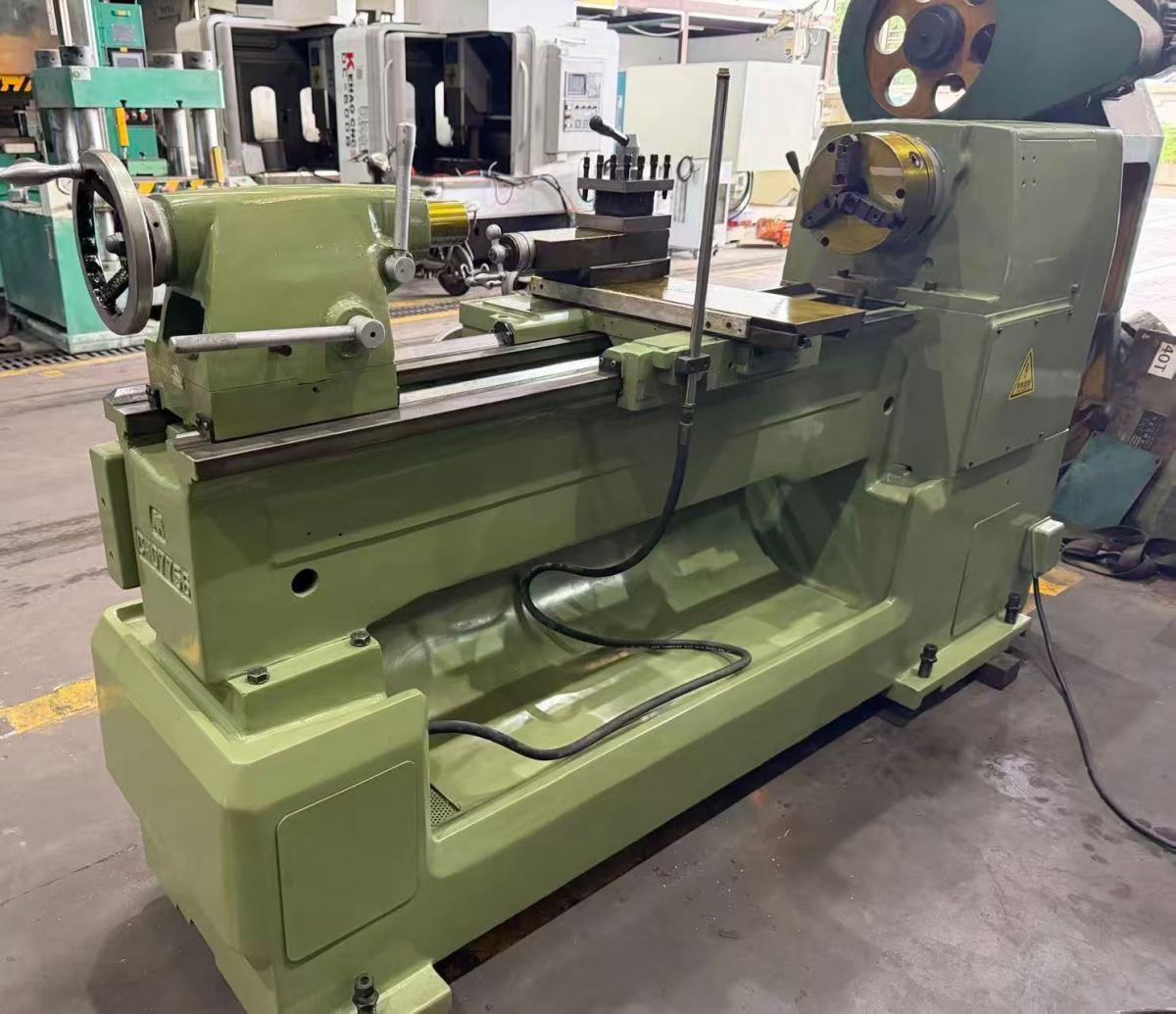

KINWA CH-430×1100 Lathe

Machining Capacity：
Maximum swing diameter over bed: 432 mm
Maximum swing diameter over cross slide: 268 mm
Maximum swing diameter in gap: 610 mm
Gap length (measured from the face plate): 767 / 1067 / 1667 mm
Bed width: 300 mm

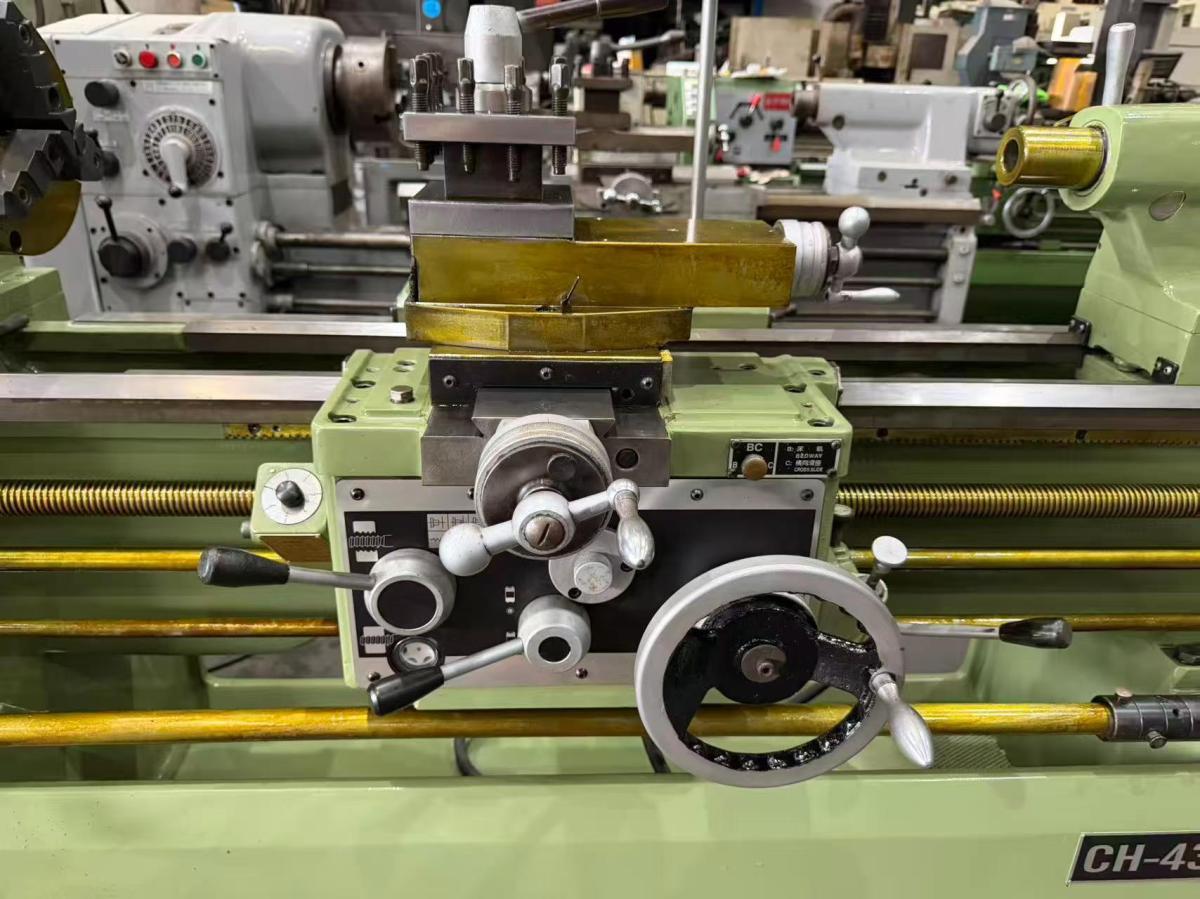

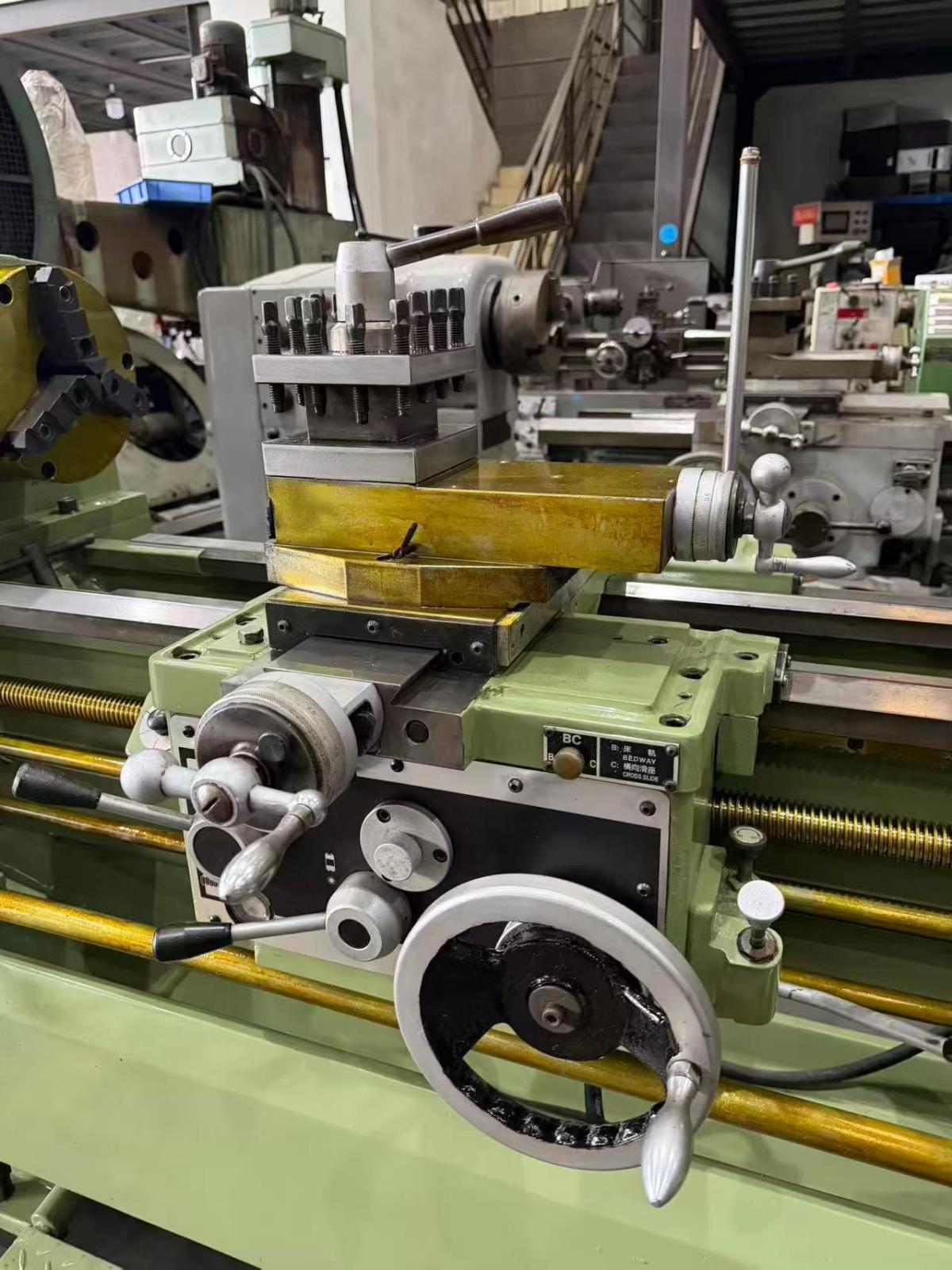

Tool Post and Slide：
Tool post travel: 145 mm
Cross slide travel: 265 mm

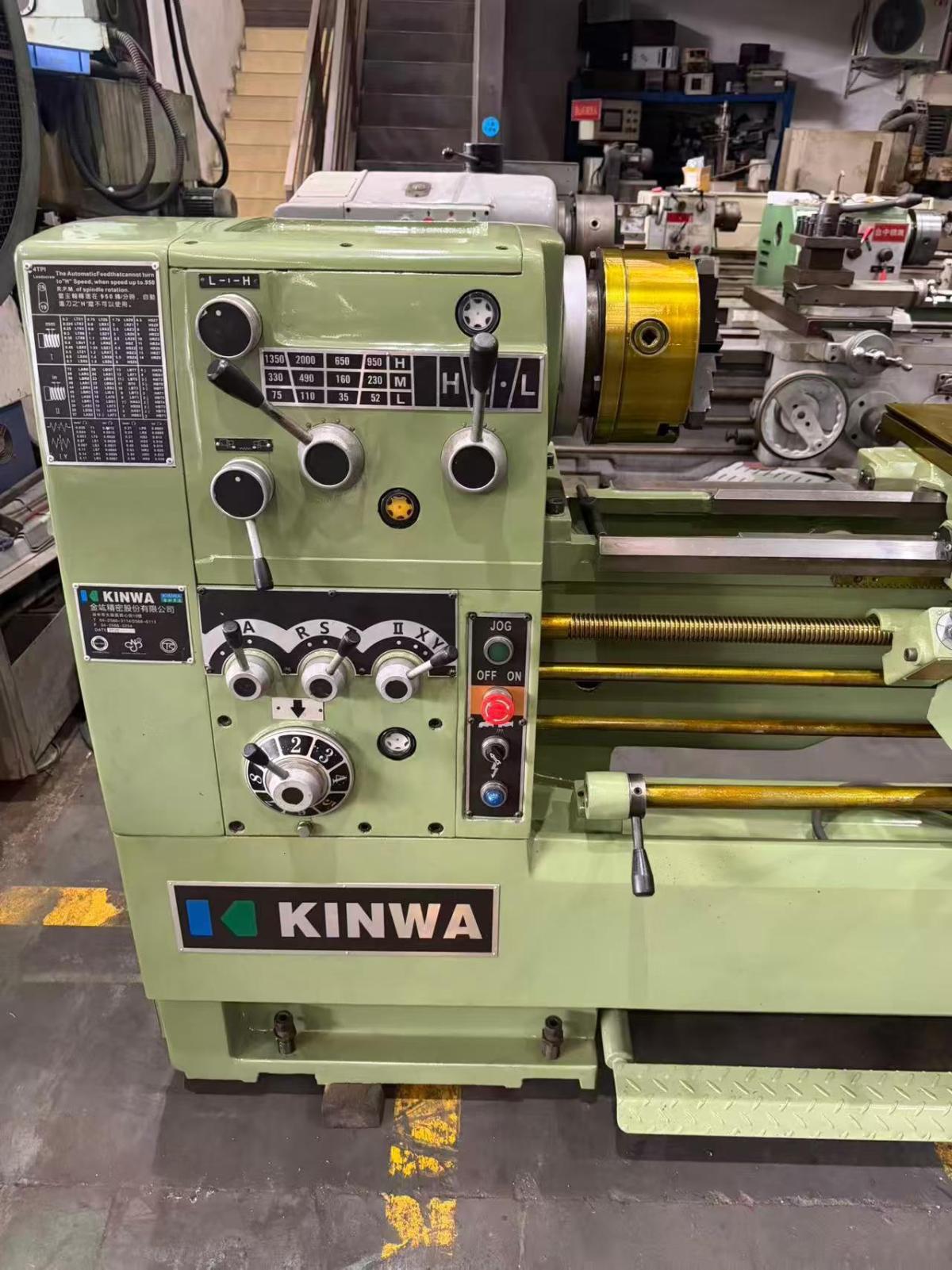

Headstock Parameters：
Spindle bore diameter: 58 mm (78 mm optional)
Spindle taper: MT6 × MT4
Spindle nose specification: A1-6 / D1-6 (A2-6 optional)
Number of spindle speeds: 12
Spindle speeds (60 Hz):
35 / 52 / 75 / 110 / 160 / 230 / 330 / 490 / 650 / 950 / 1350 / 2000 rpm

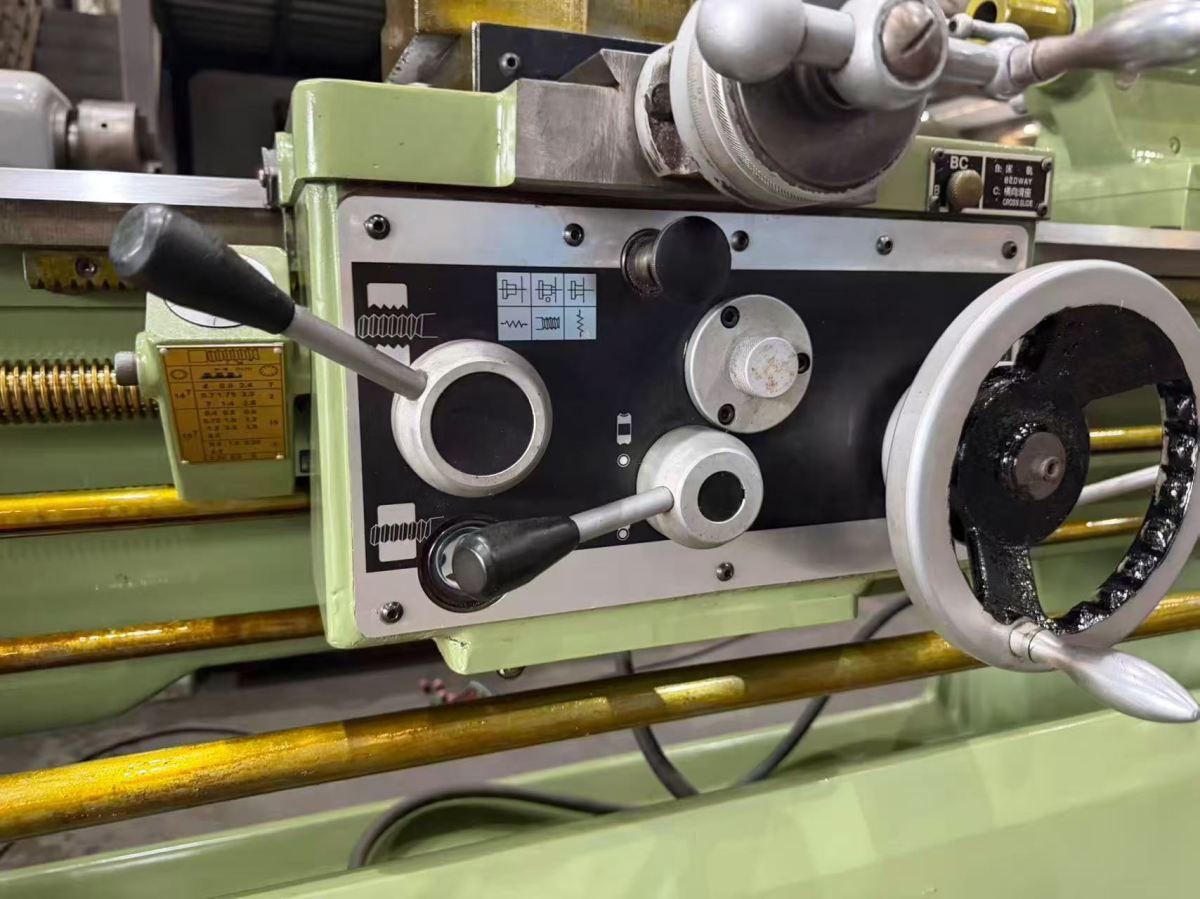

Threading and Feed
Number of feed rates: 36
Longitudinal feed range: 0.037 – 1.04 mm/rev (P = 6 mm)
Longitudinal feed range: 0.035 – 0.98 mm/rev (4 TPI)
Cross feed range: 1/2 of the longitudinal feed
Leadscrew diameter: 35 mm
Leadscrew pitch: 4 TPI / P = 6 mm
Inch thread range: 2 – 72 TPI (44 types)
Metric thread range: 0.2 – 14 mm (39 types)
Tailstock Parameters
Tailstock quill travel: 170 mm
Tailstock quill diameter: 60 mm
Tailstock taper: MT4
Motor Parameters
Spindle motor power (30 min rating): 5 HP (7.5 HP optional)
Coolant motor power: 1/8 HP
Machine Dimensions and Weight
Machine height: 1400 mm
Floor space: 2000 / 2300 / 2900 × 1000 mm
Machine weight: 1500 / 1600 / 1800 kg
