Specifications:
Machining range:
Maximum turning diameter over bed ф 700mm
Maximum turning diameter over bed saddle ф 570mm
Maximum machining diameter ф 560mm
Maximum machining length 680mm
Distance between two centers 891mm
Spindle:
Height from spindle to ground 1115mm

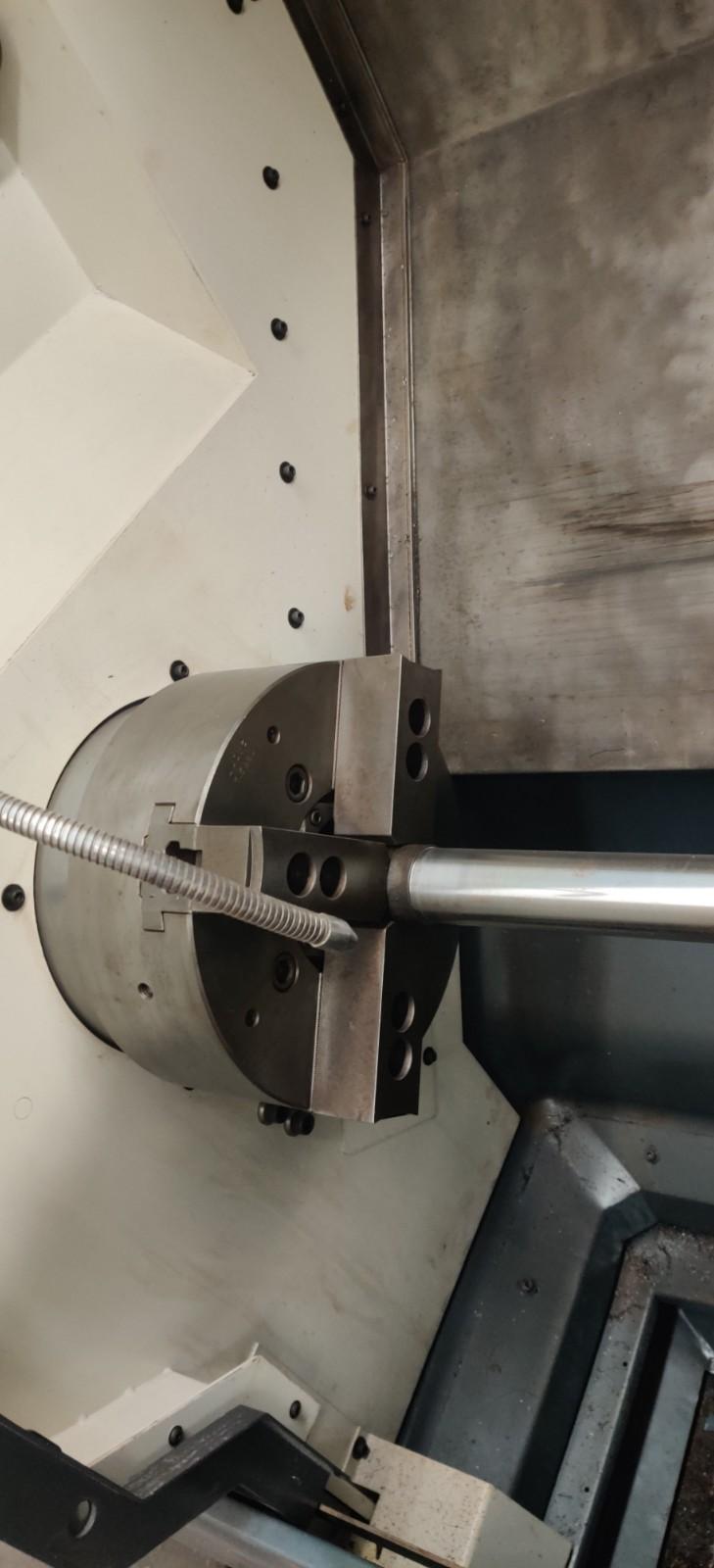

Chuck 15 inches
Spindle nose A2-8
Spindle nose bearing inner diameter ф 160mm
Spindle through hole diameter ф 105mm
Spindle speed 2000rpm
Maximum spindle torque 135kgf-m
travels:
X axis travel 305mm
Z-axis travel 680mm
Feed:
Rapid feed (X/Z) 20/24m/min
Cutting feed 1~10000mm/min
Motor:
Spindle power (L) 11/18.5 (H) 15/18.5kW

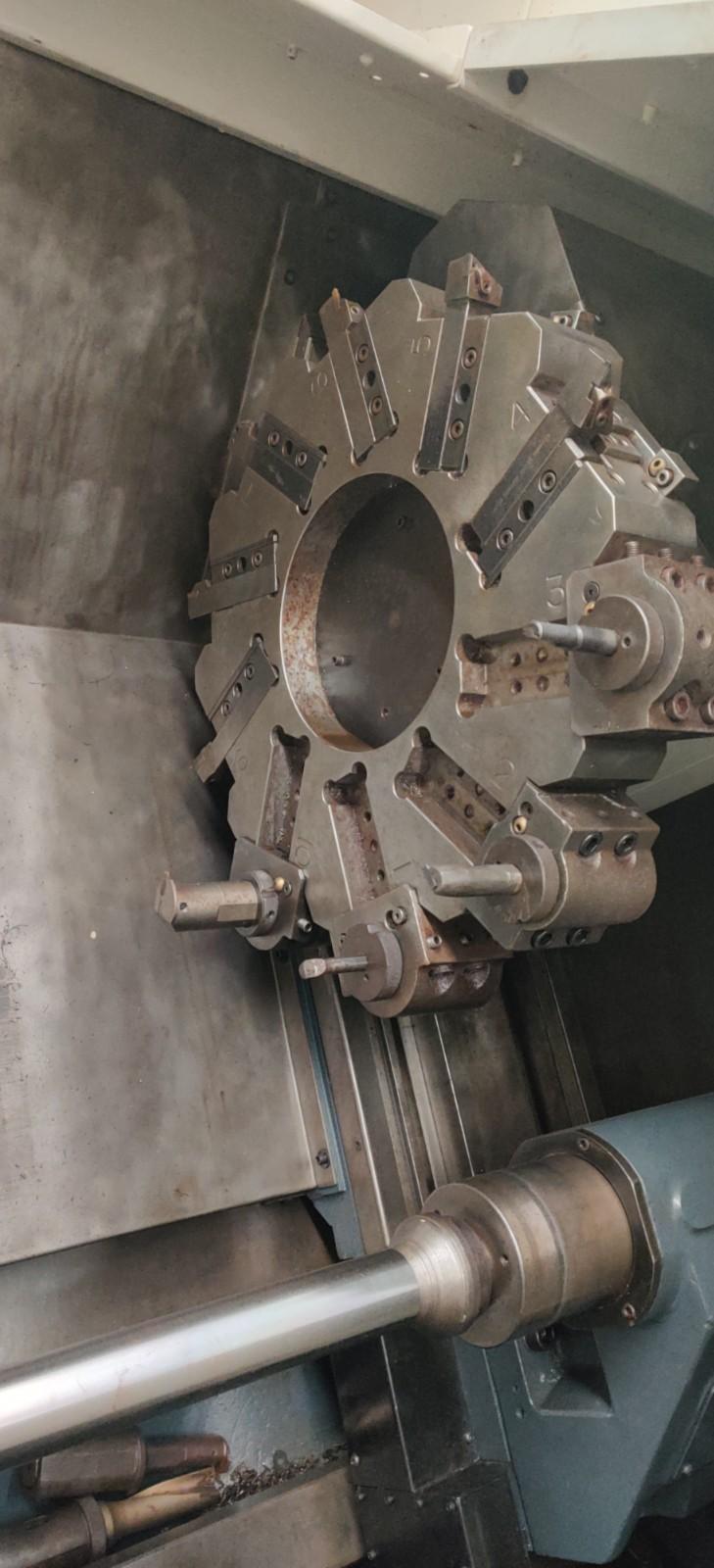

Cutter tower motor 1.2kW

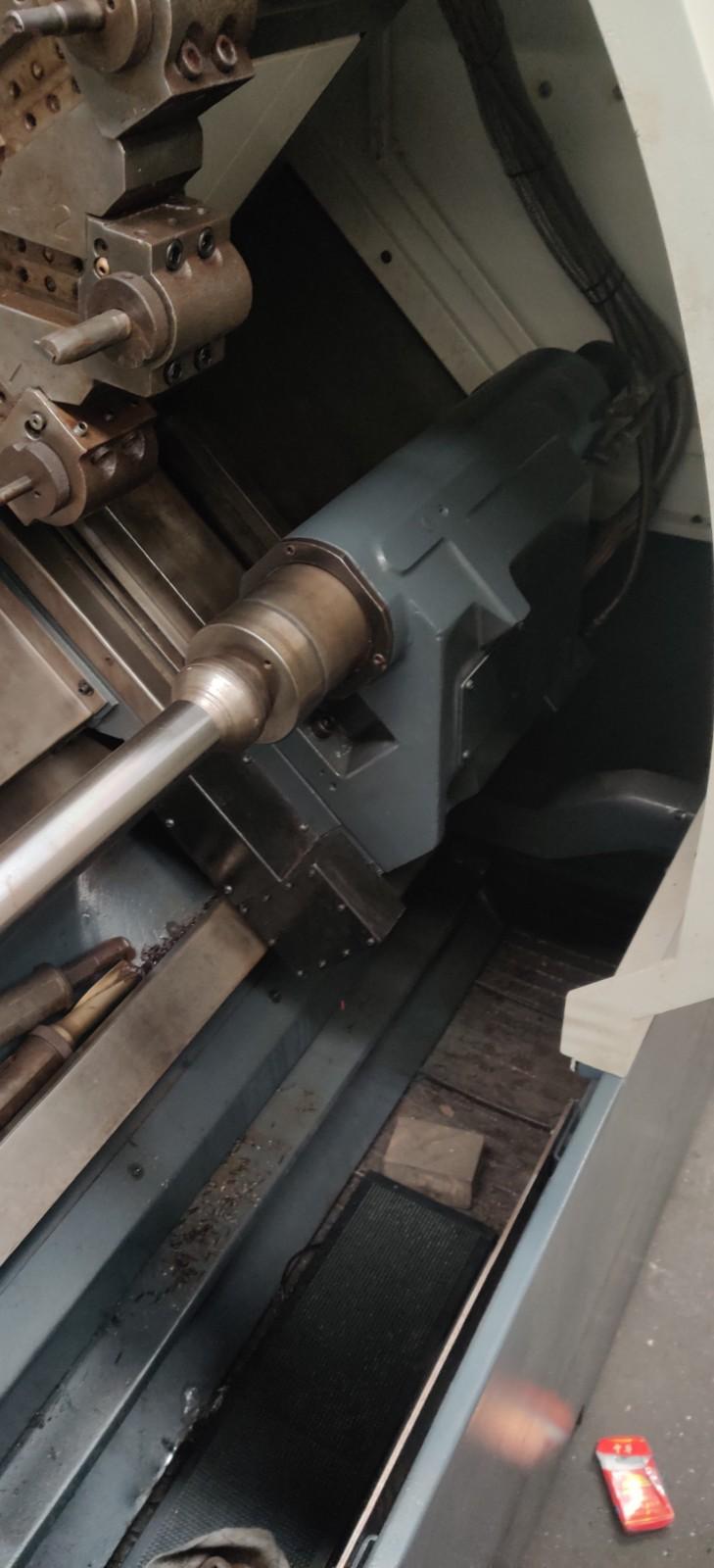

Tailstock:
Shaft sleeve inner hole taper MT-5/MT-4
Shaft sleeve diameter ф 100mm
Shaft sleeve travel 100mm
