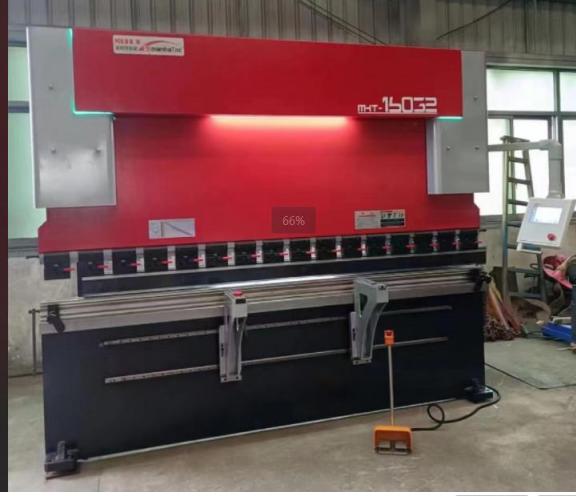

manhaTnc MHT-100T/3200 Bending machine

Nominal Pressure: 1000 kN
Maximum Bending Plate Width: 3200 mm
Slider Stroke: 120 mm
Column Distance: 2700 mm
Throat Depth: 320 mm
Gear Pump: COP-20
Maximum System Pressure: 23 MPa
Motor Power: 7.5 kW
Overall Dimensions (L × W × H): 3600 × 1500 × 2800 mm
Configuration:
Front Support: 2 Sets
Mobile Foot Pedal Control Station: 1 Unit
Anchor Bolts: 4 Pieces
Adjustment Bolts: 4 Pieces
Oil Gun: 1 Piece
Chinese Operation Instruction Manual: 1 Copy
