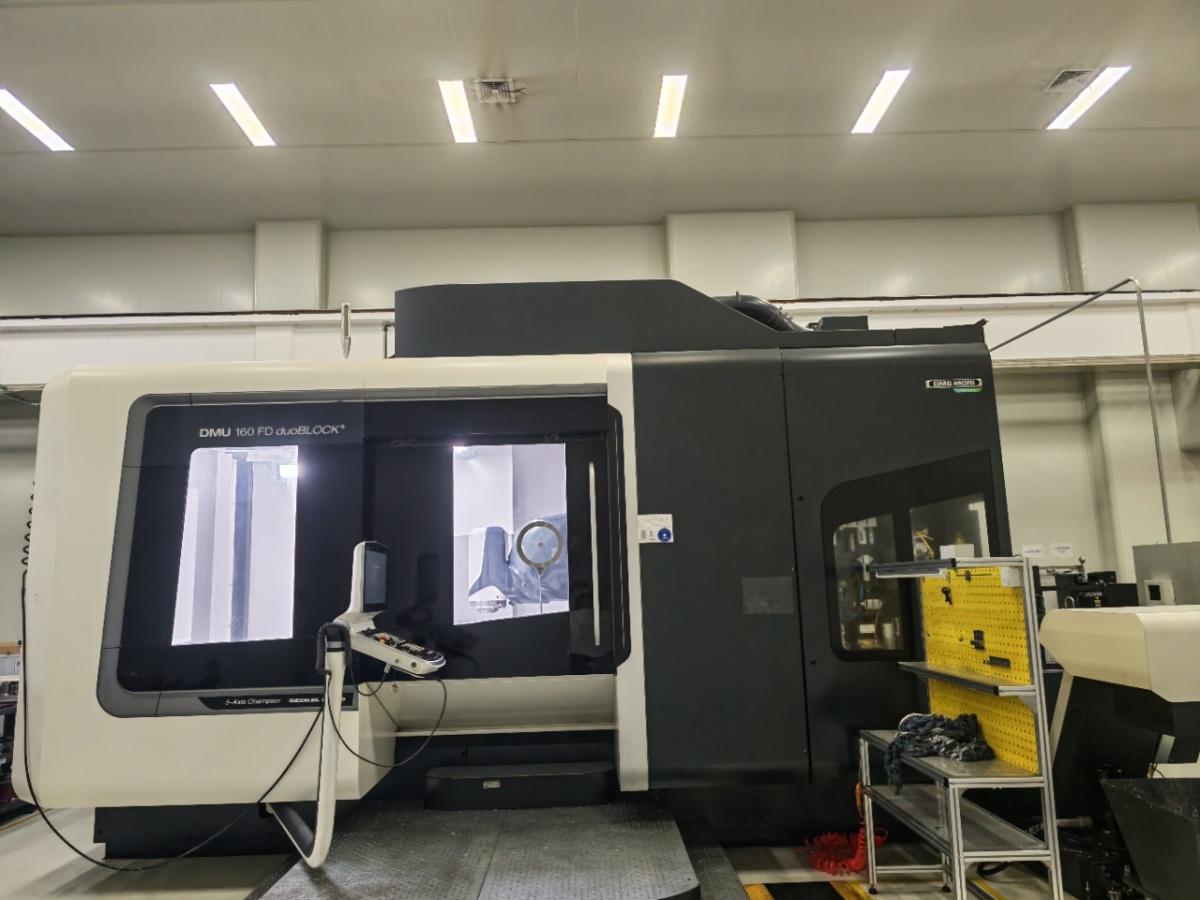

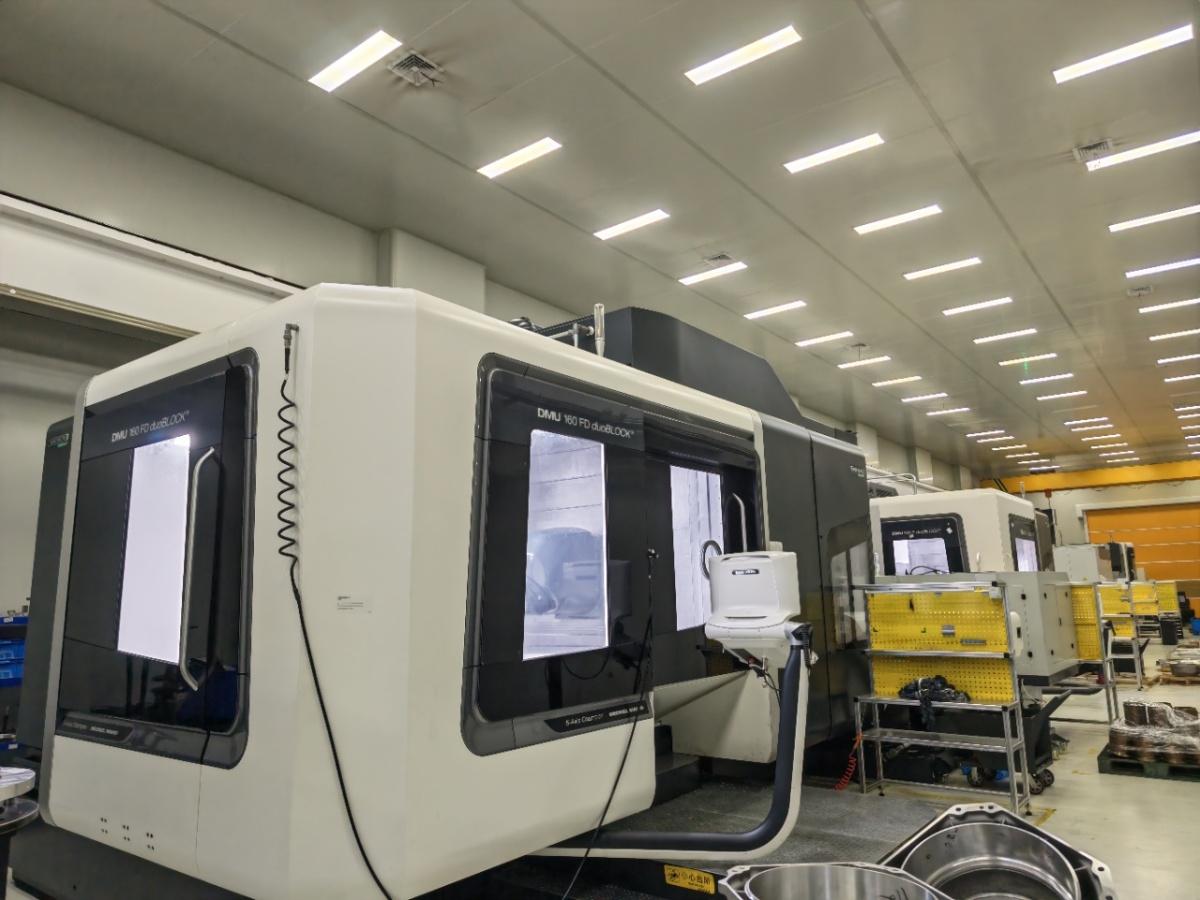

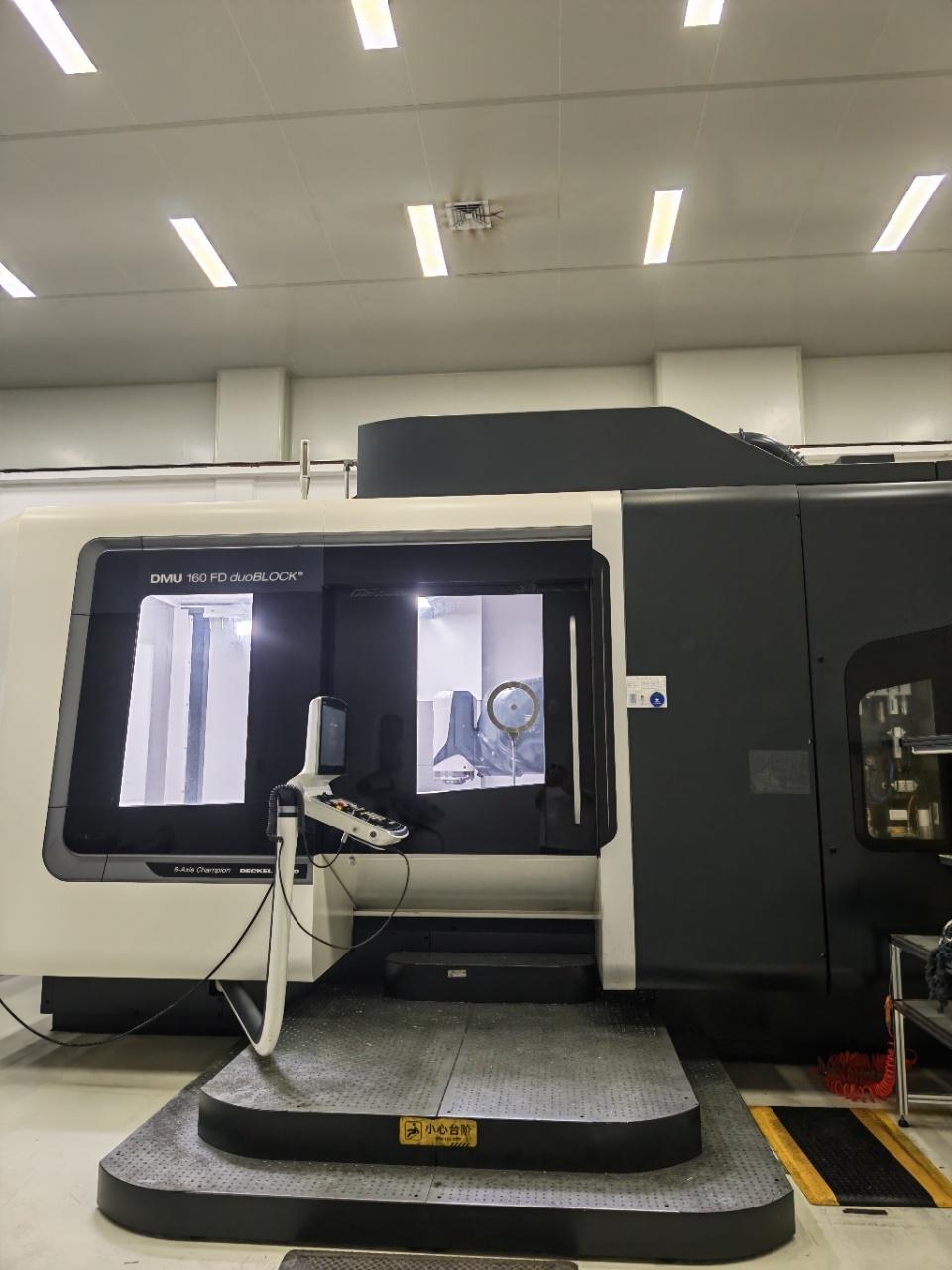

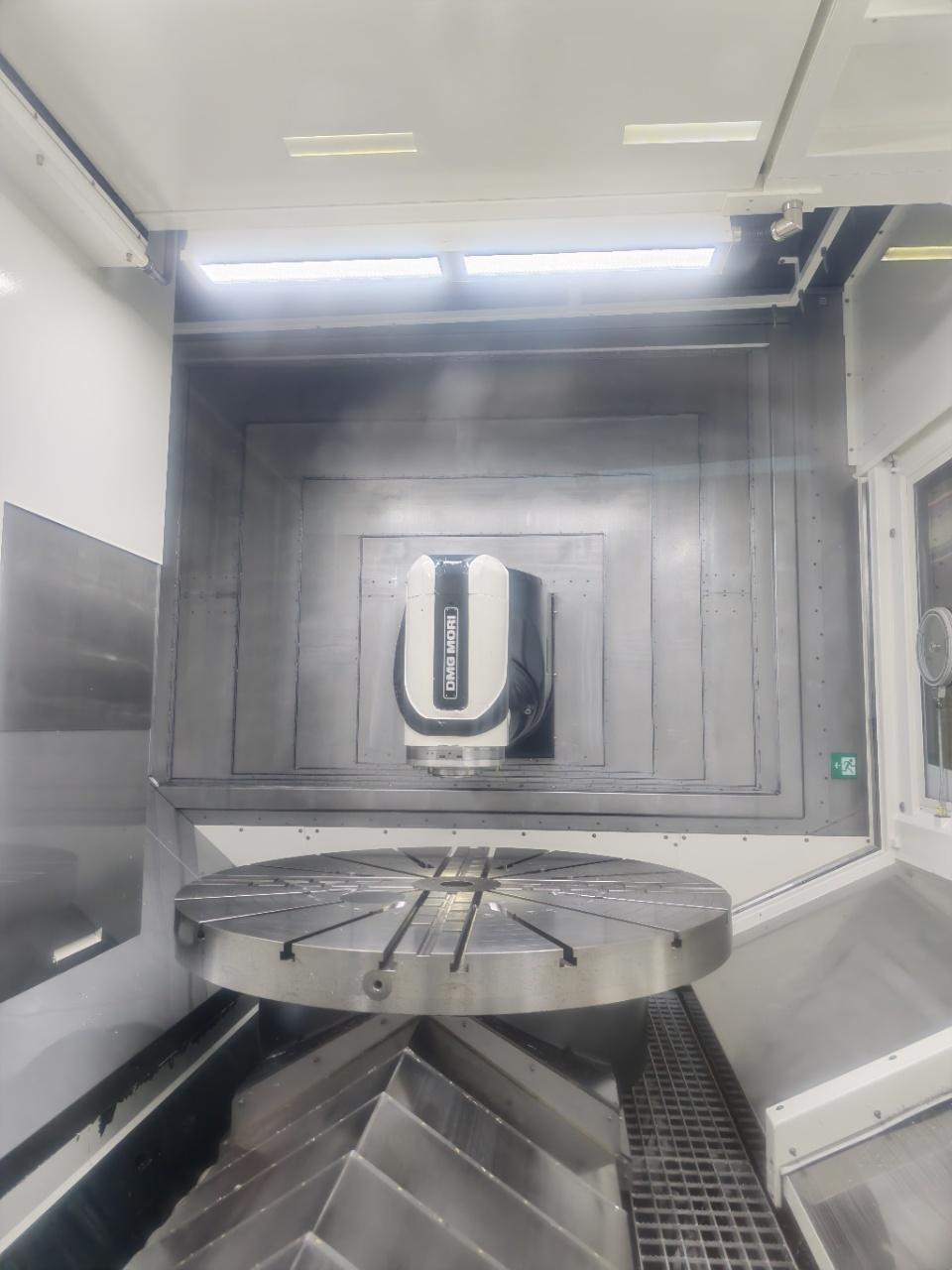

DMG DMU 160 FD duoBLOCK Turn Mill Machining Centre

CNC System: Siemens SINUMERIK 840D sl Operate
Three-axis travel (X/Y/Z): 1600 × 1600 × 1100 mm
B-axis rotation range: -30° to +180°
C-axis rotation range: 360°
Spindle System
Spindle type: Electric spindle
Spindle speed: 12,000 rpm
Spindle power:
52 kW (40% duty cycle)
42 kW (100% duty cycle)
Spindle torque:
430 Nm (40% duty cycle)
300 Nm (100% duty cycle)
Spindle taper: HSK-A100
Milling head standard: DIN 69893 universal milling head
B-axis horizontal tool changer
Tool Magazing System
Double gripper tool changer
Tool magazine capacity: 63 tools
Tool magazine type: Vertical chain-type tool magazine

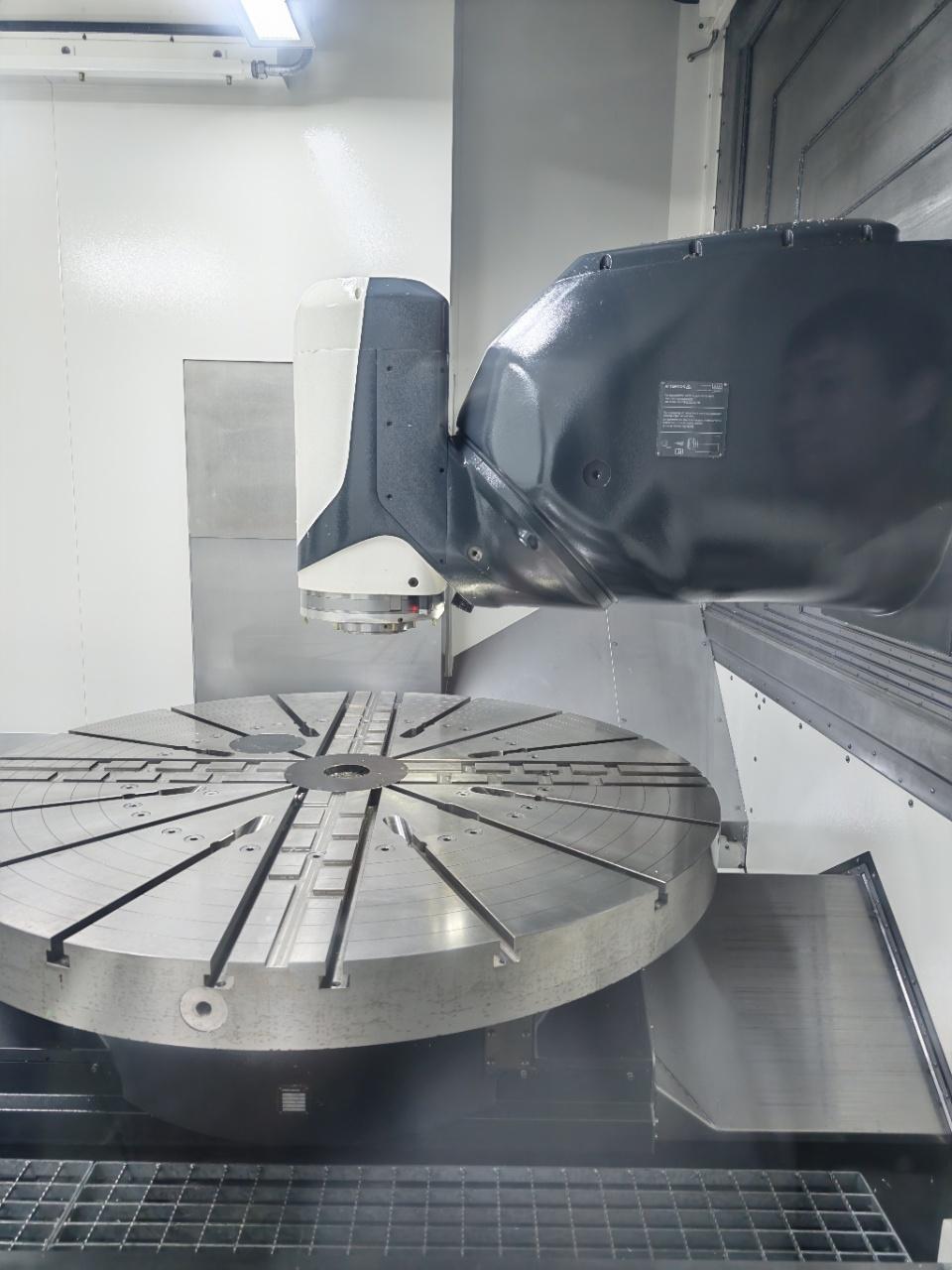

NC Milling & Turning Table
Worktable diameter: Φ1600 mm

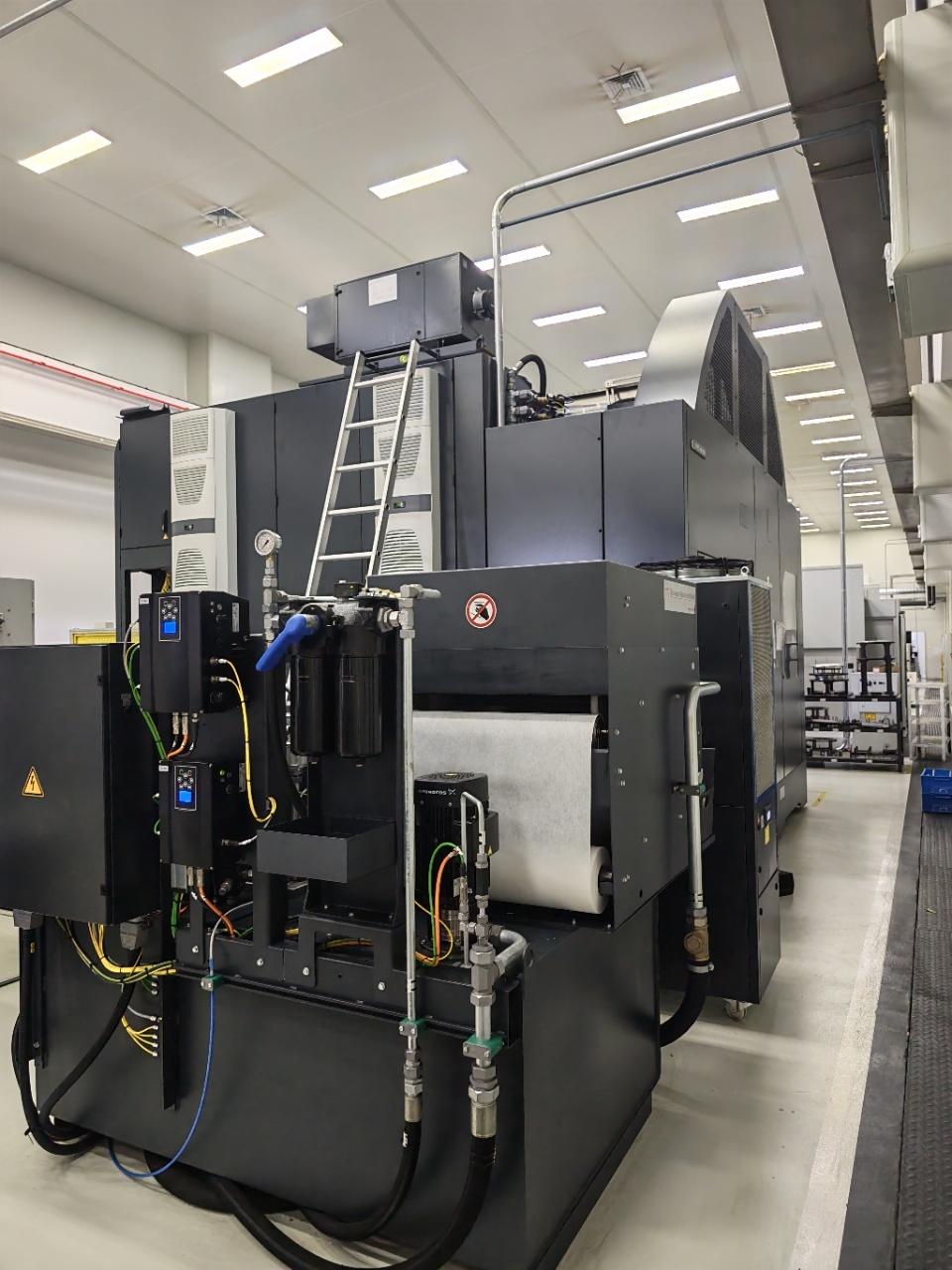

Cooling & Chip Removal System
Coolant tank capacity: 980 L
Spindle center internal coolant system: 10 - 80 bar
Through-spindle coolant (TSC)
Chip conveyor
Transparent rotating observation window
Configuration Options
Spindle center air blow
Spray gun
Renishaw PP60 probe
3D QuickSET
Machine tool anti-collision protection system
Four-color signal tower light
Precision package
Rough machining package
Tropical climate package
Electronic handwheel (MPG)
ATC application adjustment cycle, programmable feed parameter selection (precision / surface quality / machining speed)
Power-off protection
Network service
Messenger service assistant
Operating hours: 3,933 hours
