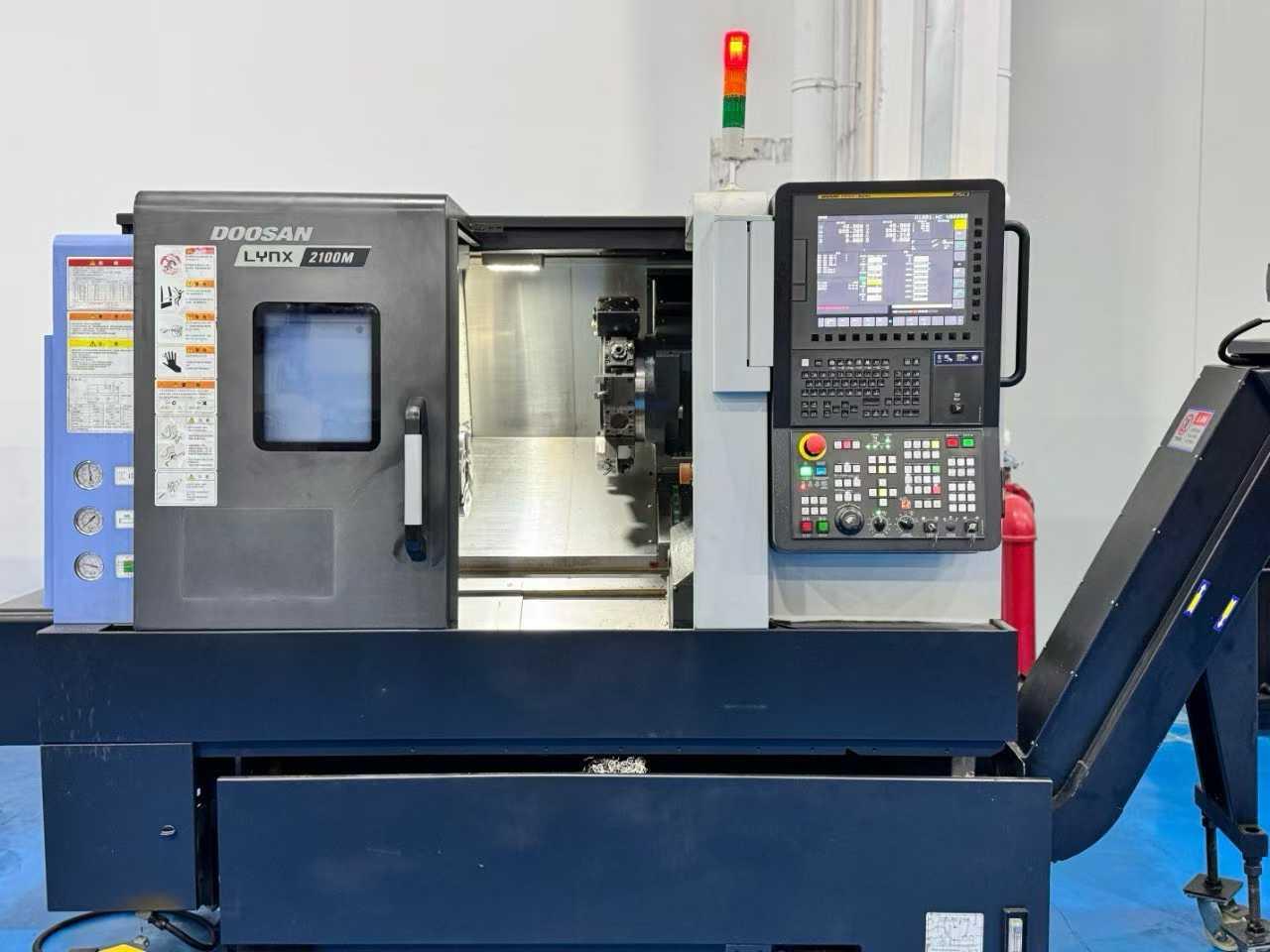

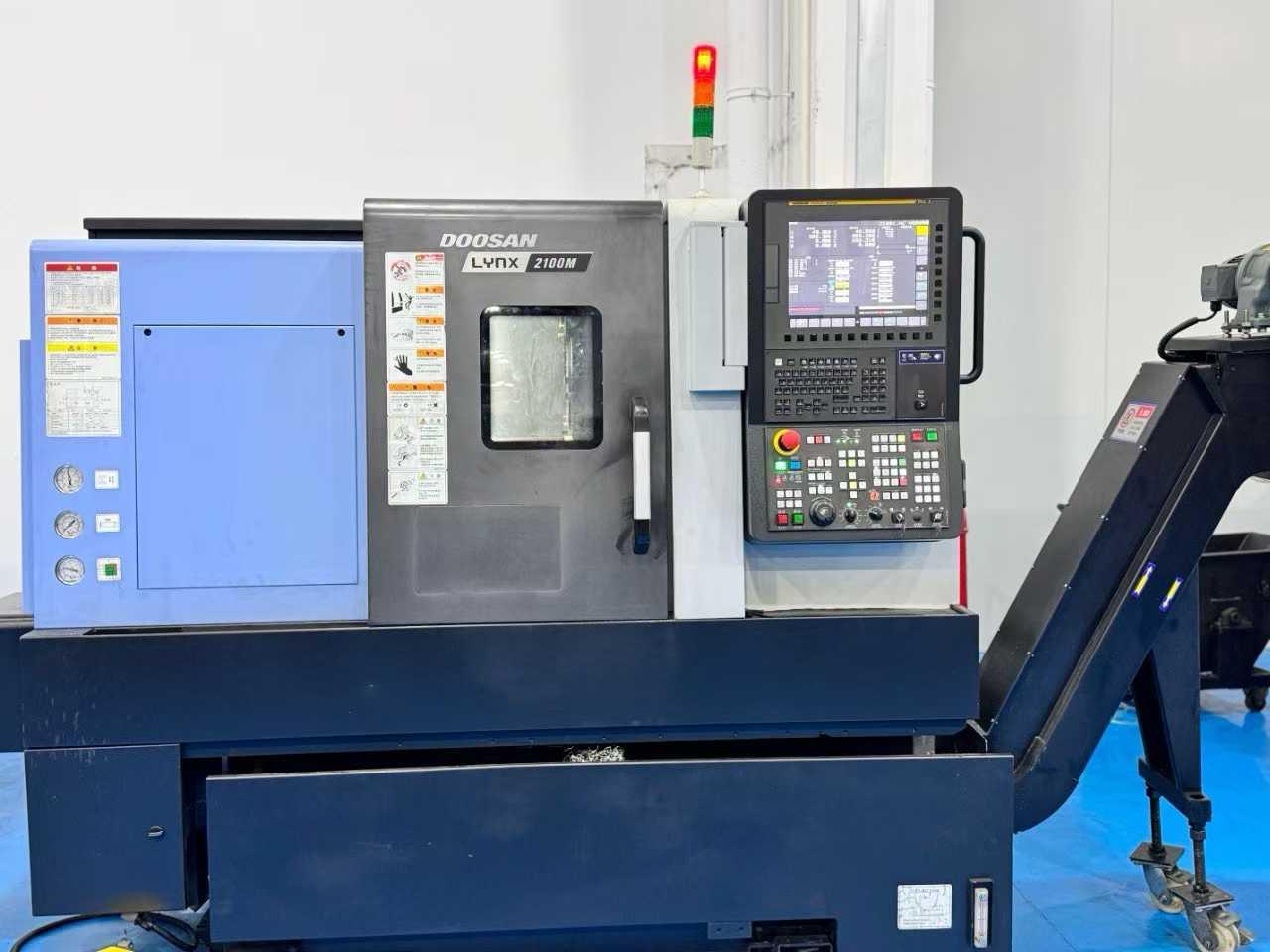

DOOSAN LYNX2100MB Turn Mill Machining Centre

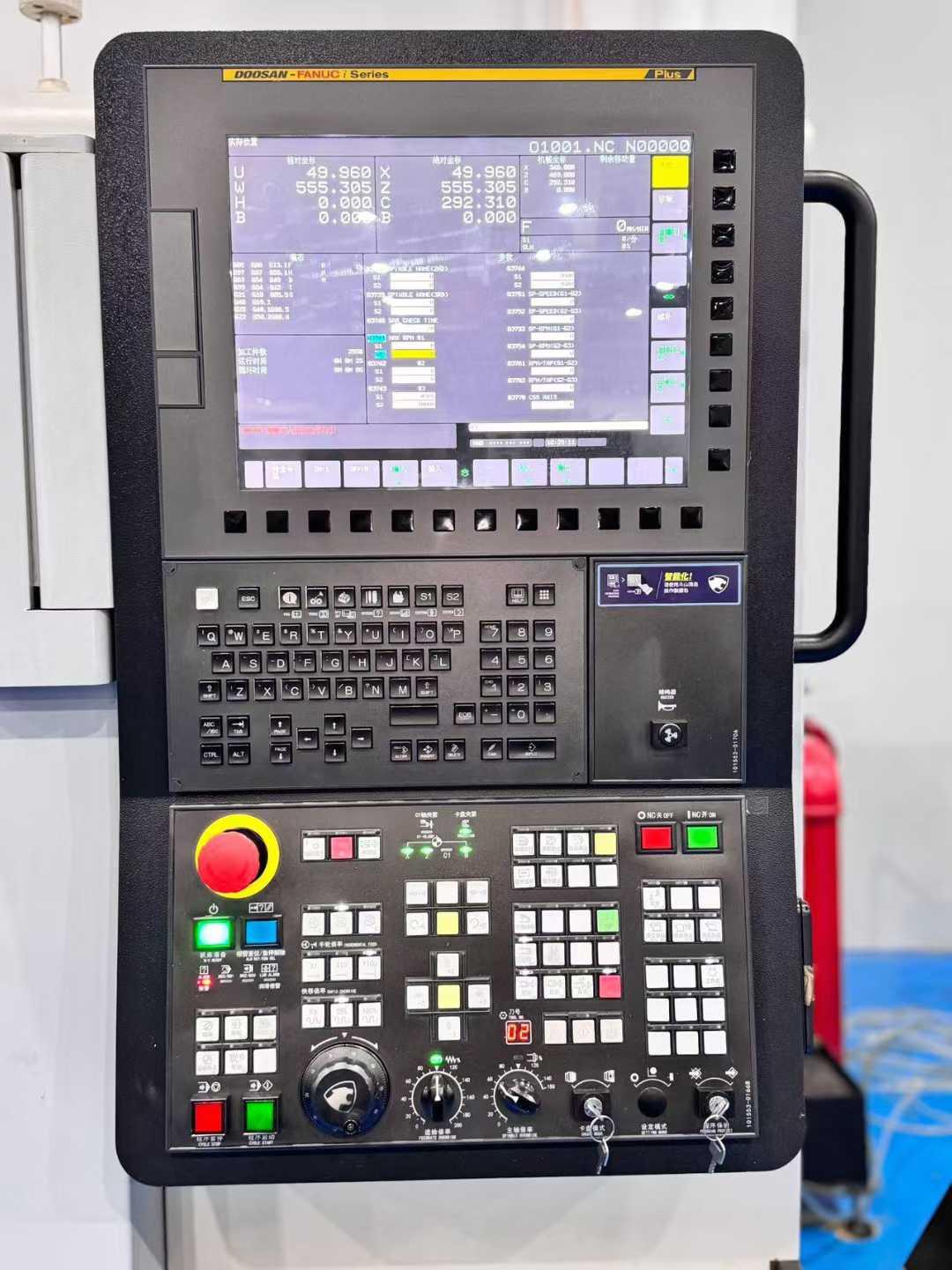

CNC System: FANUC -0iTF PLUS
Spindle speed: 4500rpm
Spindle power: 15kW

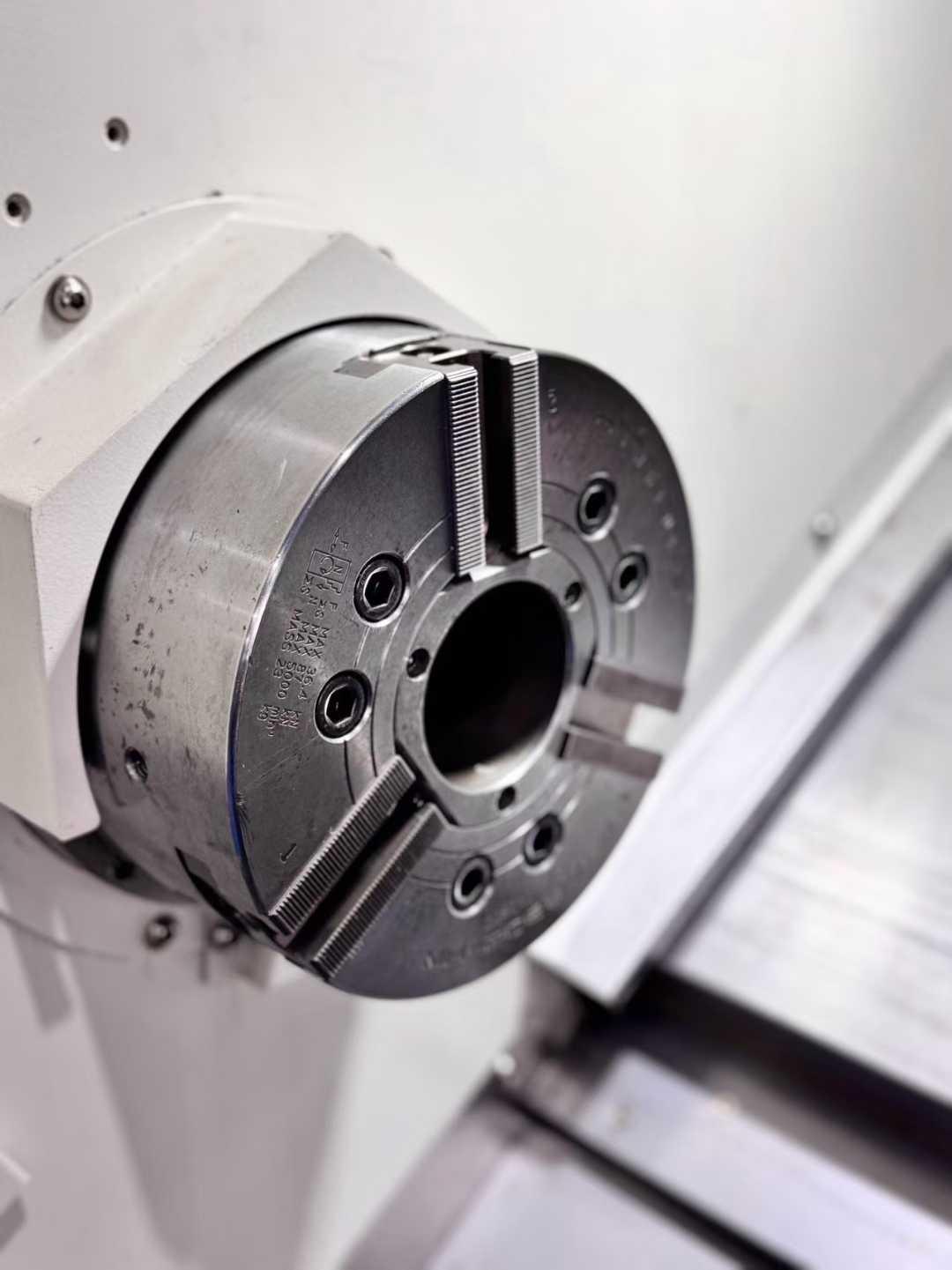

8-inch chuck
Spindle through hole is 69mm
Maximum machining diameter: 350mm
Xz-axis roller linear guide
X* Z-axis travel: 410*340mm
X*Z axis fast traverse: 20*28m/min

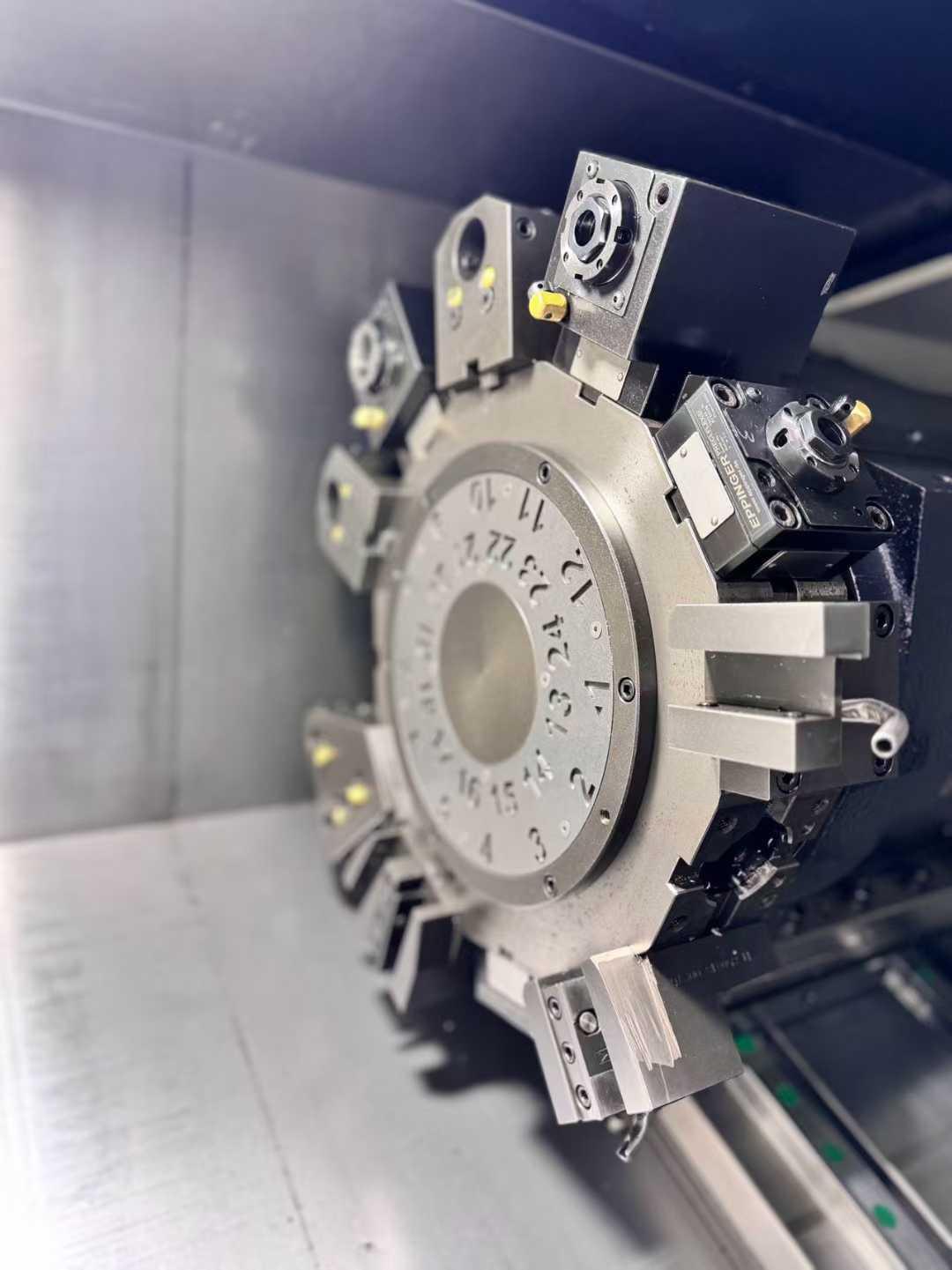

Servo Tool head: 24T
Motor power: 3.7kW
Servo tailstock B-axis travel: 350mm
Distance from the tailstock to the end face of spindle: 540mm
Machine Dimension: 3800mm (length) * 1500mm (width) * 1800mm (height)
Configuration：

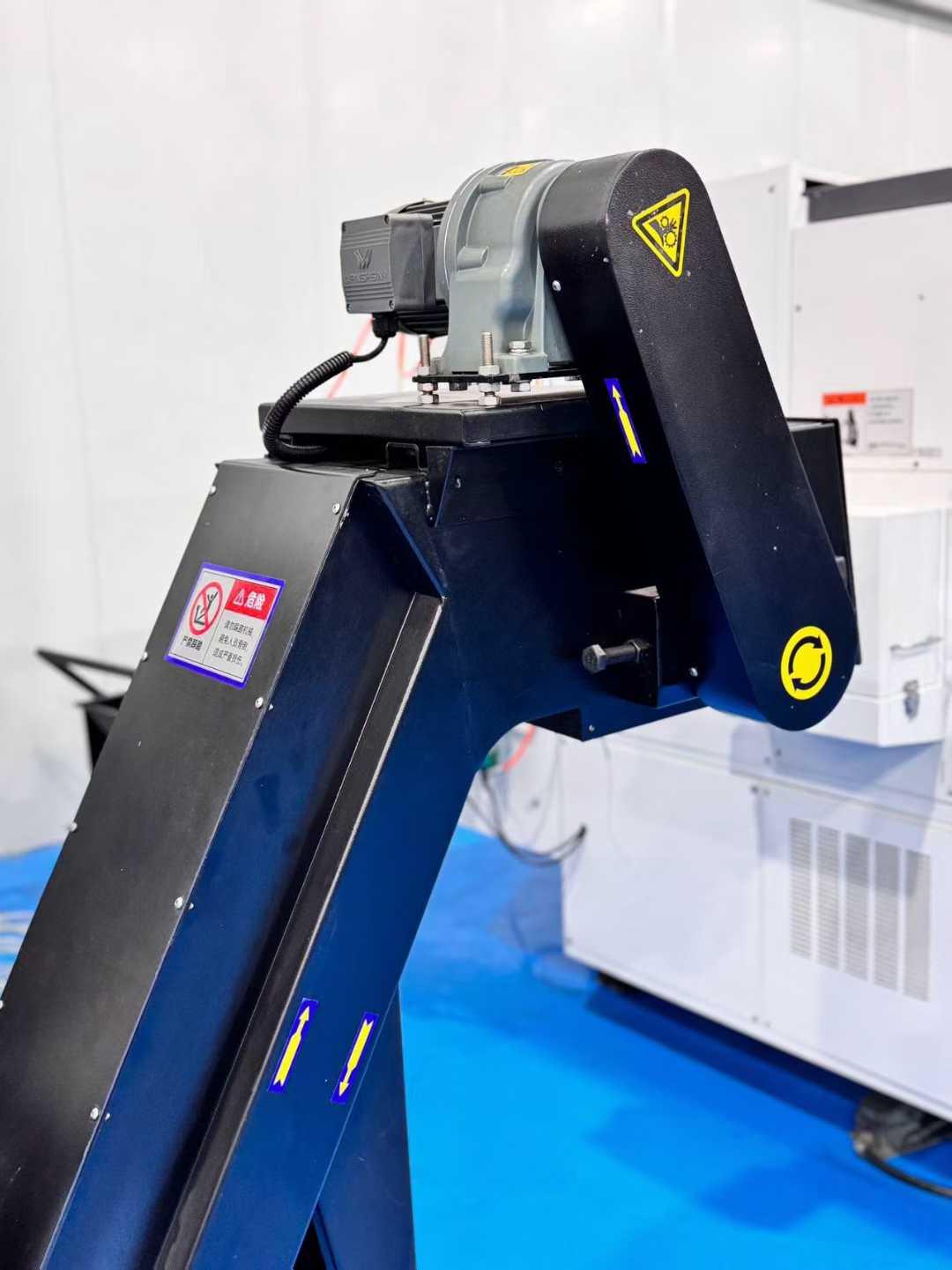

Equipped with a tap-type chip conveyor
Equipped with high pressure cutting fluid pump
