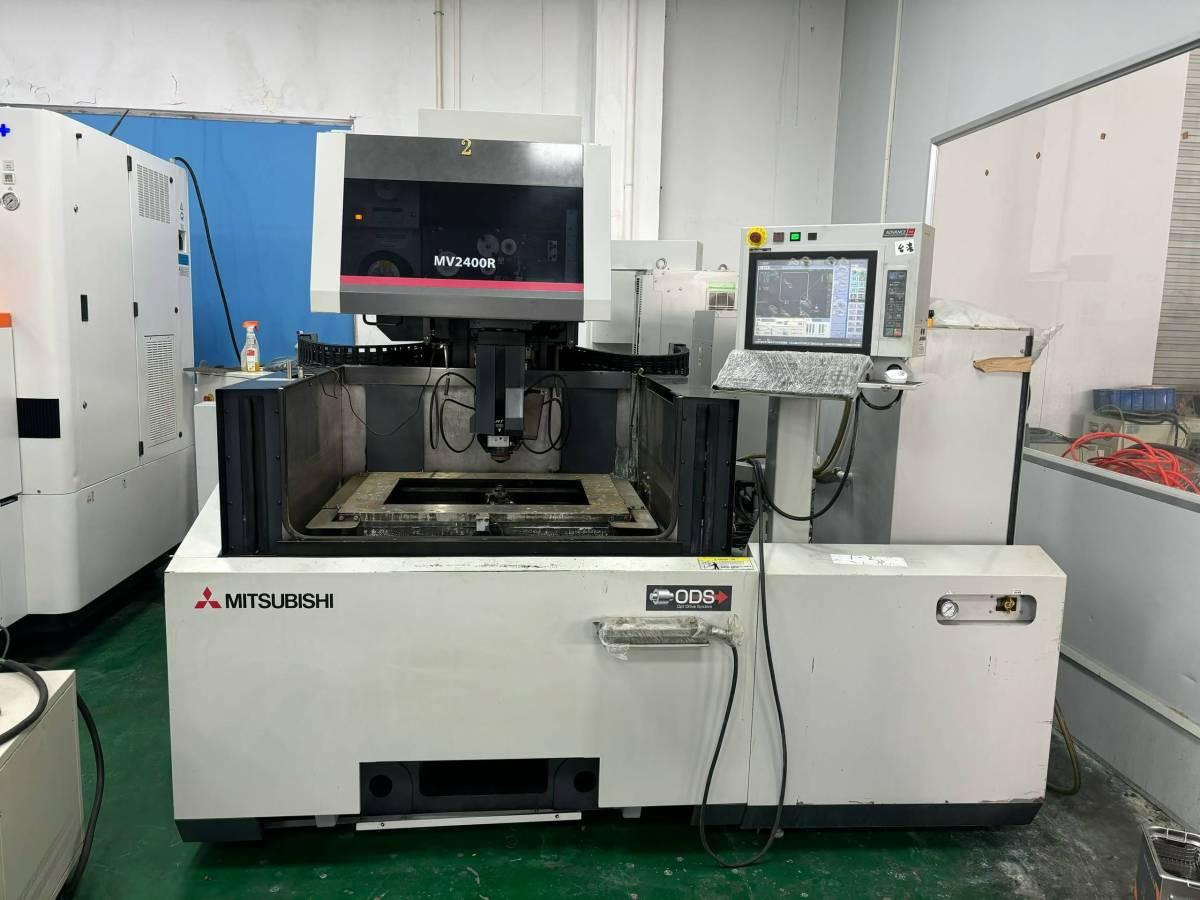

Mitsubishi MV2400R Wire cutting machine

Three-Axis Travel (X/Y/Z): 600 × 400 × 310 mm
Maximum Workpiece Size: 1050 × 820 × 305 mm
Maximum Workpiece Weight (Submerged): 1500 kg
Worktable Size: 840 × 640 mm
U/V Axis Travel: ±75 × ±75 mm
Taper Capacity:
15° @ 260 mm thickness
45° @ 60 mm (optional guide system required)
Worktable Rapid Traverse Speed: 1300 mm/min
Wire Diameter Range: 0.1–0.3 mm
Minimum Start Hole Diameter: 0.5 mm
Machine Dimensions: 2687 × 3030 mm
Machine Height: 2150 mm
