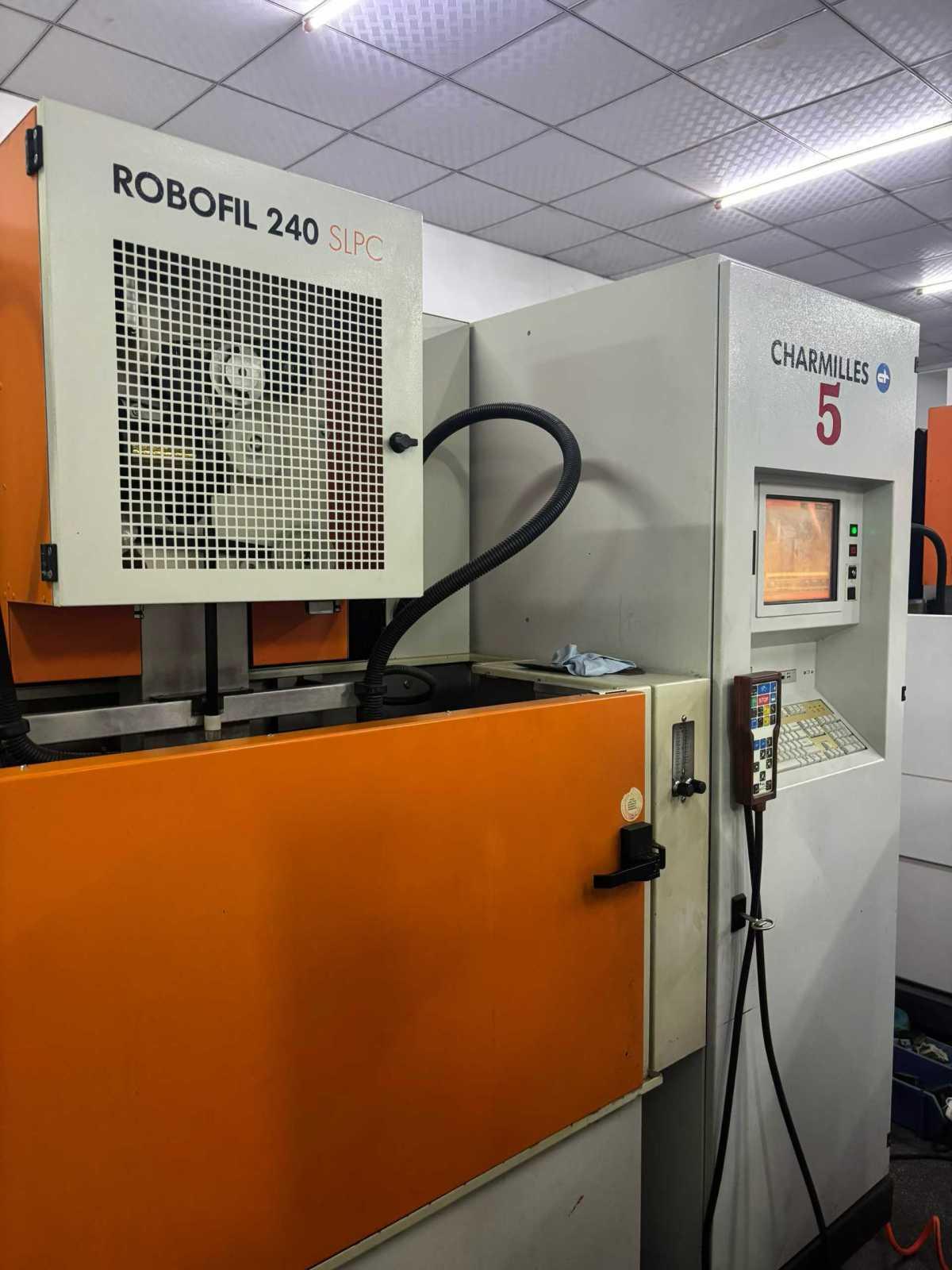

Charmilles ROBOFIL 240 SLPC Wire cutting machine

Three-Axis Travel: 340 × 220 × 220 mm
Worktable Size: 680 × 450 mm
U/V-Axis Travel: ±30 mm
Maximum Taper Angle: 30°
Maximum Workpiece Size: 860 × 530 × 220 mm
Maximum Workpiece Weight: 500 kg
Positioning Accuracy: ±0.002 mm
Surface Roughness: Ra 0.3 μm
Wire Diameter Range: Φ0.15–Φ0.33 mm
Machine Weight: Approx. 2,500 kg
