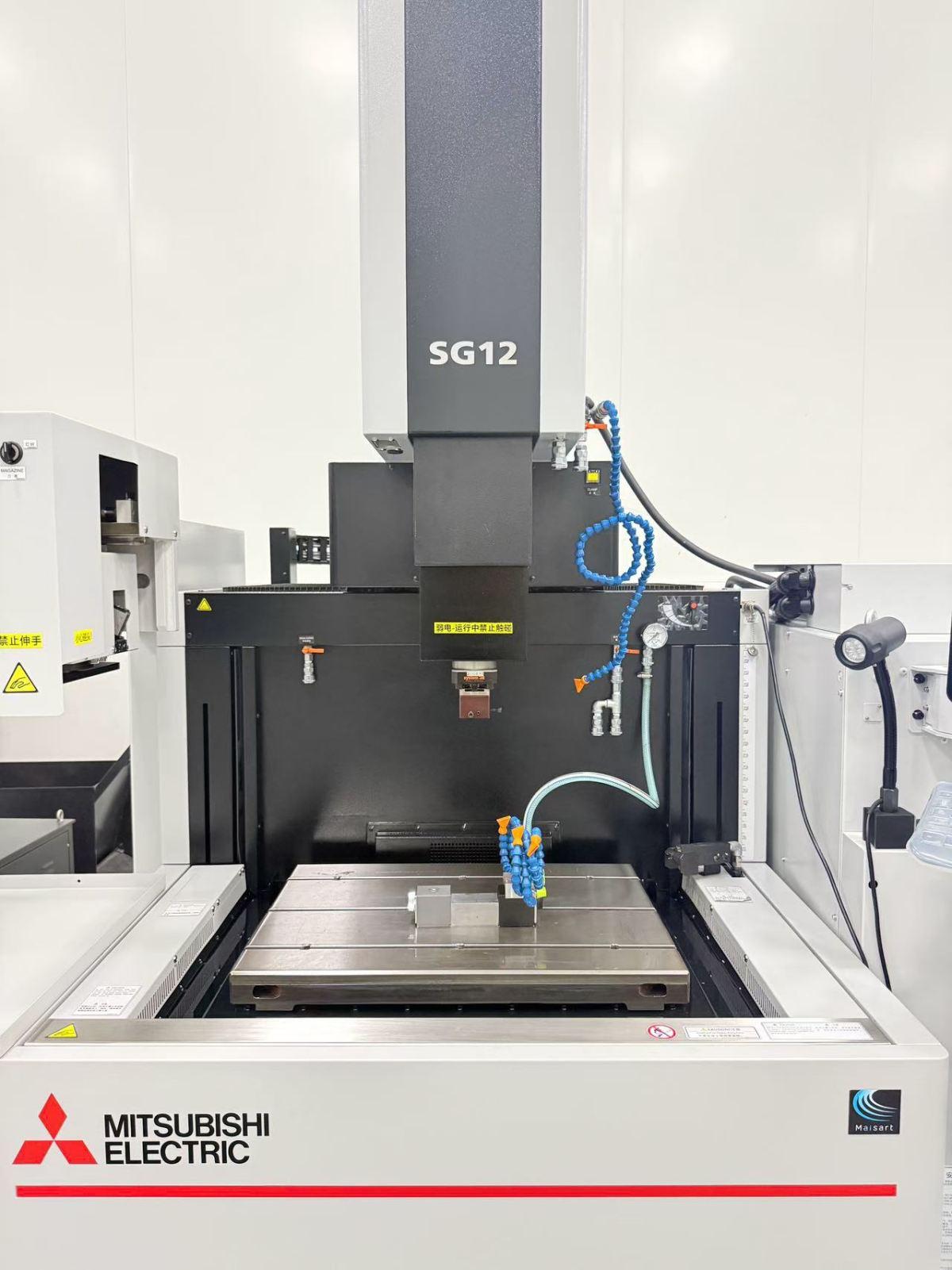

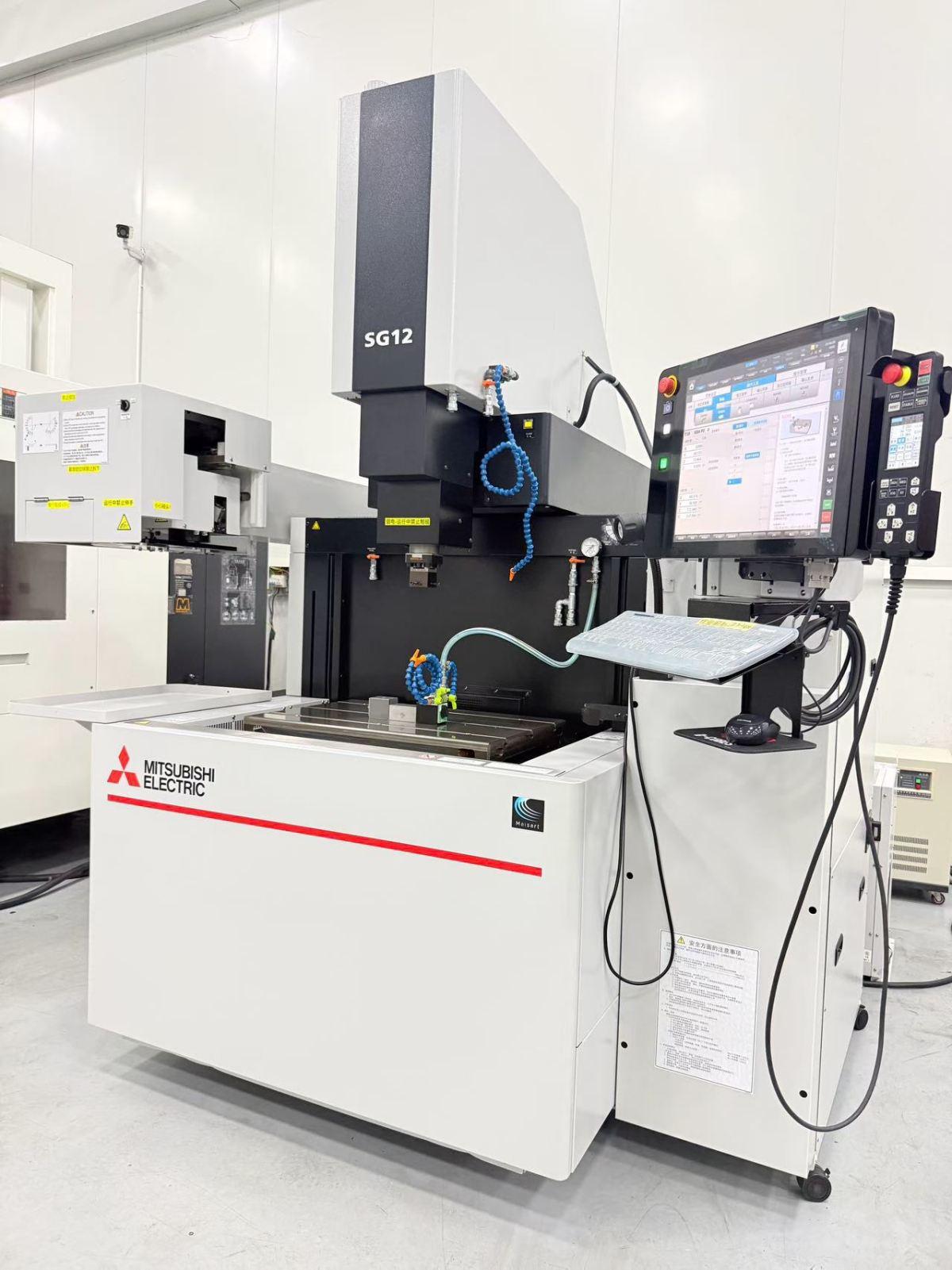

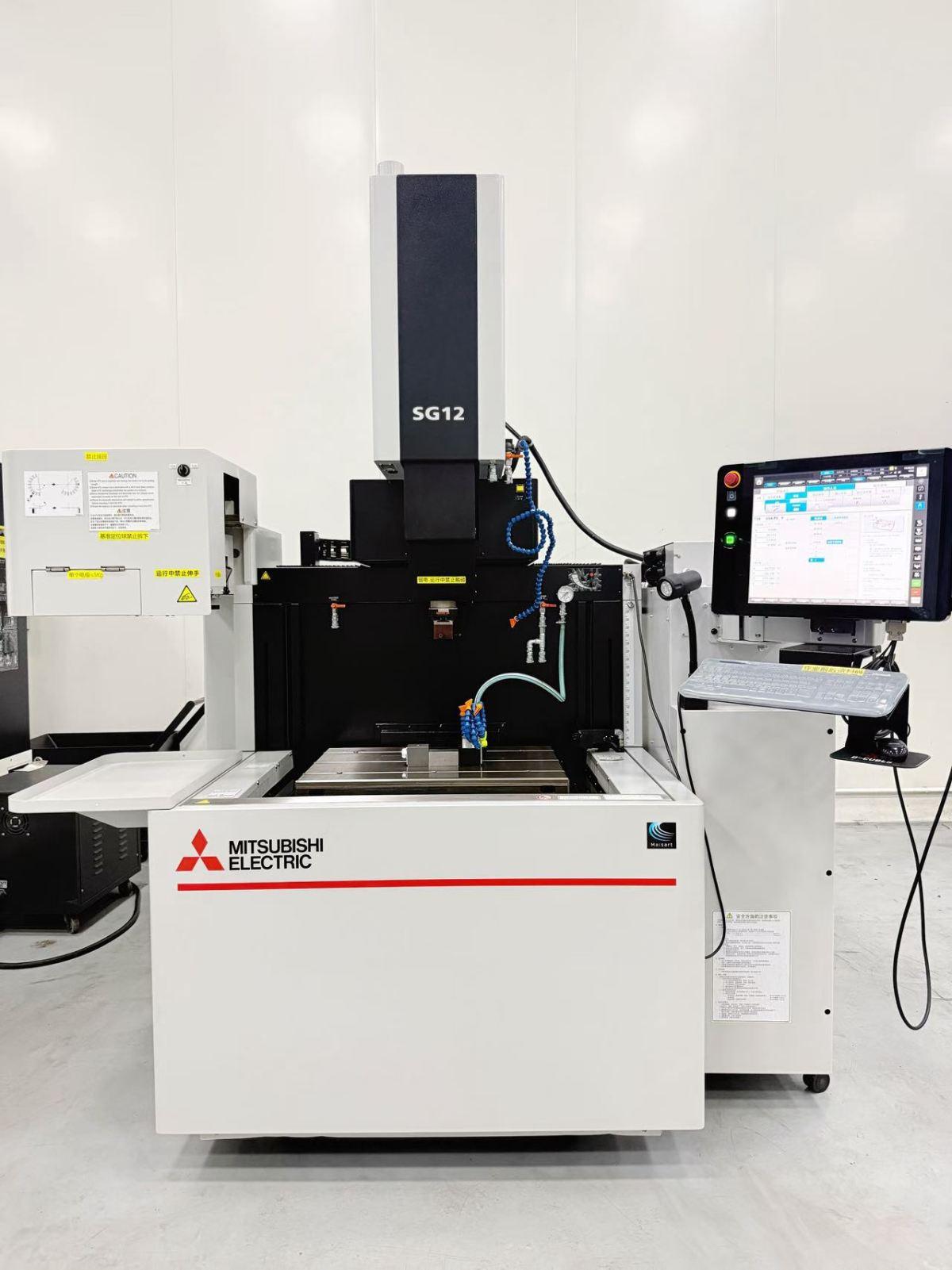

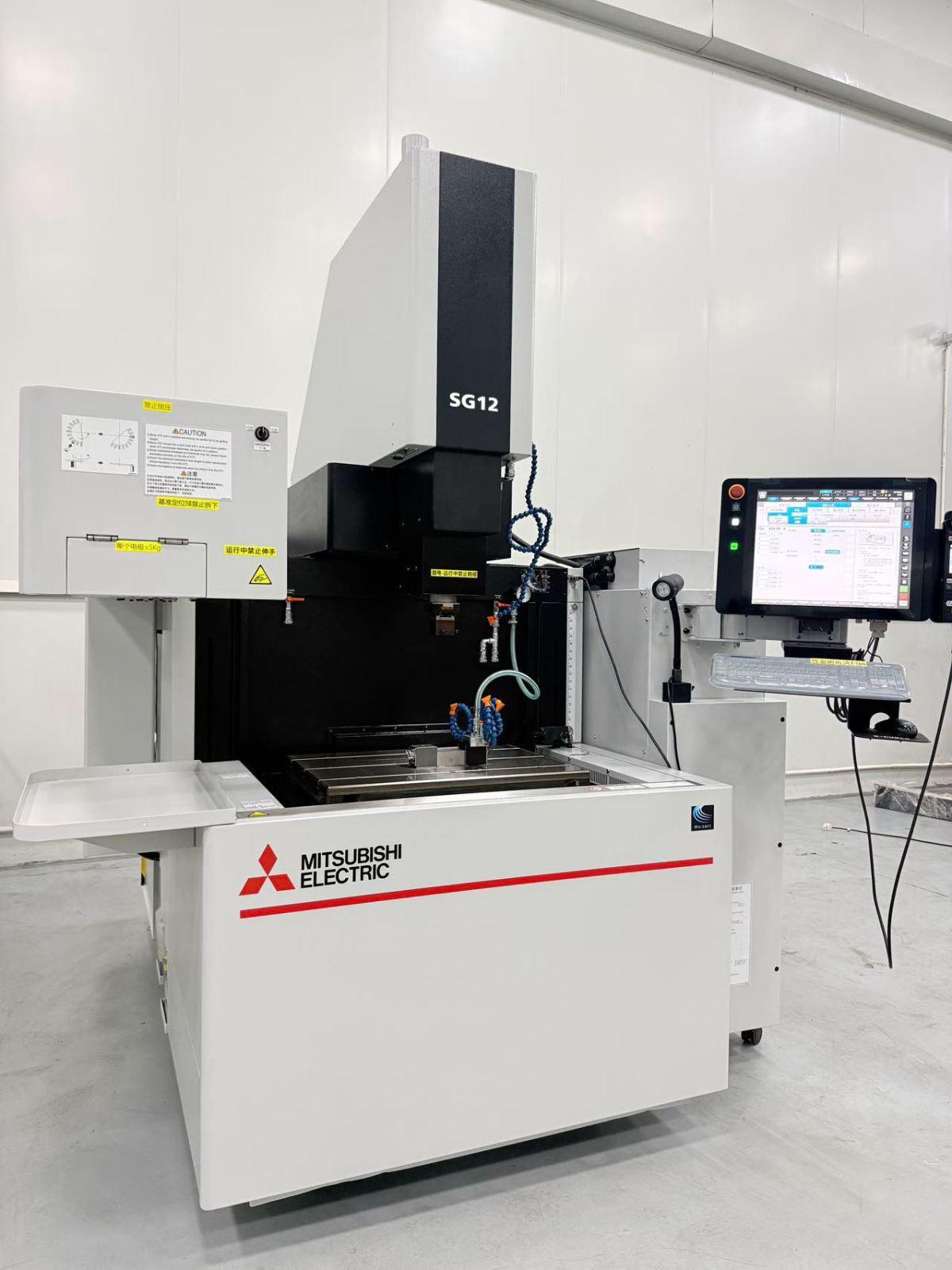

Mitsubishi SG12M Spark eroder

Three-axis travel (X × Y × Z): 400 × 300 × 300 mm
Distance from worktable to electrode mounting surface: 200–500 / 300–600 mm
Max electrode weight: 50 kg
Max workpiece weight: 1000 kg
Working tank type: Automatic lifting / hinged door opening
Internal tank dimensions: 950 × 700 × 450 / 1050 × 700 × 450 mm
Dielectric fluid level adjustment range: 60–400 / 210–400 mm
Worktable size: 700 × 500 mm
Table height from floor: 900 mm
T-slot: 3 slots, 12–160 mm pitch
Max workpiece dimensions: 900 × 650 × 350 mm
Dielectric tank capacity: 360 / 550 L
Initial filling volume: 470 / 590 L
Filtration system: Paper filter ×2

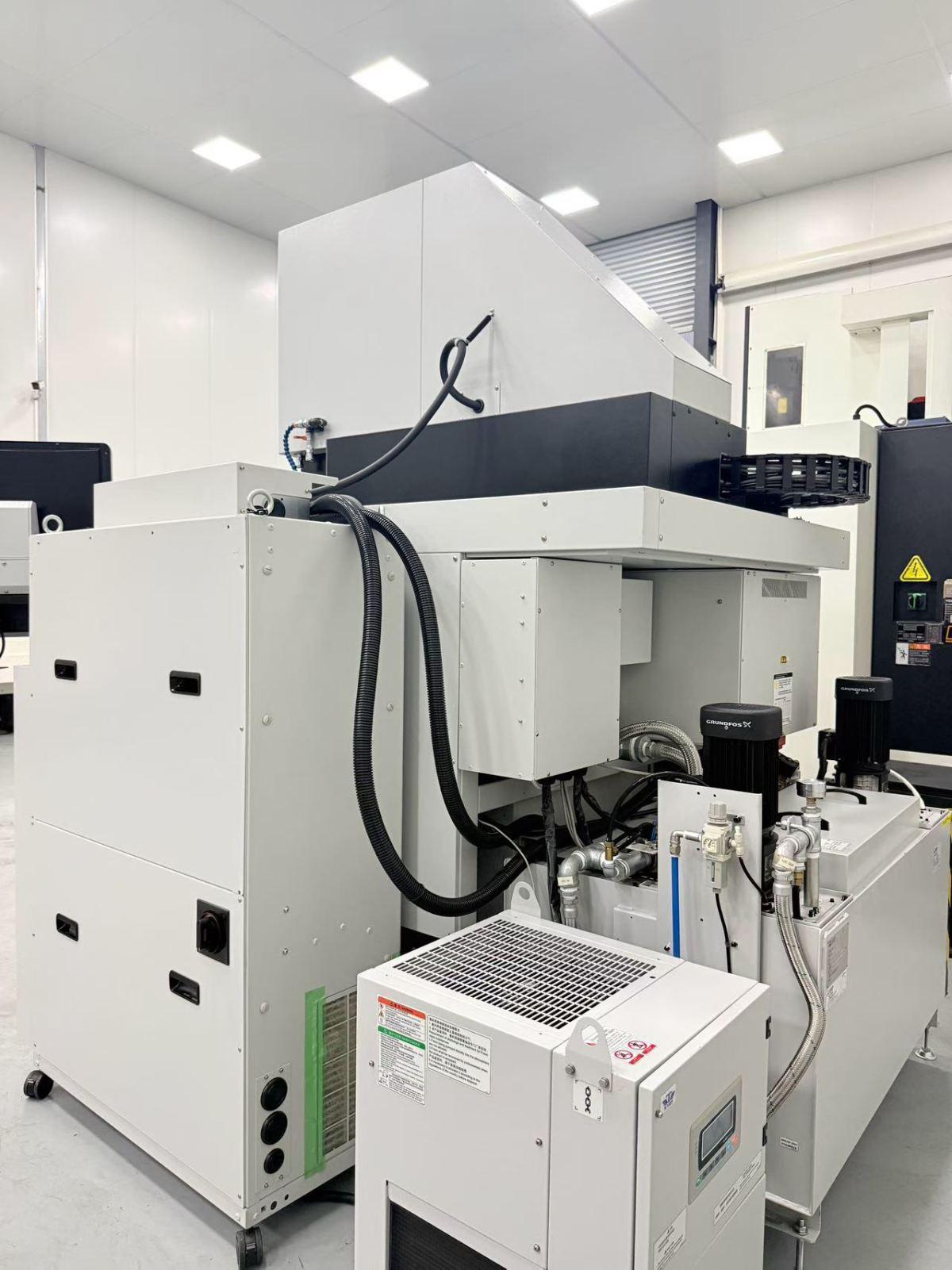

Cooling system: Cooling unit
Machine weight: 3500 kg
Overall dimensions: 1725 × 2130 × 2420 / 1920 × 2100 × 2420 mm
Transport dimensions (excluding ATC): 1280 × 2420 / 1505 × 2420 mm
Equipped with C-axis

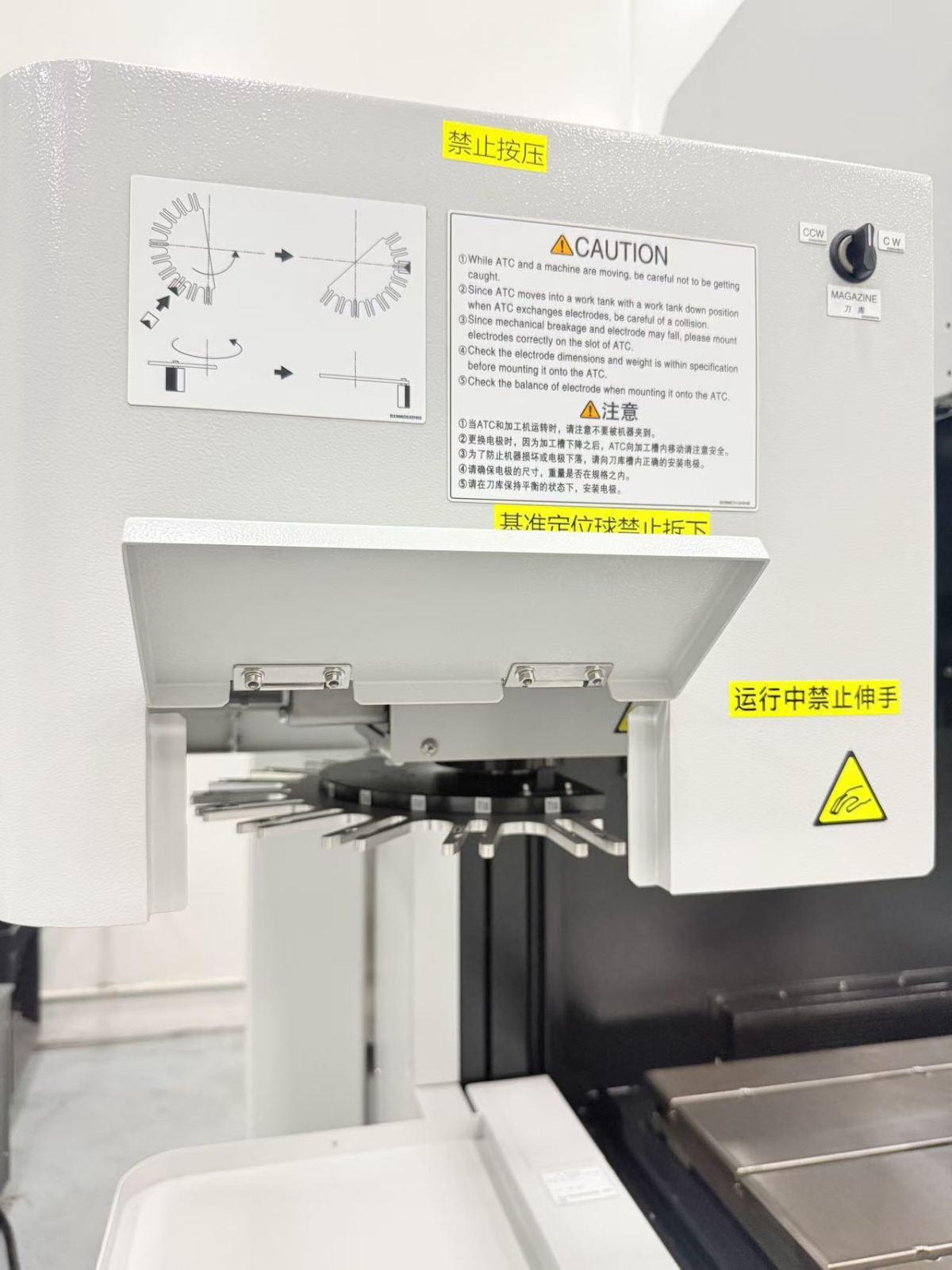

Tool magazine capacity: 9 tools
