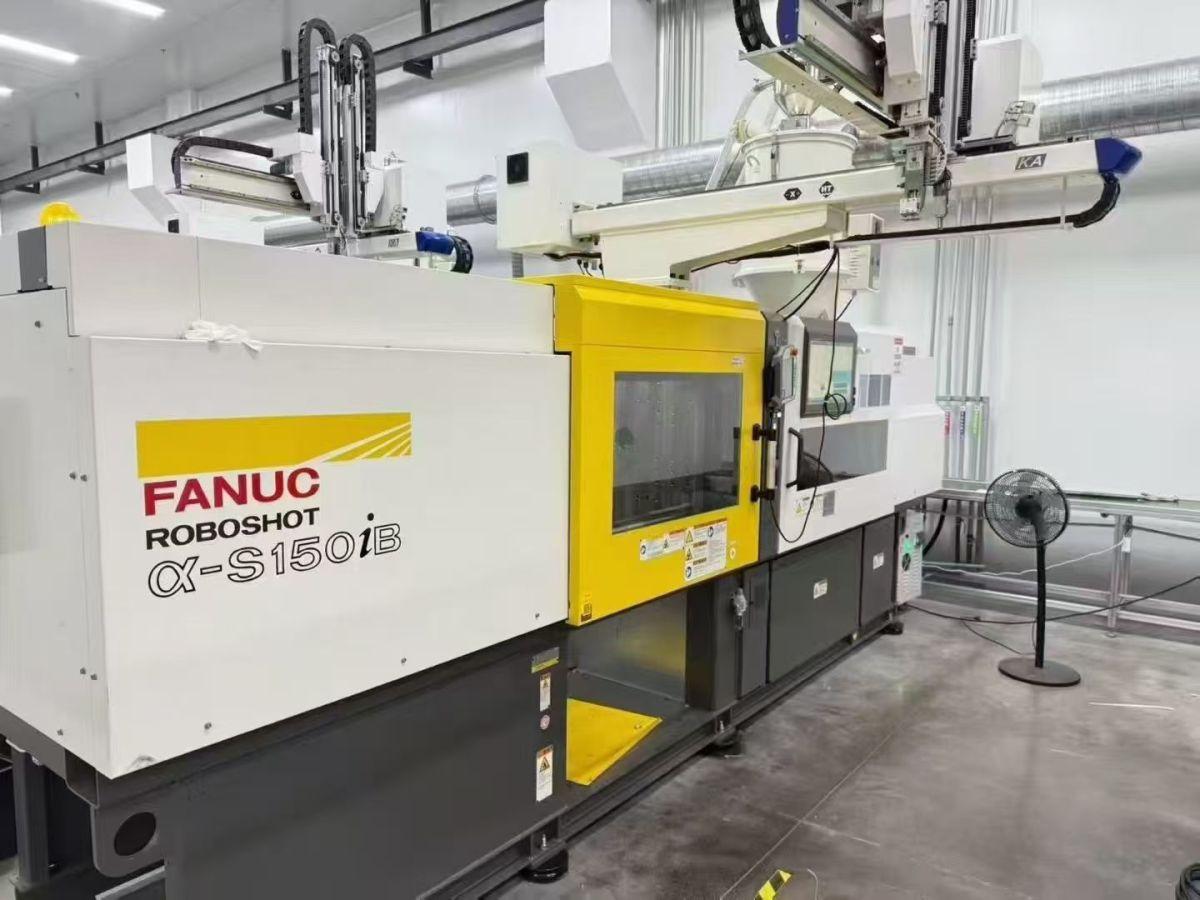

Fanuc α-S150iB injection molding machine
[Product Information]:
- Inventory number：467754
- Brand：Fanuc
- Model：α-S150iB
- Origin："Japan
- Location：China
- Year：2022
- Create Time：2026-06-19
Specifications:
Clamping force: 1500 kN
Pull rod spacing (H×V) : 560 × 510 mm
Template size (H×V) : 800 × 750 mm
Mold opening travel: 440mm
Maximum mold opening travel: 440mm
Minimum mold size (H×V) : 325 × 300 mm
Maximum mold weight: 1060-800 kg
Positioning ring diameter: 160mm
Theoretical injection volume: 181 cm³
Maximum injection pressure: 340 MPa
Maximum injection speed: 350 mm/s
swing diameter: 32mm
Screw speed: 450 rpm
Maximum injection volume: 165-180g
